JM AMG 8833 CP IR Thermal Camera Breakout 8X8 Infrared Thermograph’s
User Manual
JM AMG8833 CP IR Thermal Camera Breakout 8X8 Infrared Thermograph
One. Summary
| 1. Module:JM_AMG8833_CP | 9. No need to calibrate |
| 2. Use AMG8833 IR Sensor | 10. FOV : 60°x60° |
| 3. Resolution : 8×8 | 11. Display center point temperature |
| 4. Temperature measurement range : 0℃~80℃ | 12. Rechargeable Battery |
| 5. Measurement accuracy : +/‐3.5℃(Central point,20~50℃) | 13. TFT size : 1.8inch(display resolution ：160×120) |
| 6. Operate temperature : 10℃~50℃ | 14. Product size : 61x46x18.6mm |
| 7. Operate humidity: <=70% | 15. Power port : Micro USB 5V/1A |
| 8. Refresh rate : 10HZ |

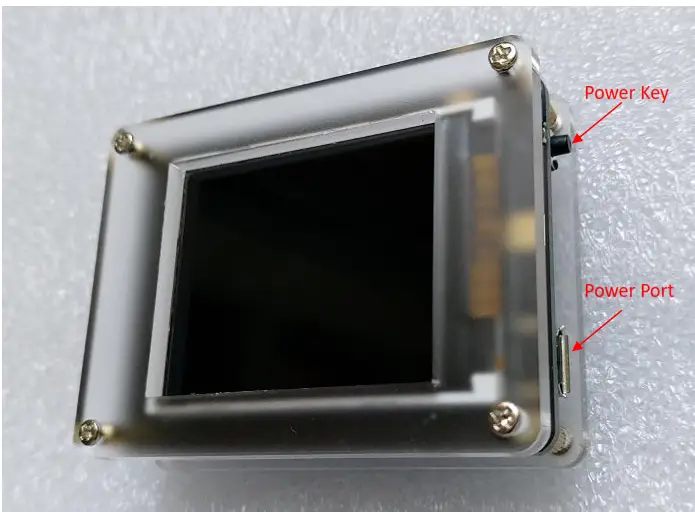

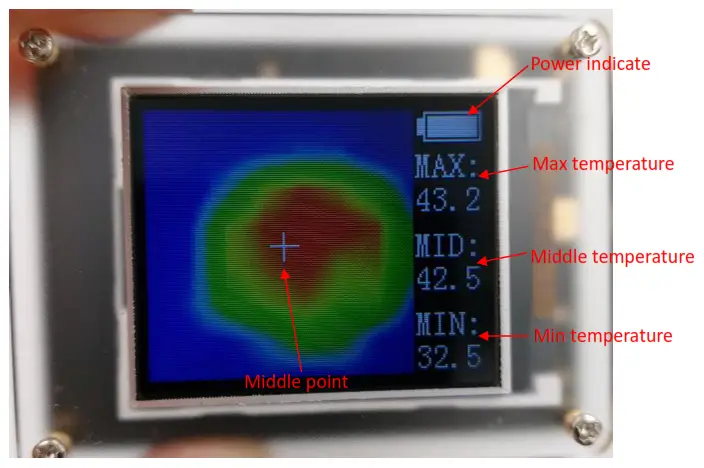

Two. Interface description
Three. Operate description
- Press long Power key, the product will open and it can work.
- Press long Power key to shut down
R0.0
