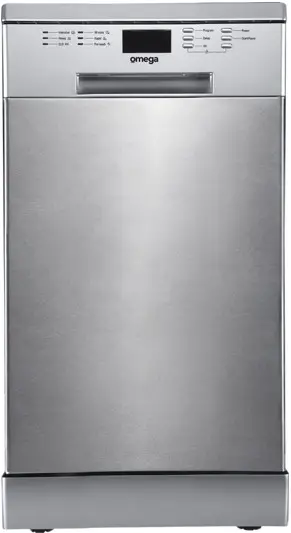

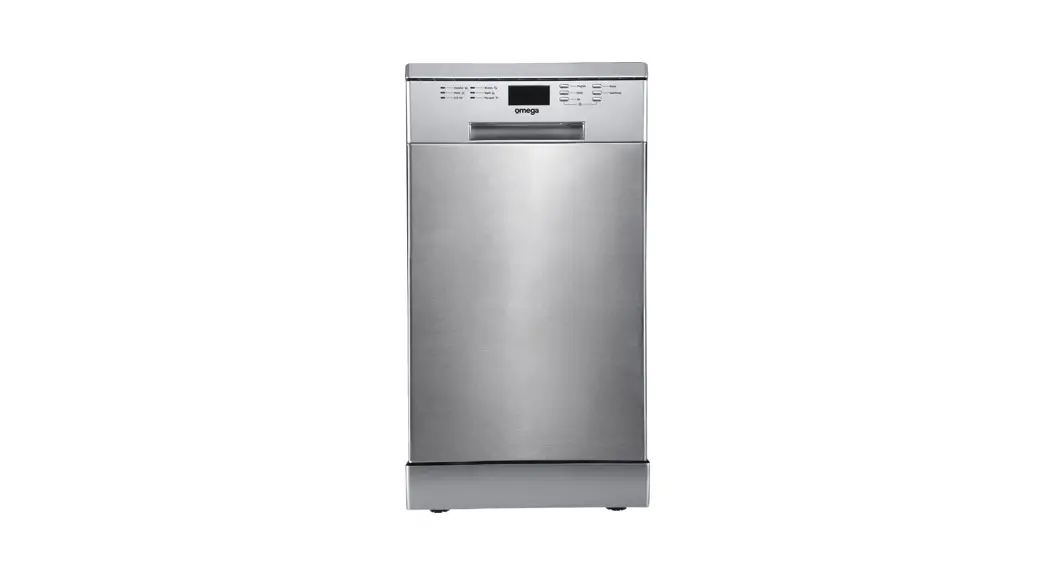

ODW300XN Slimline Freestanding Dishwasher
User Guide

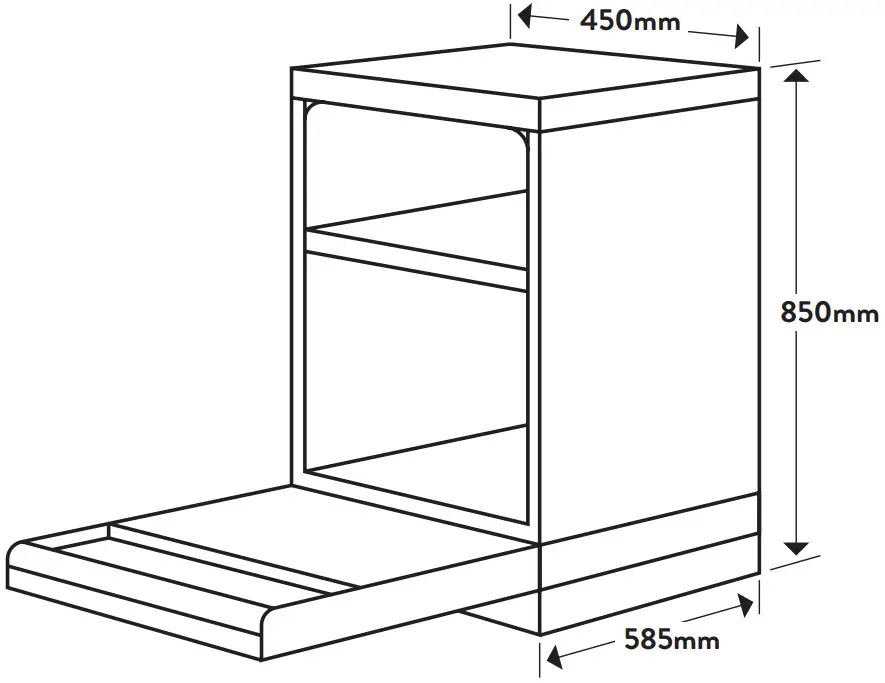

Dimensions/Weight
| Overall Dimensions (mm): | 850(h) x 450(w) x 585(d) |
| Weight: | 43kg |
Aesthetics
| Finish: | Silver Control Panel with a Stainless Steel Door |
| Controls: | Electronic Push Buttons |
Key Features
Cutlery Tray
Keep your all cutlery neat and tidy during a wash cycle with a hardy tray.
Flexible Basket
Every load is different. That’s why we’ve designed a Flexible Basket option that allows you to adapt the interior and fit dishes of all shapes and sizes – anywhere. Simply click the side levers on the top basket to lower it to accommodate things like tall glasses. Or, raise it to allow maximum space for frying pans or serving plates on the bottom drawer.
Technical Details
Style
| Dishwasher Type: | Freestanding |
| Category Size: | 45cm |
Functionality
| Place Settings: | 10 |
| Wash Programs: | Intensive Heavy Normal 90 mins Rapid Prewash |
| Water Rating: | 3.5 Stars |
| Energy Rating: | 3.5 Stars |
| Wash Temperatures (ºC): | 4 – 40, 45, 50 and 60ºC |
| Maximum Water Temperature (ºC): | 70ºC |
| Floating Plug: | Yes |
| Lockable Controls: | Yes |
| Delayed Start: | 24 hours |
| DualZone: | Yes |
| Aquastop Safety Hose: | No |
| Flexible Top Basket: | Yes |
| Cutlery Tray: | Yes |
| Allowable Plate Size: | Up to 30cm |
| Residual Heat Drying: | Yes |
Installation
| Maximum Current: | 10amps |
| Connection: | 240V, 50Hz |
| Water Connection: | Cold Water Recommended |
| Length of hose: | 1.5m |
| Water Pressure: | 40 – 1000kpa |
| Noise: | 49dBA |
| Warranty: | 24 Months Parts and Labour |
Customer Care
T: 1300 739 033 (AU)
E: c[email protected]
09 415 6000 (NZ)
[email protected]
NB: Drawings are not to scale – they are to assist only.
WARNING: technical specifications and product sizes can be varied by the manufacturer without notice. Cutouts for appliances should only be by physical product measurements. The above information is indicative only.
