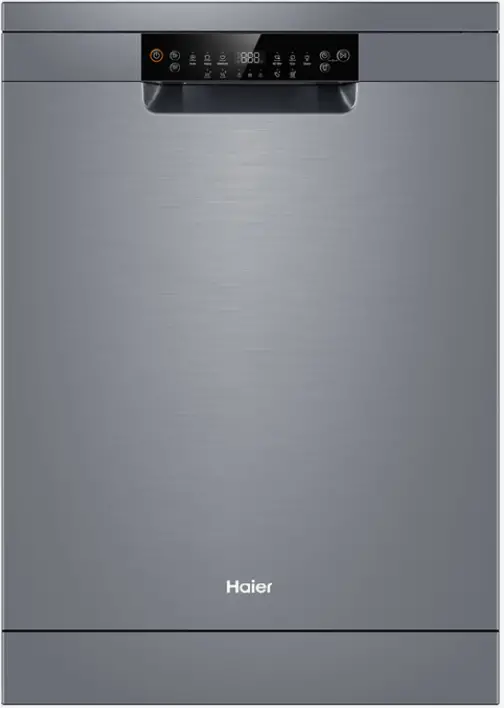

HDW15F2S1 Freestanding Dishwasher
User Guide
HDW15F2S1 Freestanding Dishwasher
QUICK REFERENCE GUIDE > HDW15F2S1
Freestanding Dishwasher
SatinaWith spacious capacity for easy loading, customize your wash with flexible modifiers including Sanitise and Half Load.
- Six wash programs and four wash modifiers including Sanitise
- Generous 15-place setting capacity, easily accommodating plate sizes up to 320mm
- Wi-Fi connected for remote control using the SmartHQTM app and helpful alerts
- 5-star water rating and 4-star energy rating
DIMENSIONS
| Height | 850 – 895 mm |
| Width | 597 mm |
| Depth | 599 mm |
FEATURES & BENEFITS
Sanitise dishes
<>
Advanced drying
For effective drying, the dishwasher door automatically opens at the end of the cycle to help remove excess moisture. Add the +Dry modifier on any cycle for an enhanced dry, ideal for plastics.
Auto Wash sensing
The Auto Wash program uses sensors to detect how dirty your dishes are and set the ideal wash, reducing unnecessary water and energy use for a more sustainable clean.
Flexible loading
With a generous capacity, this dishwasher has a height-adjustable upper basket to make room for tall dishes in the lower basket, plus foldable cup racks and tines.
Smart control
With Wi-Fi capability, you can easily control your dishwasher remotely using the SmartHQTM app and receive helpful alerts.
Considered design
This dishwasher features modern styling and a satin finish to match Haier refrigerators, with soft-touch controls, an LED display, and a child lock for peace of mind.
SPECIFICATIONS
| Capacity and Loading | |
| Accommodates round plates up to | 320mm |
| Accommodates round plates up to | 250mm |
| Fold down tines | • |
| Place settings | 15 |
| Consumption | |
| Energy rating | 4 star |
| Water rating (WELS) | 5 star |
| Controls | |
| Energy saving delay start option of | • |
| Front of door controls | • |
| Smart HQ app compatible | • |
| Wi-Fi connectivity | • |
| Features | |
| Adjustable height, foldable | • |
| Auto Door Open Dry | • |
| Child lock | • |
| Easy lift adjustable upper basket | • |
| Flood protection | • |
| LED display | • |
| Removable cutlery basket | • |
| Rinse aid indicator light | • |
| ThermoDry system | • |
| Triple filtration system | • |
| Performance | |
| Noise emissions | 49dBA |
| Product dimensions | |
| Depth | 599 mm |
| Height | 850 – 895 mm |
| Width | 597 mm |
| Warranty | |
| Parts and labor | 2 years |
| Wash Program Modifiers | |
| +Dy | • |
| Half load | • |
| Intensive | • |
| Sanitise | • |
| Wash modifiers | 4 |
| Wash Programs | |
| 60 min | • |
| Auto | • |
| Eco | • |
| Glass | • |
| Heavy | • |
| Normal | • |
| Wash programs | 6 |
| SKU | 61613 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
