QUICK REFERENCE GUIDE > HDW15F3S1
Freestanding Dishwasher, Steam
Satina

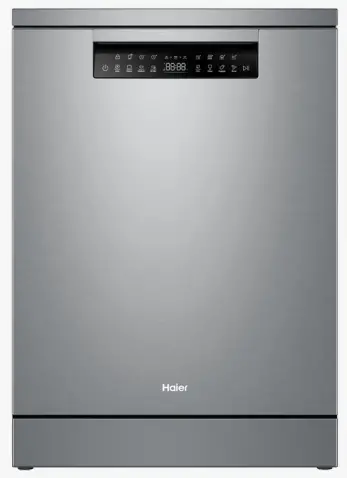

HDW15F3S1 Freestanding Dishwasher, Steam
With spacious capacity for easy loading, take care of your dishes with advanced wash programs including Hygiene and a Steam wash modifier.
- Eight wash programs and four wash modifiers including Steam
- Generous 15 place setting capacity, easily accommodating plate sizes up to 320mm
- 5.5 star water rating and 4.5 star energy rating
- Wi-Fi connected for remote control using the SmartHQ™ app and helpful alerts
DIMENSIONS
| Height | 850 – 895 mm |
| Width | 597 mm |
| Depth | 599 mm |
Steam sanitise
<>
Advanced drying
For effective drying, the dishwasher door automatically opens at the end of the cycle to help remove excess moisture. Add the +Dry modifier on any cycle for an enhanced dry, ideal for plastics.
Auto Wash sensing
The Auto Wash program uses sensors to detect how dirty your dishes are and set the ideal wash, reducing unnecessary water and energy use for a more sustainable clean.
Flexible loading
Generous capacity with a height-adjustable middle basket to make room for tall dishes in the lower basket, this model also features a full-width cutlery tray, wine glass stemware supports and foldable cup racks and tines.
Smart control
With Wi-Fi capability, you can easily control your dishwasher remotely using the SmartHQ™ app and receive helpful alerts.
Considered design
This dishwasher features modern styling in a satina finish to match Haier refrigerators. The control panel is angled for easy reading, with touchcapacitive controls and a child
lock.
SPECIFICATIONS
Capacity and Loading
| Accommodates round plates up to | 320mm |
| Accommodates round plates up to | 200mm (with cutlery tray), |
| Fold down tines | • |
| Place settings | 15 |
| Wine glass supports with | • |
Consumption
| Energy Consumption (Normal Eco | 206kWh/year |
| Energy rating | 4.5 star |
| Water consumption per cycle | 11.1L |
| Water rating (WELS) | 5.5 star |
Controls
| Electronic capacitive touch controls | • |
| Energy saving delay start option of | • |
| Smart HQ app compatible | • |
| Wi-Fi connectivity | • |
Features
| Adjustable height, foldable | • |
| Auto Door Open Dry | • |
| Child lock | • |
| Easy lift adjustable middle basket | • |
| Flood protection | • |
| Full width cutlery/utensil tray | • |
| Motor type | BLDC |
| Rinse aid indicator light | • |
| ThermoDry system | • |
| Triple filtration system | • |
Performance
| Noise emissions | 44dBA |
Product dimensions
| Depth | 599 mm |
| Height | 850 – 895 mm |
| Width | 597 mm |
Warranty
| Parts and labour | 2 years |
Wash Program Modifiers
| + Dry | • |
| Half load | • |
| Intensive | • |
| Steam | • |
| Wash modifiers | 4 |
Wash Programs
| 60 min | • |
| Auto | • |
| Eco | • |
| Glass | • |
| Heavy | • |
| Hygiene | • |
| Normal | • |
| Rinse | • |
| Wash programs | 8 |
| SKU | 61616 |
The product dimensions and specifications in this page apply to the specific product and model.
Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
