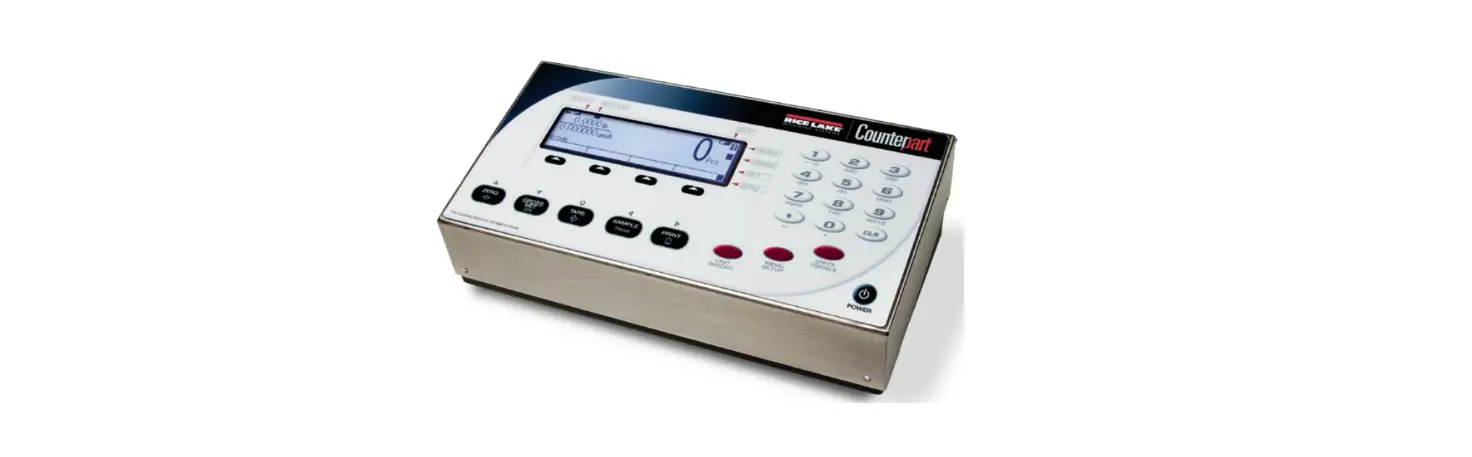

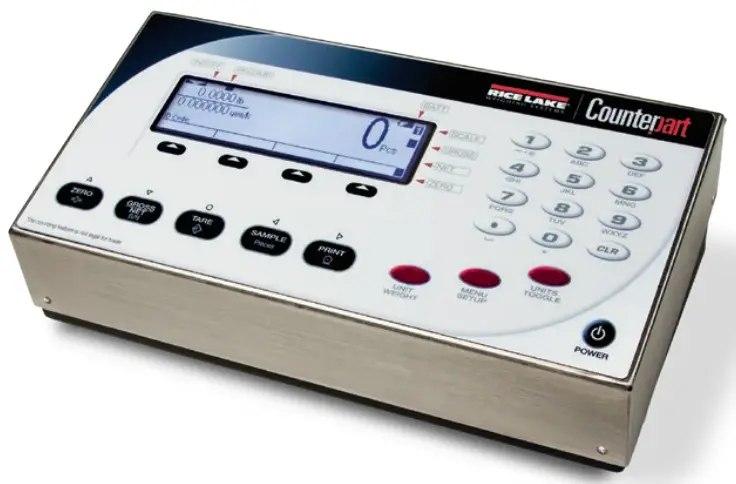

RICE LAKE CB-3 Concrete Batch Controller
Standard Features
- AC operated (battery operation is optional)
- LCD graphic transmissive display for indoor viewing
- Lb/kg/oz/g weight display conversion
- Single- or dual-channel models with serial scale input
- Mix and match platforms with console
- Four setpoint outputs for counting
- Two RS-232 ports for connecting peripherals
- Ethernet TCP/IP
- Scanner input (RS-232)
- PC software utility (Revolution®) for setup
- 150 item memory
Options
- Battery
- USB for USB keyboard
- WeighVault™ for Counterpart
- DIGI® Scale Base

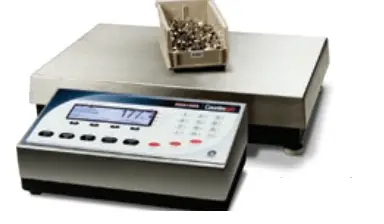

- Shown with BenchMark® Scale Base and Bracket

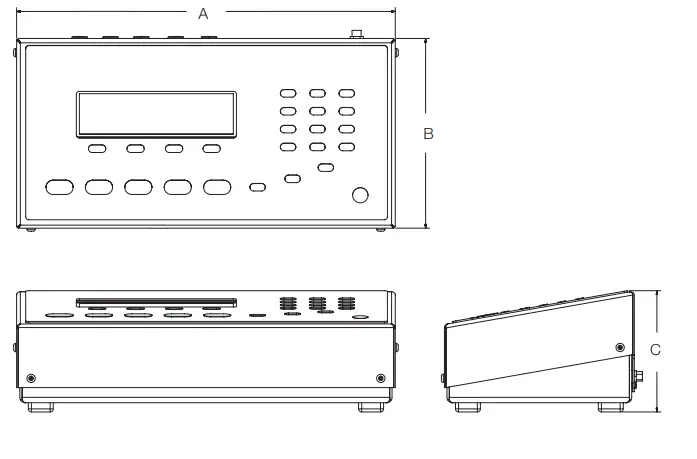

| Dimensions | |||
| A | 12.3 in (312.4 mm) | C | 3.94 in (100 mm) |
| B | 6.17 in (156.7 mm) | ||
Specifications
SpecificationsPower Source
- Input: 100-240 VAC, 47-63 Hz, 5 watts, U.S. power cord
- Output: 9-12 V, 1.5 A max
Excitation Voltage
- 5 VDC
Analog Signal Input Range
- 0-4.5 mV/V
Analog Specifications
- Grad minimum: .3 μV/grad
- Input sensitivity: 1.5 μV/grad recommended
- Zero adjustment range: 0-100% or per region settings
- A/D conversion rate: 7.5, 15, 30 samples per second Load cells per scale: 8 x 350 Ω; 16 x 700 Ω
- Scale channels: 1 or 2
- Linearity: ±0.017 full scale
Circuit Protection
- RFI, EMI, ESD protection
Digital I/O
- Four
Display
- Viewing area: 240 x 64 pixels, transmissive VGA
- liquid crystal display (LCD) with adjustable contrast
Keypad
- 24 buttons, full keypad (alpha numeric)
Resolution
- Weight display resolution: up to
- 100,000 graduations
- Counting resolution: 1/1,000,000
Communications and Setpoint
- Two RS-232 ports support up to 115,200 bps
- 20 mA
- Ethernet port
- Setpoint output
Status Annunciators
- PCS, motion, low battery, insuff, recomp, scale number, gross, net, zero
Units of Measure
- Pounds, kilograms, grams, ounces
Prints
- Standard EPL label format; format is changeable to work with virtually any printer
Optional Battery
- Type: Lithium-ion
- Charge time: 6 to 8 hours
- Charge cycles: 400-1,200
- Estimated runtime: 24-32 hours with one 350 Ω load cell base
Operating Temperature
- 32º F to 104º F (0º C to 40º C)
Operating Humidity
- 85%
Physical Dimensions
- Indicator only (L x W x H): 12.25 x 6.25 x 4.0 in
- (311.15 x 158.75 x 101.6 mm)
Warranty
- Two-year limited warranty
Approvals:
- NTEP CC 12-110
- CE
- UL listed
- Measurement Canada
Part Number/Price
| Part# | Description | Est. Weight | Price |
| 177746 * | CB-3 concrete batching controller, metered water, PC included | 180 lb | $22,500.00 |
| 177747 * | CB-3 concrete batching controller, weighed water, PC included | 180 lb | $22,995.00 |
| FLD-INSTALL | Factory field installation required (minimum 3 days on site) | $1,395.00 per day | |
| FLD-INSTALLSA | Factory field installation, Saturday | $2,095.00 | |
| FLD-INSTALLSU | Factory field installation, Sunday | $2,790.00 |
Options/Accessories
| Part # | Description | Price |
| 175877 | Upgrade kit CB-2 to CB-3, PC included | $9,445.00 |
| 179209 | Accessory kit (includes monitor, keyboard, USB hub and mouse) | $302.00 |
| 179210 | Monitor, Acer | $240.00 |
| 179211 | Keyboard, Microsoft | $45.00 |
| 179212 | Mouse, Microsoft | $42.00 |
| 185667 | USB Hub | $13.95 |
| 186277 | Wireless USB adapter WI-FI | $60.00 |
| 196700 | 4 Additional Admix controller | Consult |
Completed questionnaire required prior to ordering this system. Questionnaire available at www.ricelake.com/resources/product-questionnaires

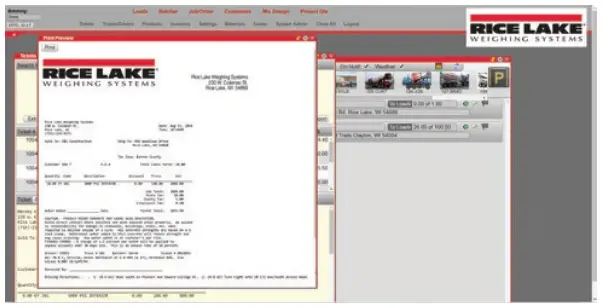

- CB-3 Ticket Output

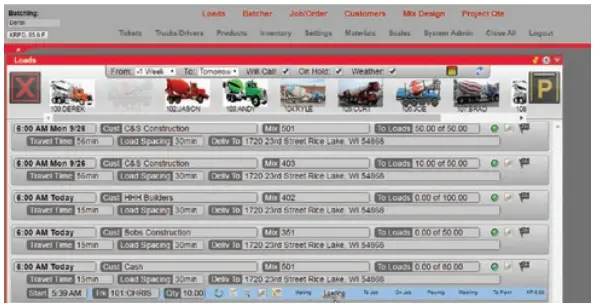

- CB-3 Truck Monitoring Screen

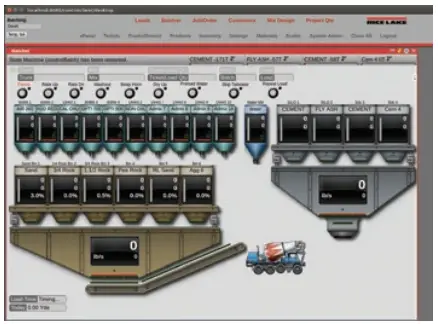

- CB-3 Batcher Screen
An ISO 9001 Registered Company © 2021 Rice Lake Weighing Systems 01/21 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.
www.ricelake.com | Phone: 800-472-6703
