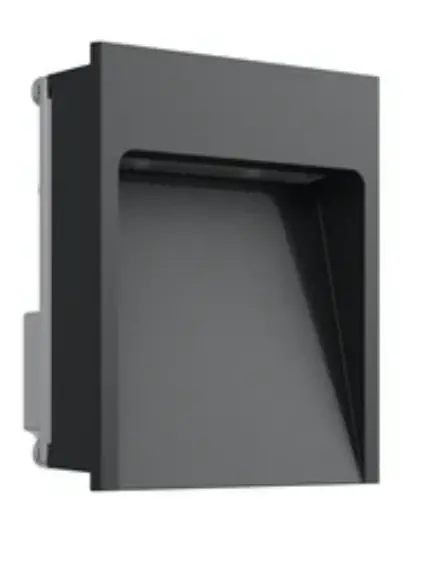

FLOS F4350030 Outdoor Wall-Ceiling Lights
My Way 110×100 Black
■ F4350030 – Black
Luminaire for outdoor use for built-in installation on the wall with LED light source.
Aluminum die-cast body EN AB-47100 (low copper content).
High-resistance coating: after a sandblasting treatment of all components to make the surface porous and ensure a greater adhesion of the paint, the external coating is applied with a double layer with epoxy powders according to the QUALICOAT standard. The first layer of epoxy powder gives chemical and mechanical resistance, the second finishing layer of polyester powder ensures resistance to UV rays and atmospheric agents.
The painted surfaces are treated with alkaline and acidic washes, then rinsed with demineralized water, subjected to a chemical conversion treatment to protect against oxidation.
Frosted polycarbonate diffuser, UV-stabilised, glued to the head of the product to ensure a watertight seal.
Integrated 110/240V power supply. Supplied with a 120 mm lenght outgoing neoprene cable and IP67 cable connection system.
Dimmable version on request
Main specifications
| Lamp category | LED |
| Power (W) | 5 |
| CCT (K) | 2700K |
| CRI | 80 |
| Net lumen (lm) | 188 |
| Mountings | Wall recessed |
| Environment | Outdoor wet location |
Optical
| Lighting type | Direct |
| LED type | Power LED |

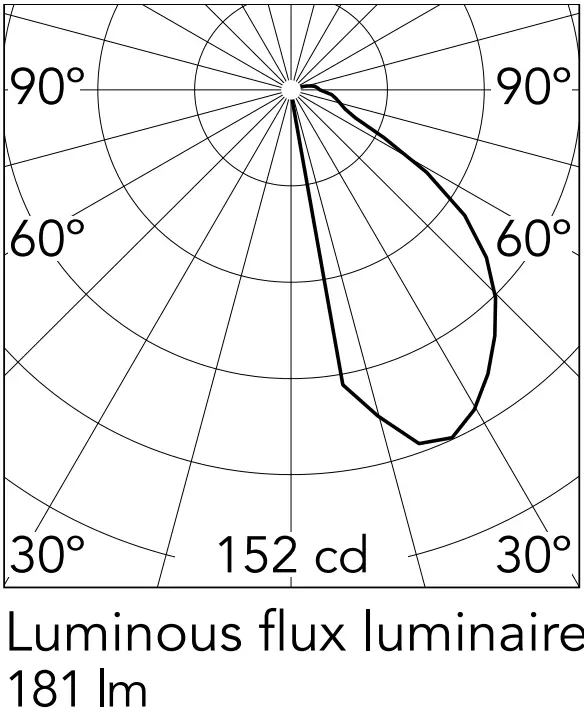

| Light distribution | Asymmetric |
| Optical type | Asymmetric |
| Beam angle (°) | 50 |
| Beam angle C90-270 (°) | 74 |
Electrical
| Frequency (Hz) | 50-60 |
| Voltage (V) | 100-240 |
| Dimmable | Yes |
| Driver | Integrated |
| Driver type | Non Dimmable |
| Emergency | Without |
| Insulation class | I |
Physical
| Color | Black |
| Orientation | Fixed |
| Weight (kg) | 0.52 |
Note
We recommend using a connection system with a degree of protection greater than or equal to the degree of protection of the luminaire.
During the installation and the maintenance of the fixtures it is important to be careful and avoid damages on the paint coating.
Damages on the coating exposed to outdoor conditions or water, could cause corrosion.
Chemical substances affect the anticorrosion covering protection.
For LED fixtures, there is evidence that most of the damages are connected to electrical effects related to the insulations, which cause destructive electrical discharges
These effects are frequently caused by:
• over voltage coming from the mains’ network where fixture is connected.
• electrostatic discharge (ESD) coming from the environment.
The use of a protective device against the overvoltage on the electrical installation is warmly suggest this helps to reduce the intensity of some of these phenomenon and prevent irreversible damages. The selection of the type of device to be used must be adjust on the electrical plant.
 |  |  |

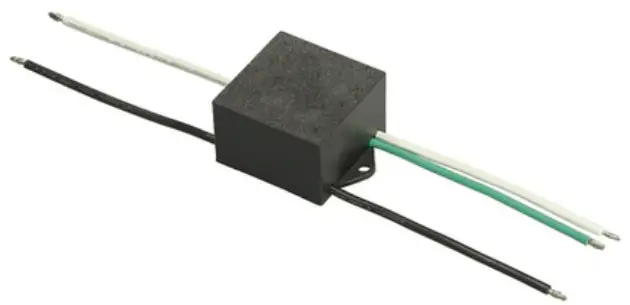

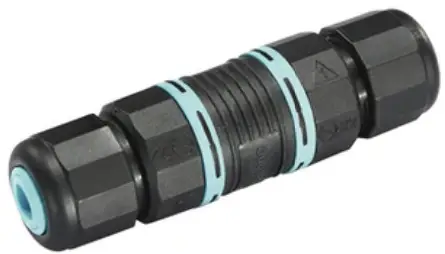

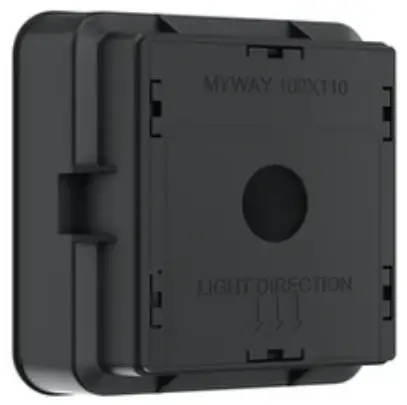

| S.P.D. (SURGE PROTECTION DEVICE) F990E00A000 | 2 way terminal block 4 poles IP68 H20 stop. (ø5,5÷12mm cable) F990C00A000 | Box for installation F4301000 |
https://www.flos.com/professional-space/outdoor/products/my-way-110×100-black-f4350030/
www.flos.com – [email protected]
