UST-500 Universal Cable Stripping Tool
Instructions

UST-500 Universal Cable Stripping Tool

INSTRUCTIONS:

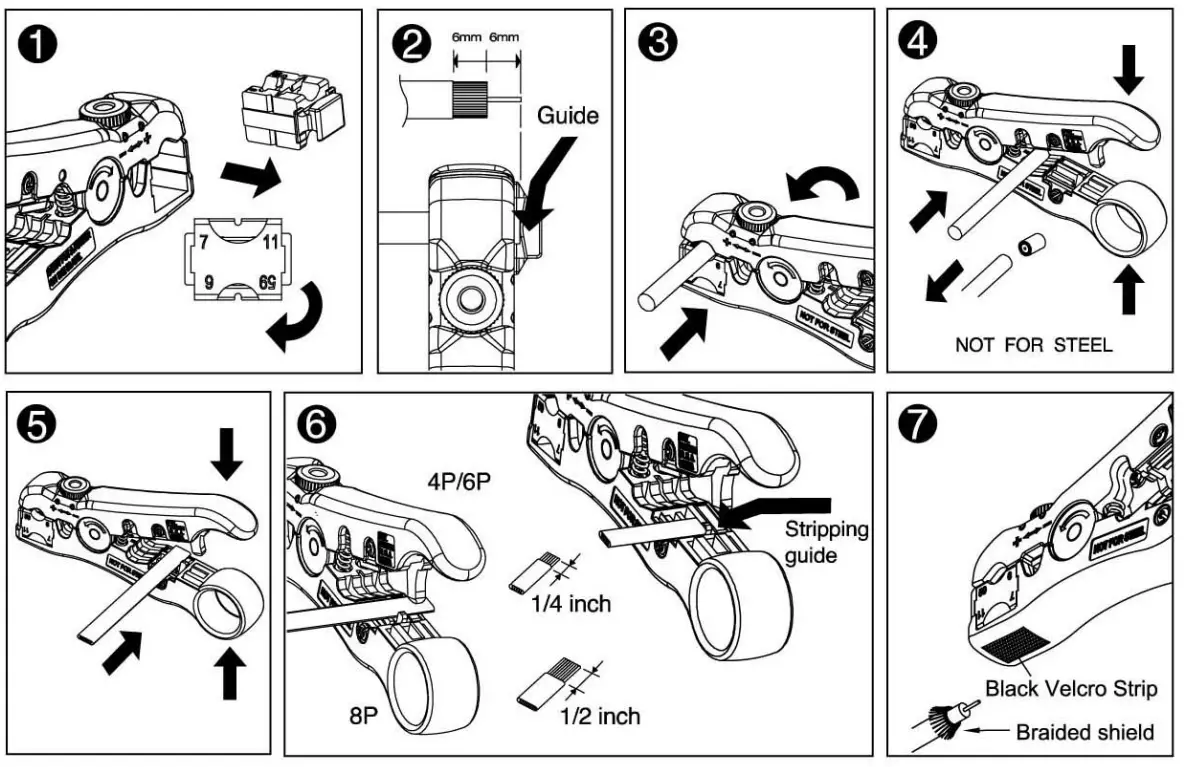

For Coax Cable

1. Reversible cassette for RG59/6 and 7/11-push to change.
2. Insert cable up to the cable guide
3. Rotate cable counter-clockwise using finger ring 3-5 times, open jaws, and remove the cable. Pull the outer jacket off the cable.
   For Round Networking Cable
4. Insert cable in the second stripping hole. Rotate cable counterclockwise using finger ring 1-3 times, open jaws, and remove the cable. Pull the outer jacket off the cable.
   For Cutting Cable
5. Insert cable in the third slot and squeeze For Flat Cable Insert the cable between the stripping blades. Squeeze handles-be sure to keep cables perpendicular, then pull.
6. Insert 4P/6P cable into the two-bladed side of the tool’s stripper until it touches the guide. Insert 8P cable into the two-bladed side of the tool’s stripper and let it extend a little past the lower cut blade.
7. The tool has a black velcro strip for folding back the braided shield of the cable.
