Honeywell Scanpal Eda10a 10inch Tablet User Guide

SCANPAL™
EDA10A

10-INCH TABLET

Configuration Guide

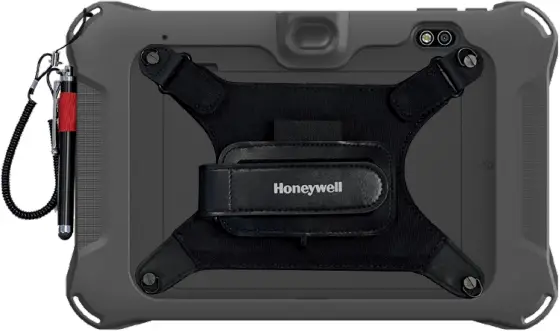

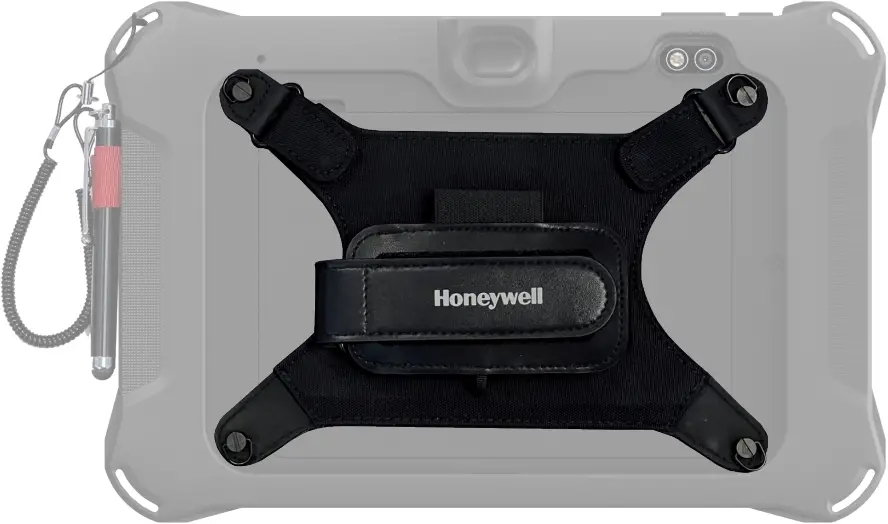

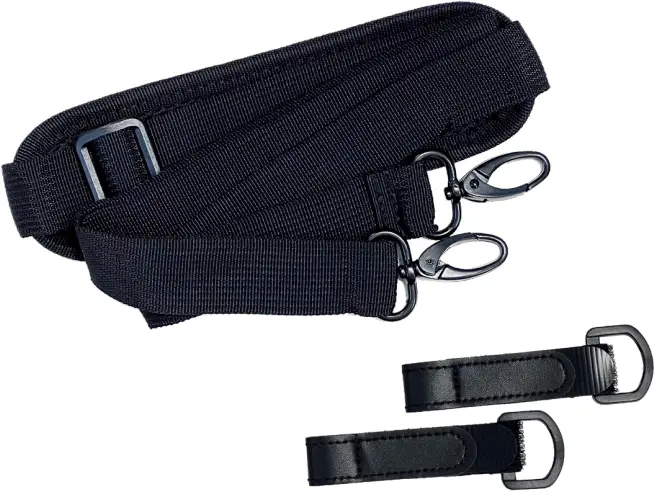

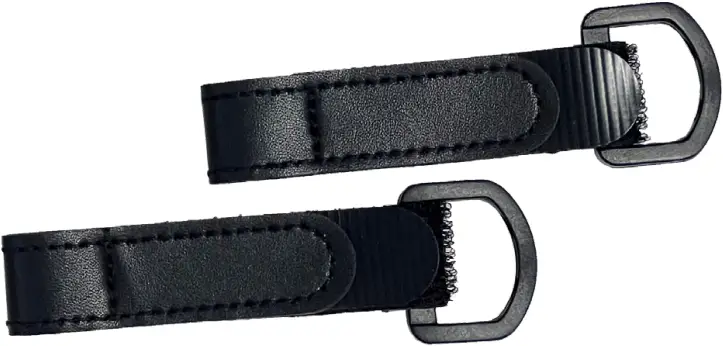

HAND STRAP

DISPLAY BASE

QUAD CHARGER

EDA10A 5G Wi-Fi 6

GLOBAL


Connector   4G LTE / GPS   Wi-Fi / BT         Scanner

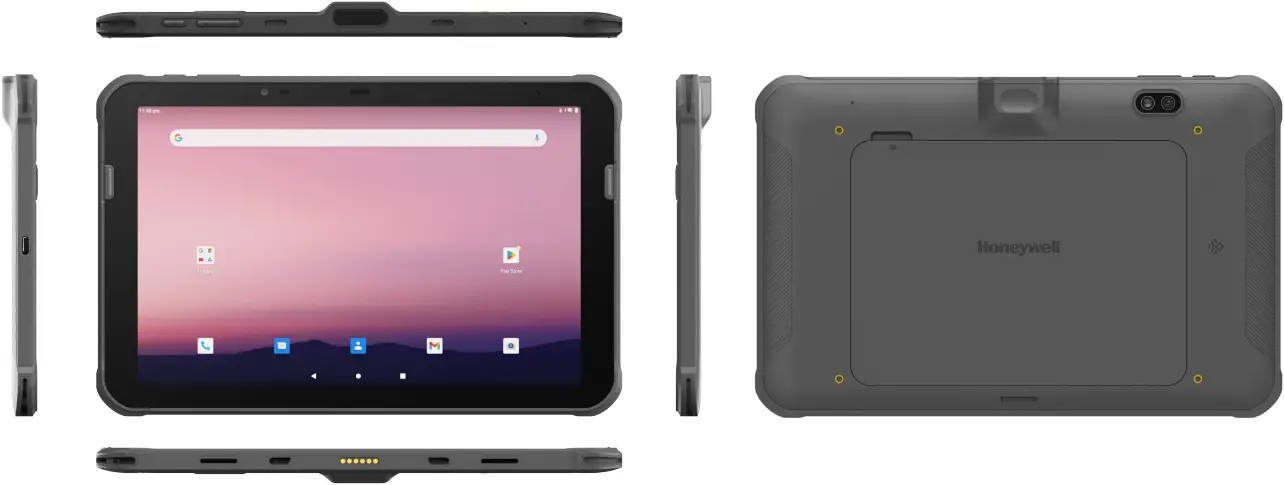

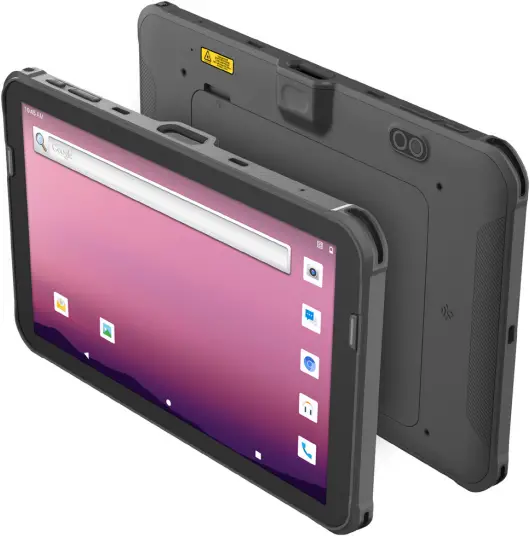

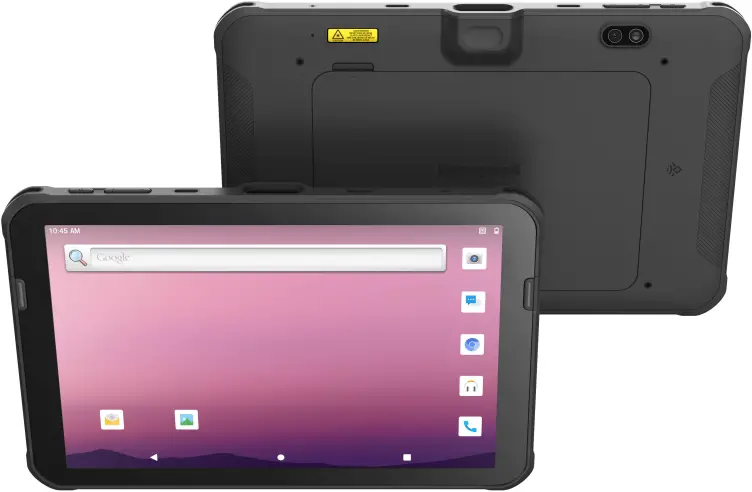

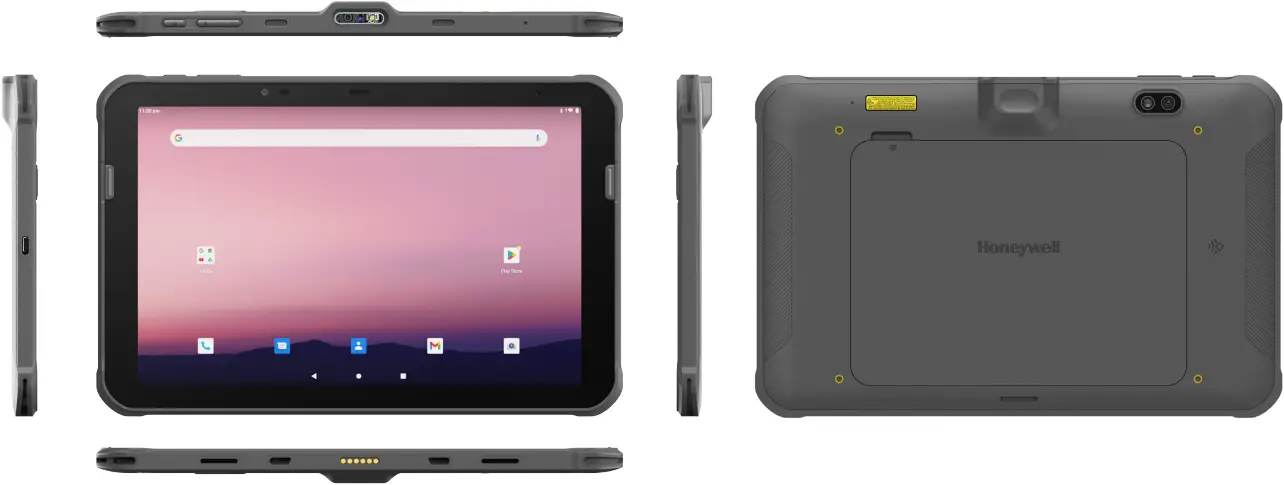

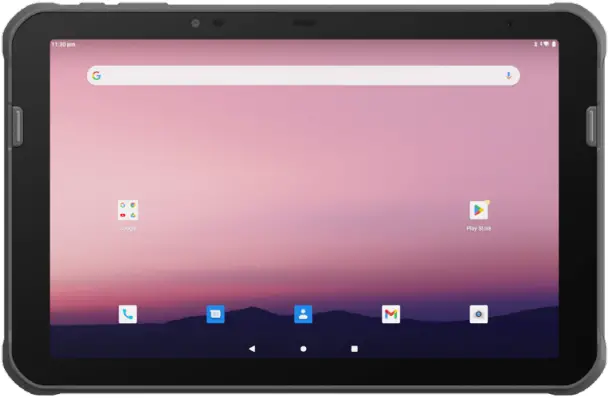

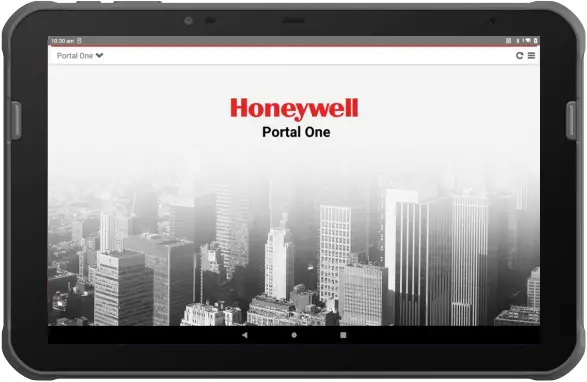

EDA10A FEATURE OVERVIEW

S0703 Standard Range

Included in the box:

• EDA10A Mobile Computer
• Battery (EDA10A-BAT)

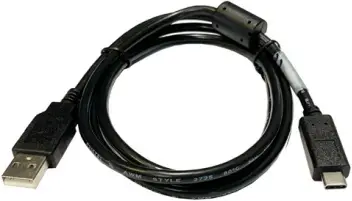

• USB Type C cable

S0703 Standard Range


Connector   4G LTE / GPS   Wi-Fi / BT        Scanner

No Scanner

Included in the box:

• EDA10A Mobile Computer
• Battery (EDA10A-BAT)
• USB Type C cable

Note: Not all tablet combinations are available in every region.
Check your local Price Book to see which part numbers are available for sale.

(Note: x = Region, select appropriate Region from Configuration Map on page 4)

Honeywell Repair Services

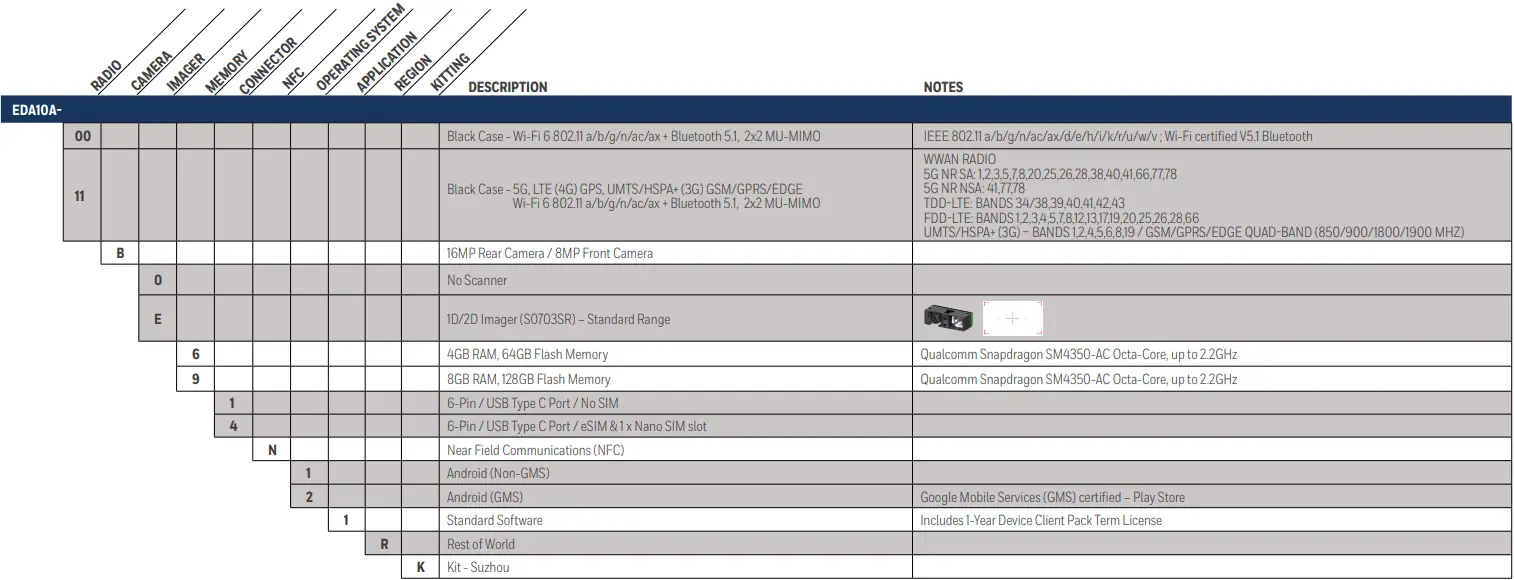

EDA10A CONFIGURATION MAP

Android

HONEYWELL EDGE SERVICES

EDA10A – Repair Services

Honeywell Edge Services give you the confidence of having leading-class technologies combined with service and support plans that are designed to keep you operational for longer. For a full description of maintenance services, including terms and conditions, please see https://sps.honeywell.com/us/en/services/productivity/support-services/maintenance-services

Gold Repair Services – 3 Year

The most flexible contract in the industry. The Edge Services Gold Support contract allows you to select the right coverage for your organization, including 5-Day Depot Repairs and:

Service Overview

• Repair or replacement of damaged components, wear and tear, and accidental damage.
• Flexibility to add any Add-On Service
• Android Service – includes Android OS Upgrades, Maintenance Releases and Security Patches

Platinum Repair Services – 3 Year

The Edge Services Platinum Support contract is the only total support contract in the industry today offering 2-Day Depot Repairs or Spare Pool Management with 3-year contract, that includes:

Service Overview

• Repair or replacement of damaged components
• SVCREPLACE-MOB3 – Replacement devices should a device be damaged beyond repair
• SVCACC-MOB3 – Accessory replacement service
• SVCBATTERY-MOB3 – Battery replacement service
• SVCSPAREMGMT-MOB3 – Spare pool management (optional, minimum quantity required)
• Telephone-based technical support
• Android Service – includes Android OS Upgrades, Maintenance Releases and Security Patches

HONEYWELL REPAIR SERVICES

EDA10A – Repair Services Coverage

Service options tailored to customer requirements

EDA10A

Warranty Cover Against Product Defect

BASIC Service

Gold Coverage:

• Accidental Damage
• Wear & Tear
• Android Service

Includes Replacement of:

• Screen Protector

Flexible GOLD Add-Ons ordered separately

• SVCACC-MOB3                           Accessories

• SVCBATTERY-MOB3                Batteries

• SVCREPLACE-MOB3                Device Replacement
• SVCIMAGEMGMT-MOB3        Image Service
• SVCSPAREMGMT-MOB3         Advanced Exchange

GOLD Service

Platinum Coverage

• Battery Replacement
• Coverage for Docks/ Chargers
• Android Service
• Accidental Damage
• Device Replacement
• Wear & Tear

Protective Boot                                              Chargers

Battery                 Dock                  Docks Power Supplies

(3 Year – 1 replacement battery per EDA10A)

PLATINUM Service

EDA10A SOFTWARE

Device Client Pack

The Device Client Pack (DCP) includes Launcher, Enterprise Browser, BasicTE, and Mobility Web SDK, these applications are pre-loaded on the device.
All EDA10A units include a 1 Year DCP Termed Pre-License for initial evaluation of the DCP applications (it does NOT include a Perpetual Pre-License), after the 1 Year Term period expires, a Perpetual or Term license is required to be purchased.
There are two licensing options that can be purchased for DCP:

1. Perpetual License                          Purchase DCP-001 – Perpetual Licenses operate without expiration for the authorized software version features, and includes 1 year of Maintenance. Add additional Software Maintenance separately.
2. Term + Maintenance License      Purchase DCP-SFT1, DCP-SFT2, DCP-SFT3, DCP-SFT4 or DCP-SFT5 – Term + Maintenance Licenses provide software operation, software new version features, and tech support, all for a defined period.

Device Client Pack

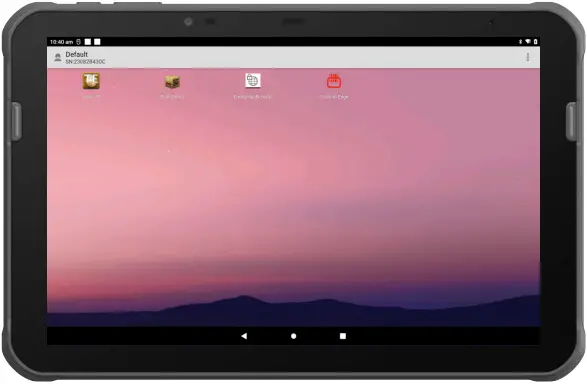

Launcher

Launcher – gives the customer total control over which apps can be run on the device.

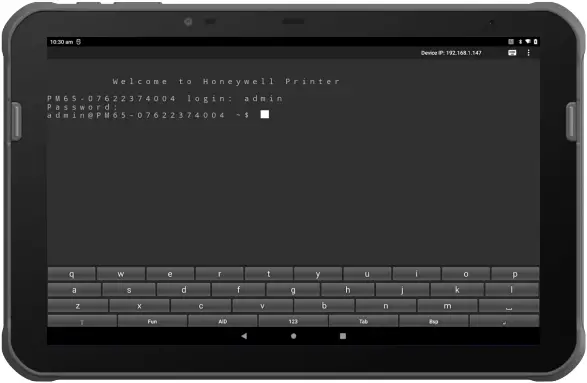

BasicTE

BasicTE Android device Terminal Emulation is a simplified alternative for those not yet ready to upgrade to SmartTE.

Enterprise Browser

Enterprise Browser provides corporations the ability to run standard web applications from a controlled environment.

EDA10A PROTECTIVE BOOT

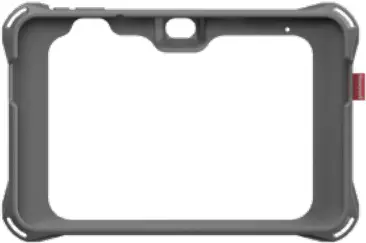

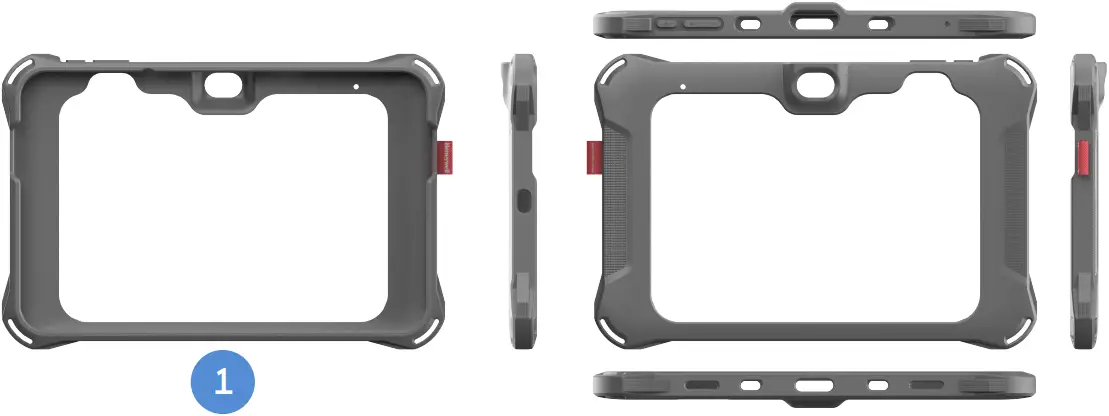

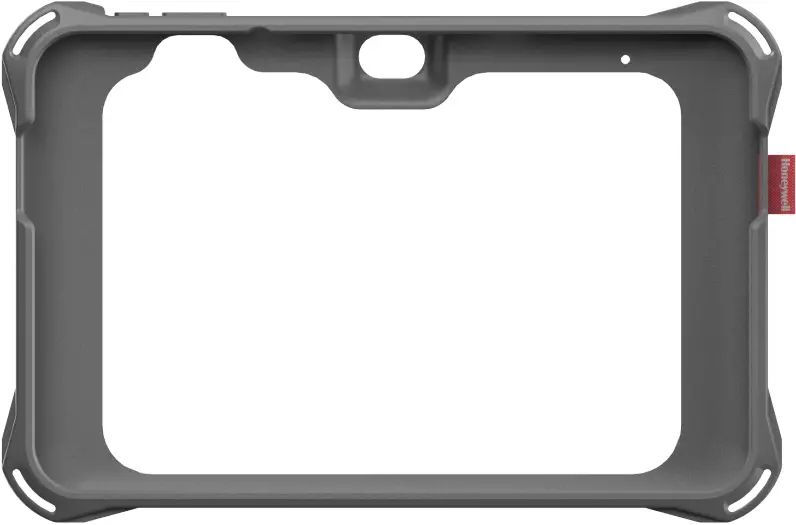

Protective Boot

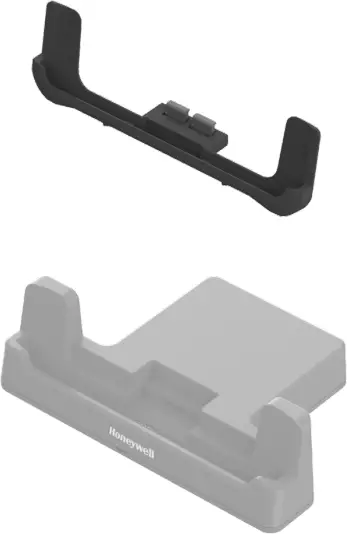

EDA10A with Protective Boot is compatible with any terminal charger EDA10A-SC-R (Single Charge Dock) or EDA10A-DB-x (Display Base) when protective boot is installed.

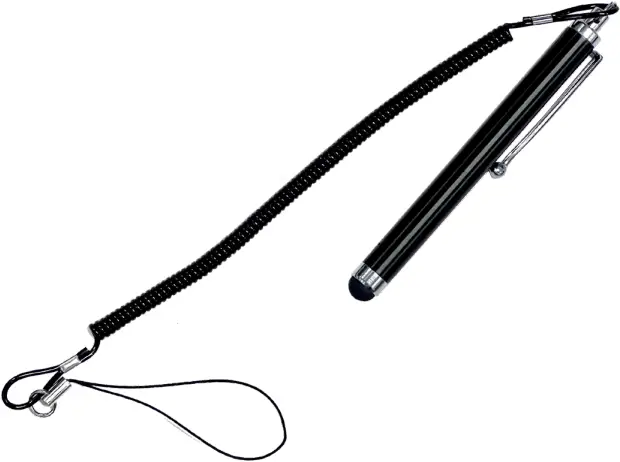

EDA10A with Protective Boot is compatible with the handstrap and stylus.

EDA10A DESKTOP COMMUNICATIONS

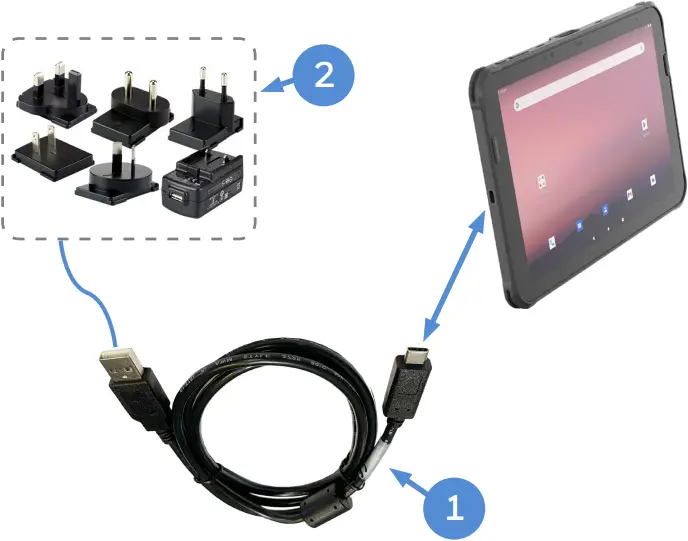

Option 1 – Portable

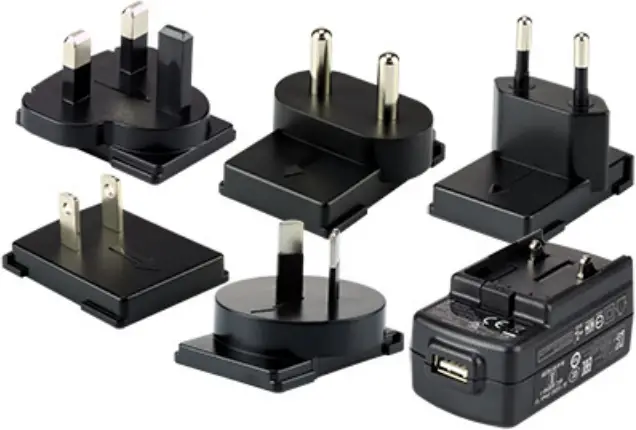

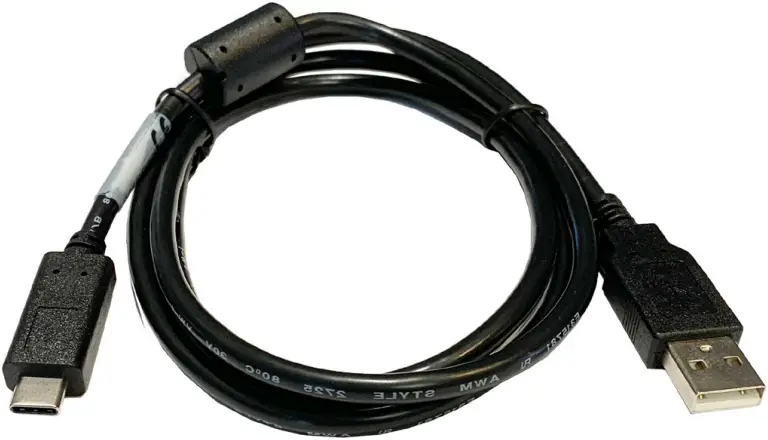

USB Communication to PC/ Mac OR USB C Charging.
Compatible with EDA10A-RB-0 Protective Boot.

Option 2 – Fixed

USB C charging.
Compatible with EDA10A-RB-0 Protective Boot by removing the EDA10A-ADC adapter cup.

Rear View – USB C Port

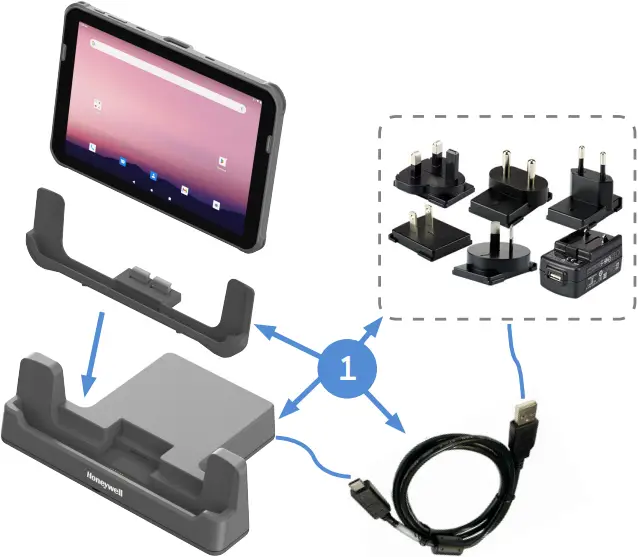

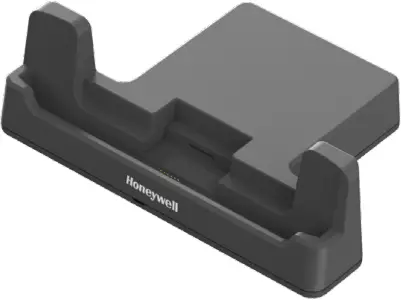

Option 3 – Display Base

Connect USB peripherals (keyboard, mouse) and External Monitor via HDMI.
Compatible with EDA10A-RB-0 Protective Boot by removing the EDA10A-ADC adapter cup.

POWER HDMI USB A Ethernet

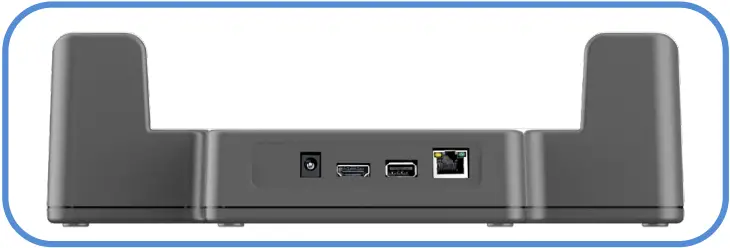

Rear View

2 x USB Type A on the side
Side View

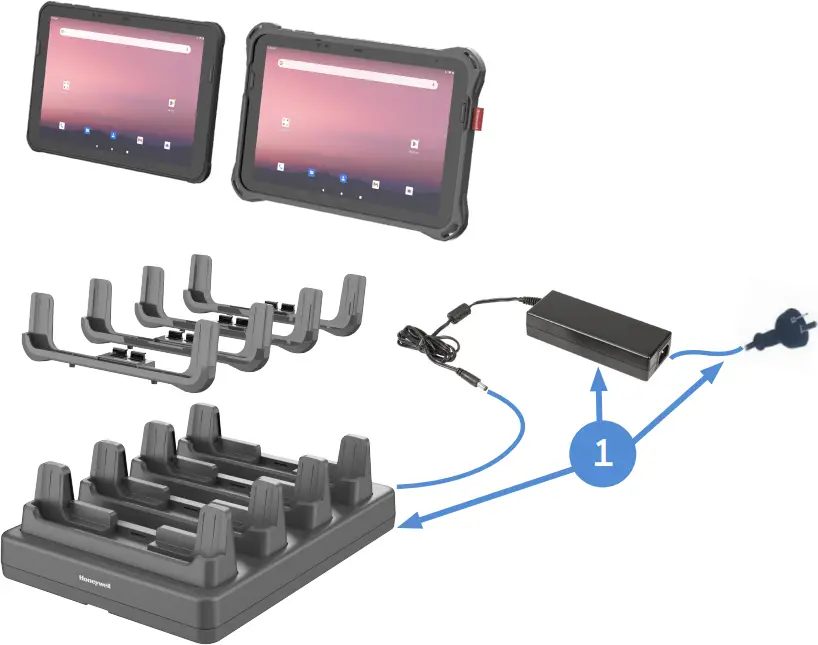

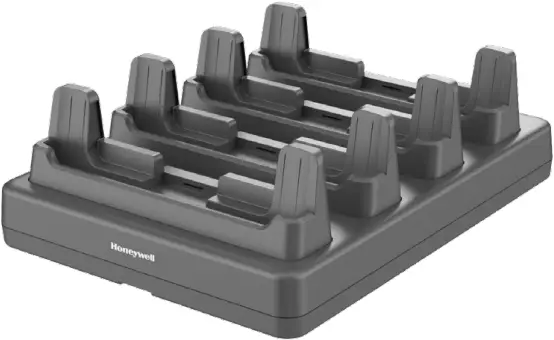

Option 4 – Quad Charger

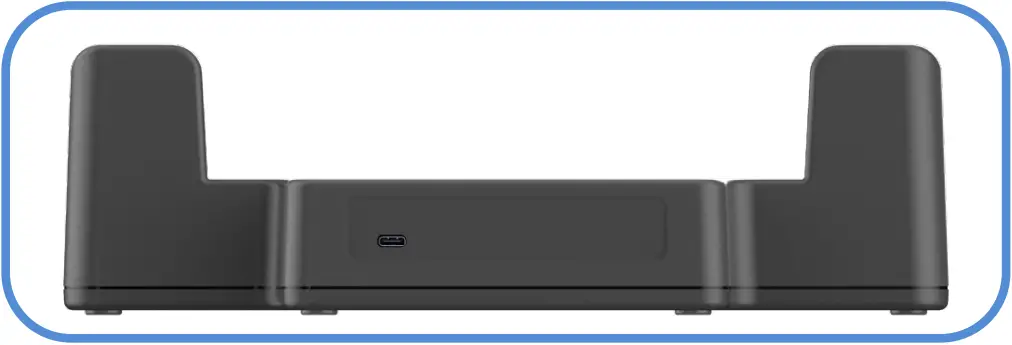

Chargebase – Quad Dock Charge Only
Compatible with EDA10A-RB-0 Protective Boot by removing the EDA10A-ADC adapter cup.

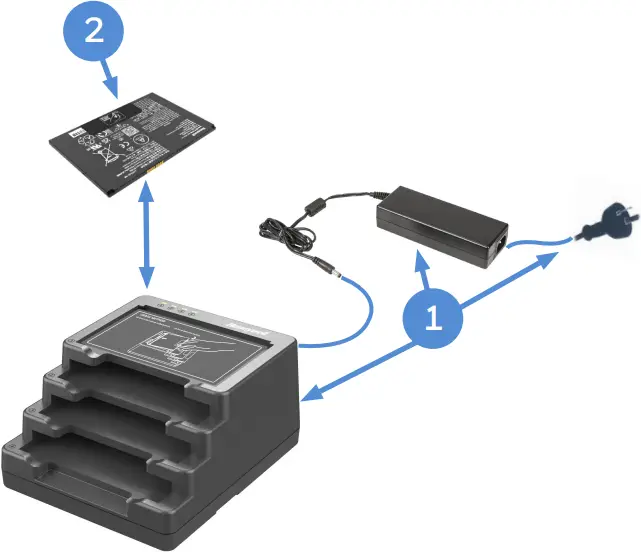

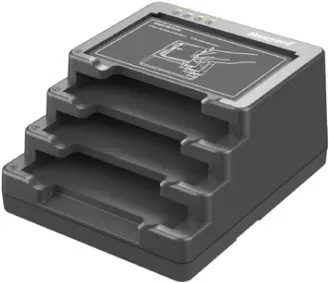

Option 5 – Quad Battery Charger

Charge up to 4 batteries simultaneously

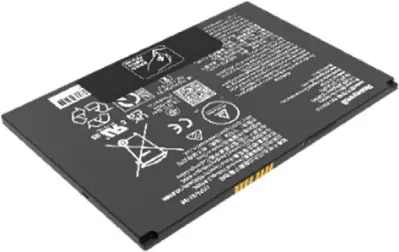

Supports Batteries: EDA10A-BAT – Battery, Standard, ScanPal EDA10A (8000mAh)

EDA10A VESA MOUNT

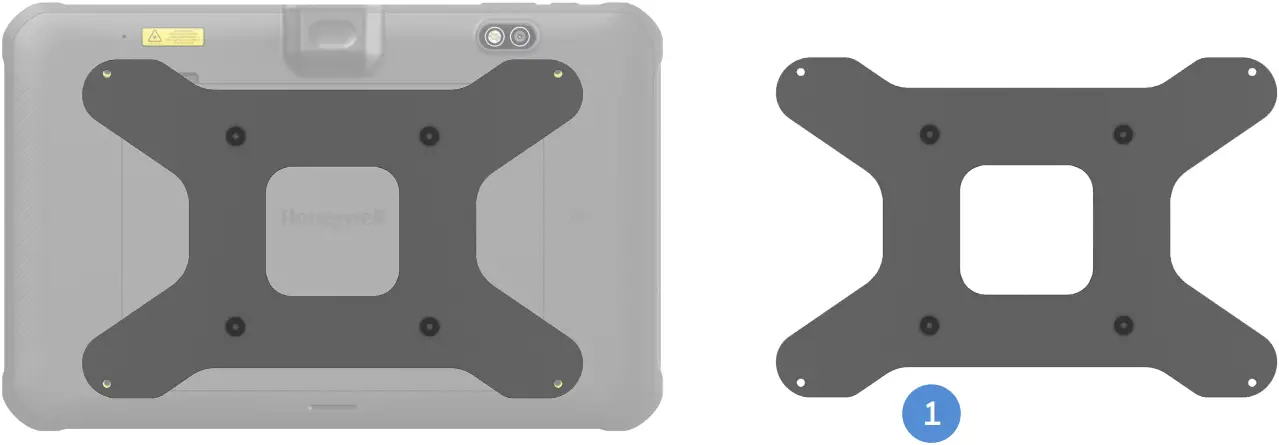

Stationary Mounting

VESA Mount for permanent mounting of the EDA10A, used in combination with USB C power supply as the plate restricts access to the battery.

EDA10A HEADSET

EDA10A Push To Talk (PTT) and VoIP Headset

PTT and VoIP ready to support In-Store Communication with leading 3rd party applications.

a) Ear Piece
b) Push Button
c) Clip to attach to clothing

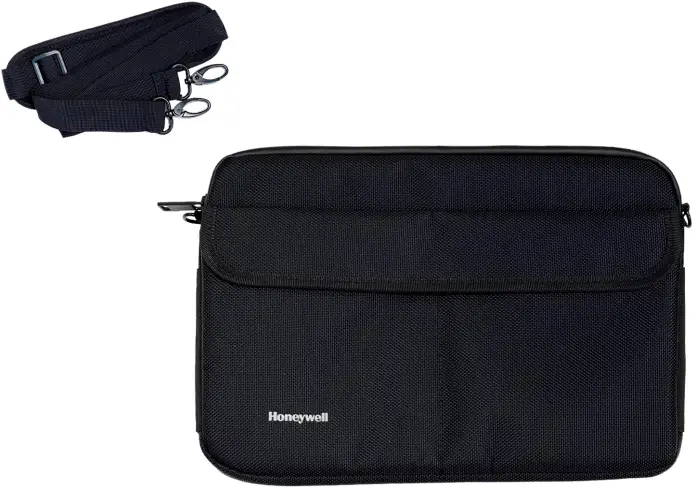

MISCELLANEOUS

Optional Parts

IEC C14

IEC C14

Micro-SD Cards

Honeywell Recommended – ATP Industrial Grade Micro SD Cards

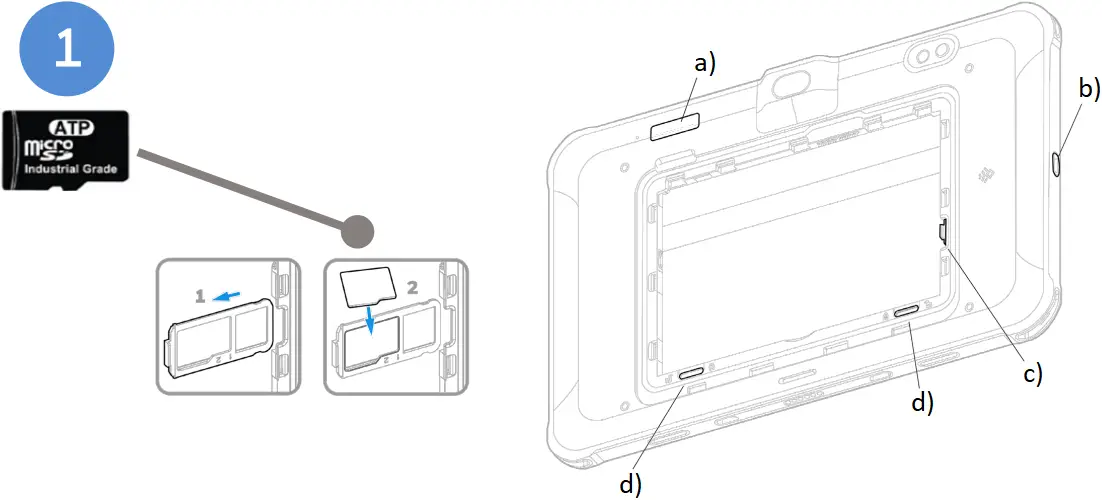

a) Laser Safety Label Location (model dependent)
b) USB, Type C
c) Micro-SD/Nano-SIM Card Slot
d) Battery Release Latch

Why ATP Industrial Grade SD?

ATP’s SIP (System-In-Packaging) manufacturing process encapsulates all exposed components and points of failure to ensure the products are fully waterproof, shockproof, and ESD (Electro-Static Discharge) proof. ATP Industrial Grade SD/SDHC Cards can withstand at least an operating/storage temperature range of at least -40 to 85 degrees Celsius. In addition to this temperature range, the cards are completely waterproof, dustproof, and ESD (Electro-Static Discharge) proof. All ATP Industrial Grade SD/SDHC cards are produced under a stringent RoHs and Green Package compliant manufacturing process to guarantee a consistent high level of build quality and performance. ATP Industrial SD cards deliver outstanding performance with read speed (seq) up to 18MB/sec and write speed (seq) up to 16MB/sec. All ATP Industrial Grade CF, SD, USB drives, and SSDs are constructed using best-in-class SLC(Single-Level Cell) components with enhanced Error Correction Code(ECC) functions and wear levelling algorithms. This results in MTBF ratings over 2 million hours and the highest write cycle lifetimes in the industry.

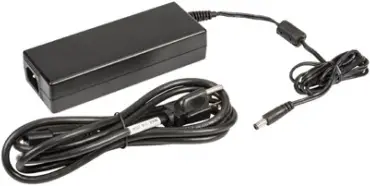

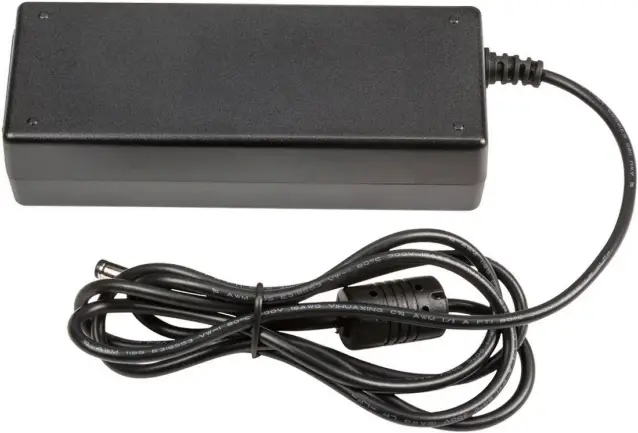

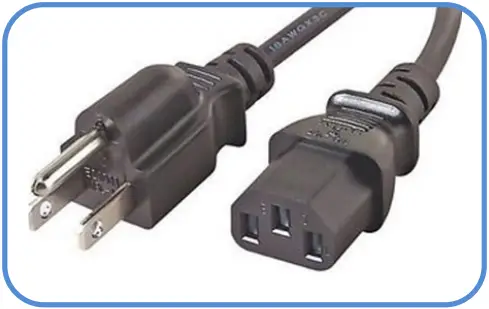

AC Cords

Regional Power Cords

AC Power – C13 Type Connector

ScanPal EDA10A Tablet Configuration Guide | www.honeywellaidc.com

Disclaimer

Honeywell International Inc. (“HII”) reserves the right to make changes in specification and other information contained in this document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been made. The information in this publication does not represent a commitment on the part of HII.

HII shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting the furnishing, performance, or use of this material.

This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated into another language with-out prior written consent of HII.

Web Address: www.honeywellaidc.com

The Bluetooth trademarks are owned by Bluetooth SIG, Inc., U.S.A and licensed to Honeywell.

Thor and Mobility Edge are trademarks or registered trademarks of Honeywell International Inc. in the United States and/or other countries.

Android is a trademark or registered trademark of Google Inc. in the United States and/or other countries. Windows is a trademark or registered trademark of Microsoft Corporation.

Qualcomm and Snapdragon are trademarks or registered trademarks of Qualcomm Incorporated in the United States and/or other countries.

Other product names mentioned in the manual may be trademarks of registered trademarks of their respective companies and are the property of their respective owners.

All rights reserved.

For more information
sps.honeywell.com

Honeywell Safety and
Productivity Solutions
855 S Mint St Charlotte, NC 28202
800-582-4263
www.honeywell.com

ScanPal EDA10A Tablet Configuration Guide – GLOBAL | Rev A | 06/23
