Sirui Sp-393926 100mm T2.9 1.6x Full Frame Anamorphic Lens Instructions

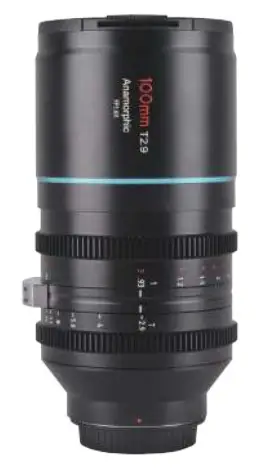

SIRUI SP-393926 100mm T2.9 1.6x Full Frame Anamorphic Lens

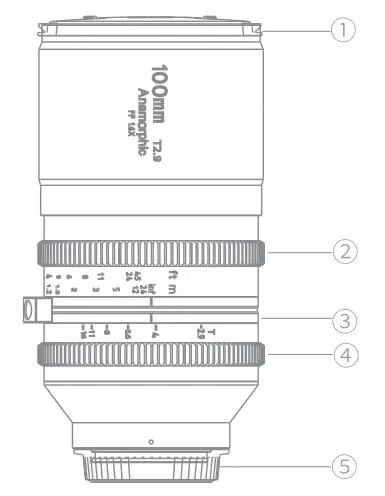

Components of the Lens

1. Top Lens Cap
2. Aperture Ring
3. Focus Ring
4. Bottom Lens Cap
5. Indicator Ring

Lens Features

1. Shoot wide-screen video in 16:9 aspect ratio (desqueeze the image in post to get a CinemaScope 8:1 aspect ratio).
2. Create Sci-Fi shots with brushed and backlighting effects.
3. Easily turn the aperture ring to optimize the depth of view and bokeh effect.
4. Multi-layer coating for lens elements transiting from the front water-proof film to Nano coating for
5. Solidly constructed with aircraft aluminum housing and precision copper focus components, the lens is compact and robust yet light enough to smoothly capture high quality images.

Lens Set-up Instructions

1. Attach the lens to the camera Align the red dot on the lens with the white dot on the camera then attach and secure the lens onto the camera with a clockwise turn. (For Nikon cameras, turn the lens counterclockwise to secure.)
2. Remove the lens To remove, press down the security button on the camera then rotate the lens in the counter-clockwise direction to separate it from the camera. (Detach the lens from your Nikon camera with a clockwise turn.)

Product Precautions for Normal Use

• Please avoid any long-term exposure to the lens in a wet environment which may produce mold and rust on the lens. Store the lens in an airtight cabinet with a drying agent. For other options, contact your SRUI rep for information on a SIRUI High-Performance Humidity Control Cabinet or visit www.sirui.com.
• Do not touch the lens glass surface with your fingers. Gently remove dust and dirt with a cleaning cloth or lens brush. Wipe off fingerprints with lens cleaning products and a lens cloth. Do not clean the lens with general household cleaners.
• Please avoid using the lens in the rain or near water as this may damage the lens and void the warranty.
• When transporting the lens from a hot and cold environment, please place the lens into a lens case or a commercial camera bag. When removed, allow the lens some time to adapt to the new temperature as the lens interior may develop condensation if not.

Data Chart for the Lens
