mic RAX-332 Annunciator Adder Module
RAX-332 Annunciator Adder Module

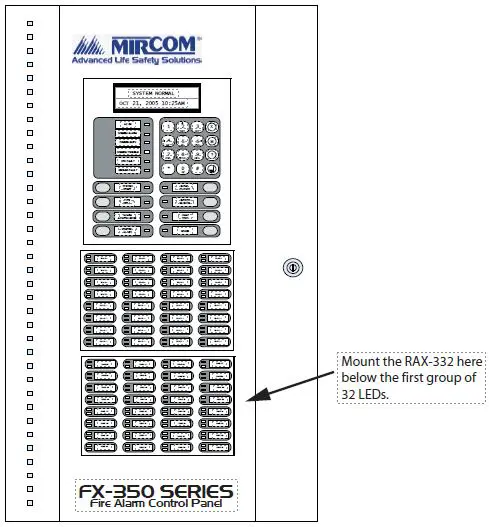

The RAX-332 mounts to the front door of the FX-350 Series Fire Alarm Control Panel below the first group of 32 LEDs. Remove the blank plate and replace with the RAX-332, use the same four #6-32 hex nuts used to remove the blank plate to mount the RAX-332 to the door.

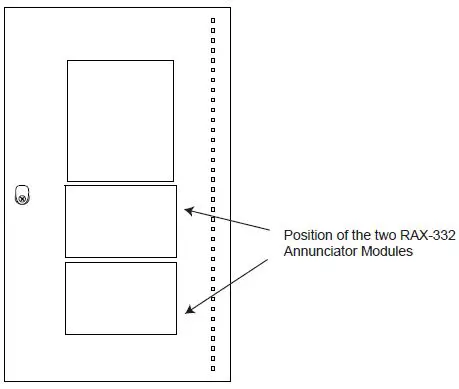

INSIDE VIEW OF FRONT DOOR

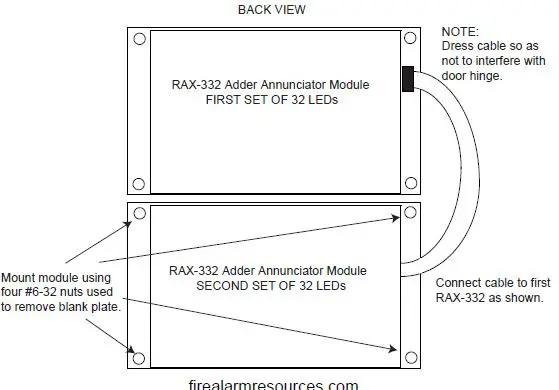

BACK VIEW
