GENERAL SPECIFICATIONS
item number : 23954/06/30
EAN code : 5411212234179
item number : 23954/06/31
EAN code : 5411212234186
XYRUS-LED
RECOMMENDED LUCIDE
LIGHT SOURCE
49009/05/30
Light source dimmable :
Yes, Dim to warm
Light source incl. : Yes
49009/05/31
Light source dimmable :
Yes, Dim to warm
Light source incl. : Yes
General
Dimensions LxWxH : Ø9 cm x 12,5 cm
Heigth minimum: –
Heigth maximum: 12,5 cm
Dimensions shade LxWxH: Ø6cm x 9.8cm
Main material: Aluminium
Ceiling rose material: Aluminium
Color: Black /White
Style: Modern
Shape: Round
Weight: 0,4kg
Warranty: 2 years
Product specifications
Dimmable: Yes
Light direction: Downlight
Adjustable in height: No (Before Installation)
Directional: Directional
Cable: No
Cable length: –
Sensor: Without Sensor
Control: Light Switch Control
IP-Class: 20
Electric class: 1
Light source including?: Yes
Lamp socket: GU10
Light source number: 1
Power requirements: 220-240V˜50Hz
Bulb type & maximum wattage: GU10 LED 5W
For more specifications of this product please visit www.lucide.com

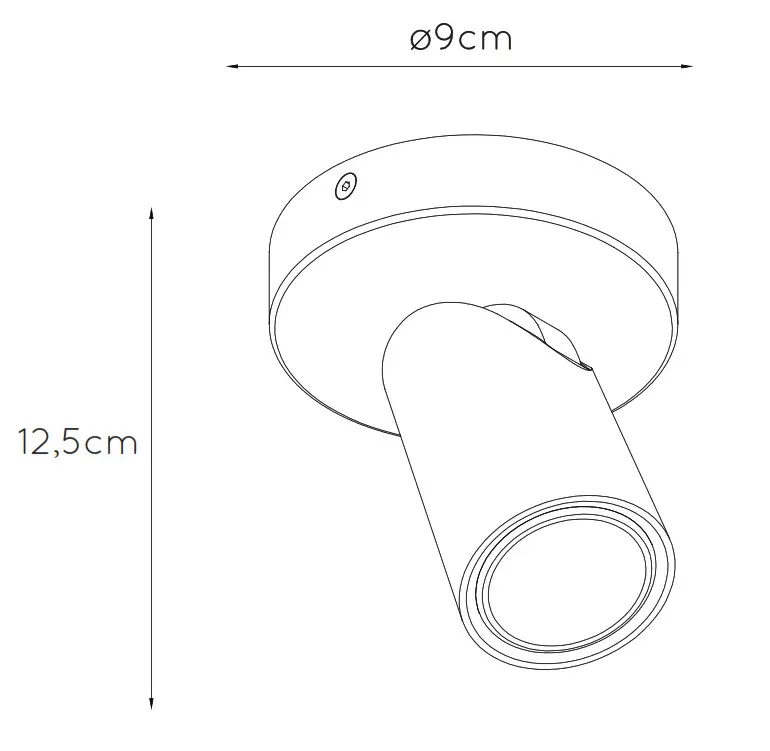

TECHNICAL DRAWING & DIMENSIONS
XYRUS-LED
Item number: 23954/06/30
EAN code: 5411212234179
Item number: 23954/06/31
EAN code: 5411212234186

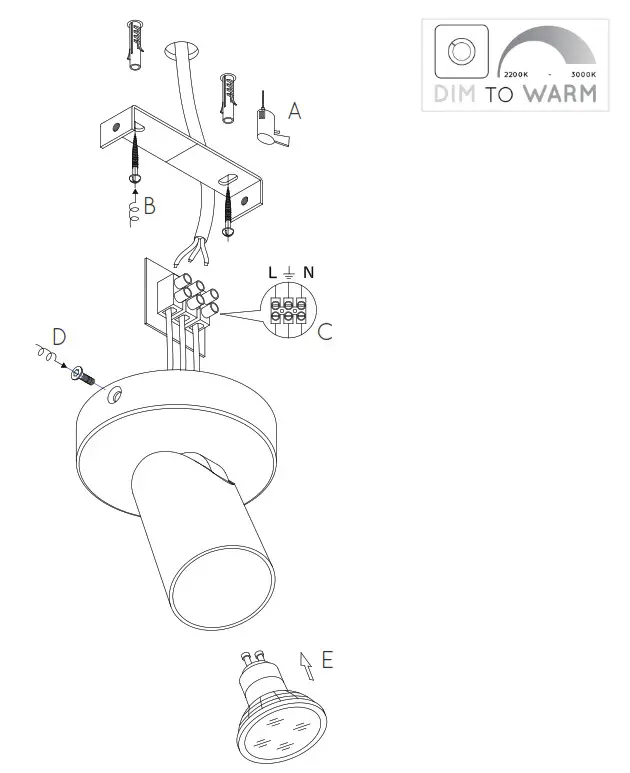

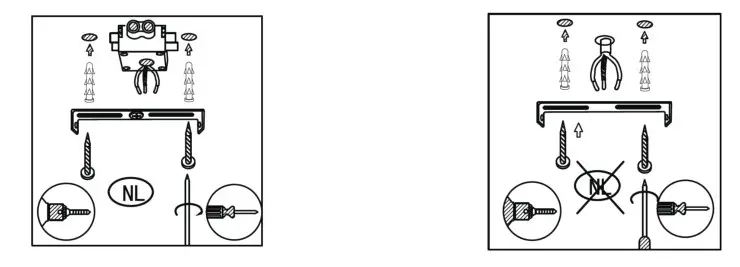

INSTALLATION DRAWING SPECIFICATIONS
This product contains a light source of energy efficiency class A+
Lucide lighting - Illuminates your world.
