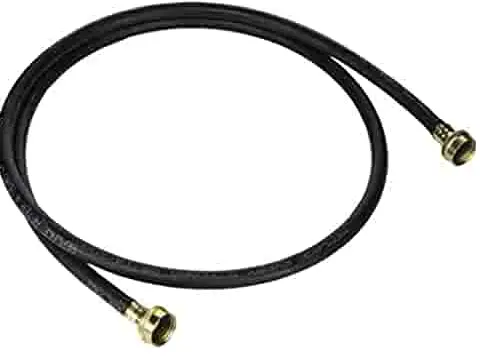

SMARTCHOICE 5304473845 4ft Rubber Fill Hose 2 Pack
Installation

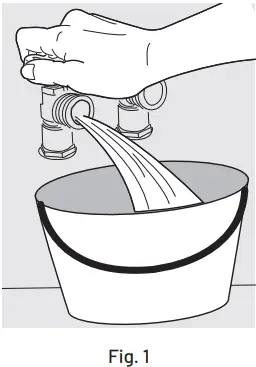

- Run some water from the hot and cold faucets to flush the water lines and remove particles that might clog the water valve screens and to determine which faucet is hot and which is cold supply. (Fig. 1).

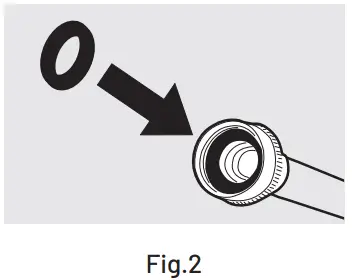

- Check to ensure the inlet hoses have the rubber washer firmly in place. (Fig. 2).

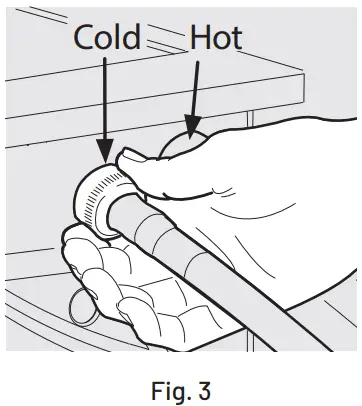

- Connect the HOT inlet hose (color: red) to the HOT inlet connection on the washer and the COLD inlet hose to the COLD inlet connection (color: blue) on the washer. (Fig. 3).

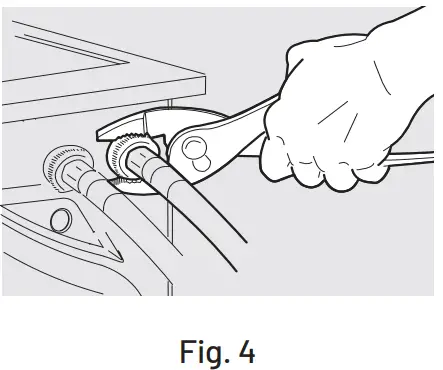

- Tighten by hand until snug. Then tighten each supply connection another 2/3 turn with pliers. Do not cross thread or overtighten these connections. (Fig. 4).
- Connect the HOT inlet hose to the HOT water supply and the COLD inlet hose to the COLD water supply. (Fig 5).

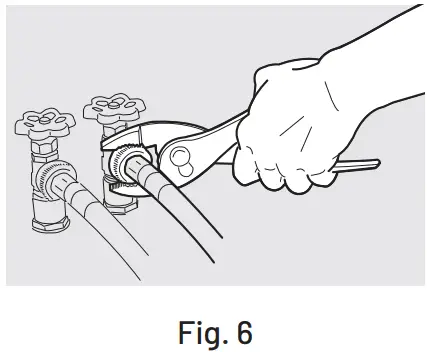

- Tighten by hand until snug. Then tighten each supply connection another 2/3 turn with pliers. Do not bend, kink or pinch water inlet hoses. (Fig. 6).

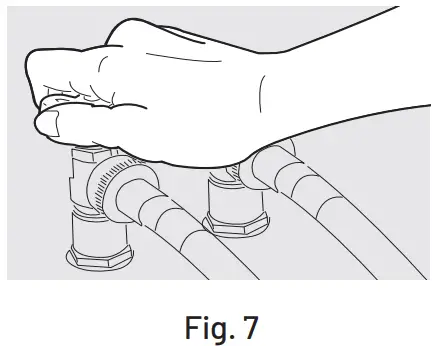

- Turn on the water and check for leaks. (Fig. 7).
The water supply pressure must be between 14.5 PSI and 116 PSI. If the water supply pressure is more than 116 PSI, you must install a pressure reducing valve. NOTE: The washer requires both a hot and a cold water supply to be attached. The water supply for the hot water valve should be at least 120˚F. Replace water supply hoses every 2 to 3 years.
