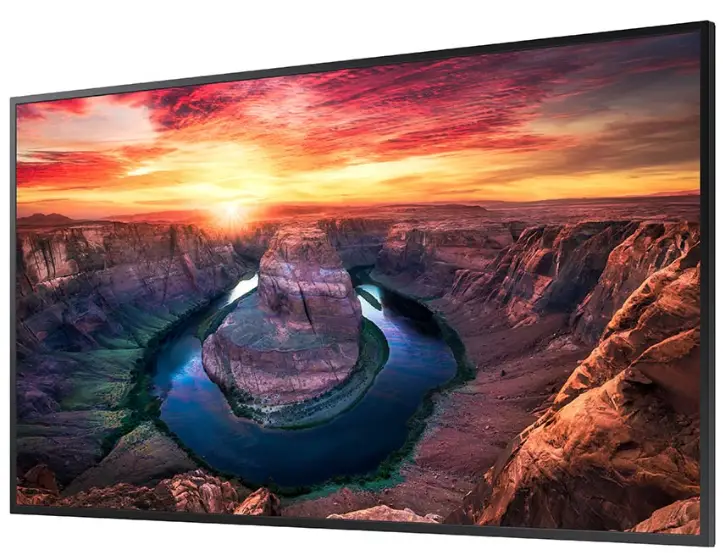

SAMSUNG QM43B Smart LED Display
Setup Guide
- The color and appearance may differ depending on the product, and the content in the manual is subject to change without prior notice to improve the performance.
- Download the user manual from the following Samsung Website for further details. http://www.samsung.com/displaysolutions
Checking the Components
(1) Quick Setup Guide (2) Warranty card (Not available in some locations) (3) Regulatory guide (4) Waste Electrical & Electronic Equipment (5) Power cord (6) Batteries (AAA x 2) (Not available in some locations) (7) Remote Control (8) RS232C adapter (9) HOLDER-CABLE (Supported models: QM65B, QM75B) Contact the vendor where you purchased the product if any components are missing. Components may differ in different locations.

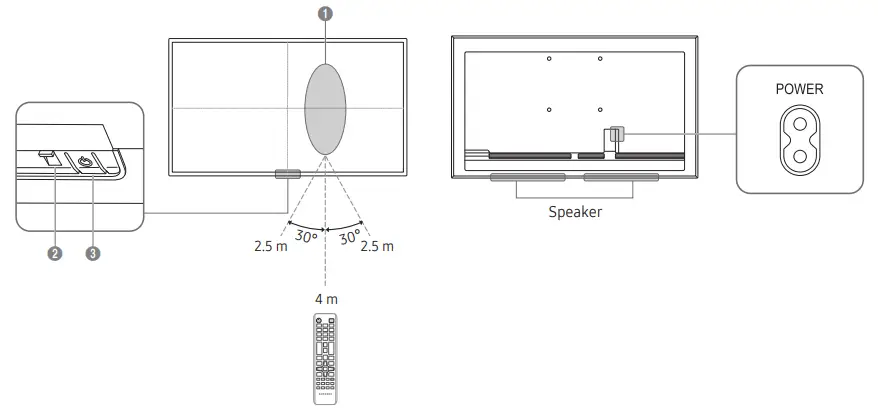

Parts
- Remote sensor Press a button on the remote control pointing at the sensor on the front of the product to perform the corresponding function. *Using other display devices in the same space as the remote control of this product can cause the other display devices to be inadvertently controlled.
- Power indicator
- Power button
Turns the product on or off
Troubleshooting Guide
| Issues | Solutions |
| The screen keeps switching on and off. | Check that the cable between the product and the PC is connected correctly. |
| No Signal is displayed on the screen. | Check that the product is connected correctly with a cable. |
| Check that the source device connected to the product is powered on. |
Specifications
| Model Name | QM43B | QM50B | QM55B | ||
| Panel | Size | 43 CLASS (42.5 inches / 107.9 cm) | 50 CLASS (49.5 inches / 125.7 cm) | 55 CLASS (54.6 inches / 138.7 cm) | |
| Display area | 941.184 mm (H) x 529.416 mm (V) | 1095.84 mm (H) x 616.41 mm (V) | 1209.6 mm (H) x 680.4 mm (V) | ||
| Model Name | QM65B | QM75B | |||
| Panel | Size | 65 CLASS (64.5 inches / 163.9 cm) | 75 CLASS (74.5 inches / 189.3 cm) | ||
| Display area | 1428.48 mm (H) x 803.52 mm (V) | 1650.24 mm (H) x 928.26 mm (V) | |||
| Power Supply | AC100-240V~ 50/60Hz Refer to the label at the back of the product as the standard voltage can vary in different countries. | ||||
| Environmental considerations | Operating | Temperature: 0 °C – 40 °C (32 °F – 104 °F) Humidity: 10% – 80%, non-condensing | |||
| Storage | Temperature: -20 °C – 45 °C (-4 °F – 113 °F) Humidity: 5% – 95%, non-condensing | ||||
- This device is a Class B digital apparatus.
- For detailed device specifications, visit the Samsung website.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
Wall Mount Kit Specifications
| 1 Model Name | 2 VESA screw hole specs (A * B) in millimeters | 3 C | 4 Standard Screw | 5 Quantity |
|
| QM43B | 200 x 200 | 31-32 mm 3.1-3.2 cm |
M8 |
4 | |
| QM50B QM55B | 29-30 mm 2.9-3.0 cm | ||||
| QM65B | 400 x 400 | ||||
| QM75B | 30-31 mm 3.0-3.1 cm |
Connecting and Using a Source Device

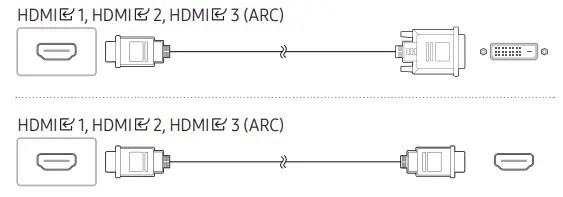

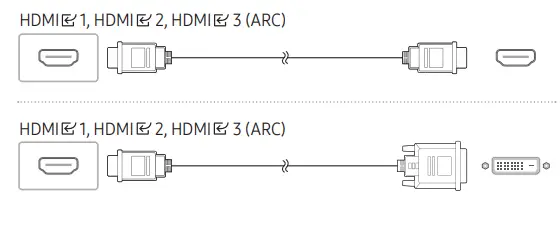

Connecting to a PC
Connecting to a Video Device
Connecting to an Audio System

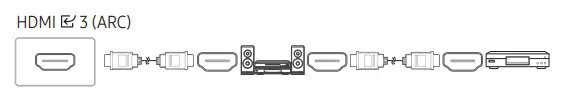

Connecting HDMI to Sound system and Video device

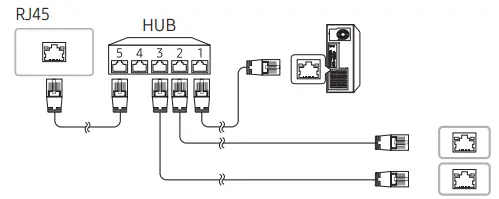

Connecting the LAN Cable
Use Cat7(*STP Type) cable for the connection. (10/100 Mbps)
*Shielded Twist Pair

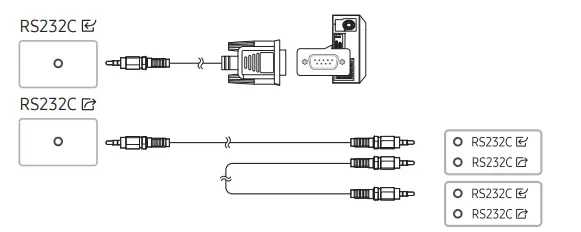

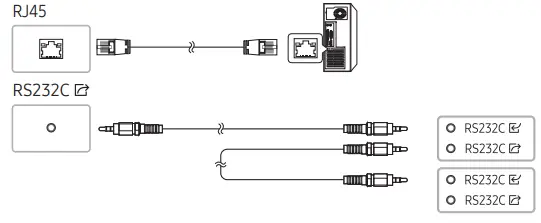

Connecting to MDC
For details on how to use the MDC program, refer to Help after installing the program. The MDC program is available on the website.
http://www.samsung.com/displaysolutions

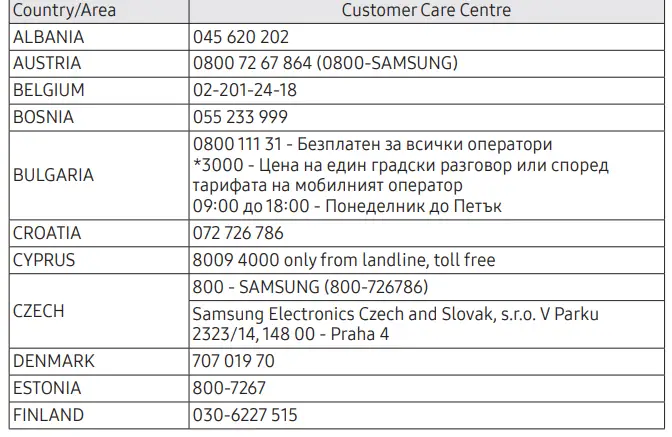

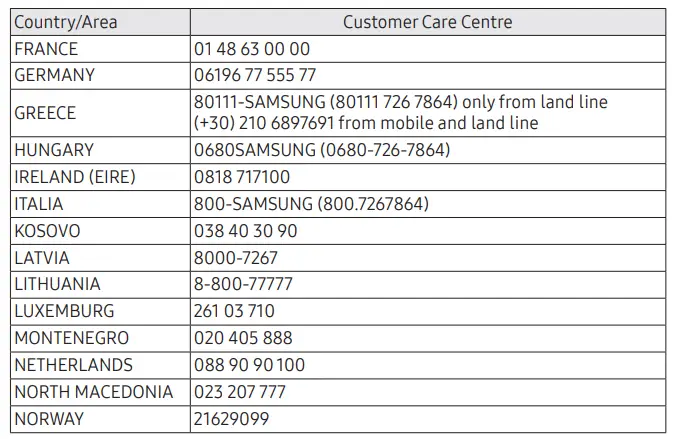

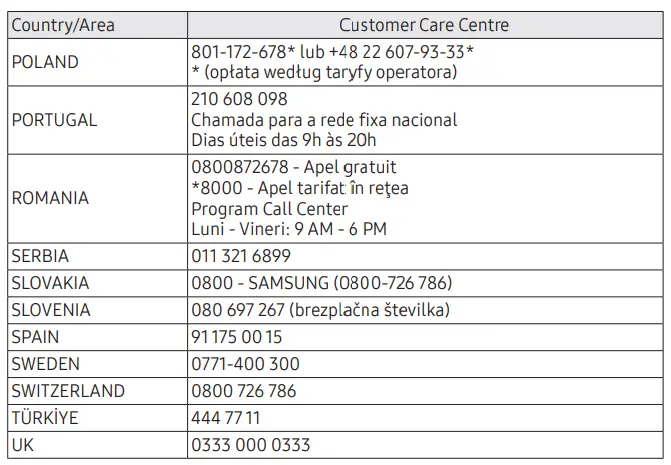

Contact SAMSUNG WORLDWIDE
Web site: http://www.samsung.com
