Infinity X1 700lm Work Lights With Speakers Instruction Manual

Infinity X1 700lm Work Lights With Speakers Instruction Manual

Infinity X1 - logoWORKLIGHTS WITH SPEAKERS
Stereo | Wireless | Rechargeable
700 LUMENS

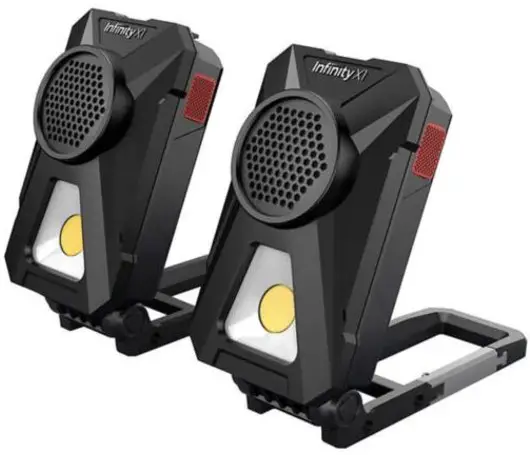

Infinity X1 700LM Work Lights with Speakers - cover

700LM Work Lights with Speakers

Infinity X1 700LM Work Lights with Speakers - qrhttps://qrcodes.pro/zhxwHT

IMPORTANT!
RETAIN FOR FUTURE REFERENCE. READ CAREFULLY

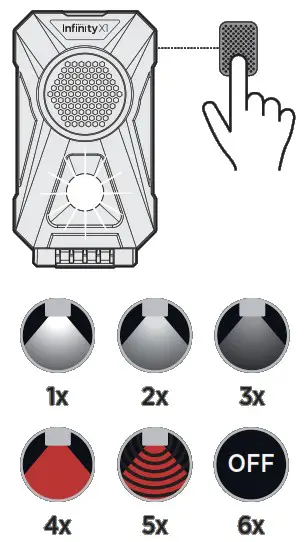

Infinity X1 700LM Work Lights with Speakers - overview

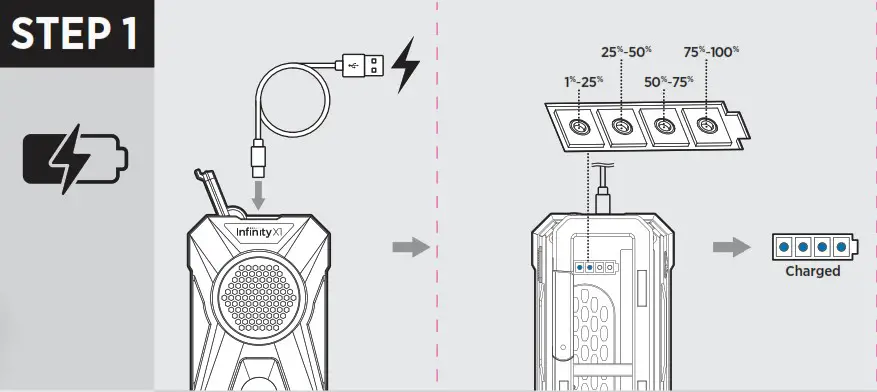

Infinity X1 700LM Work Lights with Speakers - overview 2

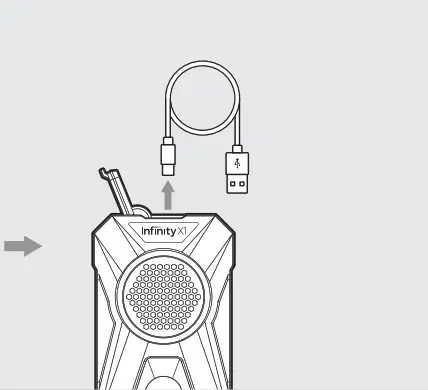

Infinity X1 700LM Work Lights with Speakers - overview 3

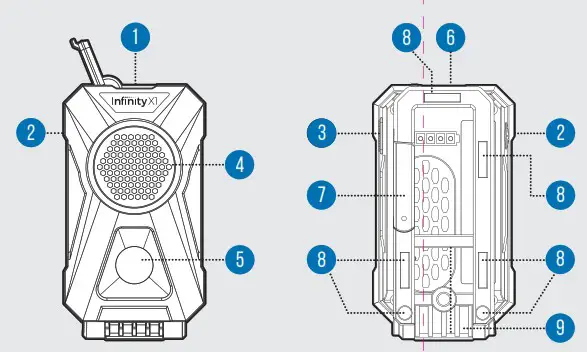

Infinity X1 700LM Work Lights with Speakers - overview 4

1. USB In & USB Out
2. Bluetooth Button & Bluetooth Indicator
3. Light Button
4. Speaker
5. Lighting
6. Power Indicator
7. Carabiner
8. Magnet
9. Stand Hinge

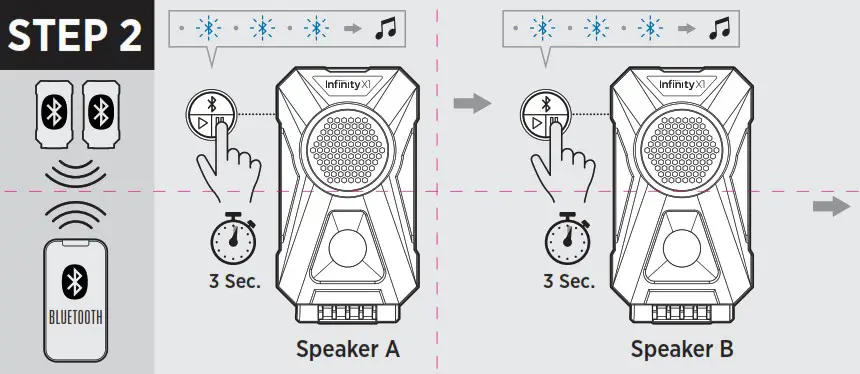

Infinity X1 700LM Work Lights with Speakers - overview 5

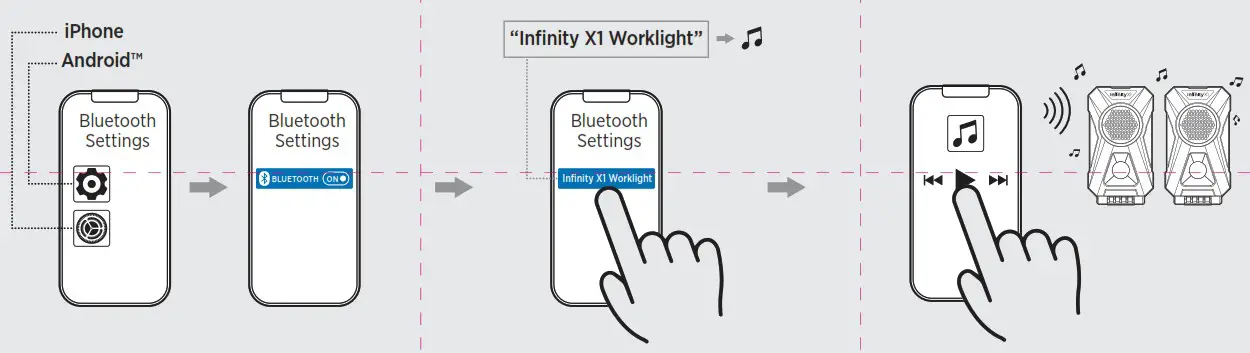

Infinity X1 700LM Work Lights with Speakers - overview 6

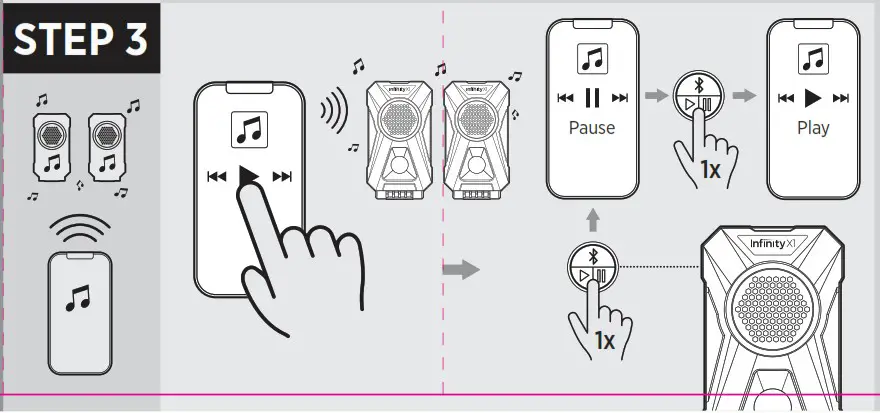

Infinity X1 700LM Work Lights with Speakers - overview 7

CONNECTING 2 PHONES

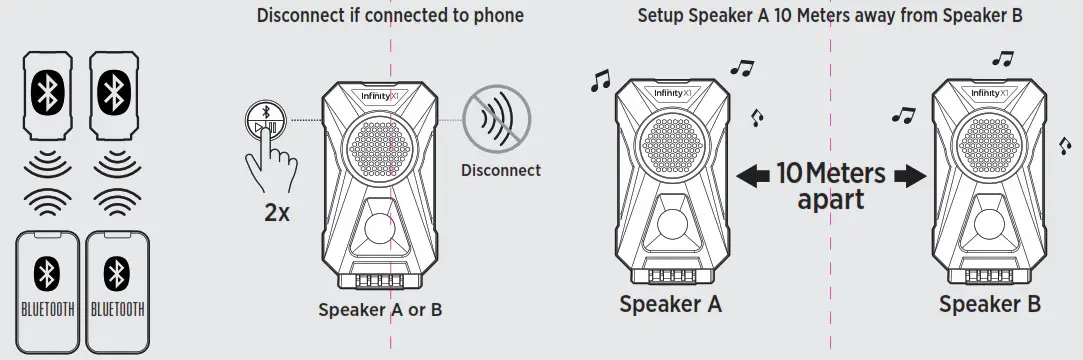

Infinity X1 700LM Work Lights with Speakers - overview 8

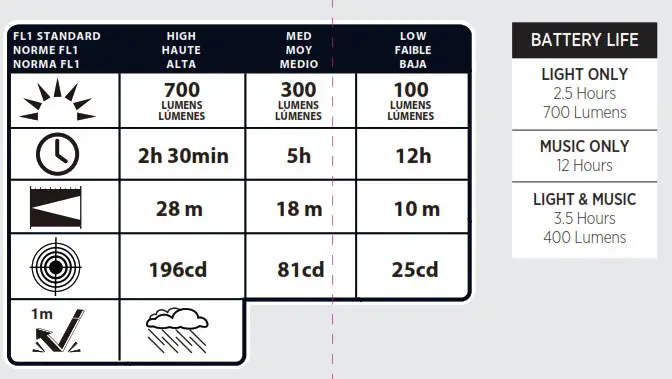

Infinity X1 700LM Work Lights with Speakers - overview 9

FCC STATEMENT OF COMPLIANCE
WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment into an outlet on a circuit  different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.

Note: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Note: (a) frequency band(s) in which the radio equipment operates: 2.4 – 2.4835 GHz. (b) maximum radio-frequency power transmitted in the frequency band(s) in which the radio equipment operates: 4.30 dBm (E.I.R.P.).

PRECAUTIONS

  • Please store and use this product at room temperature.
  • Do not expose this product to rain or damp surroundings.
  • Prevent this product from falling as that could result in serious damage.
  • Do not dismantle, repair or modify this product on your own.
  • In order to avoid any risk, do not dispose this product inappropriately or expose it to fire as there is a built-in, non-replaceable lithium battery.

TIPS

  • Do not turn up the volume to maximum for a long time as this could shorten the service life of this product or impair your hearing.
  • When encountering any fault during operation, please cut off the power supply and disconnect the USB cable to prevent further damage to the speaker or other components.
  • The Bluetooth transmission range or connectivity could be affected by low battery power. In that case, please recharge immediately.

CAUTION: Possible hazardous optical radiation emitted from this product. The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 1.5 m / 5.1 ft is not expected.
WARNING: The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths and curtains. Allow at least a 10 cm gap all around the product.
WARNING: No naked flame sources, such as lighted candles, should be placed on the speaker.
WARNING: This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment.

PRODUCT INFORMATION

Product Model1600276
Bluetooth SpecificationsBluetooth 5.0
Transmission Distance≤10m (depending on operation
environment and devices to
which it connects)
USB Rechargeable VoltageDC 5V 1A
Built-in Battery2600 mAh
Output Power5 W
Product Dimensions5.5 x 3.0 x 2.5 inch
PROBLEMSOLUTIONS
Unable to pair up with
other devices
1. Check whether the speaker is still in the process of  search or switch it o  and then on.
2. Too many Bluetooth devices in the proximity that
cause di culty in connection. Please turn them o .
The sound is rather low or distorted1. Check the Bluetooth device’s volume and then adjust  it to a proper level.
2. Recharge the battery.
The music stops from time to time1.  Check whether the speaker’s e ective transmission  range is exceeded or there is an obstacle standing  between the speaker and other Bluetooth devices.
The Bluetooth indicator remains o1. It suggests the battery power drops quite low and  retry once being recharged.
2. Turn it on again.

Infinity X1 700LM Work Lights with Speakers - Infinity X1 700LM Work Lights with Speakers

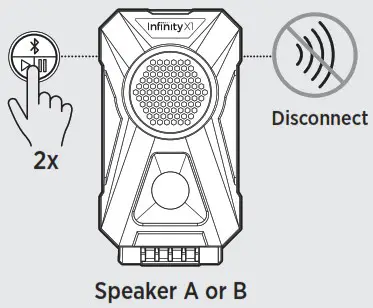

DISCONNECT FROM PHONE BEFORE CONNECTING NEW PHONE

Infinity X1 700LM Work Lights with Speakers - DISCONNECT FROM PHONE

Infinity X1 - logoManufacturer / Fabricant / Fabricante:
©2021 INFINITY X1 LLC®
3525 Del Mar Heights Rd, Suite 867 San Diego, CA 92130, USA
www.infinityx1.com

Questions, problems missing parts?
Before returning to your retailer, call Customer Service:

CUSTOMER SERVICE
USA: 1-866-544-4891
International: 1-760-230-5611
Hours: M-F 9AM to 5PM Pacific Time
Web: www.infinityx1.com/support
Email: [email protected]MADE IN CHINA
