ETA
15106
ETA

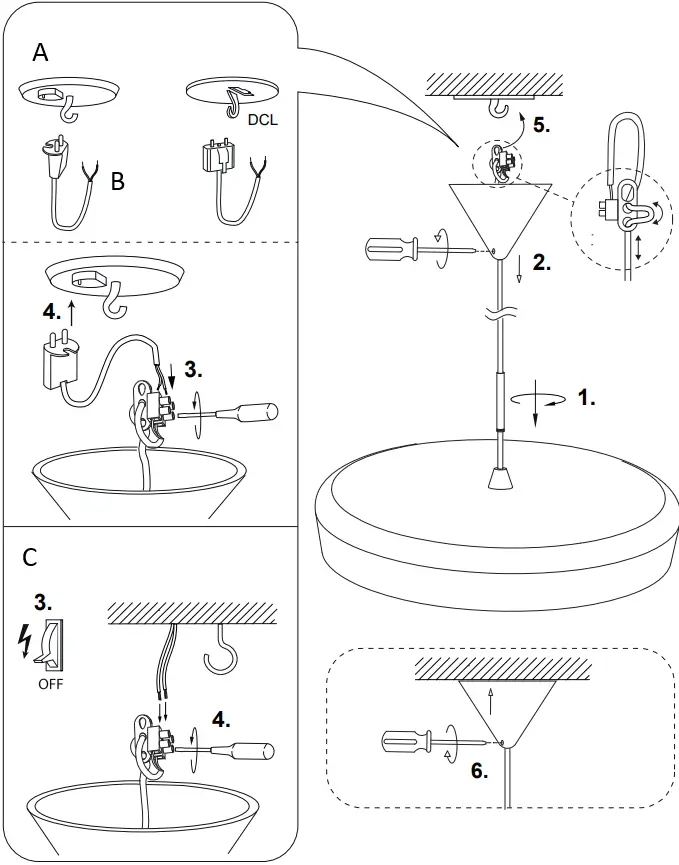

A: Luminaire socket (not included)
B: Lamp plug unearthed KL.II (not included)

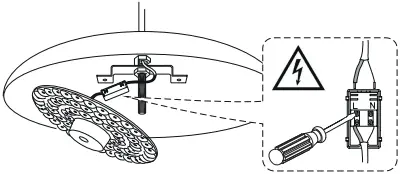

C: Installation directly to supply cable
Cleaning: Wipe with a dry cloth.
Can be connected to a trailing edge dimmer for LED light sources.
This product contains a light source of energy efficiency class F.
Integrated LED light source that can be replaced as spare part.
Lifetime 50000 h ≈ 22 years at an average use of 6 hours per day.
Light Source :
Lighting technology used: …………….. LED
Mains or non-mains: ………………….. mains
Directional or non-directional: ……….. non-directional
Connected L.S.: ……………………… no
Color-tuneable: ……………………… no
Envelope: …………………………… no
High luminance: ……………………… no
Anti-glare shield: …………………… no
Dimmable: …………………………… yes
Energy consumption in on-mode: …. 24 kWh / 1000 h
Energy efficiency class (A-G): ………. F
Useful luminous flux:……………….. 2460 lm *
CCT colour temperature:……………… 3000 K
On-mode power: …………………….. 23,75 W
Stand-by power: ……………………. 0 W
Networked standby power: ……………. 0 W
CRI: ……………………………… ≥ 80
R9 color rendering index: …………… 7
Chromaticity coordinates: …………… x:0.440, y:0.430
SDCM: …………………………….. < 6
Lumen maintence factor: ……………… 0,96
Survival factor: ……………………. 0,90
Displacement factor: ………………… 0,9
Flicker metric (Pst LM): …………….. 0,4
Stroboscopic effect metric: ………….. 0,12
Measures LxBxH: …………………….. Ø162×10 mm
Supply current: …………………….. 300 mA
* The luminous flux stated here is the value for the light source itself in accordance with Regulation (EU) 2019/2015. On the box the luminous flux for the lighting fittting is stated, where the light is partly absorbed by glass/glare shield/shade and parts of the fitting, why it is lower than for the light source.

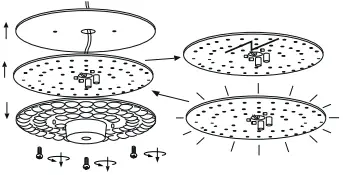

Replacing LED plate
The light source shall be replaced by a specialist.
Art.No.519664
1
2
3
4
