Assembly instructions
EMBASSY 200
EMBASSY 200 Professional Executive Chair
See the back of this sheet for further information.
Assembly
- Mount the mechanism into the seat.
- Mount the back rest onto the seat.
- Mount the arm rests onto the seat.
- Insert the five castors into designated holes at the bottom of the 5-star base. Insert the gaslift into the center of the base. If present, remove the plastic protective cap from the gas lift. Put the cover over the gas lift.
- Place the seat onto the gaslift.
- Repeatedly sit onto the chair, so that the connections between the seat, gaslift and foot tighten. Now you can adjust the chair to your individual needs.

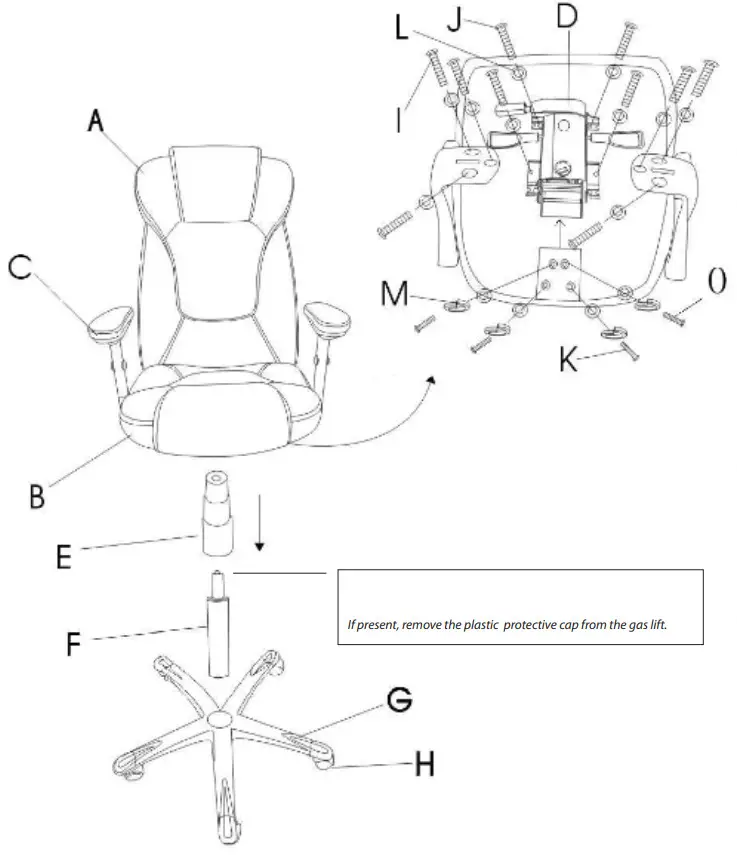

| # | Part | Count |
| A | Back rest | 1x |
| B | Seat | 1x |
| C | Arm rest | 2x |
| D | Mechanism | 1x |
| E | Cover | 1x |
| F | Gas lift | 1x |
| G | Base | 1x |
| H | Castor | 5x |
| I | Screw M6x40 | 6x |
| J | Screw M6x25 | 4x |
| K | Screw M8x20 | 2x |
| L | Washer M8x14 | 14x |
| M | Spring washer | 4x |
| N | Allen wrench (M8, M6) | 2x |
| O | Screw M6x20 | 2x |
Illustration may vary from the actual product.
Remark
At first please take all parts out of the box and inspect them for possible transport loss/damage. In order to guarantee easy setup we recommend that you initially tigthen the
screws just enough to hold, then tighten them firmly when all screws are in place.
