SJR30104ORB 4 Candle Light 60 Watts Unique Statement Chandelier
Instruction Manual
FIXTURE ASSEMBLY STEPS:
| DESCRIPTION | PICTURE | CODE | QTY |
| Mounting Plate |  | 12-Sep | 1 SET |
| Mounting Box Screw |  | 10 | 2 PCS |
| P3 Wiring Cap |  | 11 | 3 PCS |
| Canopy |  | 8 | 1 PCS |
| Chain +Flying rings + movable chain link |  | 5/6/2007 | 1 SET |
| Derrick Part |  | 3 | 1PCS |
| Lamp Body |  | 1/2/2004 | 1 SET |
WARNING – if any Special Control Devices are used with this Fixture,Follow the instructions Carefully to assure fun compliance With N.E.C. requirements. if there are any questions, contact a Qualified Electrical Contractor.
CAUTION – All glass is fragile,use care when handling Glass component(s) and or Lamp(s).
WARNING – This product contains chemicals known to the State of California to cause cancer, birth defects and /or other reproductive harm. Thoroughly wash hands after installing. handling. cleaning,or otherwise touching this product

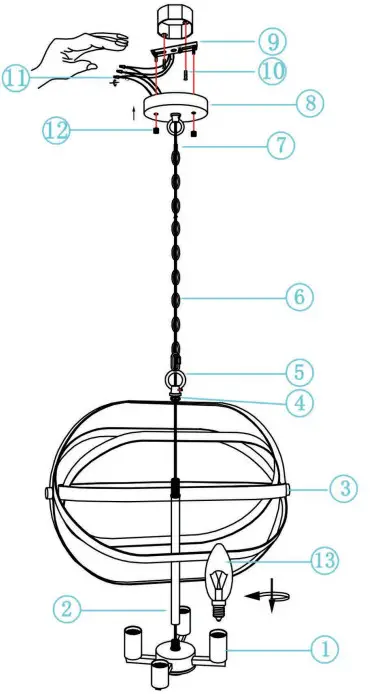

CANOPY MOUNTING & WIRE CONNECTION ASSEMBLY STEPS:
Attach(N),(P) to achieve overall desired length.

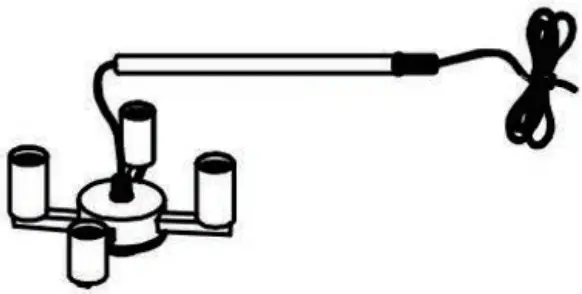

FIXTURE ASSEMBLY STEPS:
110-120V / 60Hz
E12 4*MAX 60W TYPE B
(Do not contain light bulb)
- AC110~120V,50~60Hz.The Max lamps power is 60W TYPE B Bulb.
- Avoid to scratch the surface of lighting and the wires when install it.

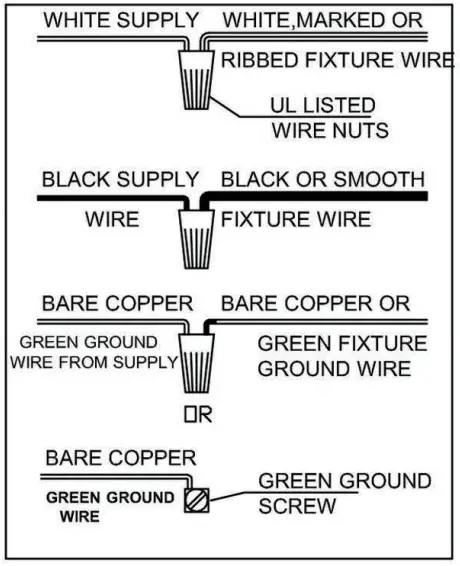

- Printed on the wire : SPT-1 /20288 or SPT-2 and other parameters of the line for the positive pole (Connect ”L”), The wire without mark is the negative pole Connect “N”), Ground cables are connected to ground cables (Connect “
“), (L- L,N-N. –). - Don’t install it to the ceiling before it’s completely dry, thesurrounding around must be ventilated and dry.
- Keep away from the acid, basicity objects and gases, clean withsoft cloth, water washing is not allowed.
- Be careful when you install glass lamp shade
- The lighting must be installed by professional electrician and used indoor only.
- Please keep attention to cut off the power supply when installing, cleaning, and replacing bulb.
“), (L- L,N-N.
