Pioneer Ts-me100ws 10-marine Subwoofer Sport Grilles User Guide

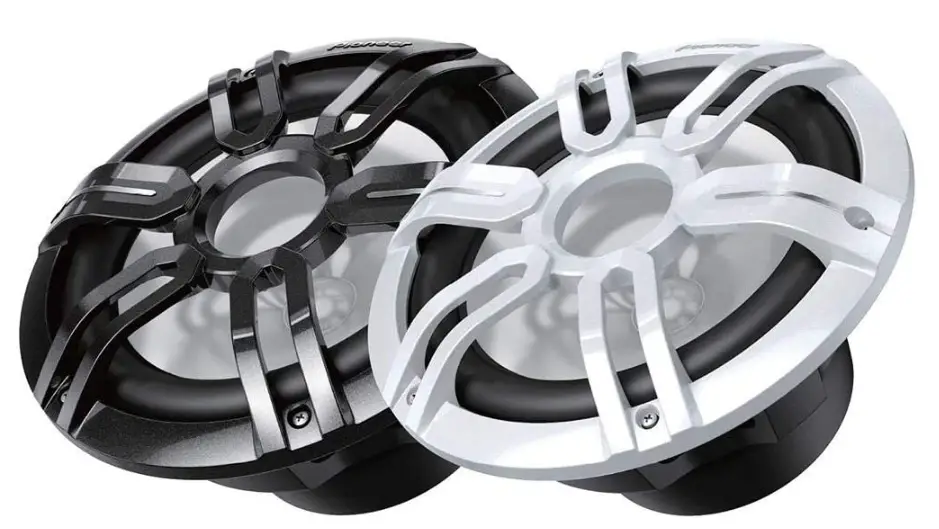

Pioneer TS-ME100WS 10-Marine Subwoofer Sport Grilles

Thank you for purchasing this Pioneer product.
Be sure to read this instruction manual before installing this speaker.

BEFORE YOU BEGIN INSTALLING

Check with your local waterway authority for any regulations the use of accent/speaker lighting on your boat and vessel.

WARNING
The marine-grade speakers are capable of reproducing music at extremely loud levels. Caution should be exercised to prevent permanent hearing loss. Additionally, listening music with the audio system at high volume levels could impair your ability to hear a warning signal.

CAUTION
To prevent damage to your speakers please observe the following caution.

• Be sure to install at a place having no possible problem with the boat’s and vessel’s safety.
• Consult your dealer on the method of installation.
• Since this speaker is continuously used being turned on full blast. the temperature of the magnetic circuit rises. avoid touching ii directly by hand and placing something near it. If it is heated. it may cause a burn. deformation of or damage to peripheral things.
• Do not install on submersibles or any boat and vessel likely to be underwater at any time.
• Do not hit to this speaker with high-pressure water spray in long time.
• PIONEER recommends that this speaker be used in conjunction with amplifiers whose continuous (RMS) output is lower than the nominal input power of this speaker.

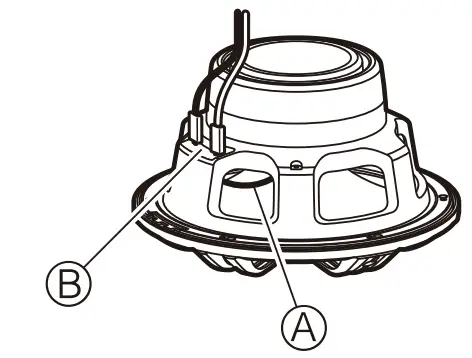

• Do not touch the speaker flexible wire ®· Do not bend the terminal @ with force.
• Make sure speaker terminals and/or flexible wires do not come into contact with metal surfaces.
• It may cause short-circuiting. sparks, electrical failure or fire hazards.
• Please use stainless-steel fasteners to ensure a secure installation.
• When making connections, refer also to the instruction manual of the marine-grade audio unit or amplifier.


FEATURES

1. Pioneer ME-series marine speakers are protected from the effects of sun and water exposure, meeting both IPX7 and ASTM D4329 to achieve all-weather reliability
2. Mica-reinforced IMPP monocoque cone with rubber surround constructed using an advanced in-mold bonding technique for superior water resistance while maintaining high-quality, powerful sound
3. Symmetrical motor design with high strength suspension optimized to provide stability, linearity and clear, low distortion sound reproduc­tion
4. Classic, contemporary grille cosmetically integrates seamlessly into the marine interior and cabin designs (TS-ME1 00WC)
5. A sleek, modern grille design included in both black and white cosmetically integrates seamlessly into the marine interior and cabin designs (TS-ME 1 OOWS)
6. Optional RGB color illumination of the woofer cone provides enhanced personalization and cosmetic integration (UD-ME1 00LED RGB LED light KIT required, sold separately)

SPECIFICATIONS

• Speaker size:i, 25 cm (1 0″ dia.)
• Continuous power handling (RMS):300 W
• Maximum peak power handling:900 W
• Sensitivity:84 dB ( 1 W / 1 m) 90 dB (1 W / 0.5 m)
• Frequency response:20 Hz to 3.5 kHz (-20 dB)
• Nominal impedance : Q

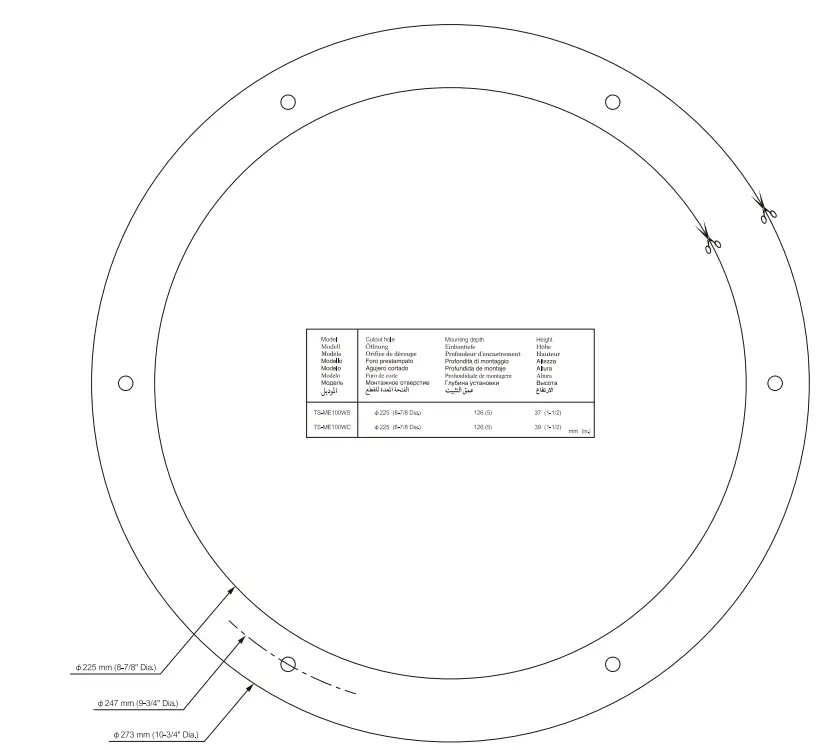

• Cutout diameter:225 mm (8-7 /8″ dia.)
• Waterproof performance: IPX7
• Magnet weight:830 g (29 oz)
• Displacement:0.70 liters (0.025 cu. ft)

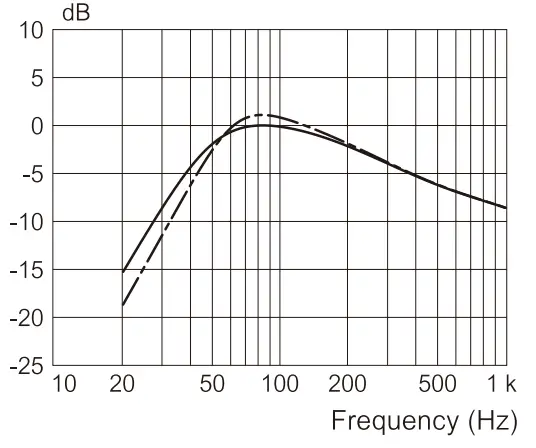

CHARACTERISTIC

Sealed

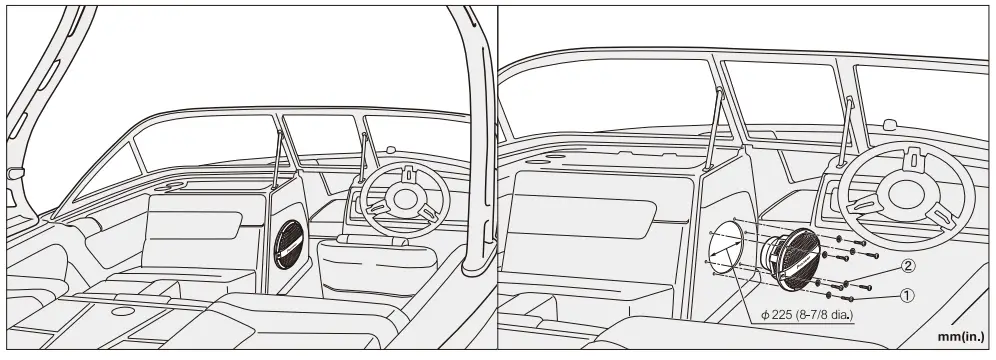

HOW TO INSTALL

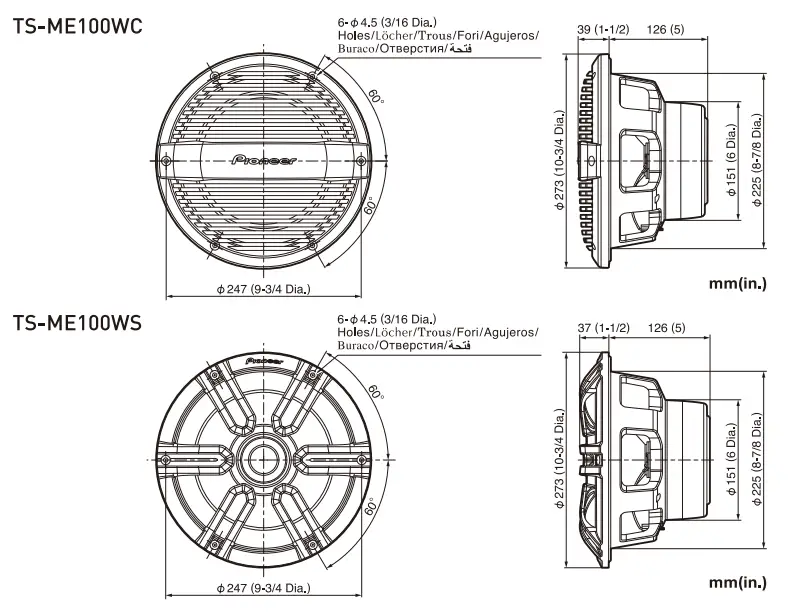

DIMESION

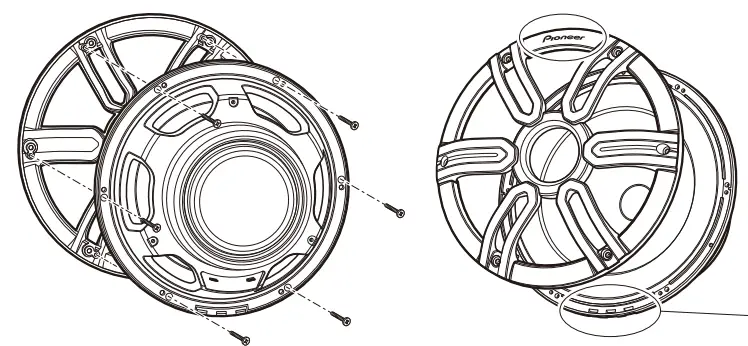

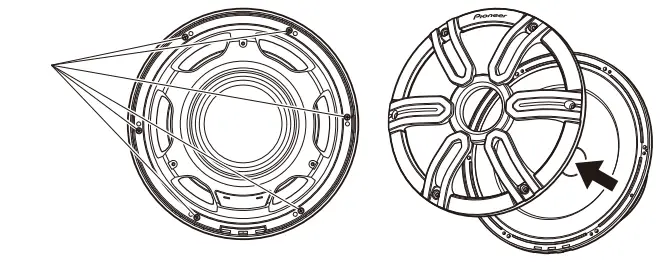

HOW TO REPLACE THE GRILL

• Take 6 screws out
• Do not lose a screw
• Be carefull of direction
• Drain hole

HOW TO USE OF UD-M100LED(SOLD SEPRATE)

CAUTION

• Do not connect the LED wires to speaker signal.
• Do not short circuit +12 V wire and R.G.B. wires when it will be connected to a power supply.

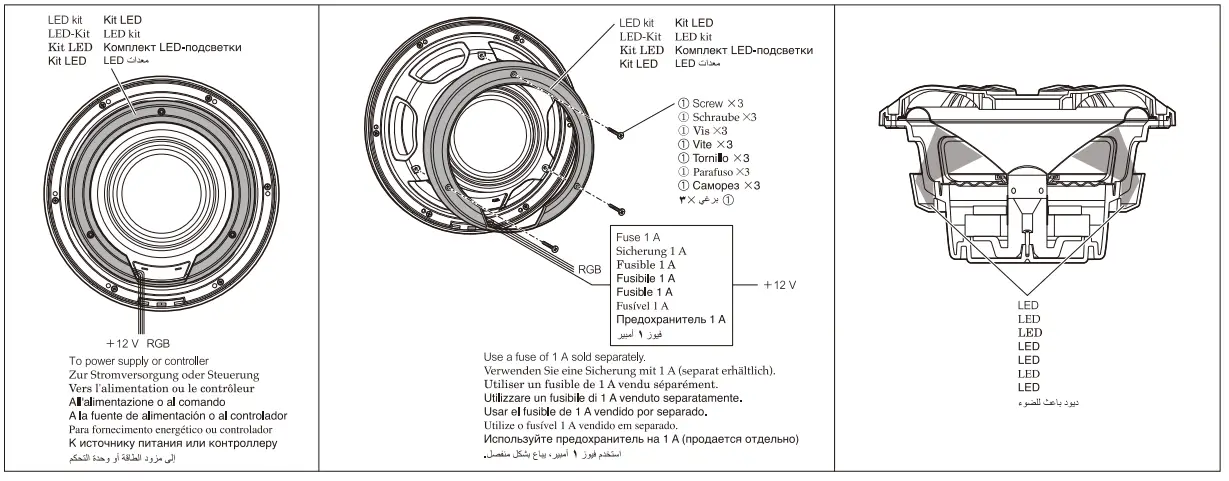

HOW TO USE LED KIT

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.
Private households in the member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one).
For countries not mentioned above, please contact your local authorities for the correct method of disposal.
By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery, and recycling and thus prevent potential negative effects on the environment and human health.

PARAMETERS

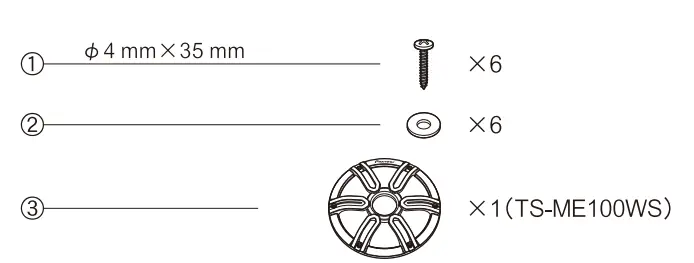

PARTS INCLUDED

• 2 colors grilles are included

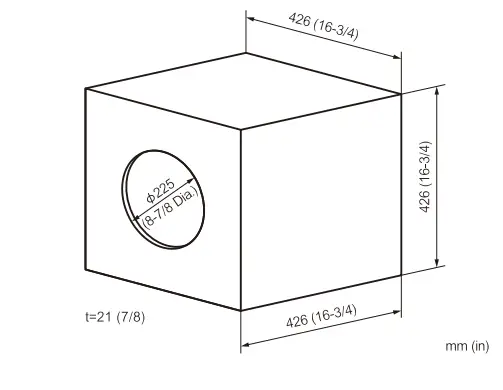

RECOMMENDED ENCLOSURE VOLUME

MINIMUM VOLUME

© PIONEER CORPORATION 201 9 28-8, Honkomagome 2-chome, Bunkyo-ku, Tokyo 1 1 3-0021, JAPAN / JAPON PRINTED IN VIETNAM IMPRIME AU VIET-NAM (TRD1 473-CNI )
