Pioneer TS-ME100WC 10-Marine Subwoofer Classic Grille
Thank you for purchasing this Pioneer product.
Be sure to read this instruction manual before installing this speaker.
BEFORE YOU BEGIN INSTALLING
Check with your local waterway authority for any regulations the use of accent/speaker lighting on your boat and vessel.
WARNING
The marine-grade speakers are capable of reproducing music at extremely loud levels. Caution should be exercised to prevent permanent hearing loss. Additionally, listening music with the audio system at high volume levels could impair your ability to hear a warning signal.
CAUTION
To prevent damage to your speakers please observe the following caution.
- Be sure to install at a place having no possible problem with the boat’s and vessel’s safety.
- Consult your dealer on the method of installation.
- Since this speaker is continuously used being turned on full blast. the temperature of the magnetic circuit rises. avoid touching ii directly by hand and placing something near it. If it is heated. it may cause a burn. deformation of or damage to peripheral things.
- Do not install on submersibles or any boat and vessel likely to be underwater at any time.
- Do not hit to this speaker with high-pressure water spray in long time.
- PIONEER recommends that this speaker be used in conjunction with amplifiers whose continuous (RMS) output is lower than the nominal input power of this speaker.

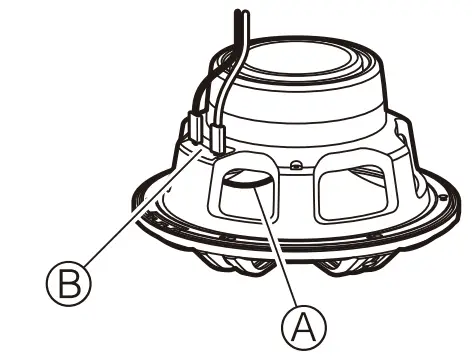

- Do not touch the speaker flexible wire ®· Do not bend the terminal @ with force.
- Make sure speaker terminals and/or flexible wires do not come into contact with metal surfaces.
- It may cause short-circuiting. sparks, electrical failure or fire hazards.
- Please use stainless-steel fasteners to ensure a secure installation.
- When making connections, refer also to the instruction manual of the marine-grade audio unit or amplifier.
FEATURES
- Pioneer ME-series marine speakers are protected from the effects of sun and water exposure, meeting both IPX7 and ASTM D4329 to achieve all-weather reliability
- Mica-reinforced IMPP monocoque cone with rubber surround constructed using an advanced in-mold bonding technique for superior water resistance while maintaining high-quality, powerful sound
- Symmetrical motor design with high strength suspension optimized to provide stability, linearity and clear, low distortion sound reproduction
- Classic, contemporary grille cosmetically integrates seamlessly into the marine interior and cabin designs (TS-ME1 00WC)
- A sleek, modern grille design included in both black and white cosmetically integrates seamlessly into the marine interior and cabin designs (TS-ME 1 OOWS)
- Optional RGB color illumination of the woofer cone provides enhanced personalization and cosmetic integration (UD-ME1 00LED RGB LED light KIT required, sold separately)
SPECIFICATIONS
- Speaker size:i, 25 cm (1 0″ dia.)
- Continuous power handling (RMS):300 W
- Maximum peak power handling:900 W
- Sensitivity:84 dB ( 1 W / 1 m) 90 dB (1 W / 0.5 m)
- Frequency response:20 Hz to 3.5 kHz (-20 dB)
- Nominal impedance : Q
- Cutout diameter:225 mm (8-7 /8″ dia.)
- Waterproof performance: IPX7
- Magnet weight:830 g (29 oz)
- Displacement:0.70 liters (0.025 cu. ft)

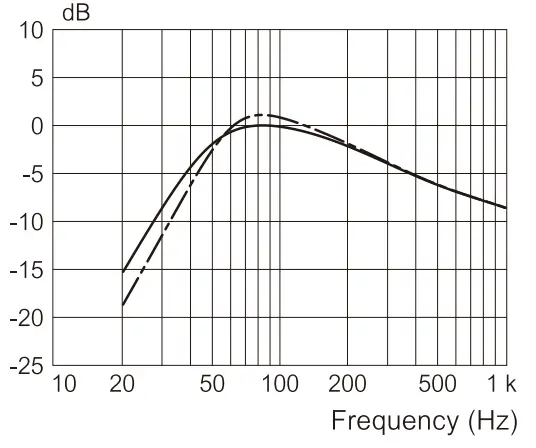

CHARACTERISTIC
Sealed

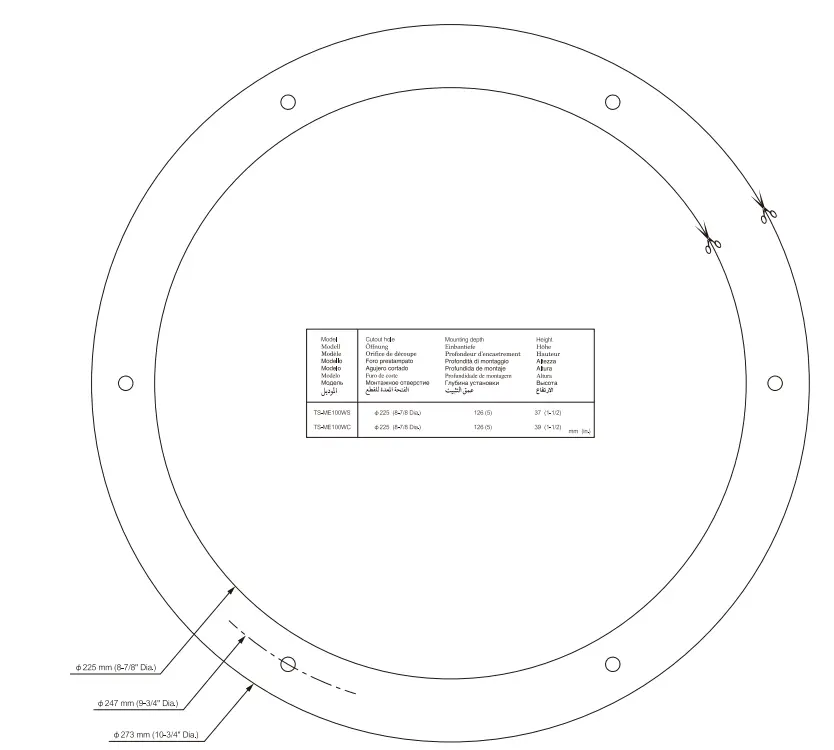

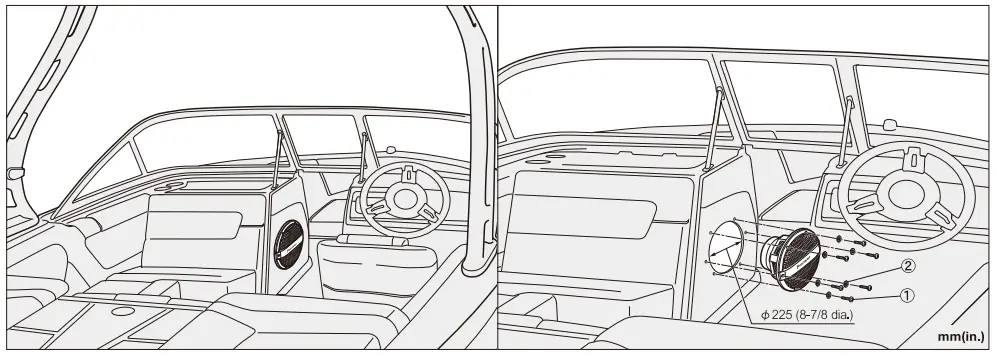

HOW TO INSTALL

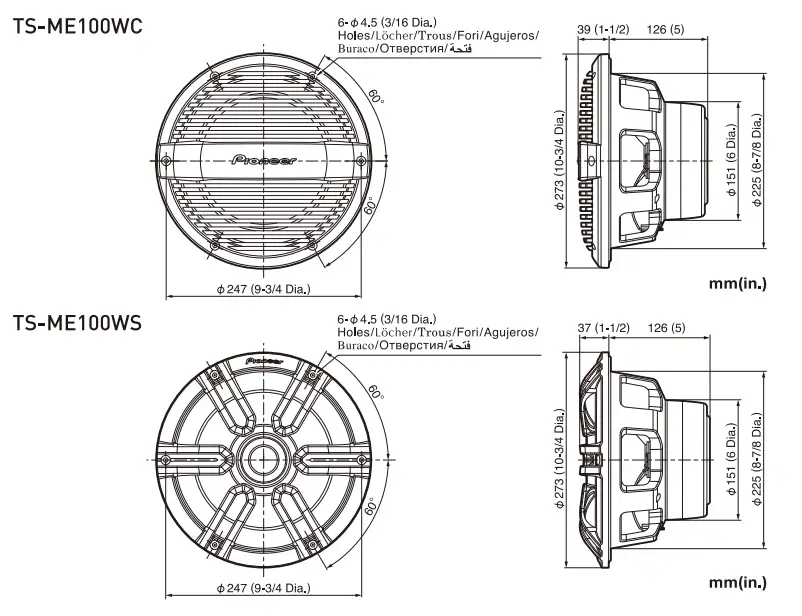

DIMESION

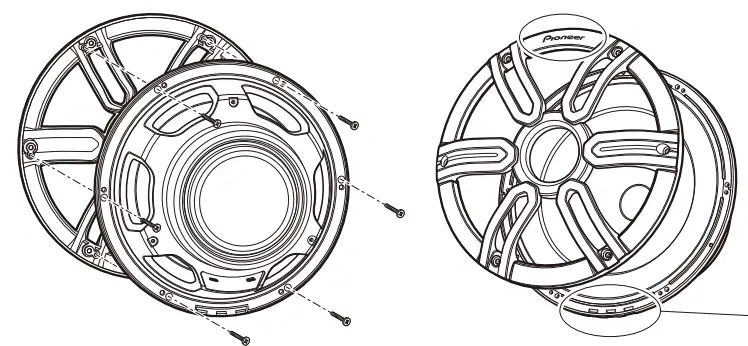

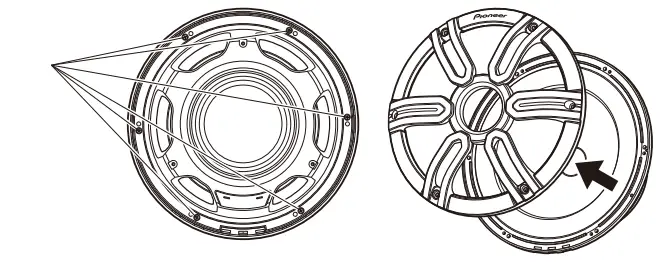

HOW TO REPLACE THE GRILL
- Take 6 screws out
- Do not lose a screw
- Be careful of direction
- Drain hole
HOW TO USE OF UD-M100LED(SOLD SEPRATE)
CAUTION
- Do not connect the LED wires to speaker signal.
- Do not short circuit +12 V wire and R.G.B. wires when it will be connected to a power supply.

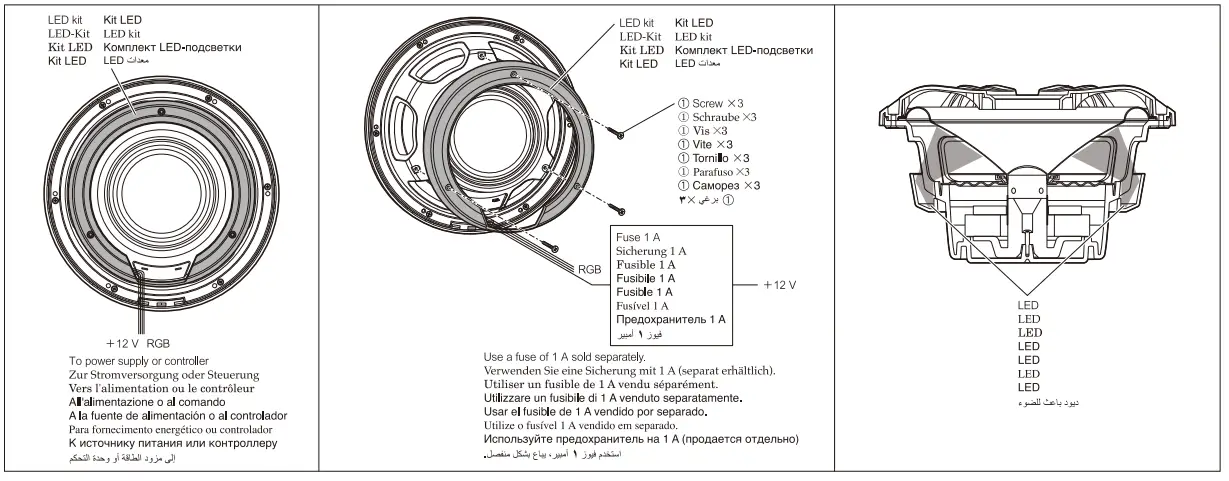

HOW TO USE LED KIT
If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.
Private households in the member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one).
For countries not mentioned above, please contact your local authorities for the correct method of disposal.
By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery, and recycling and thus prevent potential negative effects on the environment and human health.
PARAMETERS
| Revc ( Q ) | Leve (mH) | Fs (Hz) | Qms | Qes | Qts | Vas (liters) | Rms (N.S/m) | Mms | Cms (m/N) | Diam (mm) (inch) | BL | Xmax (mm) (inch) |
| 3.8 | 0.75 | 48 | 16.24 | 0.86 | 0.82 | 26.9 0.95 | 1.09 | 52 | 1.9 X 1 ()–4 | 202 8 | 8.8 | 9.6 0.38 |

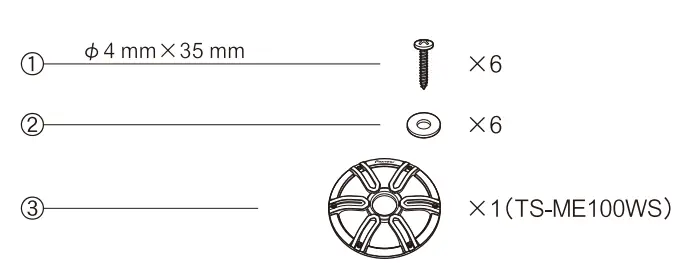

PARTS INCLUDED
- 2 colors grilles are included
RECOMMENDED ENCLOSURE VOLUME
MINIMUM VOLUME
© PIONEER CORPORATION 201 9 28-8, Honkomagome 2-chome, Bunkyo-ku, Tokyo 1 1 3-0021, JAPAN / JAPON PRINTED IN VIETNAM IMPRIME AU VIET-NAM (TRD1 473-CNI )
FAQS
Sub works at car toys. amp has power but i get no noise when i connect it to mine. what am i missing? gain is up too.
Check your crossover or see if your head unit has a subwoofer and if it’s on.
Does it work without hooking up the LED
Yes!
Can i take out the white front grill?
The front grill is removable
What size and type wire do I need to run from my head unit to this subwoofer location and what kind of connection on the speaker itself ??
I’d use 10-12 gauge wire from the speaker to the amp. I wouldn’t run this directly from the head unit. Smallest would be 14 gauge if you ran from head unit to speaker directly
Does the LED flash to the beat, or just stay on?
They just stay on.
Do I need a crossover with this sub?
Yes
Does the back side need to be enclosed, mounting under the aft seat/engine area
No it doesn’t. But I noticed the difference when I enclosed it
amp to power this subwoof
3200
What type of connection is required on the speaker itself , i have rca type connections on my head unit ?
No you won’t hook up rca to speaker. That is for a low level connection like an amp. You can plug rca into an amp then run speaker wires out of your amp. Head units themselves typically can’t power a sub.
