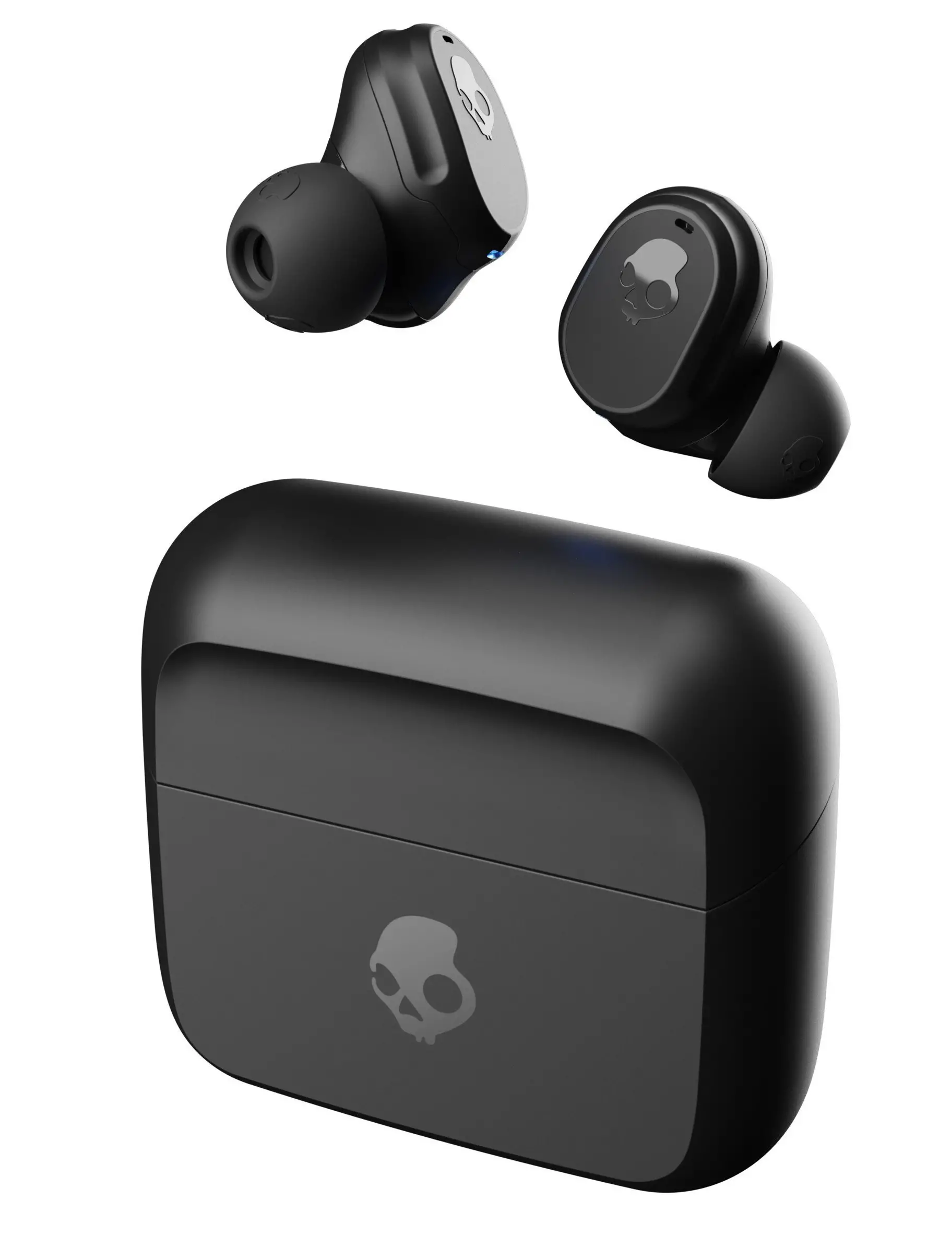

Skullcandy S2FYW-P740 Mod Series Wireless Earbuds
Download the Skullcandy App
Download the Skullcandy App
 | |
 |  |

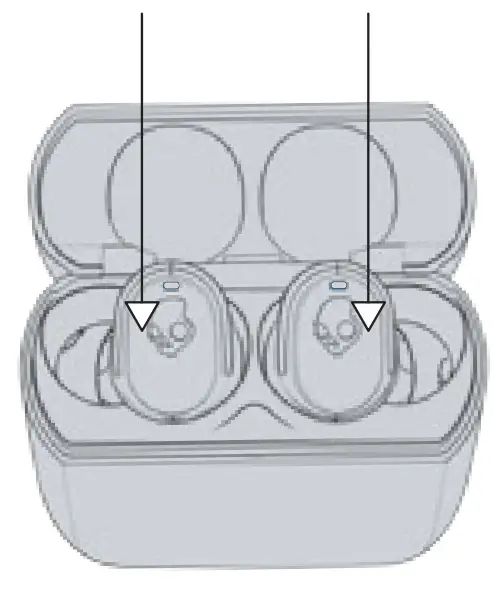

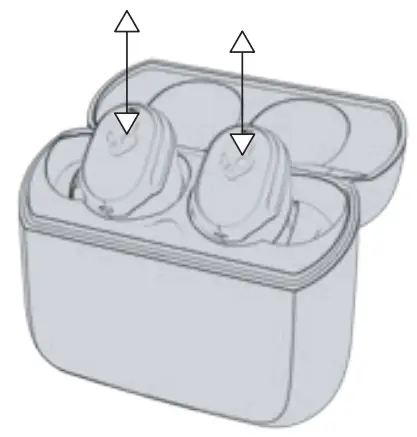

Auto Power – On/Off
Auto Power
On/Off

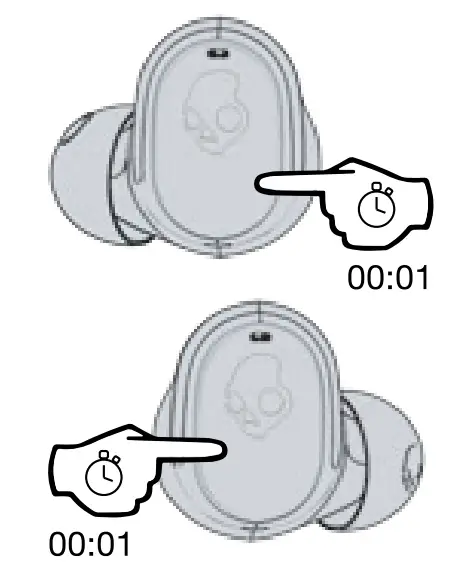

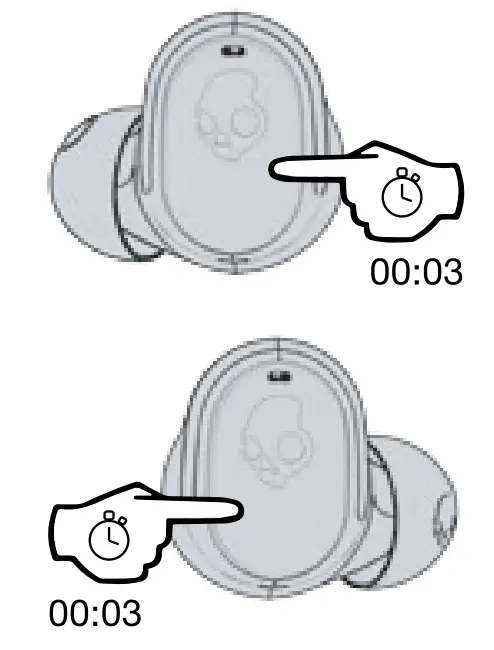

Power-On

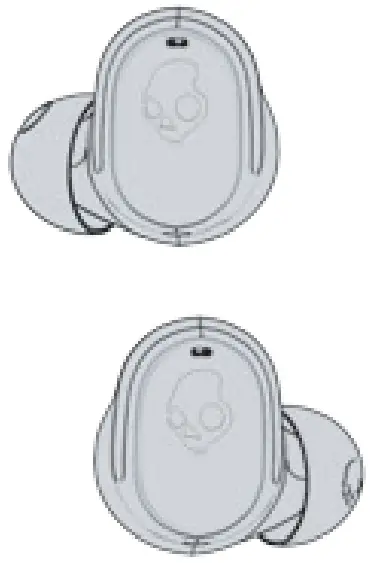

Both Earbuds
Power-On
Power-Off
Both Earbuds
Power Off

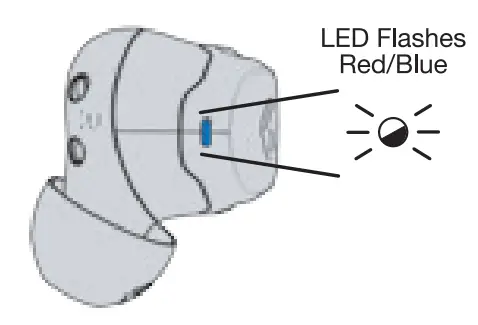

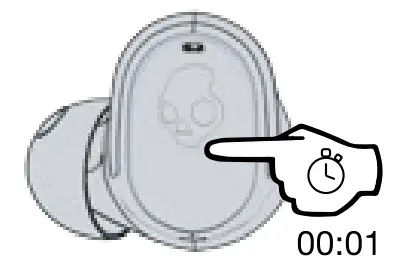

Pairing Mode
Either Earbud
*On Mode
Pairing Mode
Pair New Device
“Mod”
Pair New Device

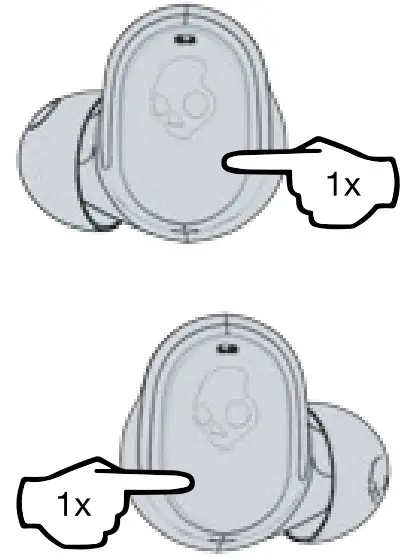

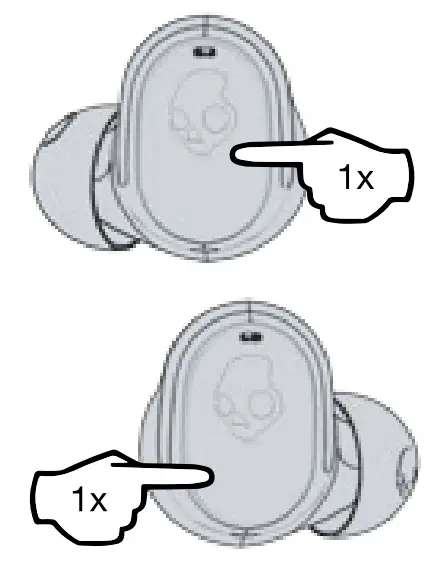

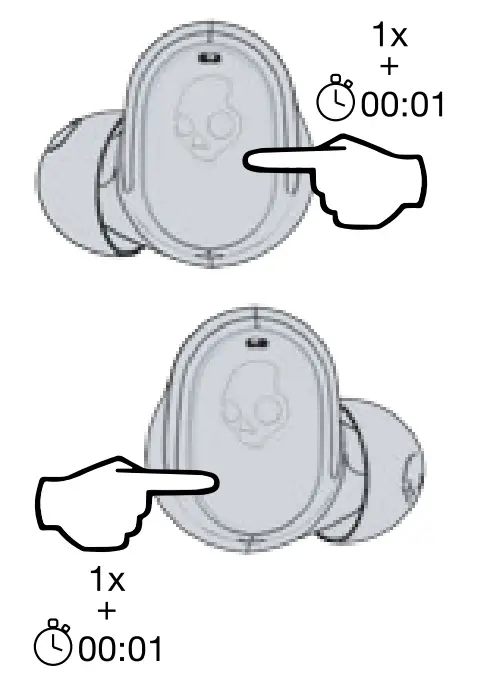

Play/Pause, Answer/End
Either Earbud
“While On
Play/Pause, Answer/End

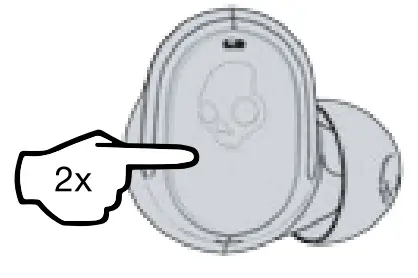

Volume Up
Right Earbud
Volume Up
Volume +

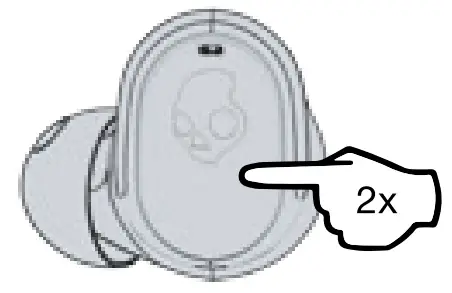

Volume Down
Left Earbud
Volume Down
Volume –
Track Forward
Right Earbud
Track Forward
Track Back
Left Either
Track Back
EQ Switch
* In App Only
* Skullcandy App Required
Change Equalizer Modes
Find With Tile™
Both Earbuds
*Tile App Required
Pair Tile™

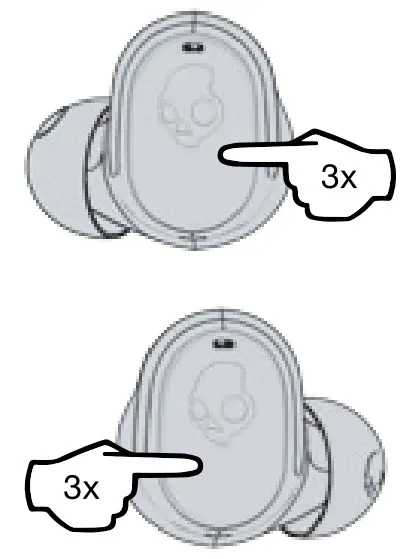

Re-Sync Earbuds
Both Earbuds
* On Mode
* Bluetooth Disconnected
Re-Sync Earbuds
Clear Paired Device
Both Earbuds
* On Mode
* Bluetooth Disconnected
Reset Device
Charge Earbuds
Earbud LED
* Red – Charging
* Blue – Fully Charged
Charge Earbuds

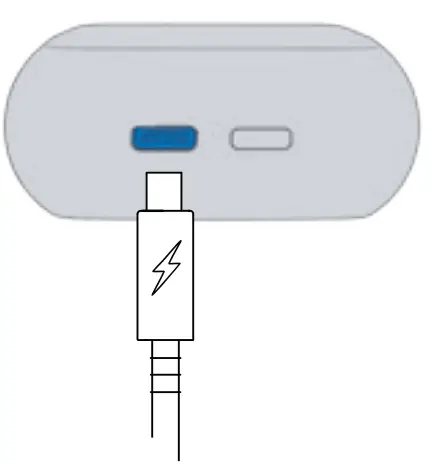

Charge the Case
Charge Case
Contains Li-ion battery. Battery must be recycled or disposed of properly.
Made in China.
Hardware and Software
- Hardware Version: Earphone: V0.2, Charging case: V0.4
- Firmware Version: Earphone:
V0.121, Charging case: V.012
Mod Series
MODEL: S2FYW, S2FYWL
FCC ID: Y22-S2FYW
IC: 10486A-S2FYW
Speaker Driver: 6mm, Impedance: 16 Ohms, THD <3%®50KHz-10KHz, Voltage Regulation: 3,7v, Bluetooth” 5.2, Frequency Band: 2,402GHz-2.480GHz, Maximum Power: 11,97 dBm, Weight: 54g,
Skullcandy, and other marks are registered tredemarks of Skullcandy, Inc. All rights reserved,
Maximum operating temperature 45°C
ISED SAR Compliance Statement
This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating instructions for satisfying RF exposure compliance, This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The portable device is designed to meet the requirements for exposure to radio waves established by the ISED. These requirements set a SAR limit of 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported under this standard during product certification for use when properly worn on the head.
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause hannful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against hannful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause hannful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause hannful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna,
- Increase the separation between the equipmBr1t and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected,
- Consult the dealer or an experienced radio/TV technician for help.
ISED Compliance Statement
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development
Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1 )This device may not cause interference.(2)This device must accept any interference, including interference that may cause undesired operation of the device
Warning: To avoid hearing damage, do not listen at high volume levels.
Many electrical items can be repaired or recycled, saving natural resources and the environment. If you do not recycle, electrical equipment will end up in landfill where hazardous substances will leak out and cause soil and water contamination – harming wildlife and also human health. To remind you that old electrical equipment can be recycled, it is now marked with a crossed out wheeled bin symbol. Please do not throw any electrical equipment (including those marked with the crossed out wheeled bin symbol) in your bin.
CAUTION
Risk of explosion if the battery is replaced by an incorrect typedisposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion;leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas;a battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
FCC SAR statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The portable device is designed to meet the requirements for exposure to radio waves established by the Federal Communications Commission (USA).
These requirements set a SAR limit of 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported under this standard during product certification for use when properly worn on the head.
LIMITED WARRANTY- FOR SALES IN AUSTRALIA:
Against defects for 1 year from the date of purchase. Product will be replaced or refunded at our option. At your cost, deliver product and Proof of Purchase to Skullcandy at 63 Centennial Circuit Byron Bay, 2481 NSW, Australia. Ph 02 6639 5555. Further details at www.skullcandy.com.au or contact [email protected].
Your benefits under this Skullcandy warranty are in addition to your other rights and remedies under a law in relation to this product. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
1 YEAR GLOBAL WARRANTY
United States of America and Canada Product Purchases Only
Skullcandy products are backed by a 1-year limited warranty. If it doesn’t work the way we promised, we’ll make it right. For Guarantee Claims, Questions and Terms & Conditions visit www.skullcandy.com/warranty or call us at 1-888-MYSKULL
SIMPLIFIED EU
DECLARATION OF CONFORMITY
Hereby, Skullcandy lnternation GmbH declares that the radio equipment type [Model: S2FYW] is in compliance with Directive 2014/53/EU.The full text of the EU declaration of conformity is available at the following internet address: skullcandy.eu/product documents
