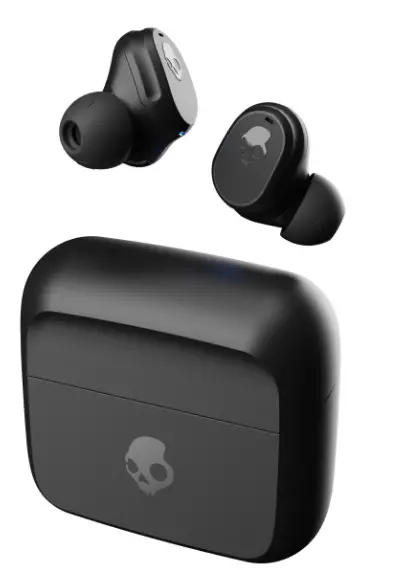

Skullcandy Mod Series True Wireless Earbuds

Download the Skullcandy App

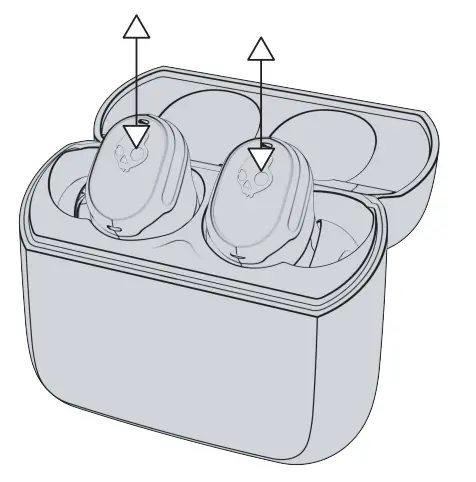

Auto Power – On/Off

Power – On

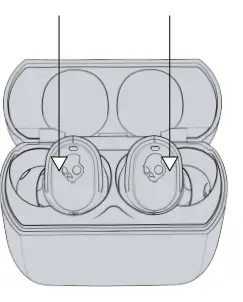

Power – Off

Contains a Li-ion battery. The battery must be recycled or disposed of properly

Hardware and Software

Hardware Version: Earphone: V0.2, Charging case: V0.4
Firmware Version: Earphone: V0.121, Charging case: V.012
Speaker Driver: 6mm, Impedance: 16 Ohms, THD <3%@50KHz-10KHz, Voltage
Regulation: 3.7v, Bluetooth® 5.2, Frequency Band: 2.402GHz – 2.480GHz, Maximum
Power: 10.30dBm, Weight: 54g
Maximum operating temperature 45ºC

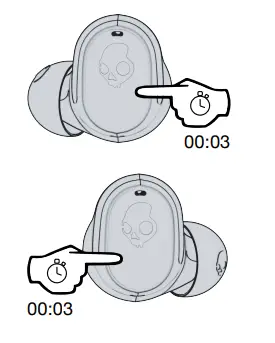

Pairing Mode

Pair New Device

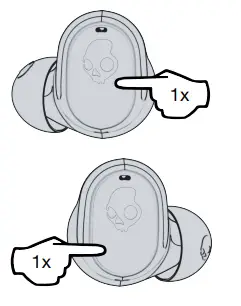

Play / Pause Answer / End

Volume Up

Volume Down

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions this device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help

ISED Compliance Statement
This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science, and Economic Development Canada’s license-exempt RSS(s).
Operation is subject to the following two conditions This device may not cause interference. This device must accept any interference, including interference that
may cause undesired operation of the device.

ISED SAR Compliance Statement
This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. The end user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The portable device is designed to meet the requirements for exposure to radio waves established by the ISED. These requirements set a SAR limit of 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported under this standard during product certification for use when properly worn on the head.

FCC SAR Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. The end user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The portable device is designed to meet the requirements for exposure to radiowaves established by the Federal Communications Commission (USA). These requirements set a SAR limit of 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported under this standard during product certification for use when properly worn on the head.

CAUTION
Risk of explosion if the battery is replaced by an incorrect type; disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, which can result in an explosion; leaving a battery in an extremely high temperature the surrounding environment that can result in an explosion or the leakage of flammable liquid or gas; a battery subjected to extreamly low air pressure that may result in an explosion or the leakage of flammable liquid or gas.

SIMPLIFIED EU
DECLARATION OF CONFORMITY
Hereby, Skullcandy Internation GmbH declares that the radio equipment type [Model: S2FYW] is in compliance with Directive 2014/53/EU.The full text of the EU declaration of conformity is available at the following internet address: Skullcandy.EU/product-documents

Track Forward
