Enclosure Accessories
| Shipping Schedule | |
| Same day | 1 – 15 days |
| Color indicates shipping lead time in business days. | |

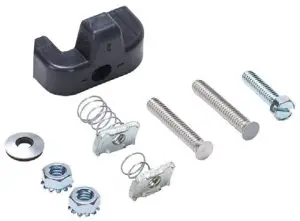

Door Support Guide
Application
- Designed for use when heavy loads or uneven mounting surfaces changes door alignment.
- Field installable kit.
- Can be used on Hammond Eclipse series and 1418 wall-mount enclosures, all freestanding and floor-mount enclosures – both painted and stainless steel.
- Includes all necessary hardware and installation instructions.
- Sealing washers to maintain enclosure integrity.
| Door Support Guide | ||
| Part Number | Price | Drawing Link |
| DSG1 | $21.00 | |

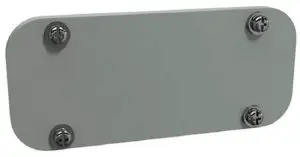

Gland Plates
Application
- 14 gauge mild steel gland plate allows for easy cable entry into enclosure.
- Maintains NEMA 12, 4 ratings.
- Hardware and cutout template included.
Finish
- Available in ANSI 61 gray and RAL 7035 light gray.
| Gland Plates | ||||||
| RAL 7035 Light Gray | Price | ANSI 61 Gray | Price | Overall Dimensions HxW | Fits Opening | Drawing Link |
| GP063LG | $40.50 | GP063GY | $40.50 | 6.00 x 6.00 [152 x 76] | 5.06 x 1.50 [129 x 38] | |
| GP134LG | $51.00 | GP134GY | $51.00 | 13.00 x 13.00 [330 x 102] | 11.75 x 2.31 [298 x 59] | |
| GP136LG | $81.00 | GP136GY | $81.00 | 13.00 x 13.00 [330 x 152] | 12.13 x 4.63 [308 x 118] | |
| GP216LG | $91.00 | GP216GY | $91.00 | 21.00 x 21.00 [533 x 152] | 19.63 x 4.63 [499 x 118] | |
| Note: Dimensions in inches [millimeters]. | ||||||
