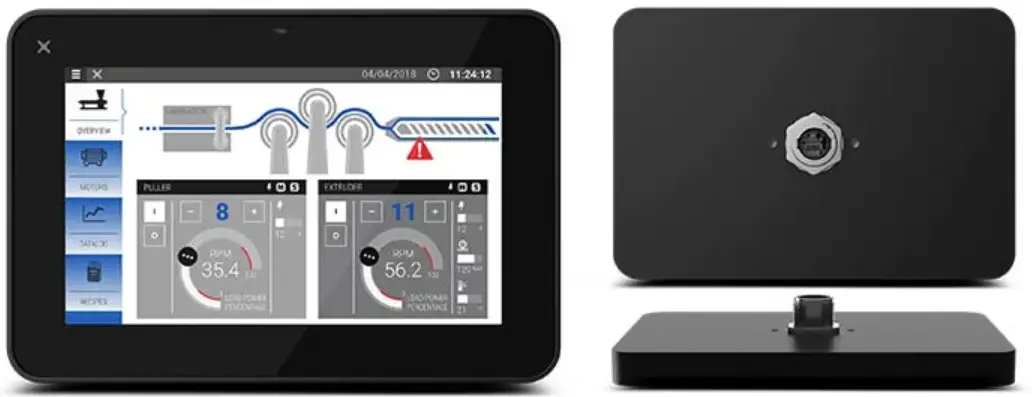

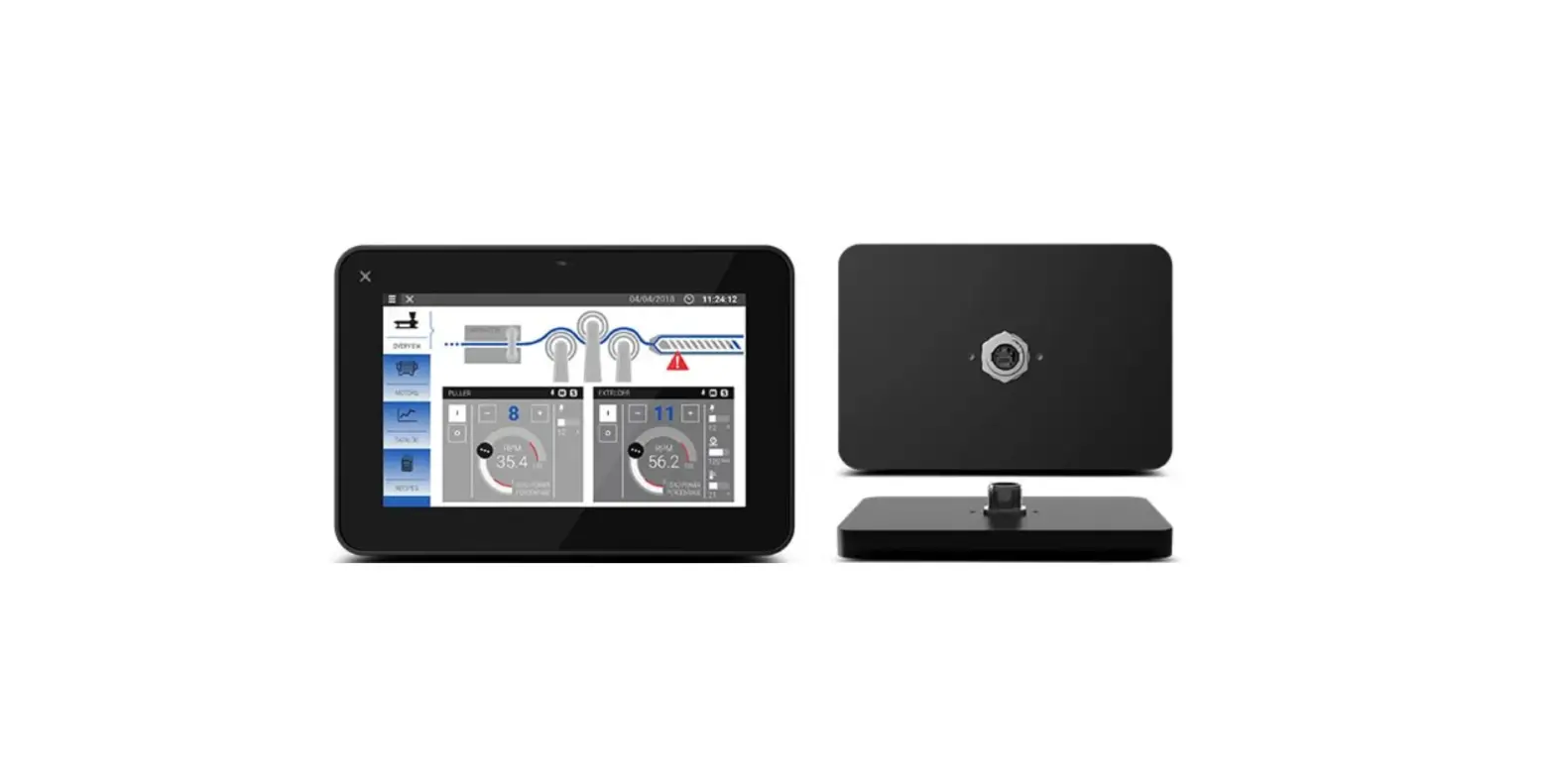

EXOR JSmart707M PoE Injector HMI 7 Inch Display Installation Guide

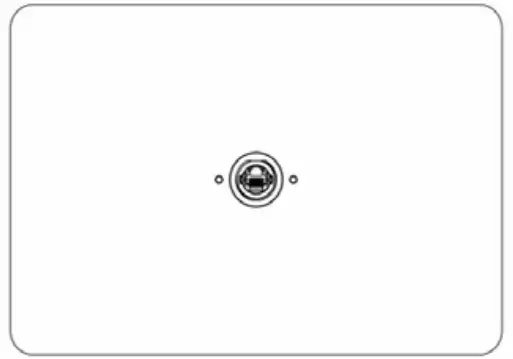

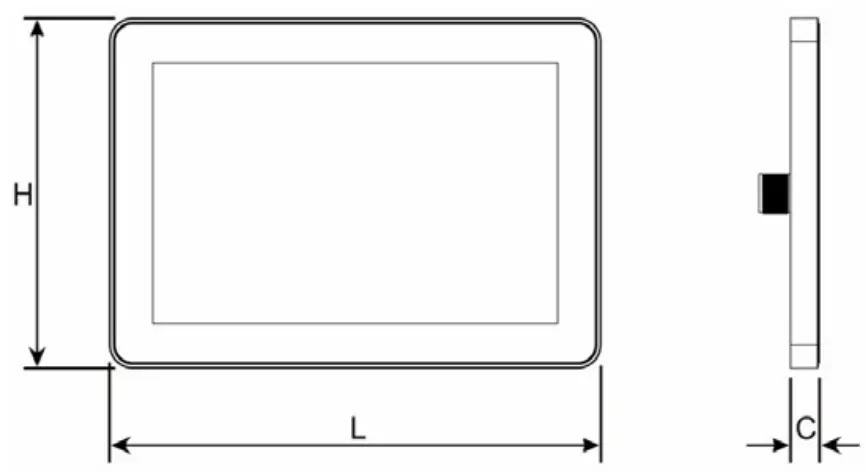

DIMENSION
JSmart707M – Part Number JS707GB2U5Px
JSmart710M – Part Number JS710GC2U5Px
JSmart715M – Part Number JS715GD2U5Px
JSmart721M – Part Number JS721GE2U5Px
| MODEL | H | L | C | Weight |
| JSmart707M | 131,6mm/05.18” | 195,2mm/07.68” | 16,5mm/0.06” | 0,7Kg |
| JSmart710M | 183,1mm/07.20” | 264,5mm/10.41” | 16,5mm/0.06” | 1,2Kg |
| JSmart715M | 248mm/09.76” | 398,6mm/15.69” | 26,5mm/01.04” | 4,0Kg |
| JSmart721M | 325,6mm/12.81” | 534,1mm/21.02” | 26,5mm/01.04” | 6,0Kg |
| Maximum ambient temperature range | Temperature Class |
| -20°C up to 55°C | T5 |
| MODEL | CSD | CSD2 |
| JSmart707M | 150mm/05.90” | 100mm/03.93” |
| JSmart710M | 200mm/07.87” | 150mm/05.90” |
| JSmart715M | 250mm/09.84” | 200mm/07.87” |
| JSmart721M | 650mm/25.59” | 500mm/19.68” |
CSD = Minimum Compass Safe Distance of standard compass
CSD2 = Minimum Compass Safe Distance of steering compass, standby steering compass, emergency compass

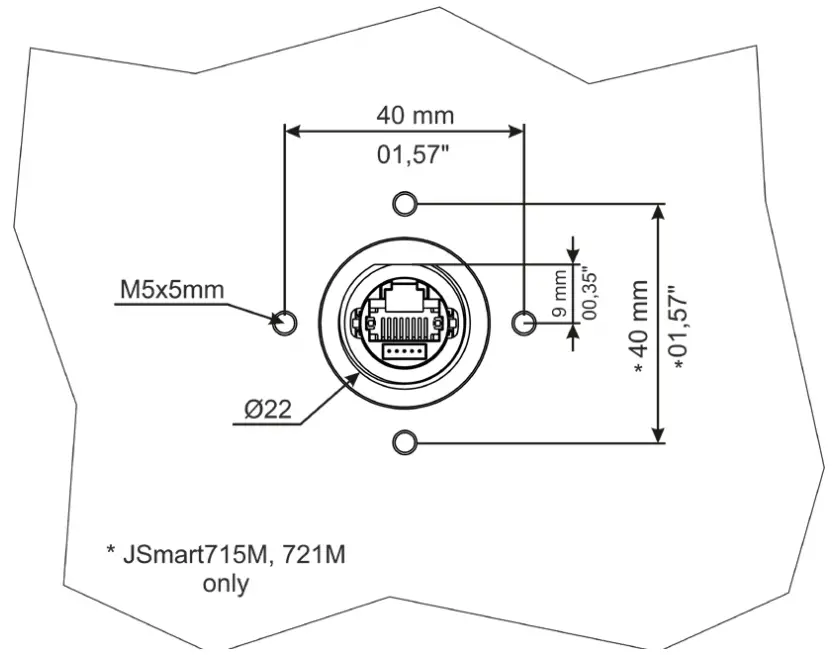

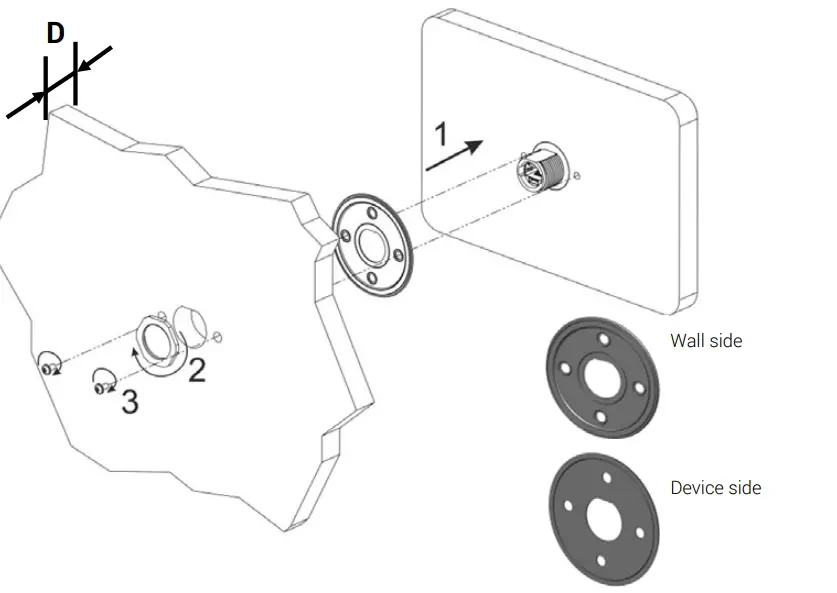

FIXING
| D | Usable cable |
| Max 3mm | JSCAxxxx (IP67) |
| Max 10mm | Standard Ethernet |
Tightening torque: 1000Ncm for nut, 130Ncm for screws.
For use on a flat surface of a type 1 or 12 or 4X enclosure or equivalent / IP67: guaranteed if installed on a flat surface of an IP67 enclosure (following the installation instructions).
Installation accessories available. See product catalog.
Type and IP rating for mounting with other accessories are indicated in the respective installation guides for the individual accessories.
CONNECTIONS

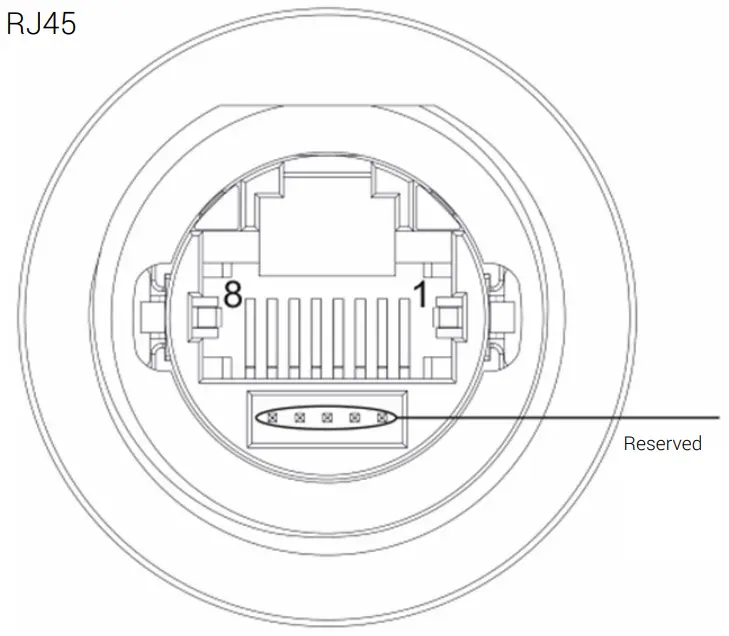

Pin Description
1 TX+
2 TX3 RX+
4 n/c
5 n/c
6 RX7 n/c
8 n/c

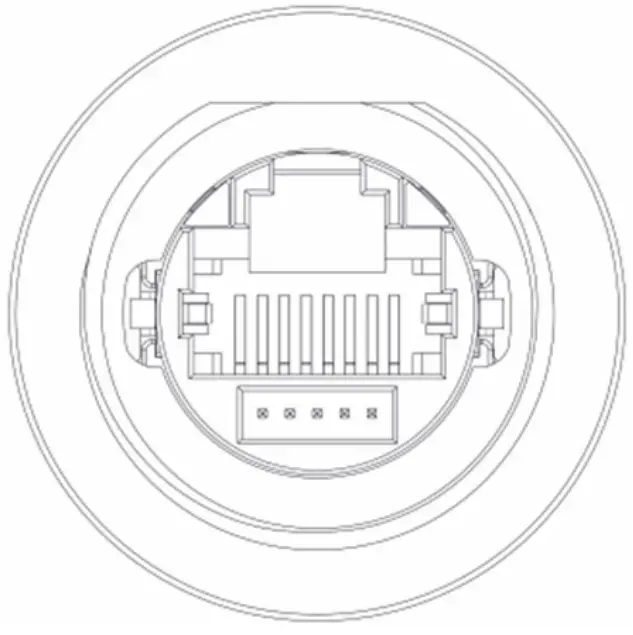

POWER SUPPLY
JSmart707M – IEEE 802.3af PoE 12W max.
JSmart710M – IEEE 802.3af PoE 14W max.
JSmart715M – IEEE 802.3at PoE+ 23W max.
JSmart721M – IEEE 802.3bt PoE 35W max.
CAT 5 shielded cable or higher
Ensure that the power supply has enough power capacity for the operation of the equipment.

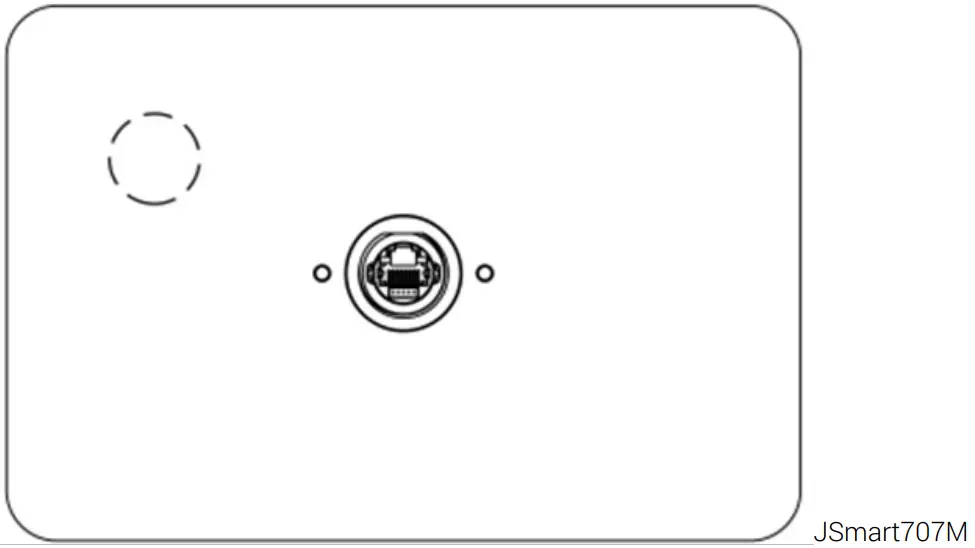

DISPOSE OF BATTERIES
Battery
The products have been designed for use in industrial, residential, commercial, light industrial environment and naval, without safety functions, in compliance with the 2014/53/EU, 2011/65/EC directives
The products have been designed in compliance with:
EN 61000-6-4
EN 61000-6-2
EN 61000-6-3
EN 61000-6-1
ETSI EN 301 489-1
ETSI EN 301 489-17
ETSI EN 300 328
EN 62311 *
EN 61010-1
EN 61010-2-201
EN 60945
* Standard radio signal and minimum distance from the body calculated according to EN 62311
Standard radio signal
The WiFi antenna is positioned behind the black band above the display.
This device cannot be disposed of as a domestic waste but according to WEEE European Directive 2012/19/EU

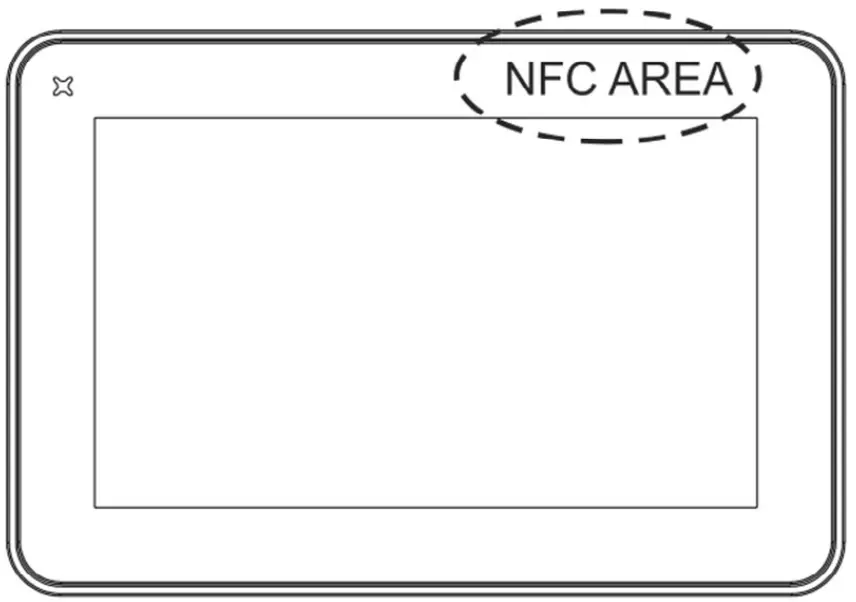

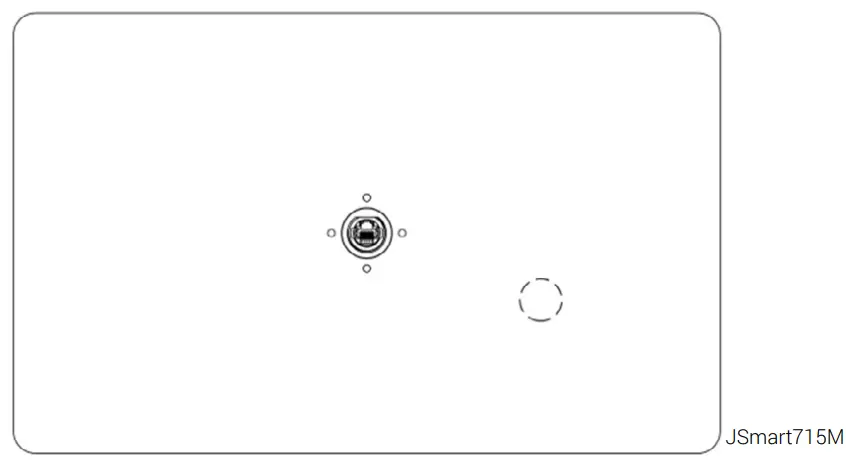

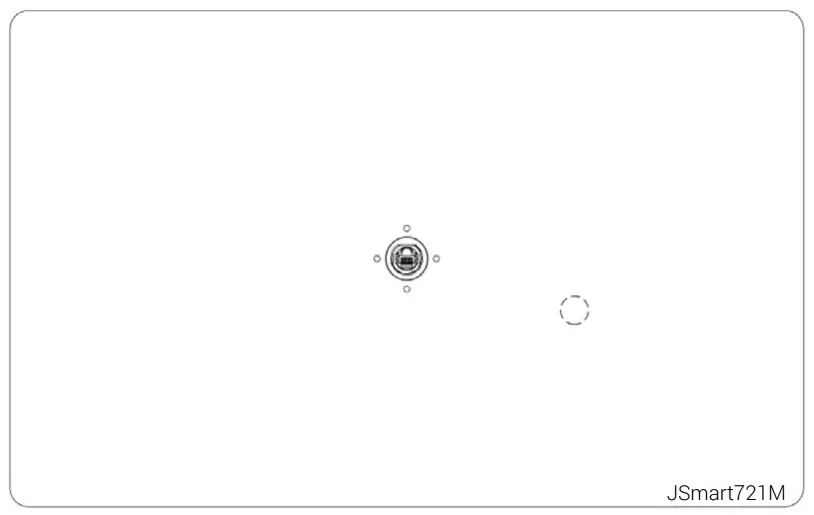

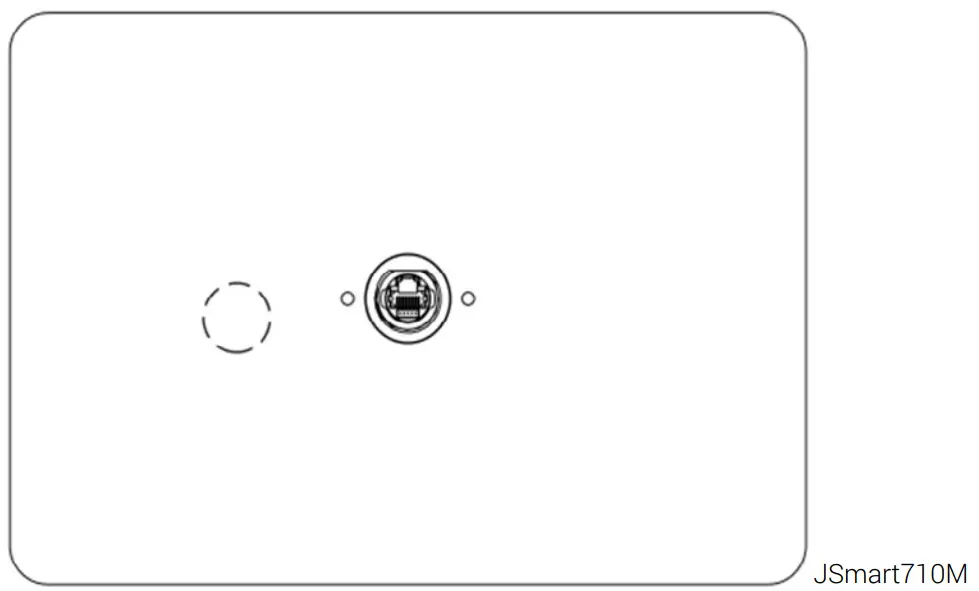

ANTENNA POSITION
- THIS EQUIPMENT IS TYPE 12, 4X AND 1 DEVICE AND IS MEANT TO BE INSTALLED THROUGH THE WALL OF AN ENCLOSURE SUITABLE FOR THE ENVIRONMENT SUCH THAT THE EQUIPMENT IS ONLY ACCESSIBLE WITH THE USE OF A TOOL.
- SUITABLE FOR USE IN CLASS I, DIVISION 2, GROUPS A, B, C AND D HAZARDOUS LOCA- TIONS, OR NONHAZARDOUS LOCATIONS ONLY.
WARNING – EXPLOSION HAZARD – DO NOT DISCONNECT EQUIPMENT WHILE THE CIRCUIT IS LIVE OR UNLESS THE AREA IS KNOWN TO BE FREE OF IGNITABLE CONCENTRATIONS.
Note
In the presence of vibrations at some frequencies, the model JSmart721M model could present an aesthetic change, such as the localized chromatic variation without compromising the legibility of the writings.
Software available in these products is based on OpenSource.
Visit oss.exorint.net for more details.
