SideStream Masks Nebulizer Mask
User Manual

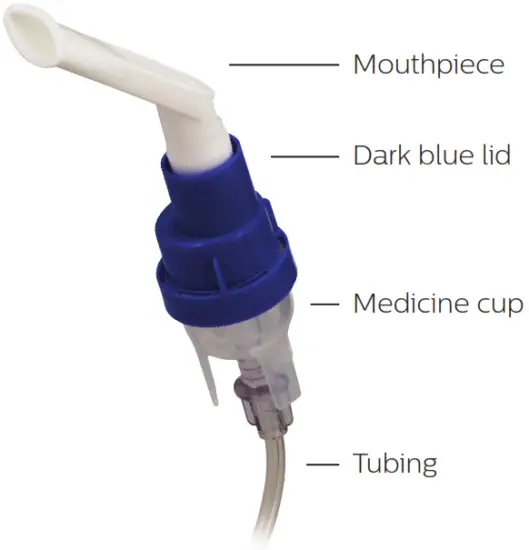

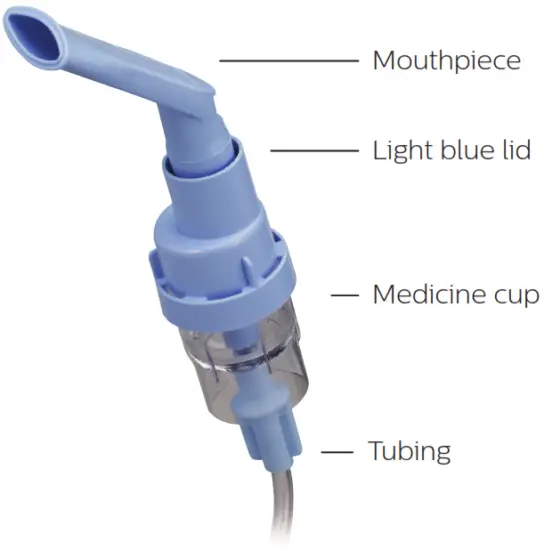

SideStream nebulizers
Reusable
Replace after six (6) months of use.
Disposable
Replace after two (2) weeks of use.
Before using SideStream for the first time, read the instructions for the use booklet.
How to use your SideStream nebulizer
 |  |  |

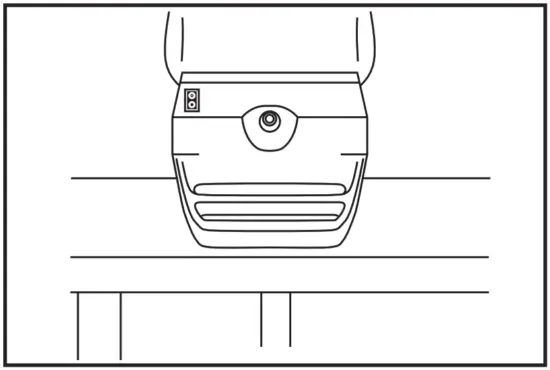

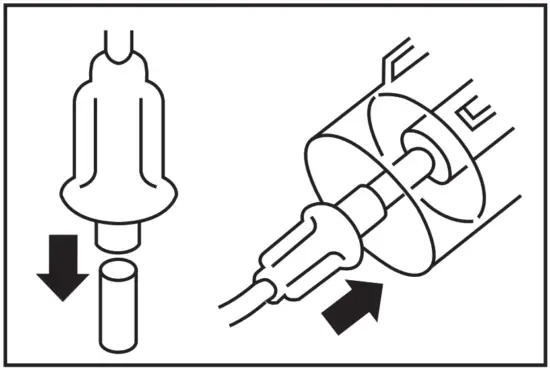

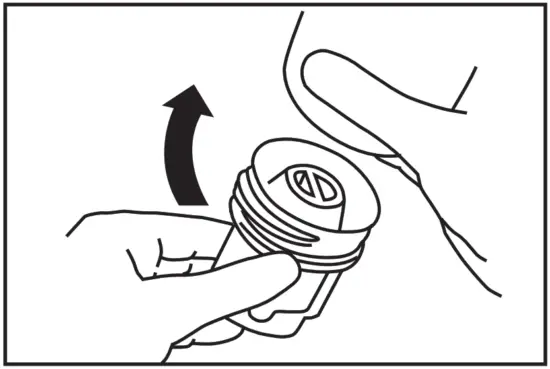

| 1. Place the compressor on a solid surface. | 2. Connect the tubing to the compressor and medicine cup | 3. Unscrew the lid. |
 |  |  |

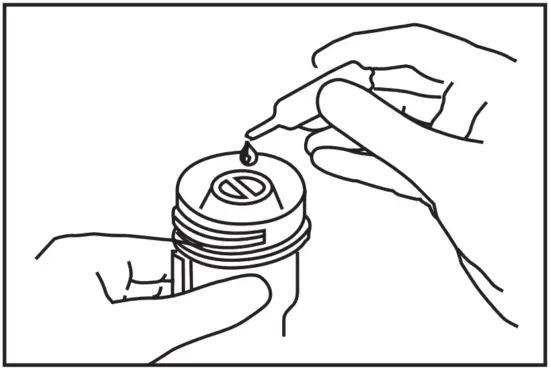

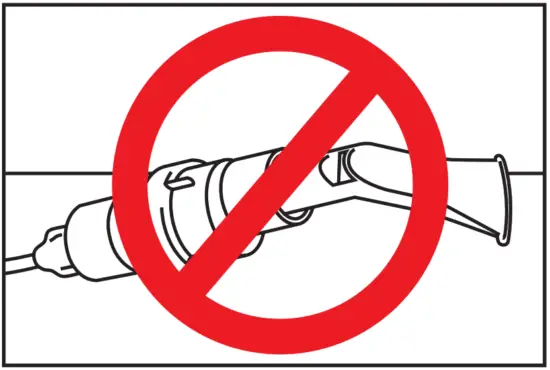

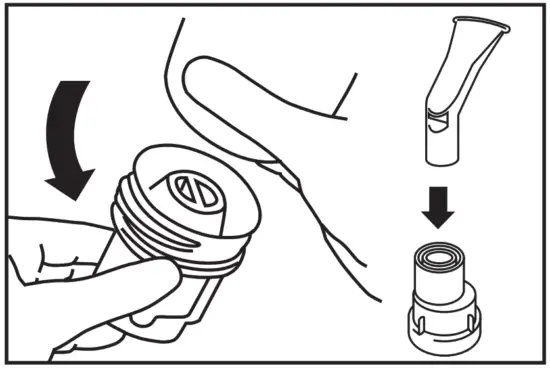

| 4. Fill medicine cup. | 5. Replace lid. Connect mouthpiece. | 6. Do not tip SideStream. |
 |  |  |

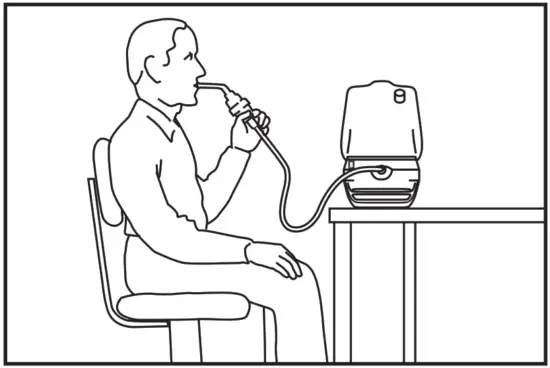

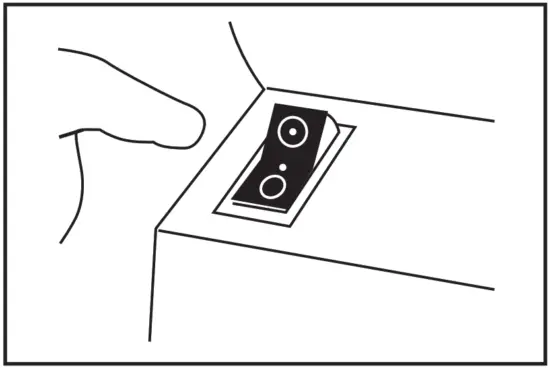

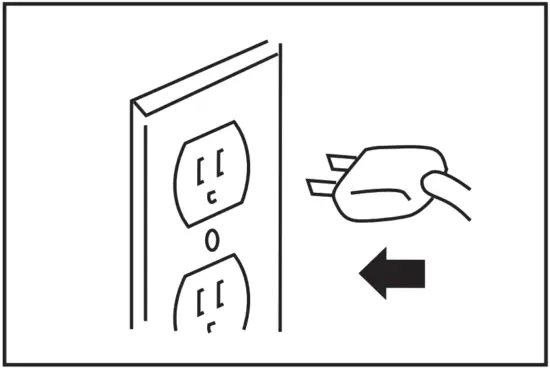

| 7. Plugin compressor. | 8. Turn the switch on. | 9. Sit upright, relax, and slowly breathe in and out. |
If you need to use a SideStream adult or pediatric mask…
 |  |  |

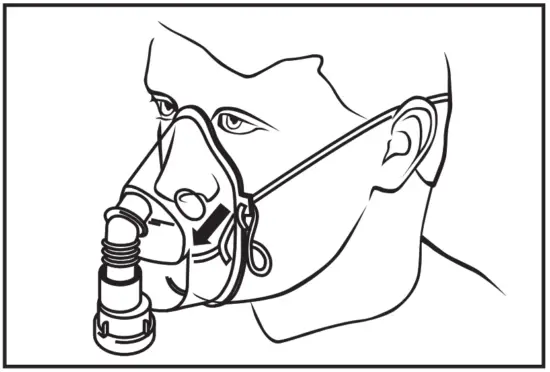

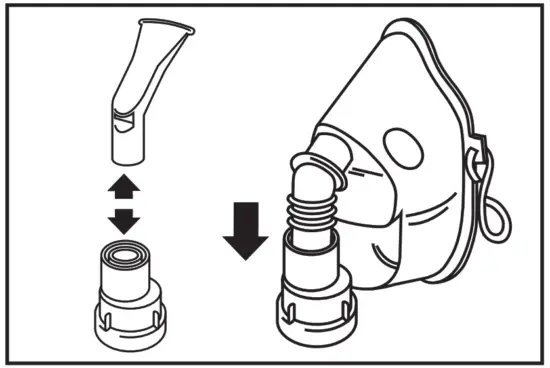

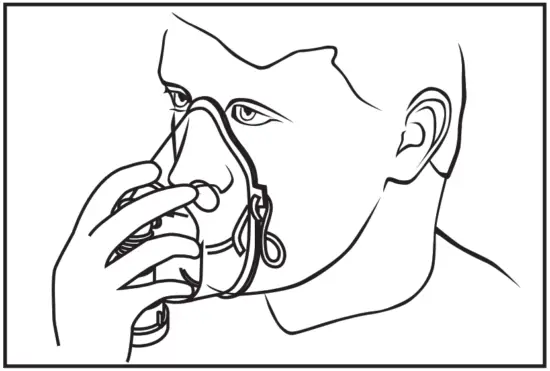

| 1. Replace mouthpiece with mask adaptor and mask. | 2. Place mask over nose and mouth. | 3. Place the strap overhead and adjust. |
Cleaning instructions
After every use (for both SideStream reusable and disposable)…
 |  |  |

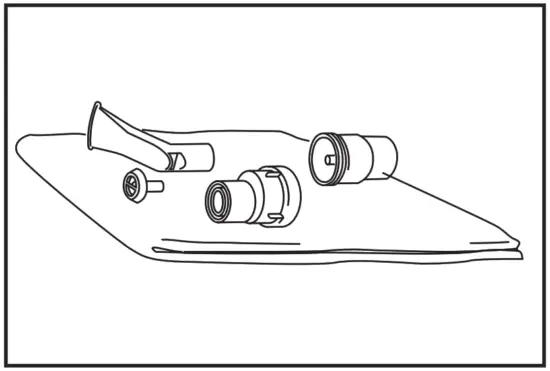

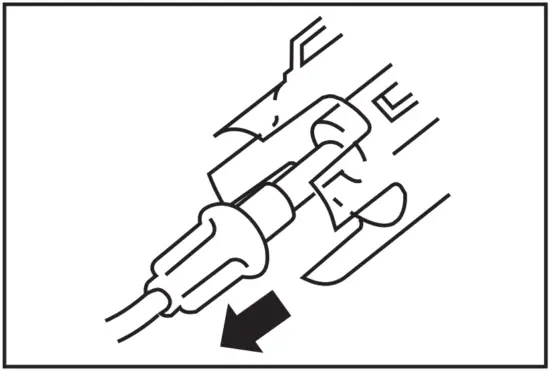

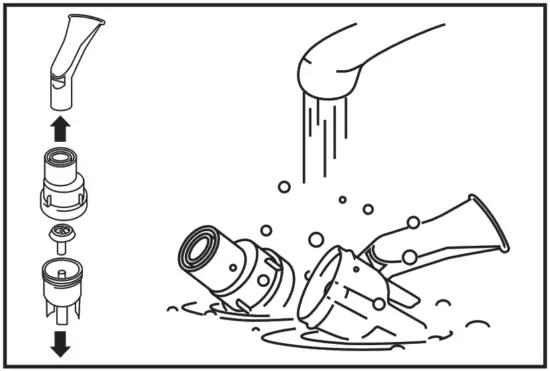

| 1. Disconnect the handset from the tubing. | 2. Disassemble and wash all parts in warm, soapy water (except the tubing). | 3. Rinse in clean water and air dry. |
Once each week (for SideStream reusable only)…
 |  |  |

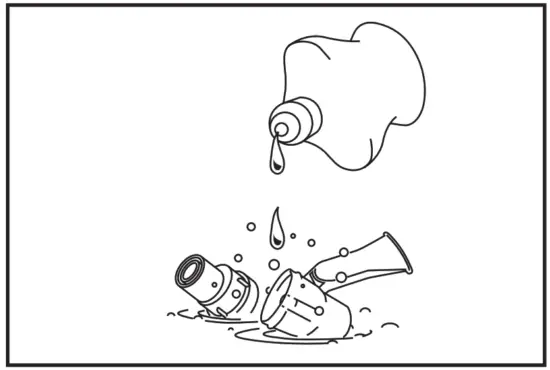

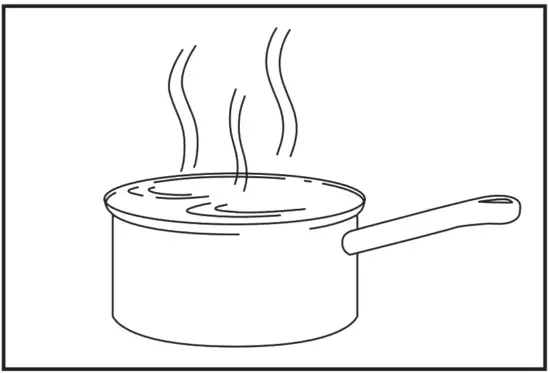

| 1. Place parts (except tubing) in water and 2–3 drops of dishwashing liquid. | 2. Boil for 10 minutes. | 3. Rinse in clean water for 2 minutes and air dry. |
© 2014 Koninklijke Philips N.V.
All rights reserved. Philips Healthcare reserves the right to make changes in specifications and/or to discontinue any product at any time without notice or obligation and will not be liable for any consequences resulting from the use of this publication.
CAUTION: US federal law restricts these devices from sale by or on the order of a physician.
Philips Respironics
1010 Murry Ridge Lane
Murrysville, PA 15668
Customer Service
+1 724 387 4000
800 345 6443 (toll-free, US only)
www.philips.com/respironics
RRDPGH JH 10/20/14 MCI 4106402 PN 1119427
