LIFESTYLE CLIMB MILL

IMPORTANT PRECAUTIONS

SAVE THESE INSTRUCTIONS
When using a ClimbMill, basic precautions should always be followed, including the following: Read all instructions before using this equipment. It is the responsibility of the owner to ensure that all users of this equipment are adequately informed of all warnings and precautions. This equipment is intended for light commercial use. To ensure your safety and to protect the equipment, read all instructions before operating.

WARNING!
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS:

• At NO time should children under the age of 14 use the unit.
• Children over the age of 14 or disabled persons should not use the unit without adult supervision.
• Close supervision is necessary when the exercise device is used by or near children or disabled persons.
• At NO time should pets or children under the age of 14 be closer to the unit than 10 feet.
• This product must be used for its intended purpose as described in this Owner’s Guide.
• Incorrect or excessive exercise may cause injury. If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness of breath, stop exercising immediately and consult your physician before continuing.
• Heart rate monitoring systems may be inaccurate. Over-exercising may result in serious injury or death. If you feel faint, stop exercising immediately.
• Keep hands and loose clothing away from moving parts.
• Do not wear clothes that might catch on any part of the unit.
• Always wear athletic shoes while using this equipment.
• Do not jump on the unit.
• At no time should more than one person is on the unit while in operation.

CAUTION!
CONSULT A PHYSICIAN BEFORE USING THIS EQUIPMENT. READ OWNER’S MANUAL BEFORE USE.
It is essential that this equipment is used only indoors, in a climate-controlled room. If this equipment has been exposed to colder temperatures or high moisture climates, it is strongly recommended that the equipment is warmed up to room temperature before first-time use.

DANGER!
TO REDUCE THE RISK OF ELECTRICAL SHOCK:
Always unplug the equipment from the electrical outlet immediately after using, before cleaning, performing maintenance, and putting on or taking off parts.

• This unit should not be used by persons weighing more than specified in the OWNER’S MANUAL SPECIFICATIONS SECTION. Failure to comply will void the warranty.
• To prevent electrical shock, never drop or insert any object into any opening.
• Never operate the unit if it has a damaged cord or plug if it is not working properly, if it has been dropped or damaged, or immersed in water.
• Keep the power cord away from heated surfaces.
• Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
• Never operate the exercise device with the air opening blocked. Keep the air opening clean, free, of lint, hair, and the like.
• Do not remove the side covers unless instructed by Customer Tech Support. Service should only be done by an authorized service technician.

CAUTION!
CONSULT A PHYSICIAN BEFORE USING THIS EQUIPMENT. READ OWNER’S MANUAL BEFORE USE.
It is essential that this equipment is used only indoors, in a climate-controlled room. If this equipment has been exposed to colder temperatures or high moisture climates, it is strongly recommended that the equipment is warmed up to room temperature before first-time use.

POWER REQUIREMENTS

ELECTRICAL REQUIREMENTS
For your safety and to ensure performance, the ground on this circuit must be non-looped (isolated). Please refer to NEC article 210-21 and 210-23. Failure to follow these electrical requirements could void the Matrix limited warranty.
GROUNDING INSTRUCTIONS
DANGER!
The unit must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. The unit is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a  qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.
110 V PRODUCTS
110 V products require the use of a 100-125 V, 60 Hz, and a minimum of a 15A circuit, with a non-looped (isolated) neutral/ground for power. This unit can be daisy-chained together with up to 4 units per 15A circuit. Matrix daisy-chain cord adapters are sold separately.
220 V UNITS
220 V units require the use of a 216-250 V, 50 Hz, and a minimum of a 15A circuit, with a nonlooped (isolated) neutral/ ground for power. This ClimbMill can be daisy-chained together with up to 4 ClimbMills per 15A circuit. Matrix daisy-chain cord adapters are sold separately.
DIGITAL TV
An additional power adapter is not needed for the add-on TV or consoles with the integrated digital TV tuner. An RG6 coaxial cable with ‘F-type’ compression fittings will need to be connected between the video source and each add-on digital TV unit.
FCC REGULATIONS (USA ONLY)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
FCC RF Radiation Exposure Statement:
1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.

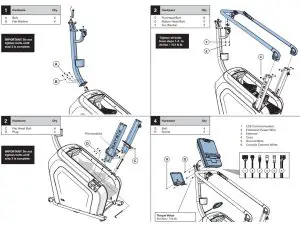

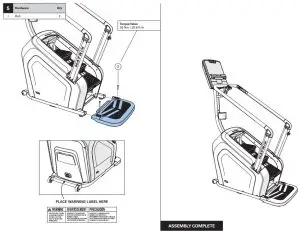

ASSEMBLY

UNPACKING
Unpack the equipment where you will be using it. Place the carton on a level flat surface. It is recommended that you place a protective covering on your floor. Never open box when it is on its side.
IMPORTANT NOTES
• All video and power outlets must be functional on the day of delivery/assembly of the product. The client is responsible for any additional installation charges associated with return visits.
• During each assembly step, ensure that ALL nuts and bolts are in place and partially threaded.
• Several parts have been pre-lubricated to aid in assembly and usage. Please do not wipe this off. If you have difficulty, a light application of lithium grease is recommended.
WARNING!
There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the equipment could have parts that are not tightened and will seem loose and may cause irritating noises. To prevent damage to the equipment, the assembly instructions must be reviewed and corrective actions should be taken.
NEED HELP?
If you have questions or if there are any missing parts, contact Customer Tech Support.

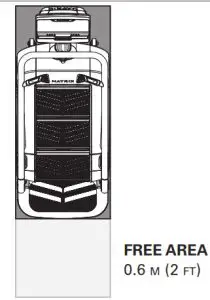

* Ensure a minimum clearance width of 0.6 meters (24”) for access to and passage around MATRIX equipment. Please note, 0.91 meters (36”) is the ADA recommended  clearance width for individuals in wheelchairs.

BASIC OPERATION

LOCATION OF THE UNIT
Place the unit on a level and stable surface away from direct sunlight. The intense UV light can cause discoloration on the plastics. Locate your unit in an area with cool temperatures and low humidity. Please leave a clear zone behind the unit that is at least 24” (610 mm). This zone must be clear of any obstruction and provide the user with a clear exit path from the machine. Do not place the unit in any area that will block any vent or air openings. The unit should not be located in a garage, covered patio, near water, or outdoors.
HEIGHT AND WEIGHT REQUIREMENTS
The equipment adds 20” – 25” (50 – 64.5 cm) to a user’s height. For example, a 6’1” (185 cm) tall user will be 7’9” – 8’2” (236 – 249 cm) off the floor. The ClimbMill requires a  minimum user weight of 99 lbs (45 kgs) and has a maximum user capacity of 300 lbs (136 kgs).
FOOTPRINT: 135 x 72 cm / 53” x 28”
HEIGHT: 190 cm / 75”
WEIGHT: 134.5 kg / 296 lbs.

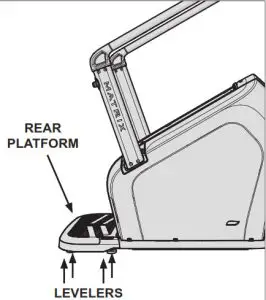

MOVING THE EQUIPMENT
The ClimbMill has a pair of transport wheels built into the front of the frame. To move, first, remove the power supply and firmly grasp the rear platform, carefully tilt and roll. Note: be sure to grab the steel frame and not the plastic.
LEVELING THE EQUIPMENT
It is extremely important that the levelers are correctly adjusted for proper operation. Turn leveling foot clockwise to lower and counter-clockwise to raise the unit. Adjust each side as needed until the equipment is level. Use of a level is recommended.
WARNING!
Our equipment is heavy, use care and additional help if necessary when moving. Failure to follow these instructions could result in injury.

PROPER USAGE

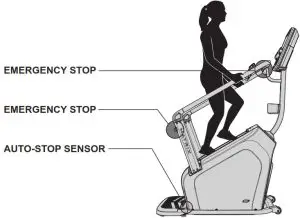

MOUNTING THE CLIMB MILL

1. There are two EMERGENCY STOP BUTTONS on the ClimbMill. One emergency stop button is located at the top of the handlebars and the second is located on the lower right side handlebar. The EMERGENCY STOP BUTTONS will bring the step surfaces to a complete stop when pressed.

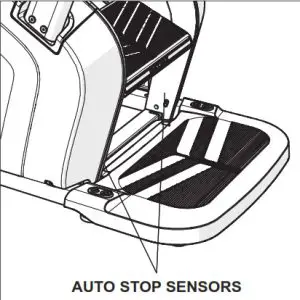

2. The AUTO-STOP SENSOR will bring the step surfaces to a complete stop upon detecting an object under the bottom step.
3. Stand directly behind the ClimbMill on the rear platform. Grasp the handlebars and step onto the ClimbMill until you are within comfortable reach of the console, top emergency stop lever, and in-reach handlebar controls.
4. To determine proper workout position, stand on the steps within comfortable reach of the console. Maintain a constant distance from the console and in each handlebar control. Keep your knees slightly bent at all times.
5. Dismounting the ClimbMill – After the steps have come to a complete stop and while grasping the handlebars, step down onto the rear platform.

USING THE HEART RATE FUNCTION
The heart rate function on this product is not a medical device. While heart rate grips can provide a relative estimation of your actual heart rate, they should not be relied on when accurate readings are necessary. Some people, including those in a cardiac rehab program, may benefit from using an alternate heart rate monitoring system like a chest or wrist strap. Various factors, including the movement of the user, may affect the accuracy of your heart rate reading. The heart rate reading is intended only as an exercise aid in determining heart rate trends in general. Please consult your physician.
WARNING!
Heart rate monitoring systems may be inaccurate. Over-exercising may result in serious injury or death. If you feel faint, stop exercising immediately.

MAINTENANCE

Preventative maintenance is the key to smooth operating equipment, as well as keeping the users’ liability to a minimum. Equipment needs to be inspected at regular intervals.  effective components must be replaced immediately. Improperly working equipment must be kept out of use until it is repaired. Ensure that any person(s) making adjustments or performing maintenance or repair of any kind is qualified to do so.
MAINTAIN LABELS AND NAMEPLATES: Do not remove labels for any reason. They contain important information.
WARNING
Disconnect all power before servicing or moving the equipment. To remove power from the ClimbMill, the power cord must be disconnected from the wall outlet. To clean,  wipe surfaces down with soap and slightly damp cloth only; never use solvents.
