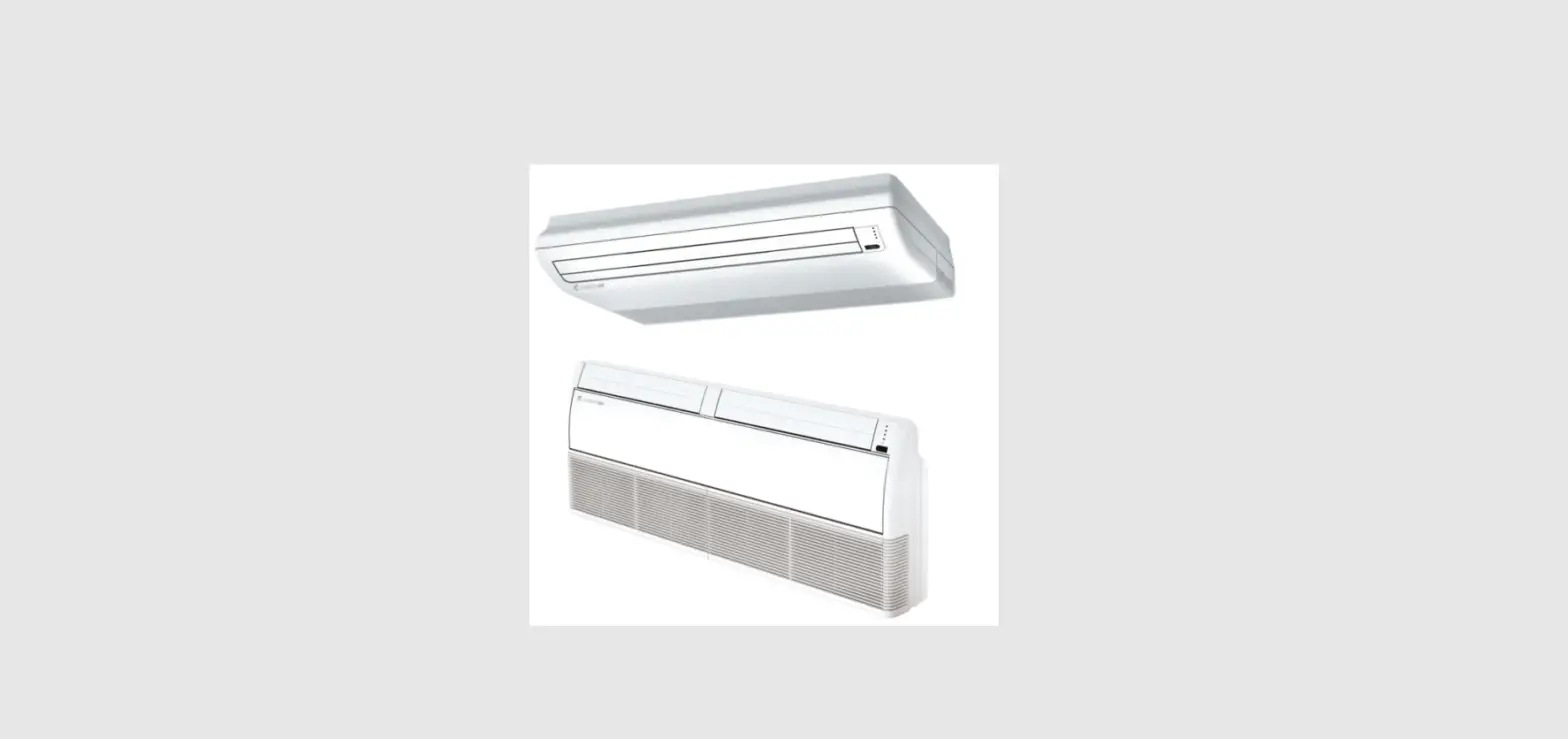

Systemair Sysvrf2 Ceiling 112 Q User Manual (+ PDF)

Contents hide

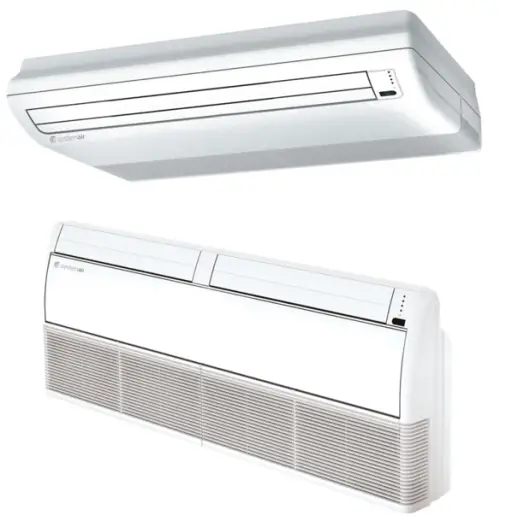

Item no: 316258

Features

Flexible vertical or horizontal installation, even into a corner of the ceiling.
Even and smooth air distribution due to auto horizontal and auto vertical swing function.
All models are equipped with high efficient DC fan motors.
7-speed fan control provides high flexibility in supplying the correct airflow in the room.
Wide angle air flow.
Low noise operation.
Washable air filter, easy for insertion and removal.
The built-in electronic expansion valve (EXV) ensures precise refrigerant flow control.
Cabinet colour: polar white (LAB code: 93,88 0,04 1,48).
An infrared receiver as standard equipment.
Power supply 50Hz or 60Hz.

Infrared remote controller SYS RM 05 with address setting function.
Wired controller SYS WSC 86 with address setting and Follow me function.
Wired controller SYS WGC 120 with weekly timer and Group control up to 16 indoor units.

Default group
Cooling capacity	11200	W
Power Input cooling	0,18	kW
Heating capacity	12500	W
Power Input heating	0,18	kW
Voltage	230	V
Frequency	50	Hz
Phase	1	~
Fan type	DC
Air flow	1890	m³/h
Refrigerant type	R410A
Dimensions (LxHxD)	1.670x244x680	mm
Weight	48	kg
Piping dimension liquid	9,5 (3/8”)
Piping dimension gas	15,9 (5/8”)
Piping dimension drain	16	mm
Operating ambient temperature range cooling	17-32	°C
Operating ambient temperature range heating	10-28	°C

Sound data
Sound pressure level at 1m – indoor unit	47	dB(A)

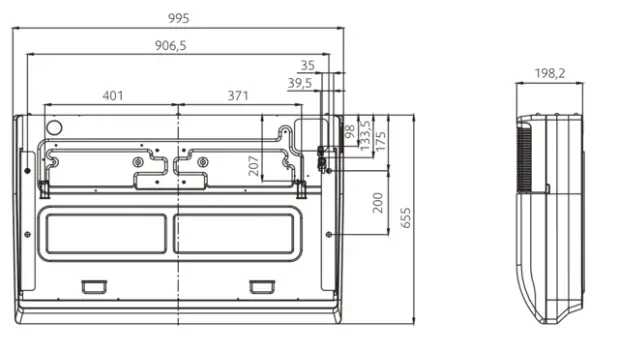

SYSVRF CEILING 36/45/56/71 Q

SYSVRF CEILING 90 Q

SYSVRF CEILING 112/140 Q
