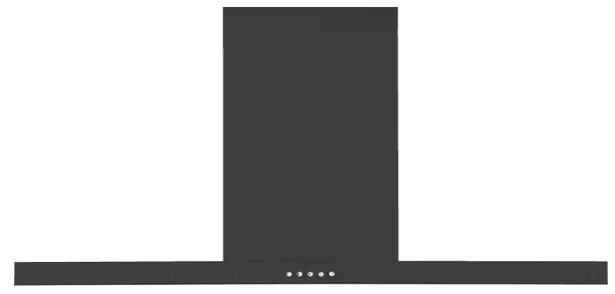

HC90BLB1 Wall Rangehood, 90cm, Box
User Guide
HC90BLB1 Wall Rangehood, 90cm, Box
QUICK REFERENCE GUIDE > HC90BLB1
Wall Rangehood, 90cm, Box
BlackWith a black finish to suit your kitchen aesthetic, this stylish box chimney rangehood quickly removes steam, grease and odours in your kitchen.
- Effective 700m3/hr airflow
- Dishwasher-safe aluminium filters for easy cleaning
- Energy-efficient LED lighting illuminates your cooktop
- Ducted or recirculation options for flexible installation
DIMENSIONS
| Height | 540 – 1020 mm |
| Width | 898 mm |
| Depth | 500 mm |
FEATURES & BENEFITS
Sleek finish
For a cohesive kitchen design, this rangehood has a bold black finish that is perfect for matching with Haier’s range of black glass cooking appliances.
Effective extraction
Select between three fan speeds to ensure steam, odours and grease are extracted from your kitchen at the rate you need for your cooking.
Easy cleaning
The aluminium filters are easy to remove and dishwasher-safe, for quick and simple cleaning.
A joy to use Thoughtful design features enhance your cooking experience, with responsive push-button controls and energy-efficient LED lighting to illuminate your cooktop.
Installed to suit
This rangehood offers ducted or recirculated extraction, so you can choose the solution that best suits your kitchen.
SPECIFICATIONS
| Accessories | |
| Aluminium filter | H0530060509 |
| Chimney extension | H0530062212 |
| Light bulb | H0530061789 |
| Recirculation carbon filter | H0530061789 (sold separately) |
| Recirculation kit | H0530062211 (sold separately) |
| Fan ratings | |
| Maximum air movement | 700m³/hr |
| Installation and cleaning | |
| Air outlet size | 150mm |
| Dishwasher safe filters | • |
| Ducted | Top extraction |
| Recirculation | Optional – top extraction |
| Two piece height adjustable flue | • |
| Performance | |
| Extraction type | Surface |
| Fan speeds | 3 |
| Filter type | Mesh |
| Number of filters | 3 |
| Power requirements | |
| Supply frequency | 50Hz |
| Supply voltage | 220 – 240V |
| Product dimensions | |
| Depth | 500 mm |
| Height | 540 – 1020 mm |
| Width | 898 mm |
| Product information | |
| Control type | Push button |
| Ventilation features | |
| Light type | LED 2 x 2W |
| Warranty | |
| Parts and labour | 2 years |
| SKU | 61793 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
