Cassette Traditional Light Filtering Dual Shade
Instruction Manual
Read the instructions carefully before assembling and using the product. The assembling process can be completed by non-professionals. For indoor use only.
WARNING
- Young children can strangle in the loop of pull cords, chains and tapes, and cords that operate window coverings.
- To avoid strangulation and entanglement, keep cords out of the reach of young children. Cords may become wrapped around a child’s neck
- Move beds, cots, and furniture away from window covering cords. Do not tie cords together.
- Make sure cords do not twist together and form a loop.
WARNINGInstall the child safety device as specified in the child safe manual.

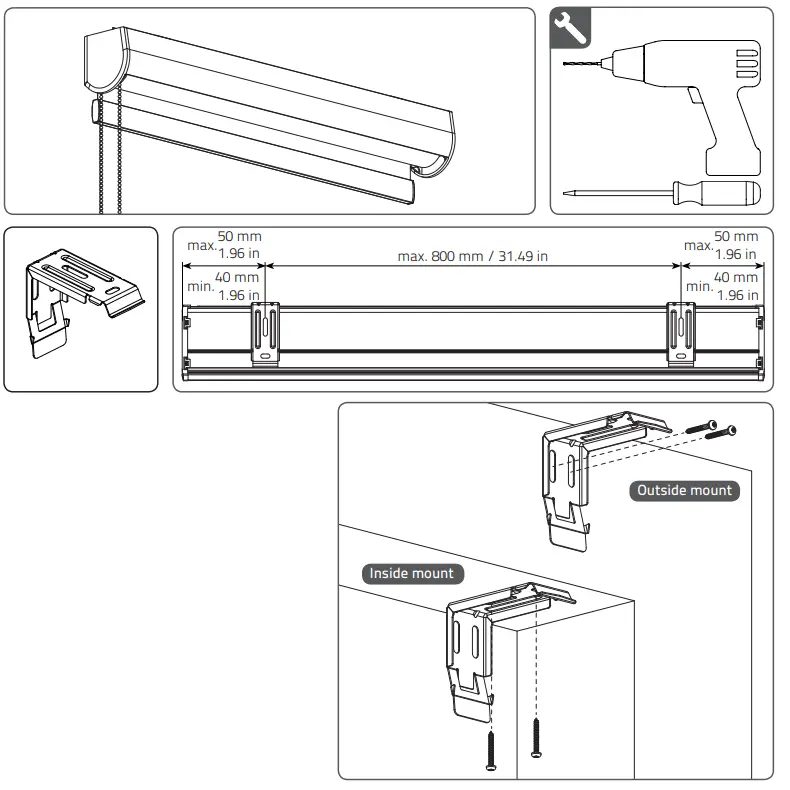

INSTALLATION INSTRUCTIONS – STANDARD BRACKETS
Installation
Read the instructions carefully before assembling and using the product. The assembling process can be completed by non-professionals. For indoor use only. WARNING
- Young children can strangle in the loop of pull cords, chains and tapes, and cords that operate window coverings.
- To avoid strangulation and entanglement, keep cords out of the reach of young children.
- Cords may become wrapped around a child’s neck
- Move beds, cots, and furniture away from window covering cords. Do not tie cords together.
- Make sure cords do not twist together and form a loop.
WARNING
Install the child safety device as specified in the child safe manual.

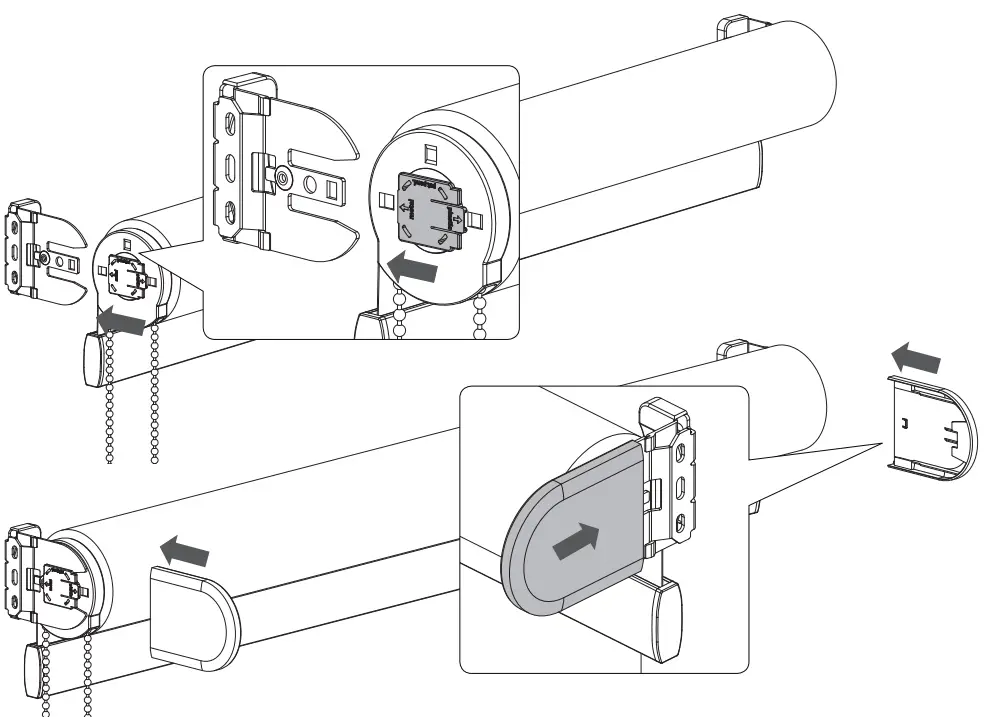

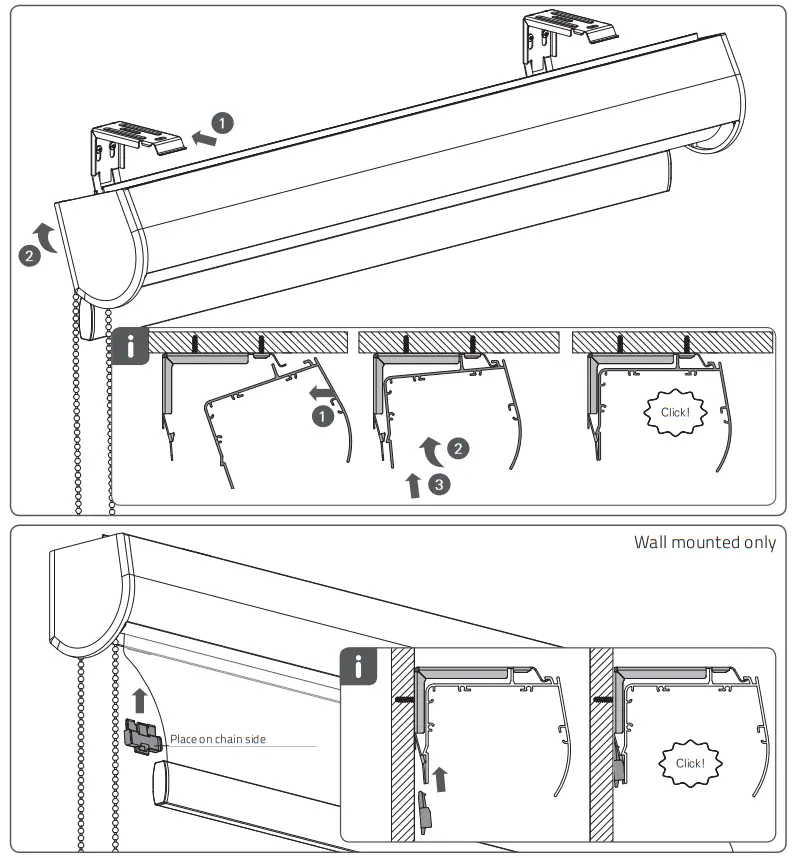

Removal
WARNING

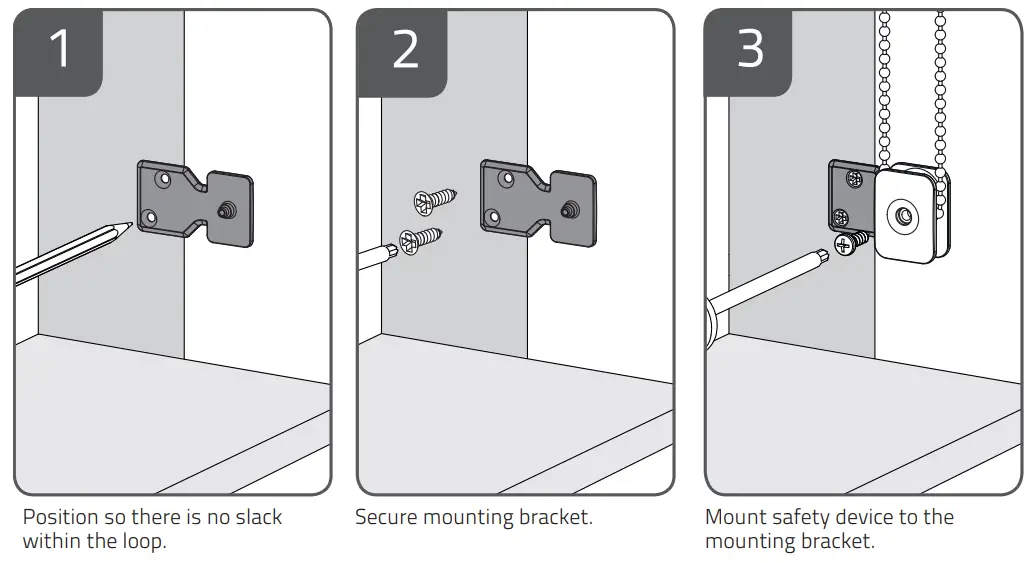

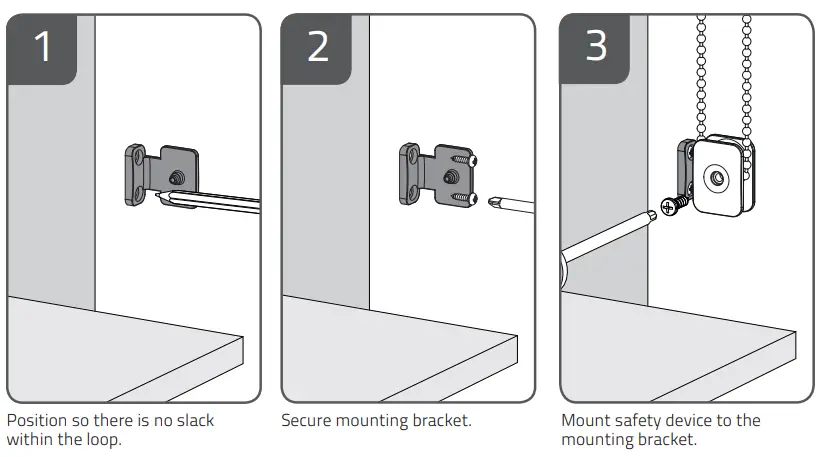

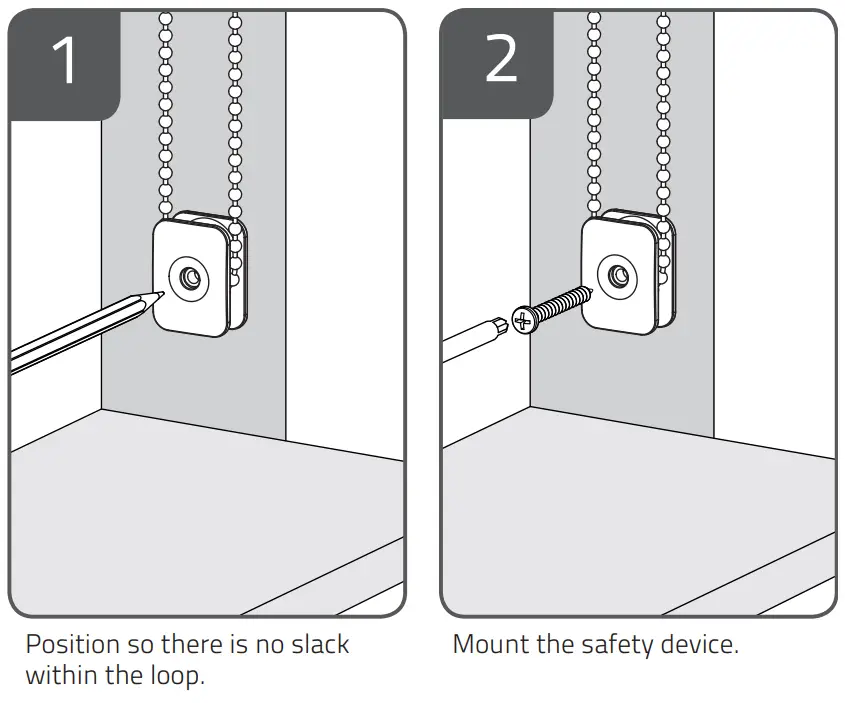

The Safety Device is a fixed tension device for operating ball chains that form a continuous loop. This device must be applied in chain loops that do not have a breakaway design. The safety device prevents free-hanging loops in operating chains. Install the safety device at the maximum distance possible from the control mechanism to prevent slack in the loop. Upon delivery to the end user, the device must be attached to the chain. The tensioning device is provided with fasteners for installation to wooden wall substrates. Please read the following information when installing the tensioning device. For other wall types please use appropriate screws that are suitable for your wall.|
A: Inside Mount: Fully recessed shade and safety device
B: Inside Mount: Partially recessed shade and safety device
C: Outside Mount: Shade and safety device outside the window

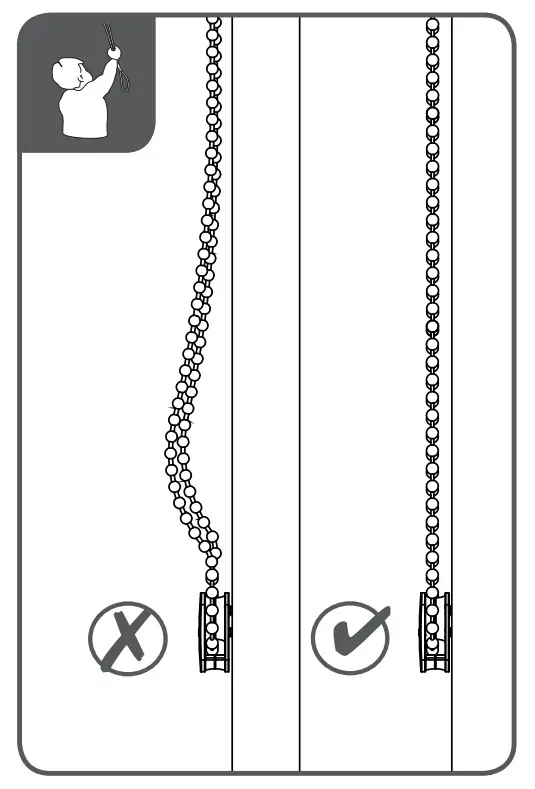

INSTALLATION TIPS

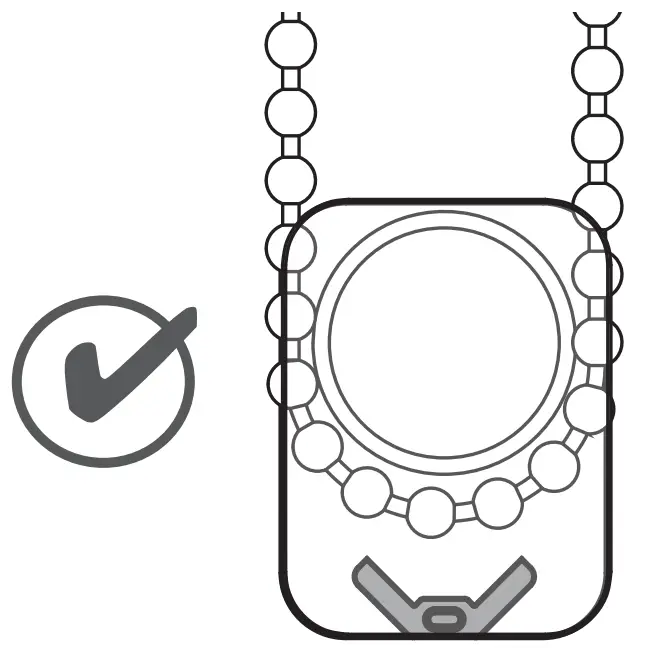

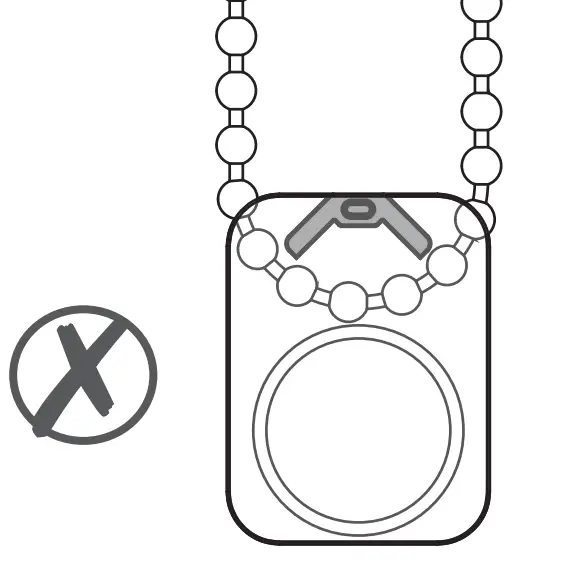

The shade will not operate if the safety device is upside down.
Position the chain around the circular side of the safety device before installation.
Install the safety device so there is no slack in the chain loop.

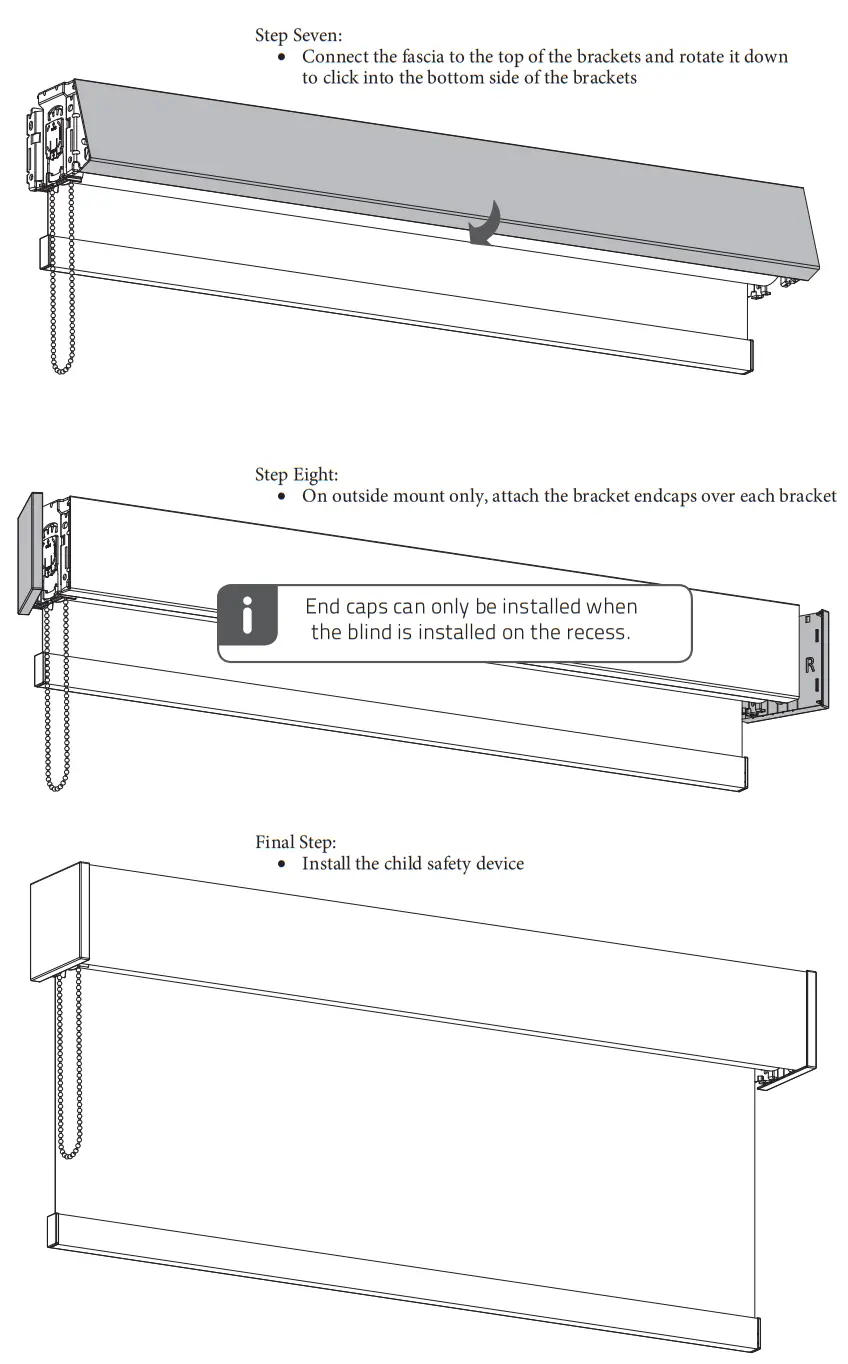

Installation – Fascia
Read the instructions carefully before assembling and using the product. The assembling process can be completed by non-professionals. For indoor use only. WARNING
- Young children can strangle in the loop of pull cords, chains and tapes, and cords that operate window coverings.
- To avoid strangulation and entanglement, keep cords out of the reach of young children. Cords may become wrapped around a child’s neck
- Move beds, cots, and furniture away from window covering cords. Do not tie cords together.
- Make sure cords do not twist together and form a loop.

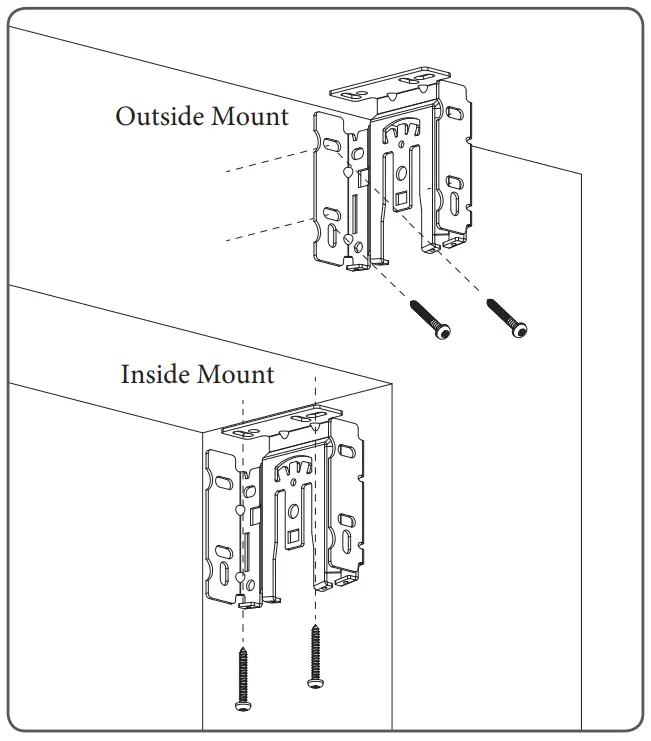

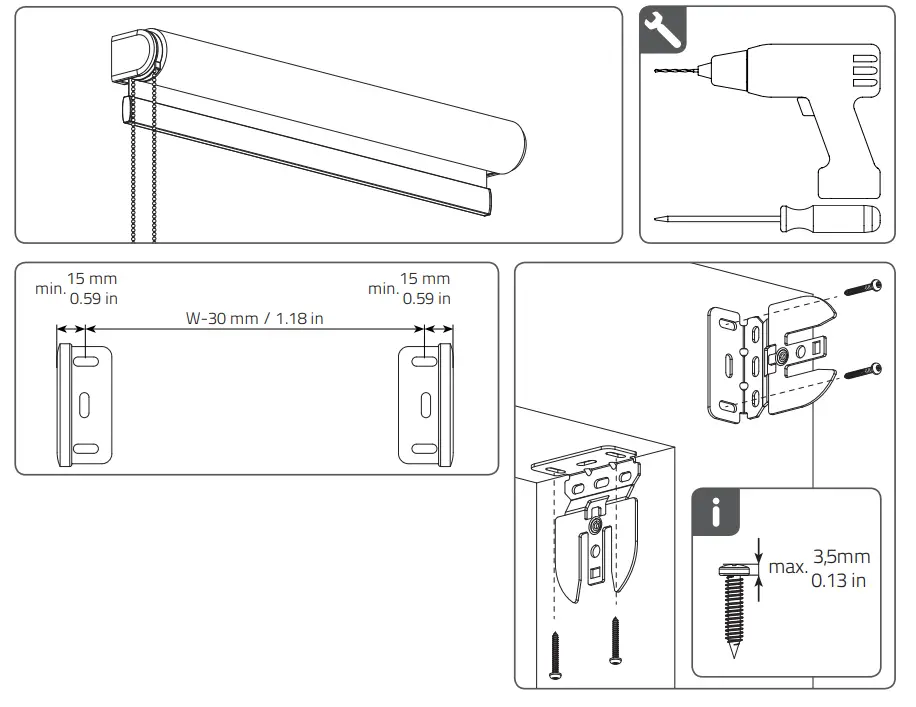

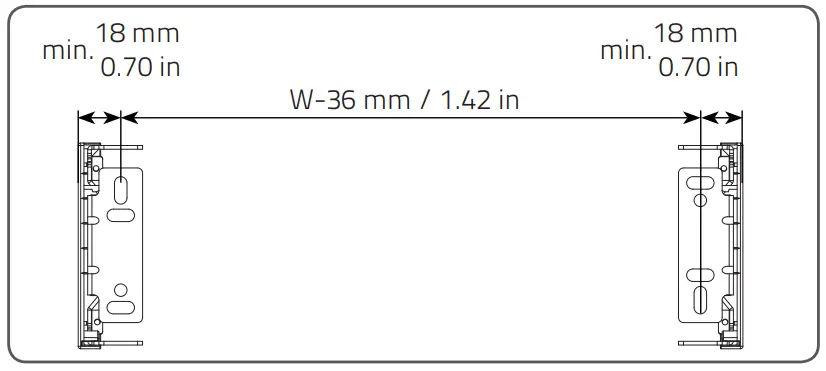

Step One:
- Use the brackets to mark the screw locations
- On the outside mount, make your marks so the distance from the outside edge of the bracket to the outside edge of the other bracket equals your ordered width
Note: Brackets must be level with each other for the shade to operate properly (for both inside mount and outside mount)
Step Two:
- Recommend you pre-drill the screw holes using a 5/64″ drill bit where you marked the screw locations
- Mount the brackets using 2 screws for each bracket
Note: On the outside mount, the screws will be installed at an angle. This is normal and the screws may not be flat against the bracket.
INSTALLATION
CORNICE INSTALLATION
INSIDE MOUNT
NOTE:
Your cornice will have pre-drilled holes. The brackets for your shade will come installed on the cornice (if the cornice and shade are ordered together). Install cornice before installing the shade.
- Hold the cornice to the top of your window frame and set it back until it is flush with your wall or until it is touching the back of the window opening. Be sure the cornice is centered in the opening.
- Pre-drill holes for your screws through each pre-drilled hole in your cornice.
- Secure your cornice to the window by screwing through each pre-drilled hole.
- Once the cornice is mounted, you can then install the shade.

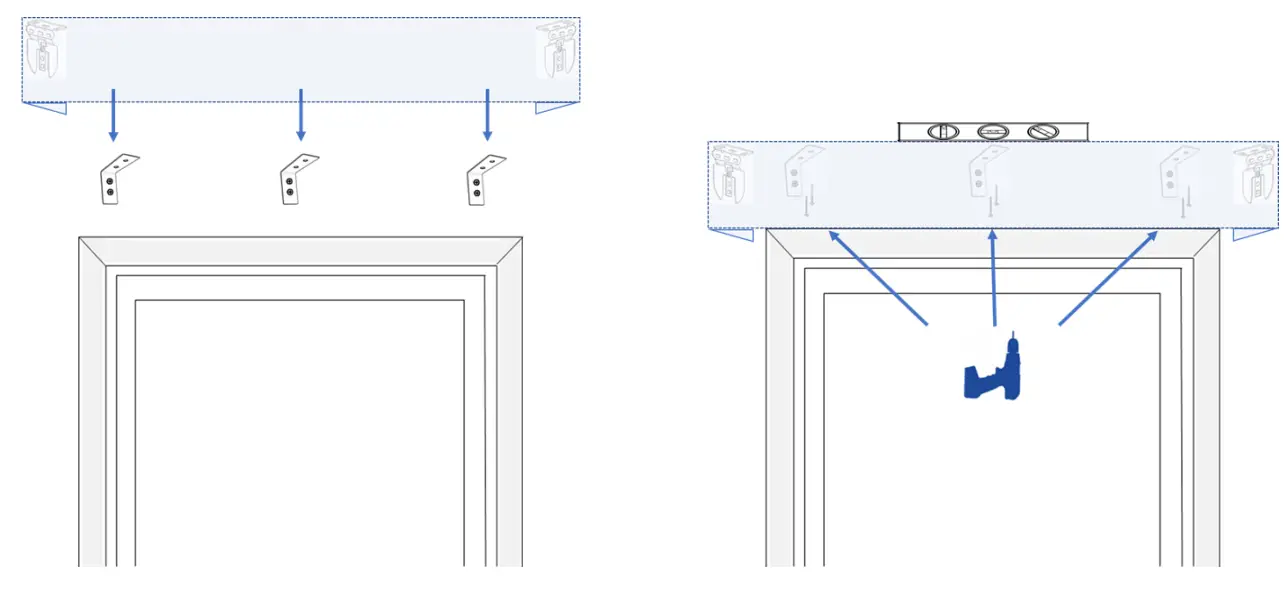

CORNICE INSTALLATION
OUTSIDE MOUNT
NOTE:
The brackets for your shade will come installed on the cornice (if the cornice and shade are ordered together). Install cornice before installing the shade.
- Make sure the surface you intend to install your cornice hardware is sturdy enough to support the brackets. You will need to screw into wood studs that are strong enough to securely bond with the included screws or you will need to use fasteners to securely support the brackets. Please note secure fasteners are not included.

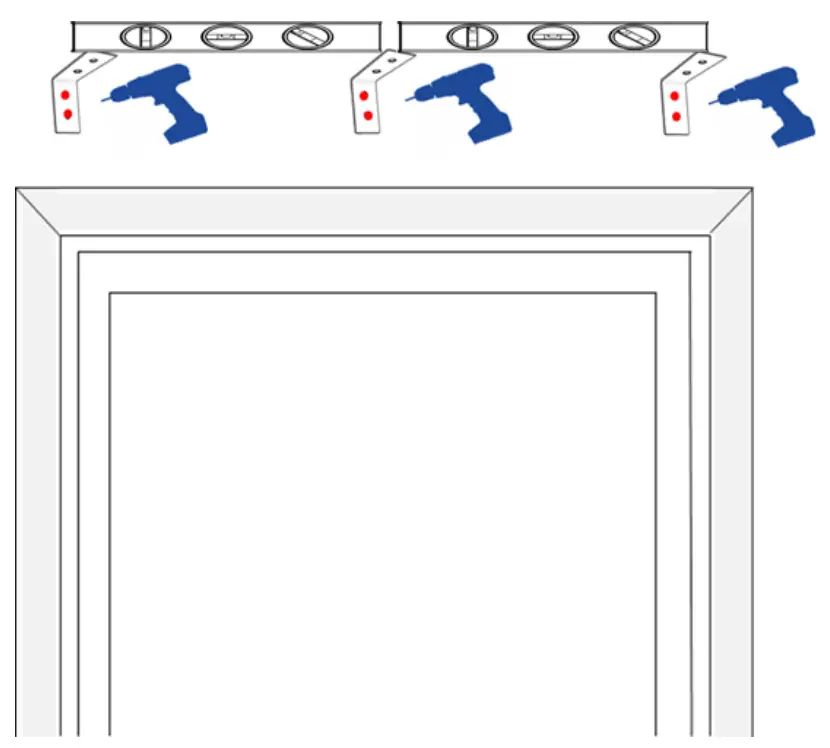

- Center the cornice over the window opening at your desired height. Mark the position of the ends of the cornice on the wall. Measure in 6″ from each end and using the cornice bracket mark the screw holes with a pencil. If you have additional cornice brackets, space them evenly between the outer brackets. Make sure all the mounting brackets are level with one another.
- Pre-drill the holes for each cornice bracket and then secure the brackets to your mounting surface.
- Place the cornice on top of the brackets and center it to the window. Check again that the cornice is level. Hold the cornice in place and screw through the top of each bracket into the cornice.
- Once the cornice is secured to each bracket, then you can install the shade.

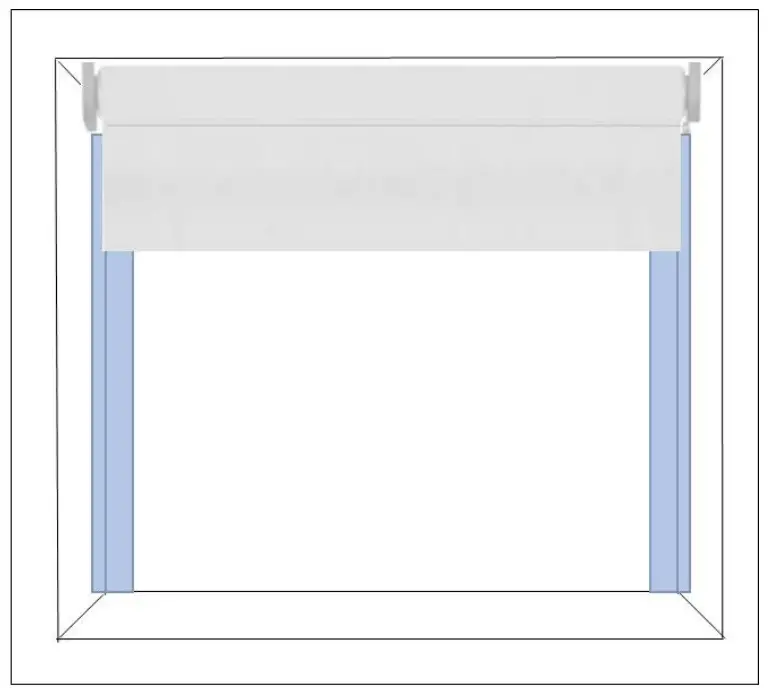

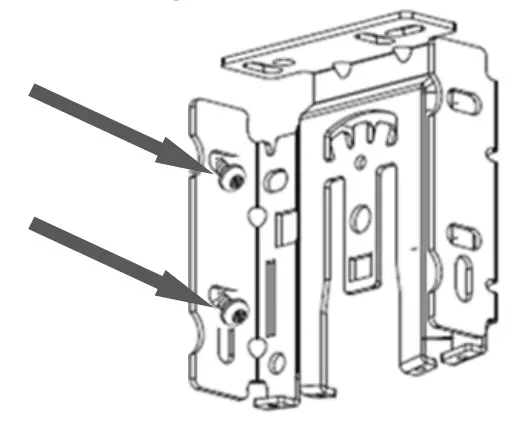

SIDETRACKS
- Install the shade first
- Place Side Track into the window opening to determine if any access needs to be trimmed off
- Side Tracks should fit from the windowsill up to the installed shade brackets
- Remove the tape and press the Side Track against the side of the window opening
- Recommend having the shade operate in front of the Side Tracks

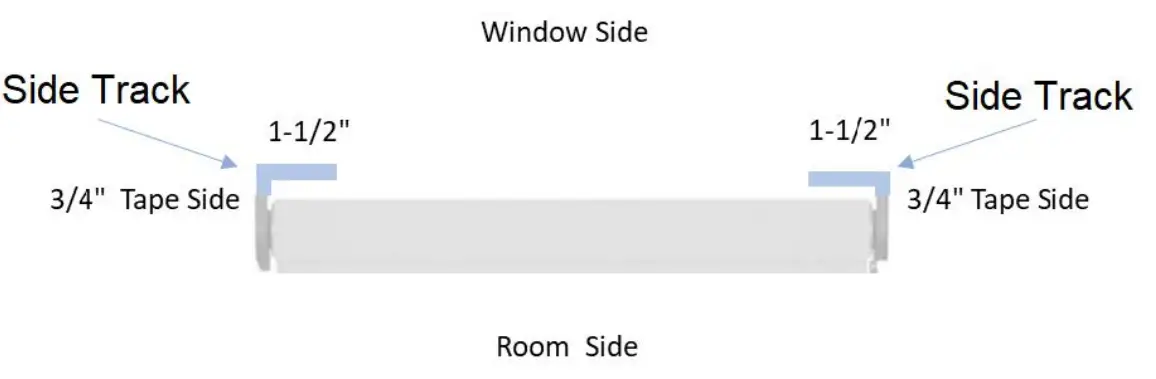

TOP VIEW
