Favero PD-R8000 Duo Shi Assioma Pedals Instruction Manual
Information and installation
- Assioma® DUO-Shi is designed for the Shimano® PD-R540, PD-R550, PD-R8000, PD-6800, PD-R7000 pedal bodies (not included).
- Q-factor: PD-R7000/R550/R540: +64mm; PD-R8000/6800: +65mm.
- For any information about the security and maintenance of the Shimano® pedal body,
please read the Shimano® manual. - Read the Assioma® manual for any information about the installation and use of Assioma® DUO-Shi, except for the parts related to the standard pedal body.

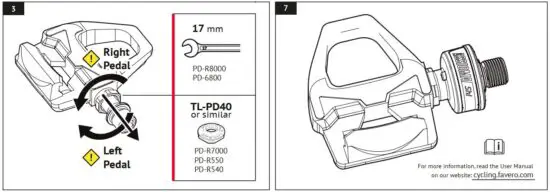

Disassembling the Shimano® pedal body
Assioma DUO-Shi needs an initial mechanical adjustment on the pedal bodies. To do so, perform a long ride including some power peaks. This aims at guaranteeing maximum precision in all your future rides.
FAVERO ELECTRONICS SRL
Via R. Lombardi, 64 – 31030 Arcade (TV) – Italy
