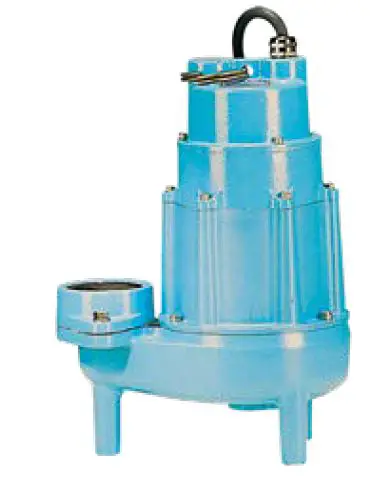

Little GIANT 18S SERIES Sewage Pumps
APPLICATIONS
Sewage and effluent wastewater transfer, dewatering
FEATURES
- Permanent Split Capacitor (PSC)
- Designed for continuous duty
- Capacitor and power cord connections are isolated from oil-filled motor housing for ease of field maintenance
- 3″ FNPT (761 mm) discharge
- Handles solids up to 2″ (51 mm) diameter
- 140 °F (60 °C) liquid temperature rating
- cCSAus listed
SERIES SPECIFICATIONS
| Amps Performance Shut-Off Volts Hz Watts (GPM @ Height in Feet) (ft) PSI FLA Start 10′ 20′ 30′ 40′ 50′ | |||||||||||
| 230 | 60 | 15.5 | 31.0 | 3512 | 160 | 137 | 111 | 84 | 50 | 64 | 27.7 |
| Item No. Model HP Volts Phase Switch Type/ Cord Weight Operation | |||||||
| 520301 | 18S-CIM | 1-1/2 | 230 | 1 | Manual | 20′ 6.1 m | 96 lbs 43.54 Kg |
| 520304 | 18S-CIM | 1-1/2 | 460 | 3** | Manual | 40′ 12 m | 94 lbs 42.64 Kg |

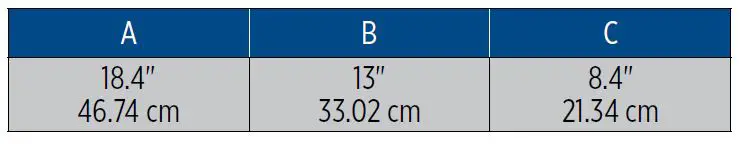

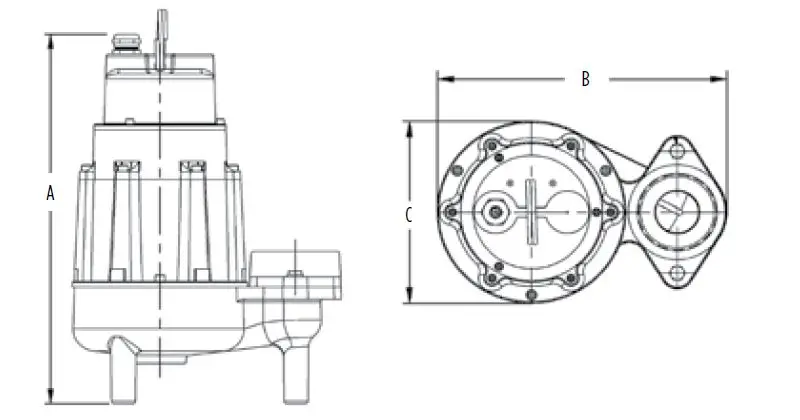

ENGINEERING DATA

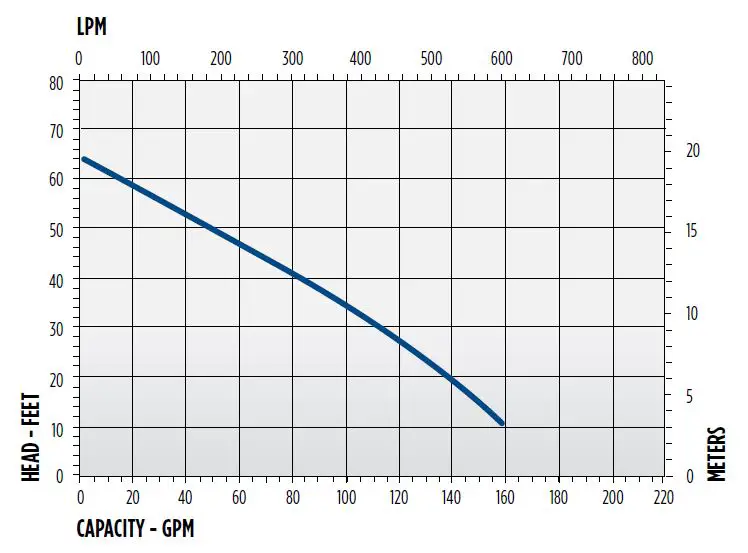

PERFORMANCE DATA
CONSTRUCTION
| Cover | Epoxy-coated cast iron |
| Motor Housing | Epoxy-coated cast iron |
| Impeller Material | Red brass |
| Impeller Type | Non-clog vortex |
| Volute | Epoxy-coated cast iron |
| Mechanical Shaft Seal | Carbon/ceramic |
| Fasteners | Stainless steel |
| Shaft | Stainless steel |
| Bearings | Upper and lower ball bearings |
| Power Cord | 14/3, SOW (1-phase) |
