Touch Screen
Custom 3D LUT

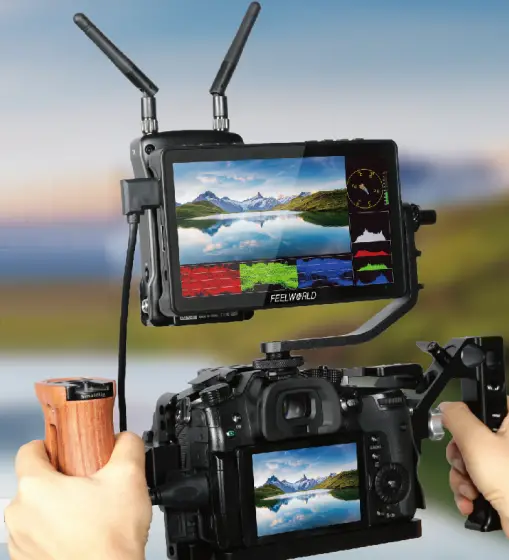

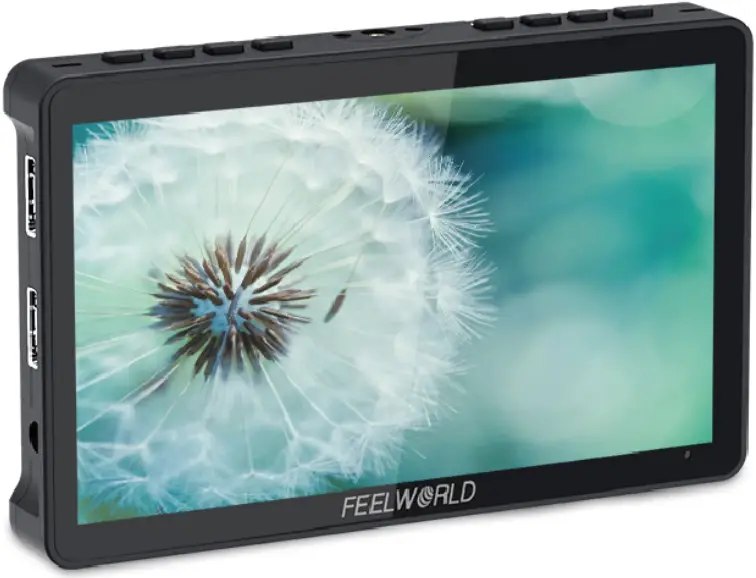

Touch Screen6″ ON-CAMERA MONITOR
Sony F970 External Install and Power Kit
Designed to simplify and improve video creation
1920×1080 FHD Resolution Touch Screen
Custom 3D LUT 4K HDMI In & Out
5V Type-C Power Supply Power for Camera
External Install and Power Design
>> FEATURES
- 6-inch 1920×1080 full HD IPS screen
- Touch screen and intuitive button operation, meet different needs.
- Supports 3D LUT Log to REC.709 and user 3D LUT upload (up to 32)
- Sony F970 external install and power kit design can be used to install and supply power to external equipment, easy to install and disassemble, simplify your photography equipment.
- With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc. functions, can help you accurately exposure and focus every shot.
- Multiple power supply modes, DC IN 12V, Type-C 5V and NP-F battery slot
- Stereo Earphone output
- DC 8.4V power out to power your DSLR camera or mirrorless camera

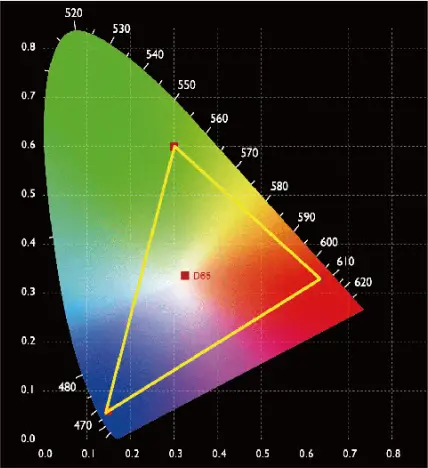

>> USE PROFESSIONAL REC.709 COLOR CALIBRATION STANDARD
>> PROFESSIONAL AND RICH AUXILIARY FUNCTIONS
3D LUT Waveform Vector Scope
Histogram Anamorphic Mode Peaking Filter
False Colors Exposure Zoom-in
Image Flip Embedded Audio Nine Grid

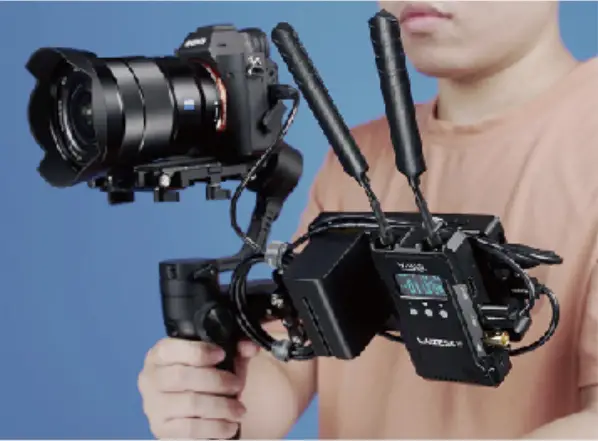

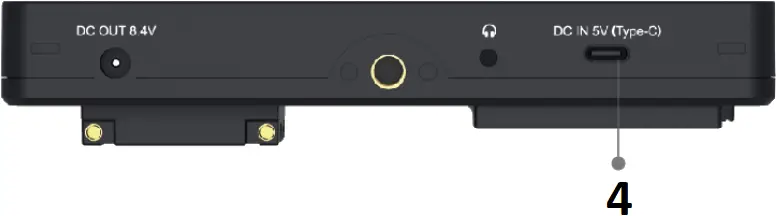

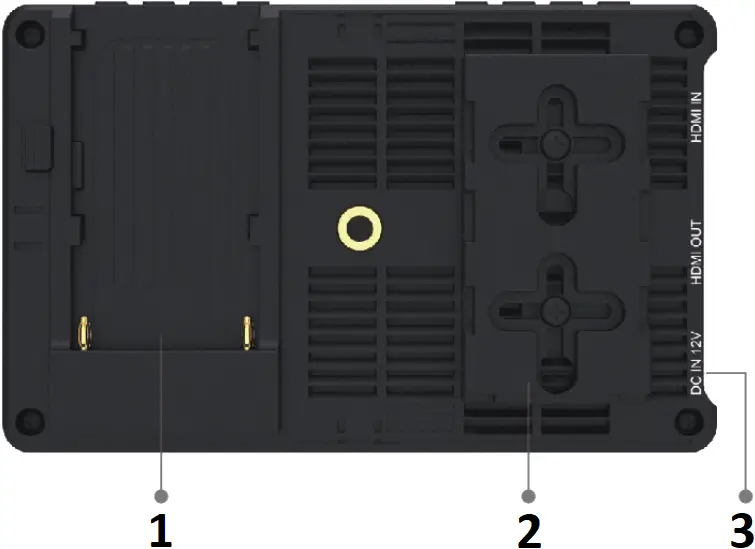

>> MULTIPLE POWER SUPPLY MODE
- F970
- Sony F970 external install
- DC IN 12V
- Type-C 5V/Upgrade/LUT file importing
>> PARAMETER
| Description | 6″ FHD HDMI Touch Screen On-camera 3D LUT Monitor with F970 Install and Power Kit |
| Model | F5 Pro V4 |
| Screen size | 6″ IPS |
| Display Colors | 16.7M (8 bit) |
| Resolution | 1920×1080 pixels |
| Dot pitch | 0.069 (H) X 0.069 (W) mm |
| Aspect Ratio | 16:9 |
| Brightness | 450cd/m2 |
| Contrast | 1000:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
| Input | HDMI |
| Output | HDMI |
| Audio | 3.5mm Stereo Headphone |
| Power In | DC IN 12V, Barrel (5.5mm outer, 2.1mm inner), DC IN 5V (Type-C) |
| Power Out | DC OUT 8.4V, Barrel (5.5mm outer, 2.1mm inner; Power DSLR or mirrorless camera) |
| HDMI Support Format | 480i/576i/480p/576p |
| 1080i (60/59.94/50) | |
| 720p (60/59.94/50/30/29.97/25/24/23.98) | |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF) | |
| 4K UHD 3840 x 2160p (30/29.97/25/24/23.98Hz), 4096 x 2160p (24Hz) | |
| Power Consumption | ≤8W |
| Input Voltage | DC7~24V |
| Power Connector | DC |
| Battery Plate | F970 Battery Plate |
| Operating Temperature | -20°C ~ 50°C |
| Storage Temperature | -30°C ~ 60°C |
| Install Way | ¼-20 thread points (top, bottom, right, middle back) |
| Unit Size | 148Lx93Hx21.75D (mm) |
| Unit Weight | 245g (with F970 install and power kit) |

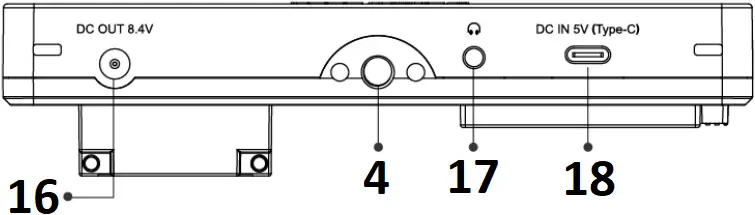

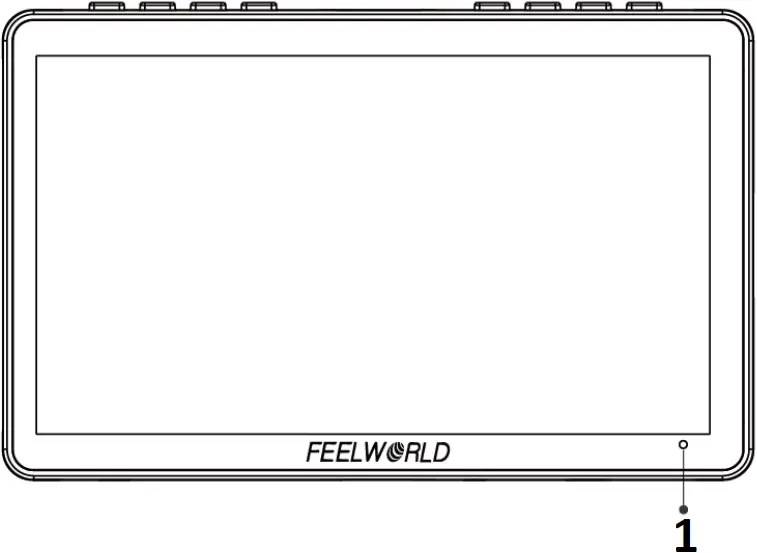

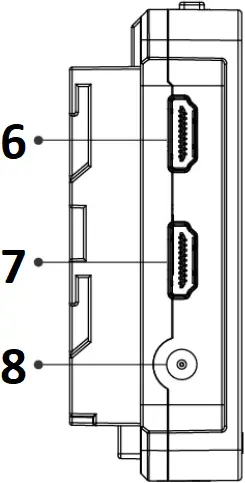

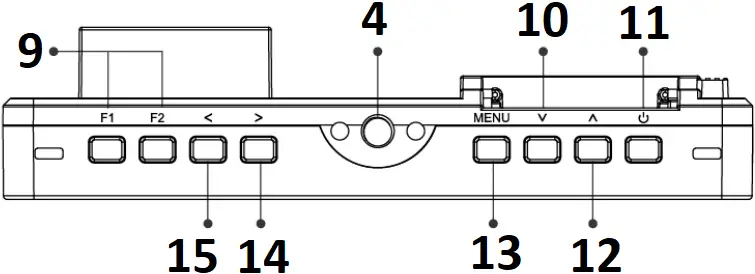

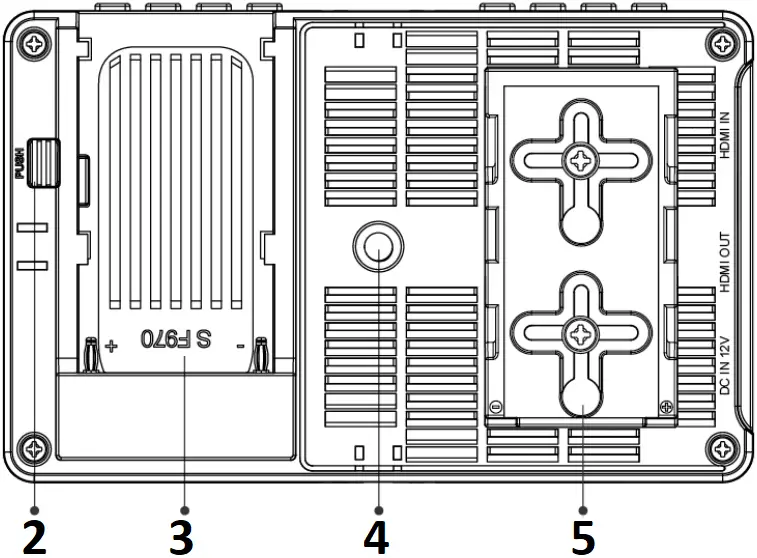

>> STRUCTURE
- Indicator Light
- Battery Lock
- F970 Battery Plate
- 1/4″ Screw Thread
- F970 External Install and Power Kit
- HDMI Signal Input
- HDMI Signal Output
- DC 12V Power Input
- Custom Button
- Next Menu Button
- Turn ON/OFF
- Previous Menu Button
- Main menu/ Return
- Increase volume/ parameter value
- Decrease volume/ parameter value
- DC 8.4V Power Out
- 3.5mm Headphone Jack
- 5V Type-C interface
>> PACKING LIST

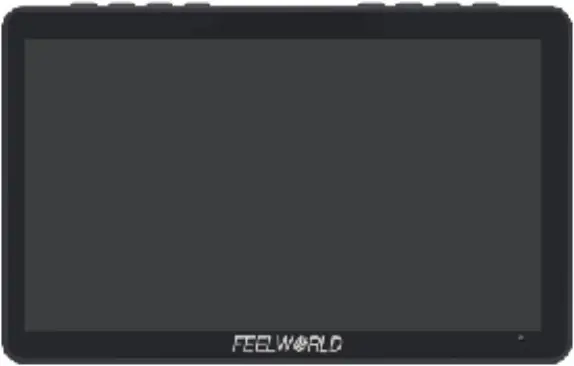

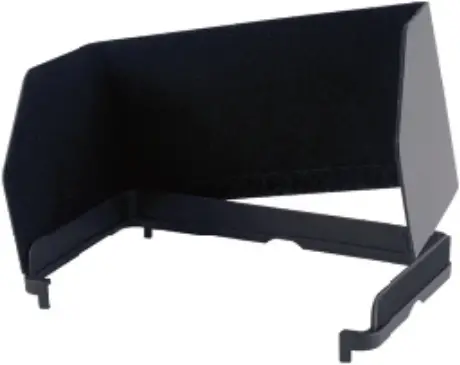

 Monitor |  Micro HDMI Cable |  Tilt Arm |  Sunshade |
 Type-C to USB |  Disassemble Wrench |  User manual |
Zhangzhou Seetec Optoelectronics Technology Co., Ltd
E-mail: [email protected] Tel: +86-595-2672627 Website: www.feelworld.com.cn
Fax: +86-596-2672617 www.seetec.com.cn
