SANTEC 7099ED-TM 1-2 Inch Thermostatic Trim with 3-Way Diverter

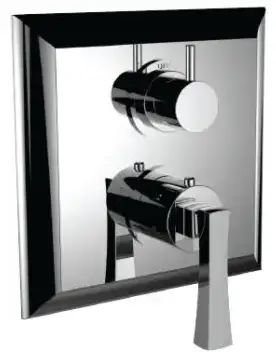

SANTEC-7099ED-TM-1-2-Inch-Thermostatic-Trim-with-3-Way-Diverter-PRODUCT

PRODUCT SPECIFICATION

  • “ED” style handles
  • Includes trim plate and handle
  • VALVE NOT INCLUDED
  • USE TH-8300 VALVE
  • Diverter for Three Outlets

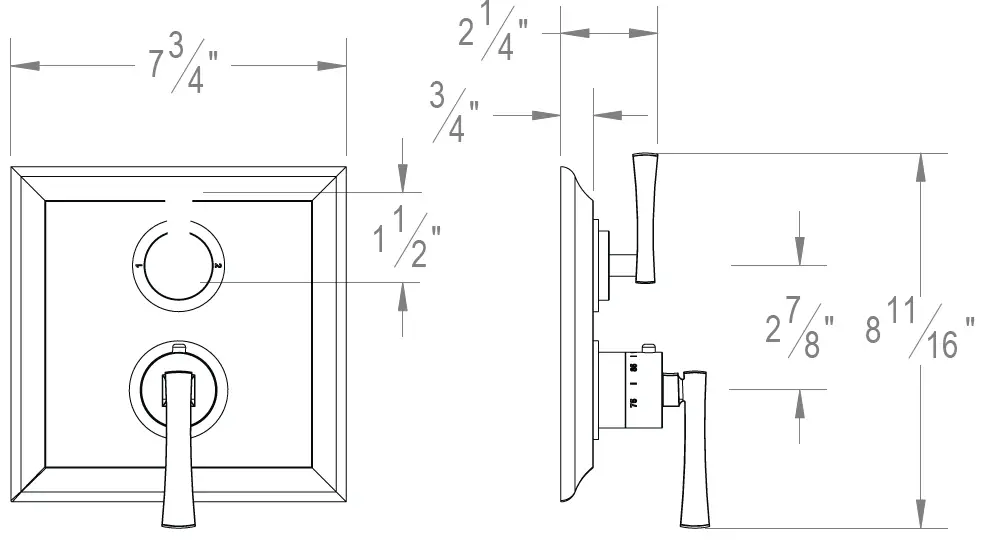

DIMENSION

SANTEC-7099ED-TM-1-2-Inch-Thermostatic-Trim-with-3-Way-Diverter-FIG-1

The measurements shown are for reference only. Products and specifications shown are subject to change without notice. www.santecfaucet.com | P: 310.542.0063 F: 310.542.5681.
