dahua DH-PFM300 DC12V2A Power Adapter
Features
- Easy installation and wall mount, structural water-proof;
- Support -30 ℃ ~+70 ℃ wide-range temperature operation, and the full load efficiency of the power supply can be up to 100% at these temperatures;
- With junction function for camera wiring or can place video balun with HDCVI/AHD/TVI/CVBS cameras;
- Made of PC environmental protection material, which meets “V0” fire protection;
- Accurate over current, voltage load protection.
Technical Specifications
| Model | DH-PFM300 |
| Electrical Specification | |
| Rated input | AC180~264V, 50/60Hz, 0.6A |
| Efficiency | 82% |
| no-load power consumption | <0.5W |
| Output voltage | DC12V (±5%) |
| Output current | 2A (±2%) |
| Protection/Environmental | |
| Protection | Accurate over current, voltage load protection |
| “V0” fire protection | |
| Working temperature | -30℃~+70℃(-22℉~+158℉) |
| Working humidity | <90% RH |
| Physical Properties | |
| Weight | 160g(0.35lb) |
| Dimension(LxWxH) | 88mmx37mmx138mm (3.46”x1.46“x5.43”) |
| Installation | Wall mount |
| Color | Grey |
| Input | Palisade terminal |
| Output | DC output wire 60mm (interface: φ5.5×φ2.1) |
| Safety Standards | |
| Certification | CE |
Order Information
| Type | Part Number | Description |
|
Power series | DH-PFM300 | DC12V 2A power adapter(CE) |
| DH-PFM320D-015 | DC12V 1.5A power adapter(CE/FCC) | |
| DH-PFM321D-EN | DC12V 1A power adapter(CE/FCC/UL-VI) for cameras | |
| DH-PFM321D-BS | ||
| DH-PFM321D-US | ||
| DH-PFM320D-EN | DC12V 2A power adapter(CE/FCC/UL-VI) for cameras | |
| DH-PFM320D-BS | ||
| DH-PFM320D-US |

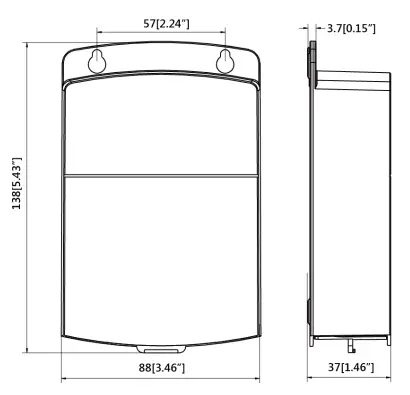

Dimensions

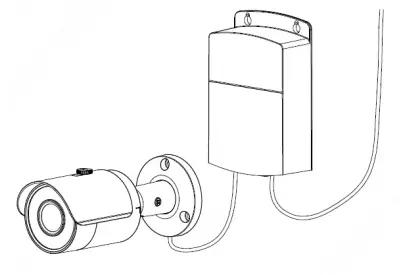

Application
