H-7147

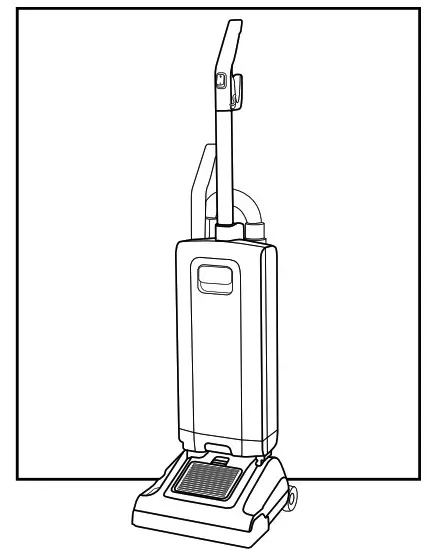

SANITAIRE® EON™ QUIETCLEAN® VACUUM
1-800-295-5510
uline.com

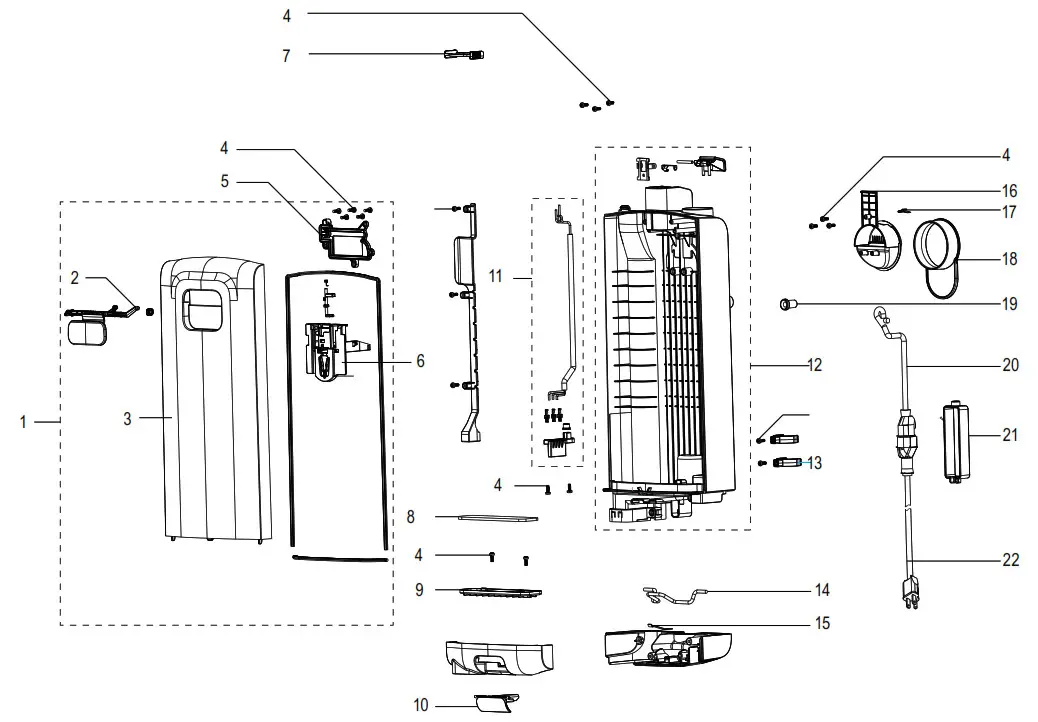

MAIN BODY
MAIN BODY PARTS LIST
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Front Cover Assembly | 1 | H-7147-FCVRA | A07522601 |
| 2 | Dust Bag Release Button | 1 | ———— | A03800301 |
| 3 | Upper Body Cover | 1 | ———— | A03801001 |
| 4 | Screw Package | 1 | H-7147-3SWPK | 162194 |
| 5 | Dust Bag Release Button Cover | 1 | ———— | A03800101 |
| 6 | Dust Bag Bracket | 1 | ———— | A03800601 |
| 7 | Hose Retainer Ring | 1 | ———— | A03802601 |
| 8 | Pre-Motor Foam | 1 | H-7147-PFM | A03831201 |
| 9 | Foam Filter Frame | 1 | ———— | A03831101 |
| 10 | Upper Body Release Button | 1 | ———— | A03828301 |
| 11 | Lower Jumper Harness | 1 | ———— | A07531801 |
| 12 | Back Cover Assembly | 1 | ———— | A07521601 |
| 13 | Plastic Clip | 1 | ———— | A03802801 |
| 14 | Upper Body Lock Rod | 1 | ———— | A03828401 |
| 15 | Body Release Button Spring | 1 | ———— | A03802901 |
| 16 | Carry Handle | 1 | ———— | A03802302 |
| 17 | Spring Package | 1 | ———— | A03802401 |
| 18 | Cord Hook | 1 | H-7147-CHOOK | A03802501 |
| 19 | Power Cord Sleeve | 1 | ———— | A03868601 |
| 20 | Power Cord – Pigtail | 1 | H-7147-PCORD | A03871802 |
| 21 | Cord Lock | 1 | ———— | A03840301 |
| 22 | Commercial Extension Cord | 1 | H-7147-CORD | A05944001 |

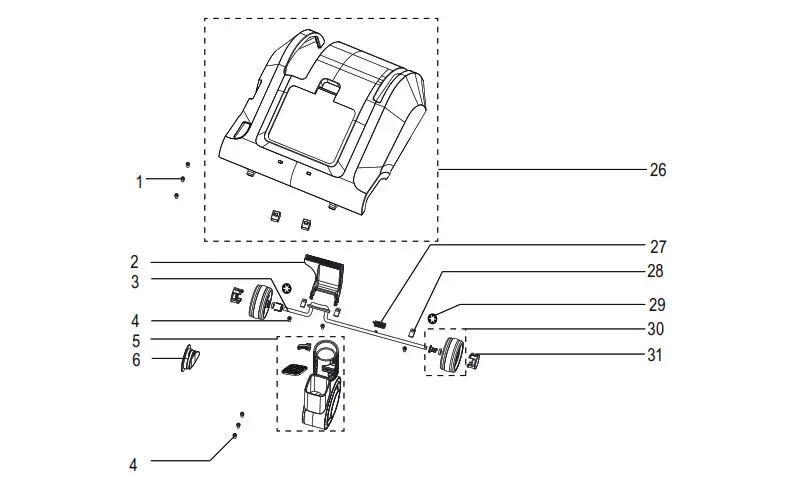

BASE
BASE PARTS LIST
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Screw Package | 1 | ———— | A05124001 |
| 2 | Handle Release Pedal | 1 | H-7147-PEDAL | A03836401 |
| 3 | Rear Wheel Axle | 1 | ———— | A03836201 |
| 4 | Screw Package | 1 | H-7147-3SWPK | 162194 |
| 5 | Swivel Assembly | 1 | ———— | A07497401 |
| 6 | Clean Out Cover | 1 | ———— | Al2683001 |
| 7 | Screw Package | 1 | ———— | A05140601 |
| 8 | Screw Package | 1 | ———— | A05140301 |
| 9 | Height Adjustment Knob Clamp | 1 | ———— | A04650501 |
| 10 | Height Adjustment Knob | 1 | ———— | A03841001 |
| 11 | Brushroll Bearing and Cover Assembly | 1 | H-7147-BBCVR | A07495201 |
| 12 | Brushroll Release Button | 1 | ———— | A03840401 |
| 13 | Base Assembly | 1 | H-7147-BA | A07503501 |
| 14 | Spring Package | 1 | ———— | A03835501 |
| 15 | Spring Package | 1 | H-2665-SPRIN | 5494310 |
| 16 | Drive Board PCB | 1 | ———— | 1623690 |
| 17 | Cartoned Brushroll Assembly | 1 | H-7147-BRUSH | 173691 |
| 18 | Packaged Axle Clamp | 1 | H-7147-CLMPQ | A03841601 |
| 19 | Screw Package | 1 | ———— | 162191 |
| 20 | Soleplate Assembly | 1 | ———— | A07496801 |
| 21 | Front Soleplate Gasket | 1 | ———— | A04966301 |
| 22 | Front Furniture Guard | 1 | ———— | A03841101 |
| 23 | Brushroll Gear Assembly | 1 | ———— | A11106101 |
| 24 | Front Wheel Assembly | 1 | H-7147-FWHLA | A07496401 |
| 25 | Rear Soleplate Cover | 1 | ———— | A04945101 |
| 26 | Hood Assembly | 1 | ———— | A07511801 |
| 27 | Rear Wheel Axle Spring | 1 | H-7147-AS | A03836601 |
| 28 | Packaged Axle Clamp | 1 | ———— | 532014 |
| 29 | Rear Wheel Clip | 1 | ———— | A03837101 |
| 30 | Rear Wheel Assembly | 1 | H-7147-RWHLA | A07531301 |
| 31 | Rear Wheel Cover | 1 | ———— | A03836901 |
| 32 | Packaged Motor Assembly | 1 | H-7147-MTRAS | 173721 |
| 33 | Motor Pulley Cover | 1 | ———— | A03836001 |
| 34 | Screw Package | 1 | ———— | A05124101 |
| 35 | Washer Package | 1 | ———— | A04654601 |
| 36 | Clutch Assembly | 1 | ———— | A03871701 |
| 37 | Motor Belt | 1 | ———— | A03837901 |
| 38 | Brushroll Belt | 1 | ———— | A03838001 |
| 39 | Nozzle Connector Assembly | 1 | ———— | A07531501 |
| 40 | Sanitaire Style HF-50 HEPA Package | 1 | H-7147-FILT | 68904 |
| 41 | Exhaust Cover Assembly | 1 | H-7147-EXHST | A07531401 |
| 42 | Nozzle Wire Cover | 1 | ———— | A03843501 |
| Clean Out Cover Gasket (Not Shown) | 1 | ———— | A04650601 |

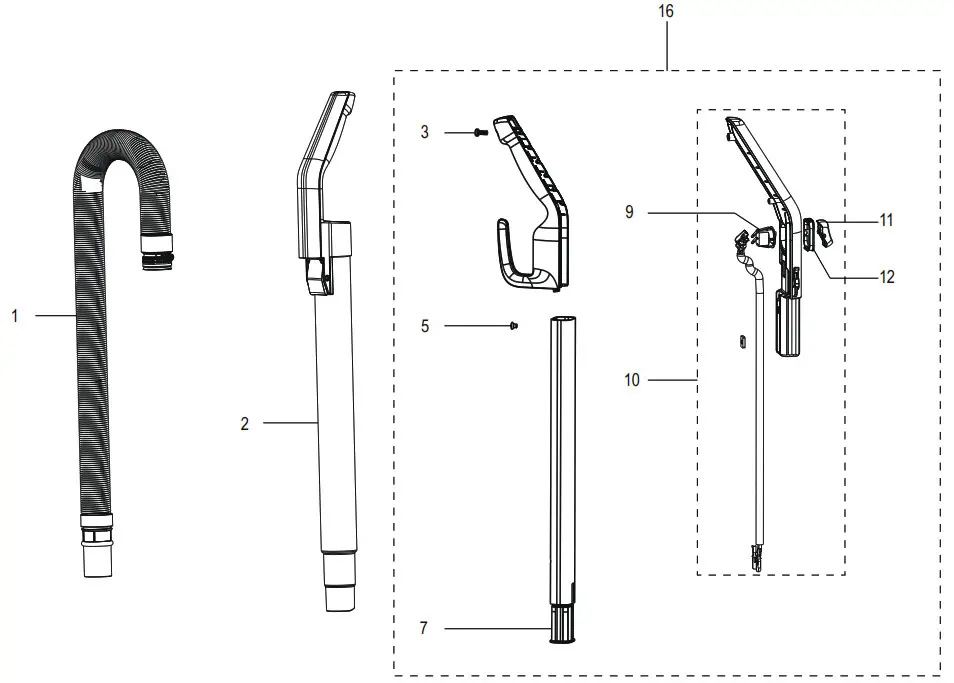

ACCESSORIES AND HANDLE
ACCESSORIES AND HANDLE PARTS LIST
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Hose Assembly | 1 | H-7147-HOSE | A07535101 |
| 2 | Wand Assembly | 1 | H-7147-WAND | A03787701 |
| 3 | Screw Package | 1 | H-7147-3SWPK | 162194 |
| 4 | Screw Package | 1 | H-7147-4SWPK | A05132501 |
| 5 | Handle Plug | 1 | H-7147-HNPG | A03786901 |
| 6 | Switch | 1 | H-7147-SWTCH | A03785101 |
| 7 | Handle Grip Assembly | 1 | H-7147-HGRIP | A07521301 |
| 8 | Switch Button Cap | 1 | H-7147-CAPSB | A03784901 |
| 9 | Switch Button Frame | 1 | H-7147-FRAME | A03868301 |
| 10 | Upholstery Brush Assembly | 1 | H-7147-UPNOZ | A07514801 |
| 11 | Crevice Tool | 1 | H-7147-CRTL | A03802701 |
| 12 | Cord Lock | 1 | ————- | A03840301 |
| 13 | Dusting Brush and Holder Kit | 1 | ————- | 17379SAN |
| 14 | Dusting Brush Holder | 1 | ————- | A05881801 |
| 15 | Dusting Brush | 1 | ————- | A05924601 |
| 16 | Complete Handle Assembly | 1 | H-7147-CHAQ | A07520901 |
0521 PH-7147
