Panasonic Nn-tk714s Microwave Trim Kit Instruction Manual

Installation Instructions
Notice d’installation

Read carefully and keep these installation instructions.
© Panasonic Appliances Microwave Oven (Shanghai) Co., Ltd. 2014

Important Safety Instructions

CAUTION – Read and follow all instructions completely.

1. This Trim Kit is designed for use only with the Panasonic Microwave Oven listed in the table below, for installation into a cabinet.
2. The dimensions and ground clearance of the cabinet opening must be as indicated in Figure 1 on pages 6-8.
3. For safe use of your microwave oven, do not alter or modify any part of this kit or the microwave oven.
4. The microwave oven must be used with a properly grounded 3-prong receptacle in compliance with the National Electrical Code, as well as any applicable local regulations. Refer also to the microwave operating instructions for other safety and electrical requirements.
5. The microwave oven must be unplugged from the wall receptacle before attempting the installation of this kit.
6. Save these instructions for local inspection and relocation of the microwave oven.
7. Use caution so that the power cord is not pinched during installation.
8. The diagrams in these instructions may vary from the actual unit and is only for reference.


   Trim kit	Panasonic Microwave Oven Models
   NN-TK714S	NN-SE7**S NN-SD7**S NN-SN7**S NN-ST7**S

Parts List

Tools Needed: Measuring tape, pencil, Phillips screwdriver, Ø 2 mm ( 5/64″ ) drill

Parts Supplied
PART		QUANTITY
	Trim Frame	1
	Left Duct	1
	Base Bracket Assembly	1
	Bracket	4
	Catch	4
	Screw	10
	Strike	4
	Tape	2

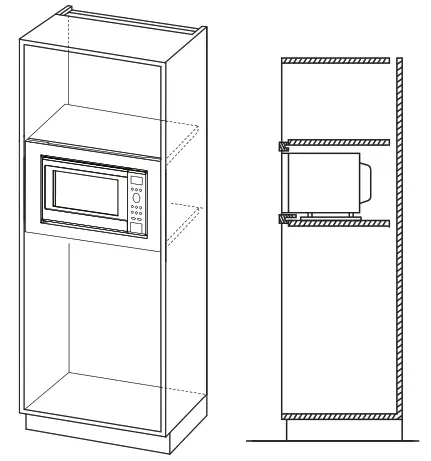

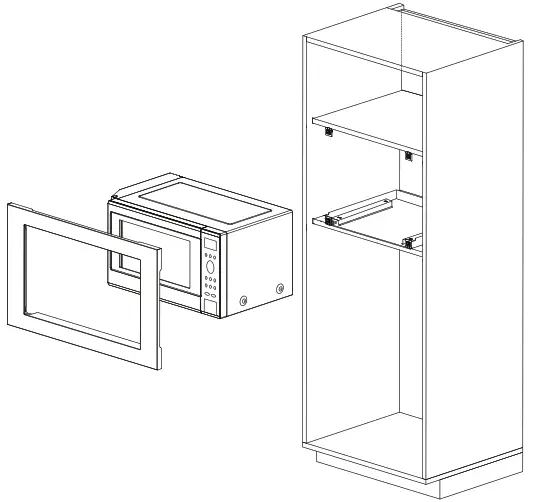

Installation Diagram

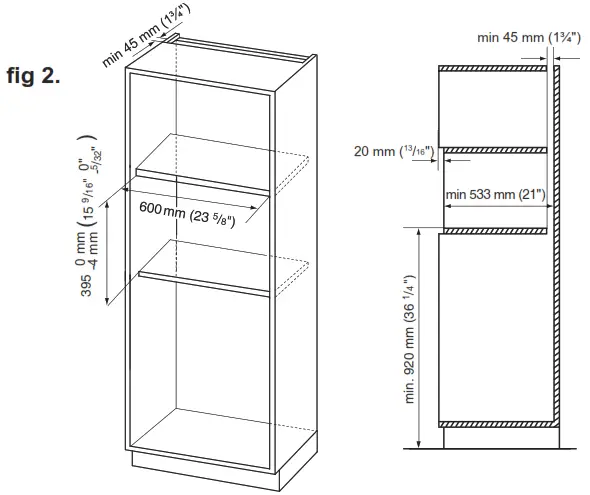

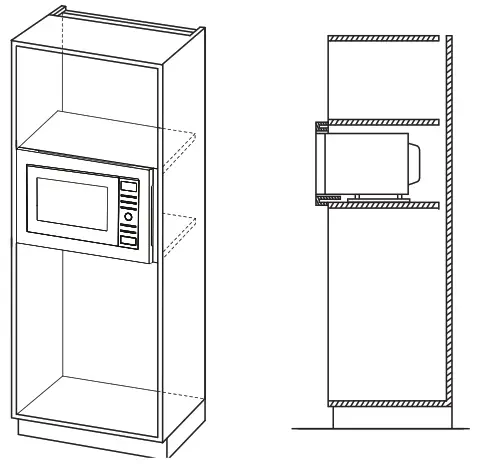

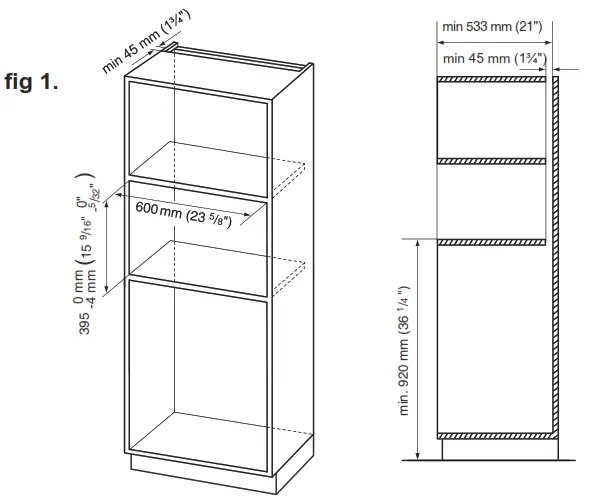

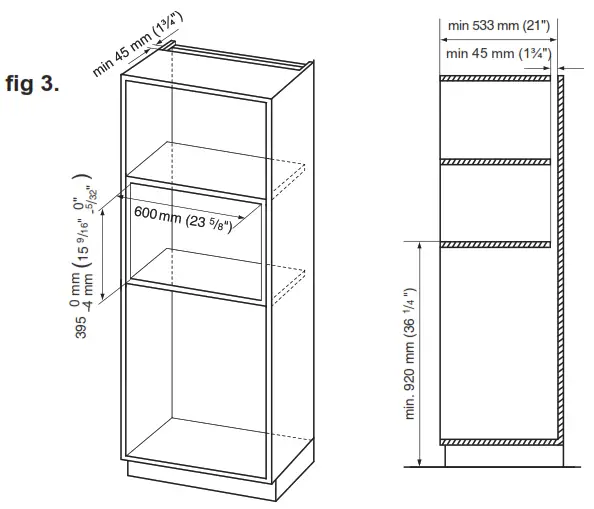

Cabinet Diagram and Dimensions

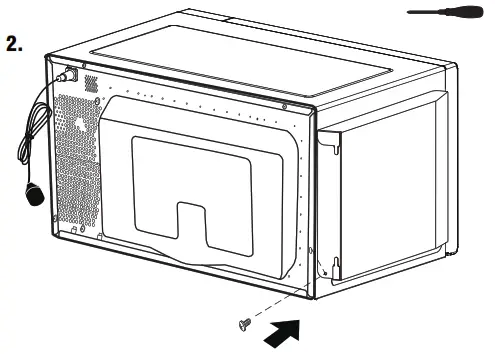

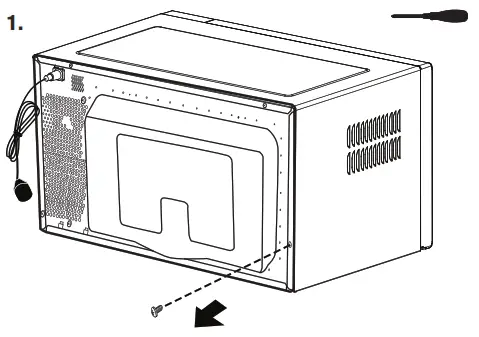

Microwave Oven Preparation

Put a piece of the tape on the top of the oven and put a piece of the tape on the left of the oven and left duct.

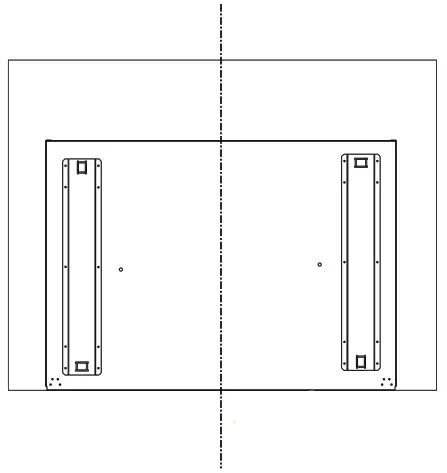

Lower Duct Installation

Center Line of Cabinet

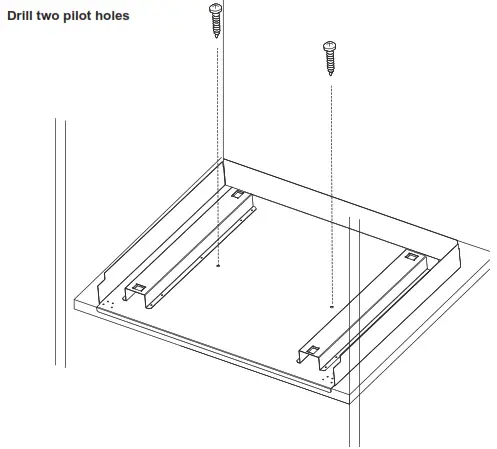

1. Aligning the base bracket assembly
   Position Base Bracket Assembly on a cabinet shelf. The front end of the Base Bracket Assembly should align flush with the front edge of the shelf.
2. Attaching the base bracket assembly

Cabinet Preparation

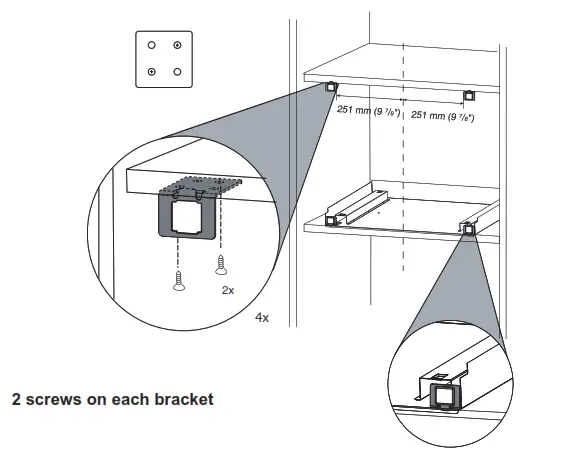

1. Attaching the bracket

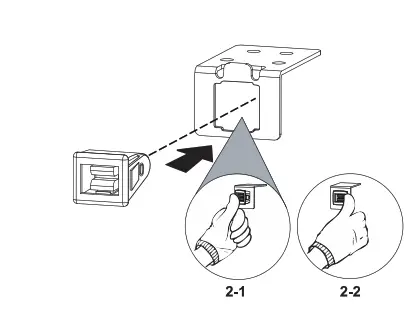

2. Bracket assembly

4× 4×

Press the left side first, and then press the right side.
(Note: Catch could be broken if over-pressing at the center area)

Trim Kit Preparation

Trim Frame

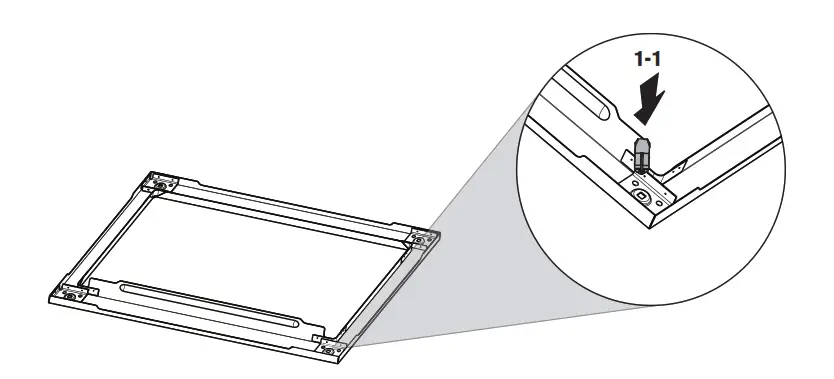

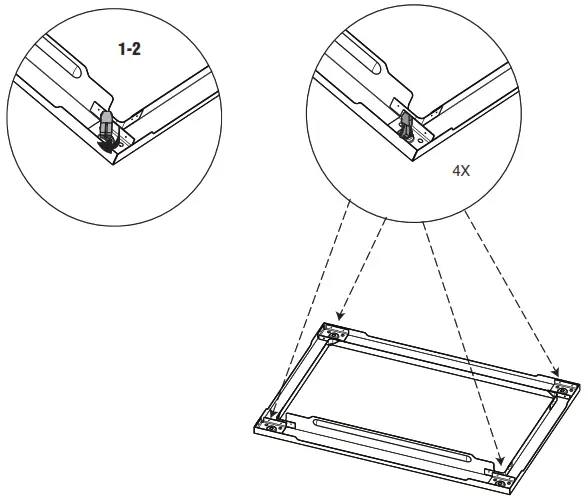

1. Inserting strikes

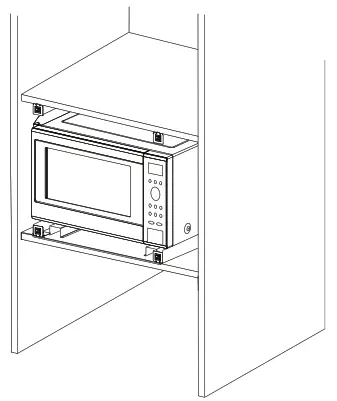

Microwave Oven Installation

Complete the assembly

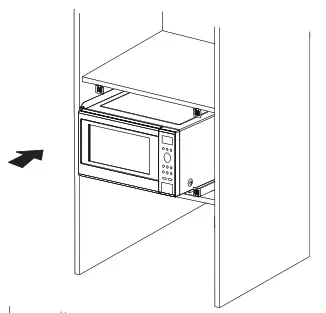

1. Oven placement

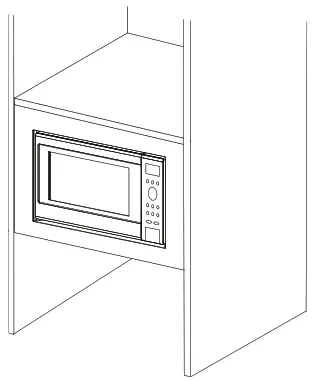

Trim Kit/Finishing Installation

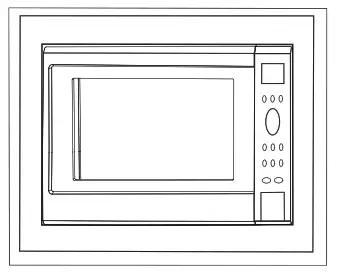

Complete the assembly

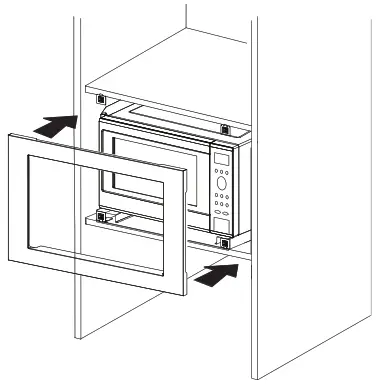

1. Trim frame installation

Note: Place the trim frame with the extended lip at the bottom
