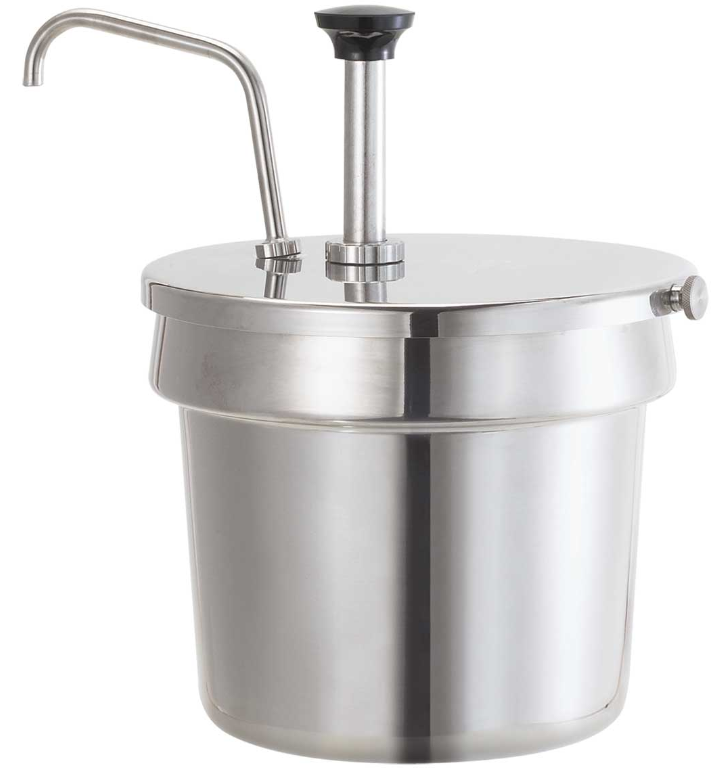

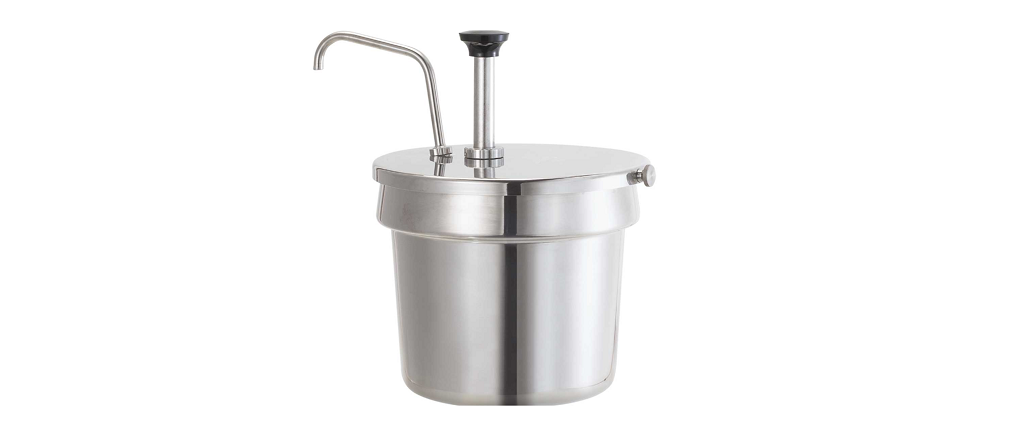

100752 Food Server Pump
PARTS
| PART | QTY | DESCRIPTION |
| 82023 | 1 | KNOB |
| 82021 | 1 | COLLAR, LOCKING |
| 100754 | 1 | COLLAR, GAGING- .545 OZ |
| 82017 | 1 | TUBE, HEAD |
| 82018 | 1 | INSERT, HEAD |
| 82016 | 1 | SPRING, 7” |
| 82015 | 1 | WASHER |
| 100075 | 1 | PISTON & SEAL ASSEMBLY |
| 83003 | 1 | SEAL ASSEMBLY |
| 82061 | 1 | LID, FSP |
| 82485 | 1 | TUBE, DISCHARGE, FSP |
| 05127 | 1 | O-RING, 1″ |
| 82336 | 1 | CYLINDER ASSEMBLY |
| 82323 | 1 | O-RING, 1-5/16″ |
| 82431 | 1 | BODY, VALVE ASSEMBLY (INCLUDES 82323) |

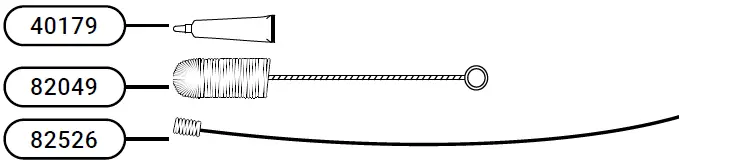

| 40179 | 1 | LUBRICANT, FOOD EQUIPMENT |
| 82049 | 1 | BRUSH, 11″ |
| 82526 | 1 | BRUSH, 21″ |
| 82027 | 1 | DISCHARGE TUBE NUT |
