TRUE WIRELESS EARBUDS
USER MANUAL
PACKING LIST
(Size M is preinstalled on earbuds)

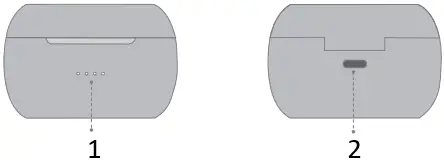

DIAGRAM
- Power indicator
- Type-C charging port
- LED light
- MFB (Multifunctional Buttons)
- Talking mic
- Magnetic charging connectors
POWER ON
Mode 1
Mode 2

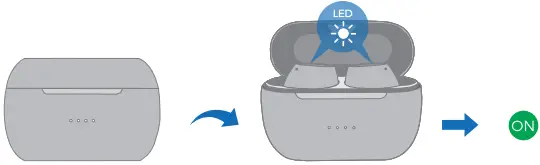

Mode 1: The earphones automatically turn on (Both earbuds’ white LED will stay on for 1 second) when you open the charging case.

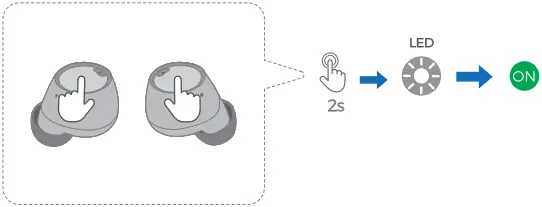

Mode 2: In the shutdown status and when the earphones are not in the charging case, simultaneously press and hold the MFB of both earbuds for 2 seconds to power on ( Both earbuds’ white LED will stay on for 1 second).
POWER OFF
Mode 1
Mode 2

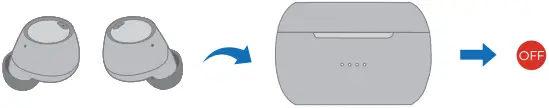

Mode 1: Put the earphones back in the charging case and close the case to turn them off.

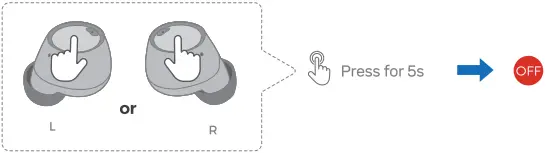

Mode 2: If the earphones are not in the charging case, just press and hold the MFB (Multifunctional Buttons) on either earbud for 5 seconds to power them off.
PAIRING
Mode 1
Voice Prompt: pairing
Mode 2
Mode 1: Automatically Enter Pairing Mode
- When the earbuds are in the charging case you can open the case.
- If you use these earbuds for the first time, wait for several seconds, then the earbuds automatically enter Pairing mode. Here the LED will flash white and red alternately

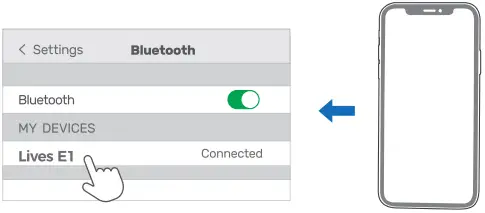

- Select “Lives El” on your device’s Bluetooth setting interface.
Note: The earbuds will prioritise automatic reconnection to already paired devices, when opening the case the time after. If you want to pair the product to another device, please disconnect Bluetooth on the paired device.

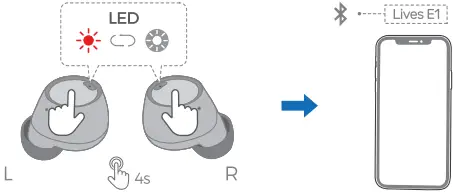

Mode 2: Manually Switch to Pairing Mode
- When both earbuds are not in the charging case and in power-off mode (keep pressing both earbuds for 5 seconds to turn them off).
- Keep pressing both earbuds for 4 seconds in order to re-enter pairing mode where the LED flashes red and white alternately
- Finally, choose “Lives El” on your device.
MUSIC
- Tap
- Triple Tap
- Double Tap
INCOMING CALL
- Double Tap
- Press for 2s
- Press for 1s

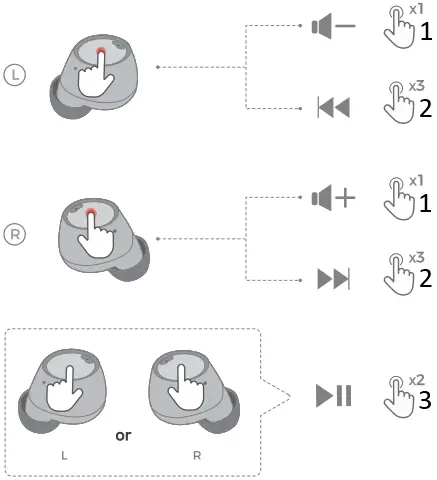

Increase / Decrease Volume
Tap once the Right(R) earbud to increase one volume level.
Tap once the Left (L) earbud to decrease one volume level.
Play / Pause:
Double-tap either earbud.
Next/Previous Track
Triple-tap the Right(R) earbud to skip to next track.
Triple-tap the Left(L) earbud to skip to previous track.

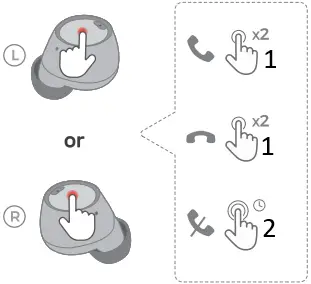

Answer a Call
Double-tap either earbud.
End a Call
Double-tap either earbud.
Reject
Press and hold either earbud for 2 seconds.
Activate Siri
Press and hold the Right (R) earbud for 1 seconds.
ANC Mode
- Valid in twin mode.
- TRANSPARENCY MODE
- Ambient
- ANC ON
- ANC OFF
1. Firstly you need to wear both earbuds to experience ANC mode. Important note: ANC mode is valid, only in twin mode.
2. The default mode is ANC off. Press and hold the Left (L) earbud for 1 second to turn on transparency mode (voice prompt: ambient ).
3. Press and hold the Left (L..) earbud for 1 second again to turn on ANC mode (voice prompt: ANC on).
4. Press and hold the Left (L) earbud forl second again to turn off ANC mode (voice prompt: ANC off).
5. The modes loop according to the sequence described as above.
RESET
Restore factory settings operation:
In the shutdown state, press and hold for 5S, after the red light is always on, double-click the MFB button, if the red and white light flashes three times quickly, it means that the factory settings are restored successfully, and the headset will automatically shut down.
CHARGING

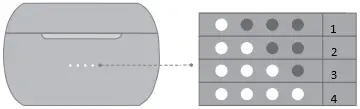

Open the case to view the charging case’s remaining battery life

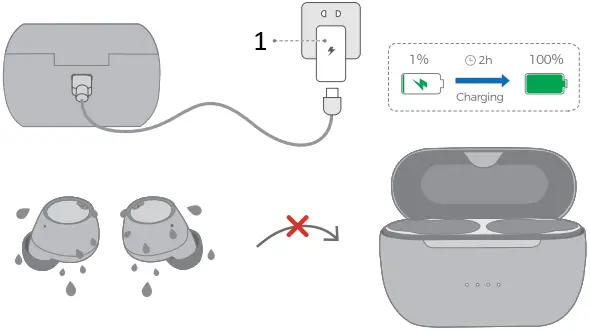

Model: Wired Charging
- 0%-25%
- 25%-50%
- 50%-75%
- 75%-100%
- Output: DC 5V
Do not put the earbuds in the charging case when the earbuds are wet.

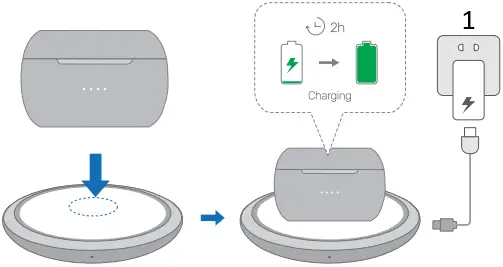

Mode2: Wireless Charging
- Output : DC 5V
Note: wireless charger is sold separately.
CORRECT DISPOSAL OF THIS PRODUCT
( Waste Electrical & Electronic Equipment ) this Marking shown on the product or its literature, indicate that it should not be disposed with other household wastes at the end of its working life.
To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household user should contact either the retailer where they purchased this product or their local government office, for details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contact. This product should not be mixed with other commercial wastes for disposal.
FCC STATEMENT
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
