Adaptor Karcher Outdoor
Installation Guide
Adaptor Karcher Outdoor

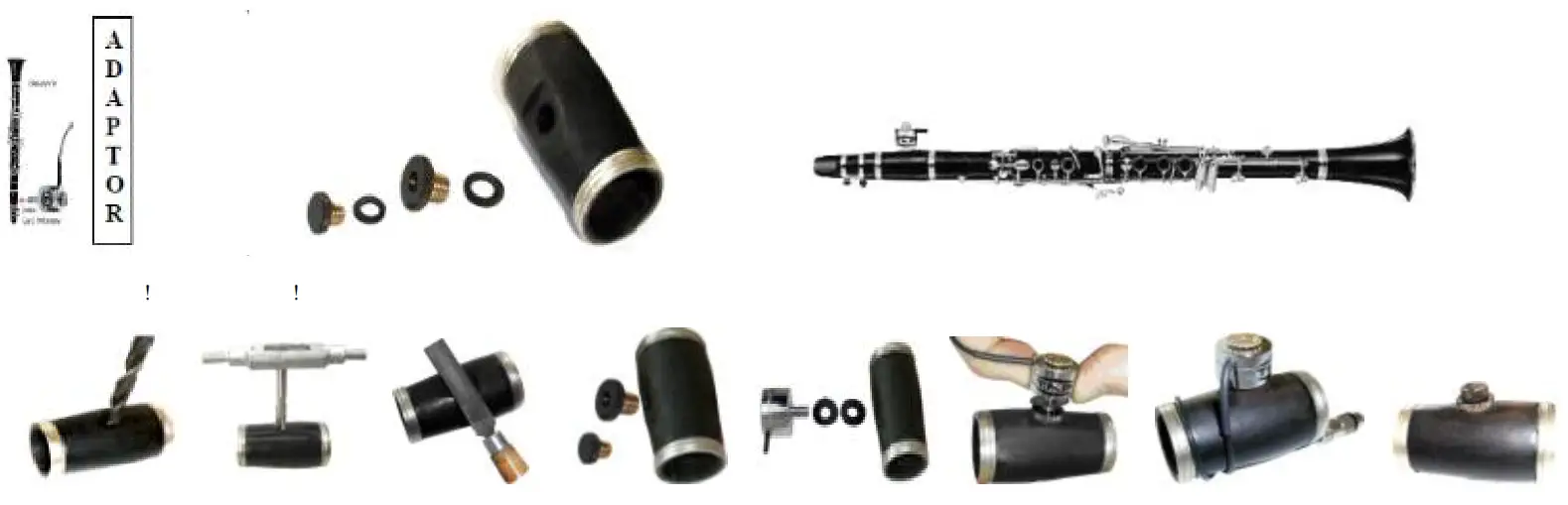

*** Drill hole 7.2mm on the barrel. Make the threading with M(8X125) hand tap cutting tool. Finish the edges of the hole with rasp. Screw the Adapter into the threading. Put the rubber ring on the Mic-sensor. Screw with care the Mic-sensor into the adaptor. Twist the cable on the barrel for protection.
Maintenance
Always keep the sensor on the top direct on your eyes. Unscrew the sensor and wipe with soft paper. Never miss to unscrew sensor from the clarinet when not in use.
WARNING Never use hard tools or items on sensor surface. The installation recommended to be done by a technician.
