Blur TV Cabinet 4D 180 CM
Oak Black
INSTRUCTION MANUAL
13703_TE
15108_TE
MUEBLE TV BLUR 4P 180 CM
MEUBLE TV BLUR 4P 180 CM
BLUR TV CABINET 4D 180 CM
By Cambres Design
www.teulat.es

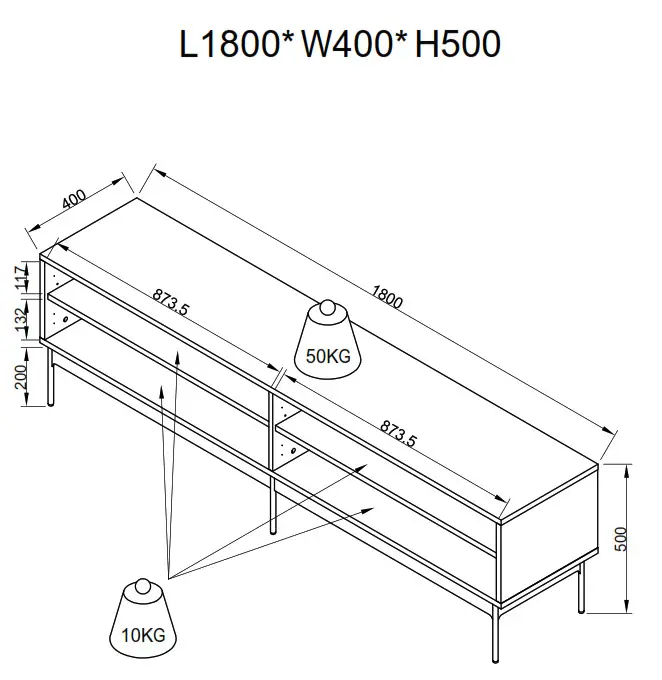

4D 180 CM Blur TV Cabinet
| Dimensions colis | poids brut | poids net |
| Carton dimensions | Gross weight | Net weight |
| 182.5x42x26(CM) | 13 KG | 10.5 KG |
| 191x45x16(CM) | 42 KG | 39.5 KG |
| CAJA/COLIS 1/2 | CAJA/COLIS 2/2 |
| 1 x PIECES 10 QUINCALLERIE FEUILLES MONTAGE | 1 x PIECES 01 1 x PIECES 02 1 x PIECES 03 1 x PIECES 04 1 x PIECES 05 2 x PIECES 06 3 x PIECES 07 1 x PIECES 08 2 x PIECES 09 |

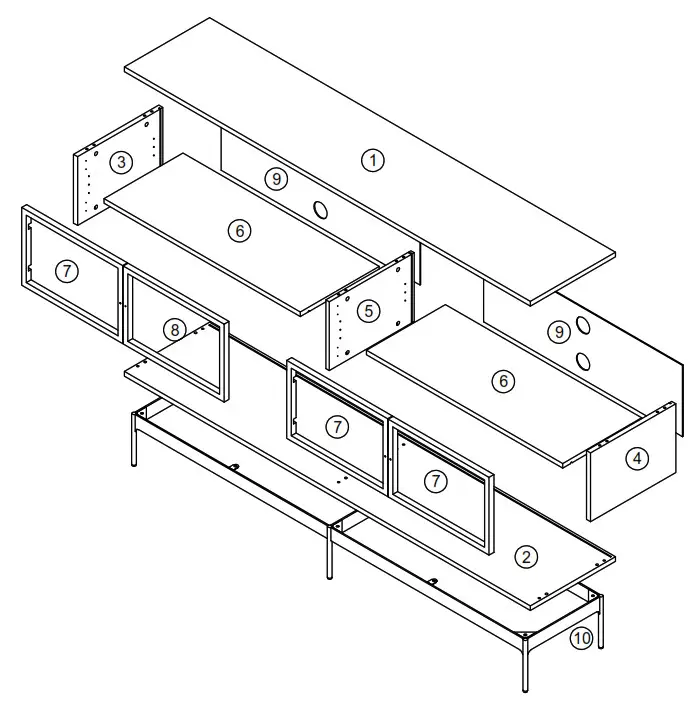

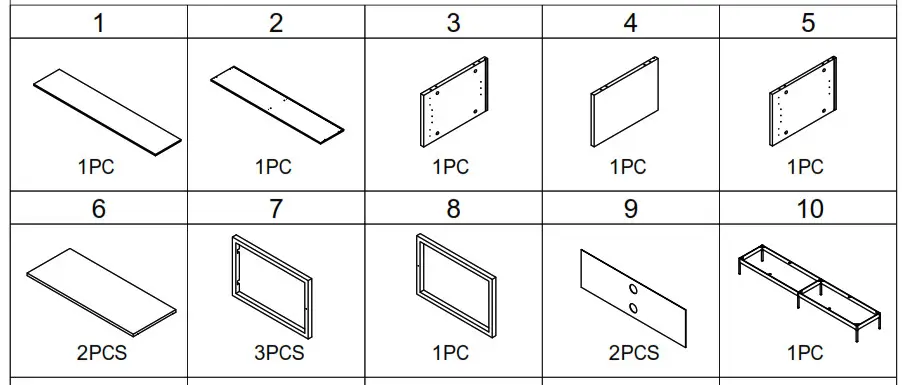

PARTS LIST

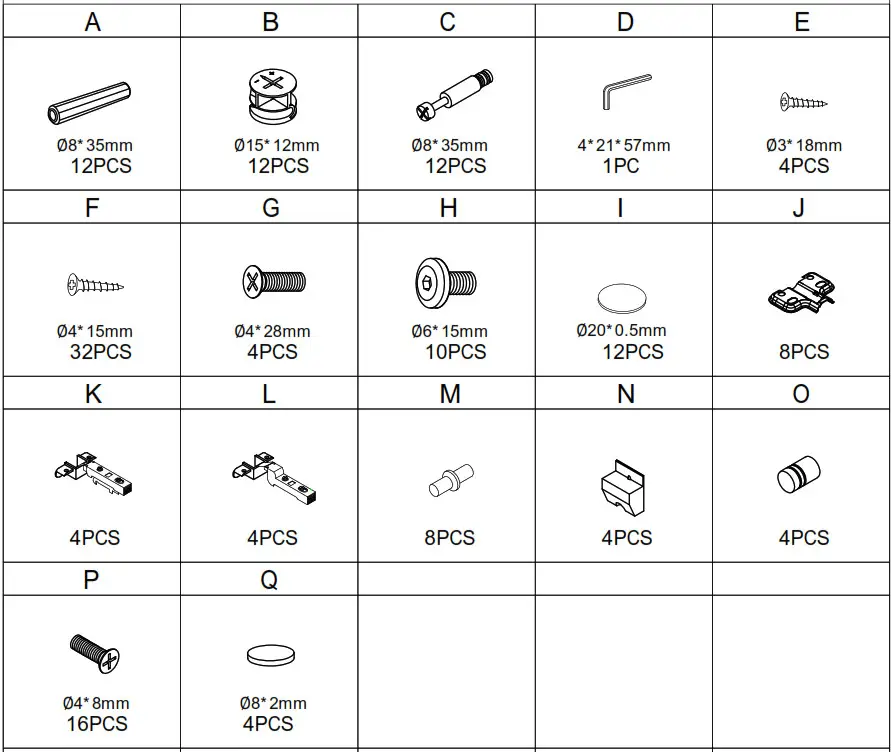

HARDWARE
Furniture containing wood-based panels (Particle board, fibreboard, plywood …) could emit pollutants on the air. Therefore, it is advisable to ventilate the furniture at least during four weeks after its assembly in order to reduce the exposure to the pollutants released by the furniture.
ASSEMBLY ADVICE :
- CAREFULLY READ THE ASSEMBLY INSTRUCTION.
- IDENTIFY THE COMPONENTS OF THE FURNITURE.
- GROUP AND CHECK THE HARDWARE
- USE THE REQUIRED TOOLS.
- CREATE AN ASSEMBLY ZONE
- MAKE THE ASSEMBLY
CLEANING ADVICE:
NEVER FORCE THE CONNECTIONS. RE-TIGHTEN THE SCREWS AFTER FEW DAYS. PLEASE RETAIN THE Al LEAFLET FOR FUTURE REFERENCE, THE Al CONTAINS INFORMATION WHEN CLAIMING FOR MISSING PARTS.
- CAREFULLY REMOVE THE DUST
- USE A SOFT CLEAN DAMP CLOTH WITH SOAPY WATER.
NEVER USE ABRASIVE PRODUCTS OR SOLVENTS. DO NOT APPLY EXCESSIVE PRESSURE WHEN USING THE DAMP CLOTH.
| PAPER DECOR | LAMINATED SURFACES | LACQUERED SURFACE | VARNISHED WOOD | LEATHER TEXTILE | |
| SOAPY WATER (NEUTRAL SOAP) |  | | | | |
| WATER WITH DETERGENT | | | |||
| SPECIFIC SUPPLIER CLEANING | |
CONSIGNE POUVANT VARIER LOCALEMENT WWW.CONSIGNESDETRI.FR
Trier, c'est donner...
