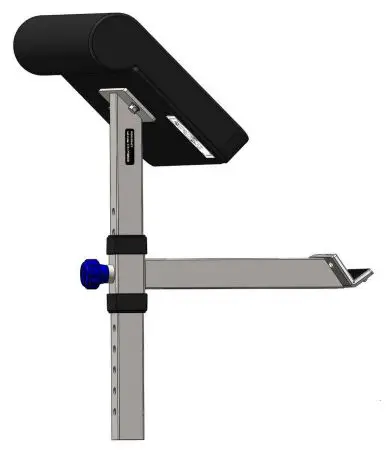

BODYCRAFT F710 Arm Curl Attachment
Assembly Parts List
| Part # | Assembly Parts List | QTY |
| F710-001 | ADJ.TUBE | 1 |
| F710-002-ASM | BAR CATCH – Assembly | 1 |
| F710-003 | ARM CURL PAD | 1 |
| F710-006 | PULL-PIN LOCKING KNOB | 1 |
| Part # | Assembly Hardware | QTY |
| F710-004 | FLAT WASHER, 3/8″ – BLK | 2 |
| F710-005 | HEX BOLT, 3/8″ x 1-1/4″ – BLK | 2 |
| F710-009 | SPRING WASHER, 3/8″ – BLK | 2 |

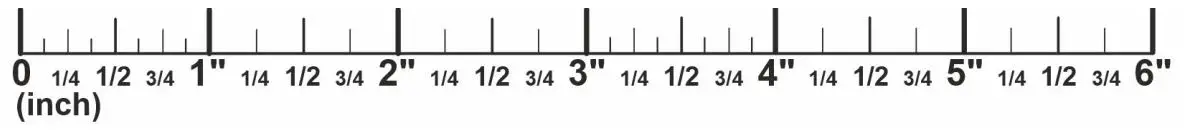

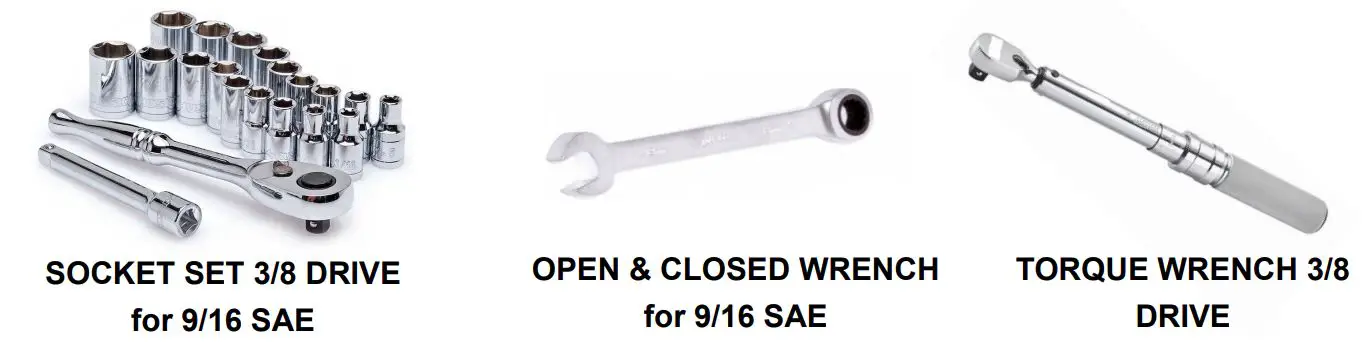

THE FOLLOWING TOOLS ARE RECOMMENDED FOR ASSEMBLY:
Product Assembly
Place all parts from the box in a cleared area and position them on the floor in front of you. Remove all packing materials from your area and place them back into the box. Do not dispose of the packing materials until assembly is completed.

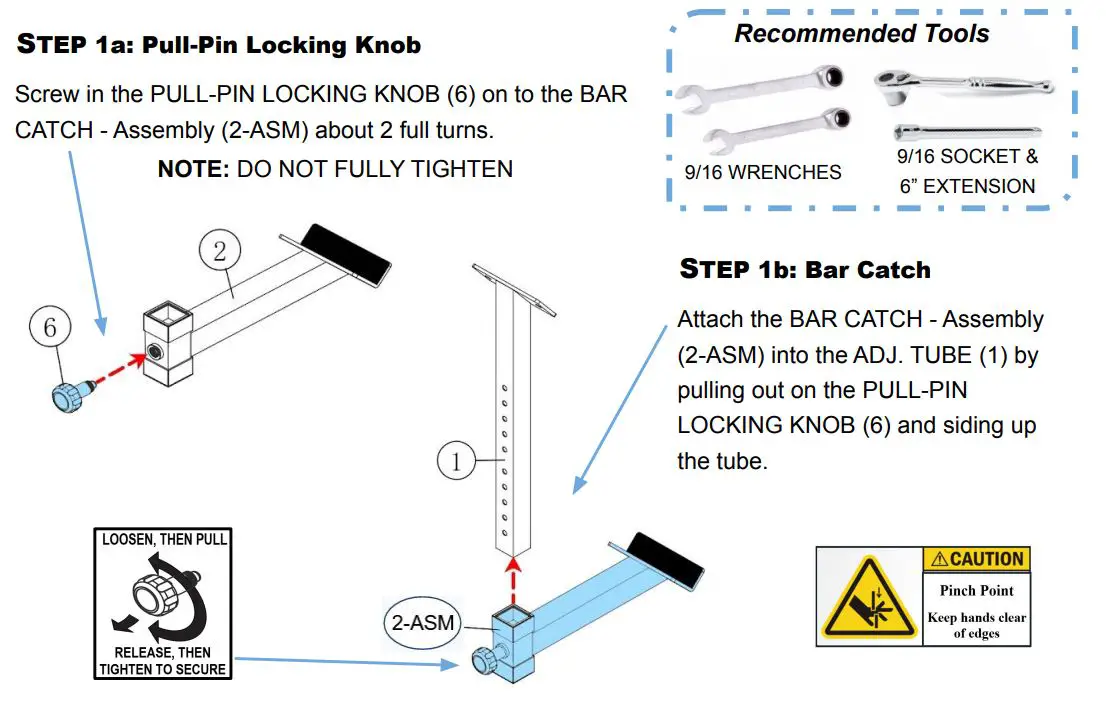

STEP 1c: Bar Catch

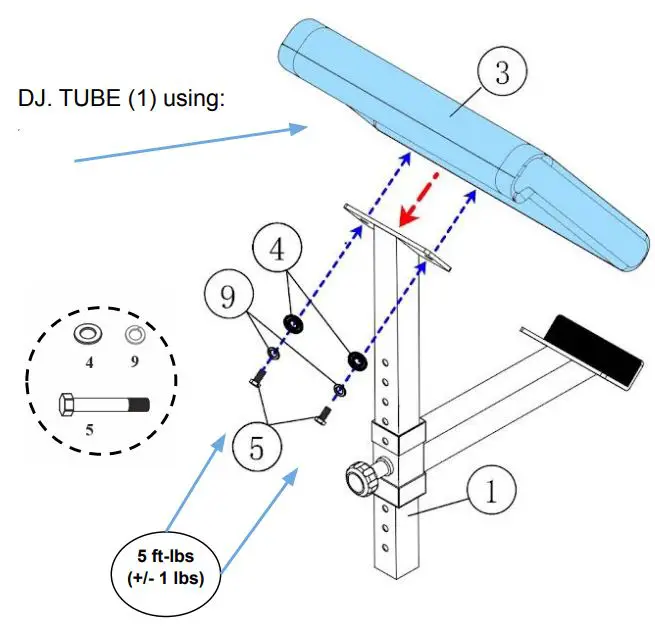

Attach the ARM CURL PAD (3) to the ADJ. TUBE (1) using:
- Two HEX BOLTS, 3/8″ x 1-1/4″ (5)
- Two SPRING WASHERS, 3/8″ (9)
- Two FLAT WASHERS, 3/8″ (4)
STEP 1d: “Torque Time”
Tighten all Step 1c Bolts at this time to the Recommended Torque Specs of 5 ft-lbs (+/- 1lb).
