PRODUCT NAME:Harbor 1-Light pendant
ITEM NUMBER: 11122
Instruction Manual

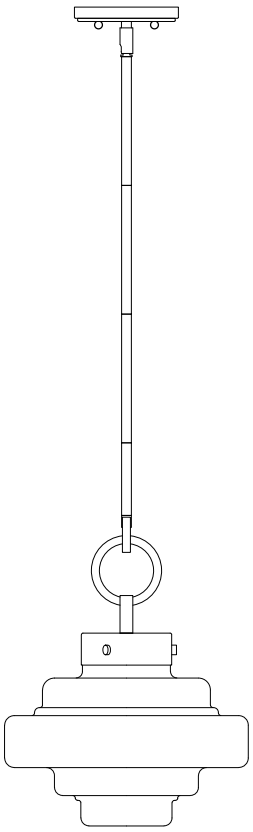

11122 Harbor 1 Light Pendant
Please consult your electrician for hanging fixture and wiring.
Light Source : 1* E26*60W (Not include)
Made in China
Before Getting Started
– Read the instructions carefully prior to assembling the product.
– When you open the package with a sharp tool like a cutter knife, be careful not to damage the components inside.
– Carefully remove all packaging materials and retain for future use.
– Keep all hardware parts and packaging out of reach of small children.
– Choose a clean, level, spacious assembly area.
– Avoid hard surfaces that may damage the product.
– Ensure that you have all required contents for complete assembly.
– Take care when lifting. Assemble the product in close proximity to where you intend to position the item.
– Do not over tighten the screws and bolts as this may damage the threads.
– Do not let children play with this product.
Risk of suffocation!
Keep any packaging materials away from children.
Lamp Care Instructions
– Carefully read through the instruction sheet before assembly and using the product.
– Caution there is a risk of shock. Disconnect from power source before assembling or cleaning.
– Switch off, unplug and allow bulb to cool before replacing bulb or cleaning.
– Only use the recommended bulb type and do not exceed the maximum wattage as it could cause fire.
– Do not plug the product in if cord is torn or frayed.
Cleaning & Maintenance
– On polished finishes, often using talc powder reduces the appearance of fingerprints and other smudges.
– For respective shade surfaces, use the appropriate cleansers, i.e. glass cleaner, acrylic polish, and wood polish.
– Clean with soft cloth and a mild detergent.
– DO not use abrasive cleaner.
– Periodically (every 90 days) make sure that the screws are fully tightened.
– Prolonged exposure to heat sources may cause glazing, melting and scorching, or even cause color to fade.

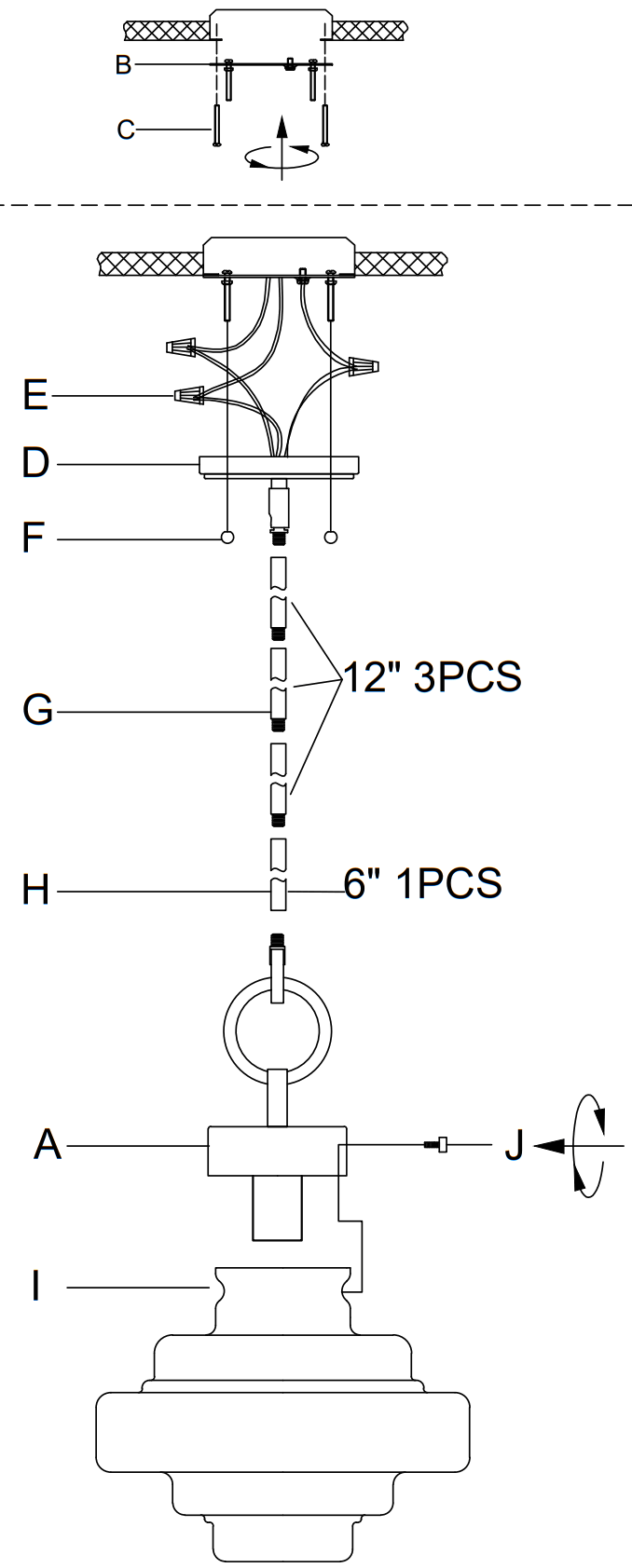

Contents
Before getting,started,ensure the package contains the following components:
| A |  Lamp Frame | X1 |
| B |  MOUNTING BRACKET | X1 |
| C |  Support screw | X2 |
| D |  Canopy | X1 |
| E |  Wire nuts | X3 |
| F |  BALL NUT | X2 |
| G |  12″ STEMS-STR04812-YL | X3 |
| H |  6″ STEMS-STR04806-YL | X1 |
| I |  GLASS SHADE-GLS11120CL | X1 |
| J |  THUMB SCRENS | X3 |
Run wire through stems and combine stem lengths to meet desired mounting height
