pietranera BOB 505

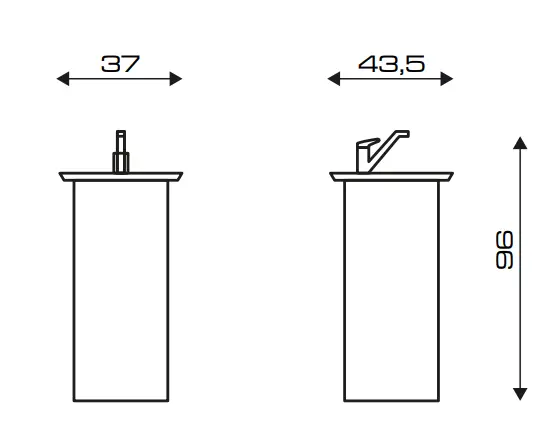

Dimensions

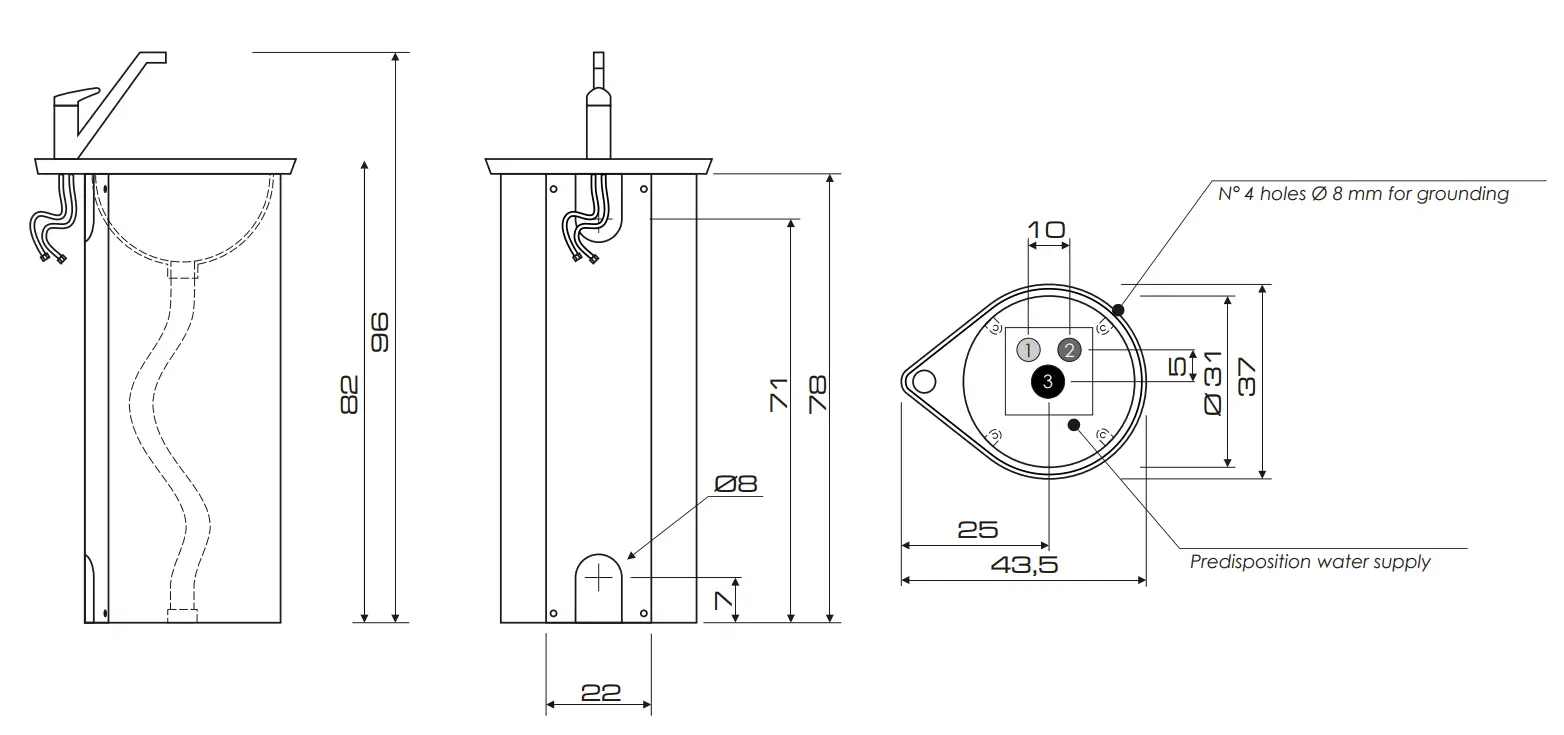

Installation Plan

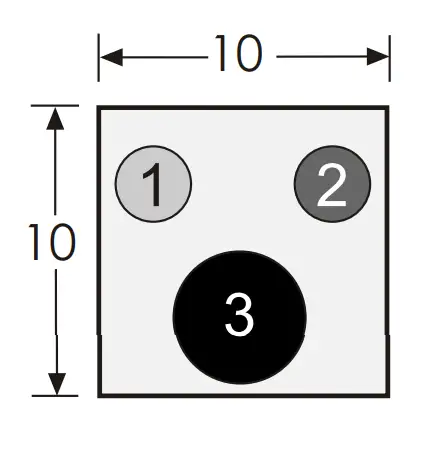

Disposition water supply
- = Calda/Warm 3/8”
- = Fredda/Cold 3/8”
- = Scarico/Drain ø 4 cm
Side drain installation
For wall connections, use the two holes provided in the door. In the event of different sizes, drill the structure in any position.
WARNING !
All the dimensions are in cm. The wash unit should be fixed to the floor ( minimum diameter of 8mm dowels) , as specified by modern international safety regulations. It is necessary to provide easy access to the power supply to provide for a possible detachment in case of need. The producer will not accept any responsibility for eventual damage to objects and/or people caused by incorrect installation of the plumbing and electric system.
