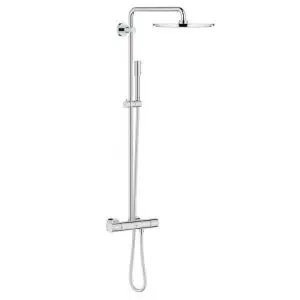

GROHE RAINSHOWER SYSTEM 310 Shower system with thermostat for wall mounting Instructions
MODEL # 27968000
Product Description:
RAINSHOWER SYSTEM 310
Shower system with thermostat for wall mounting
Standard Specification:
consisting of: horizontal swivable 450 mm shower arm exposed thermostat with Aquadimmer function allows change between:
Rainshower Cosmopolitan 310 head shower (27 477 000)
with ball joint
rotation angle ± 15°
hand shower Power&Soul Cosmopolitan 130 (27 664 000)
adjustable in height with gliding element (12 140 000)
Silverflex shower hose 1750 mm (28 388)
GROHE TurboStat compact cartridge with wax thermoelement
GROHE SafeStop safety button at 38°C
GROHE SafeStop Plus optional temperature limiter at 43°C included
GROHE CoolTouch no risk of scalding
GROHE DreamSpray perfect spray pattern
GROHE One-Click Showering spray selection with one click
GROHE StarLight chrome finish
SpeedClean anti-lime system
suitable for instantaneous heaters from 18 kW/h
minimum flow rate 7 l/min
min. recommended pressure 1.0 bar
Color:
27968000 chrome
