PRO-HDRsplit2P-Aud
1×2 HDMI 2.0a Splitter with Built-in &
User Adjustable EDID Management and Audio Extractor
User‘s Guide
Introduction

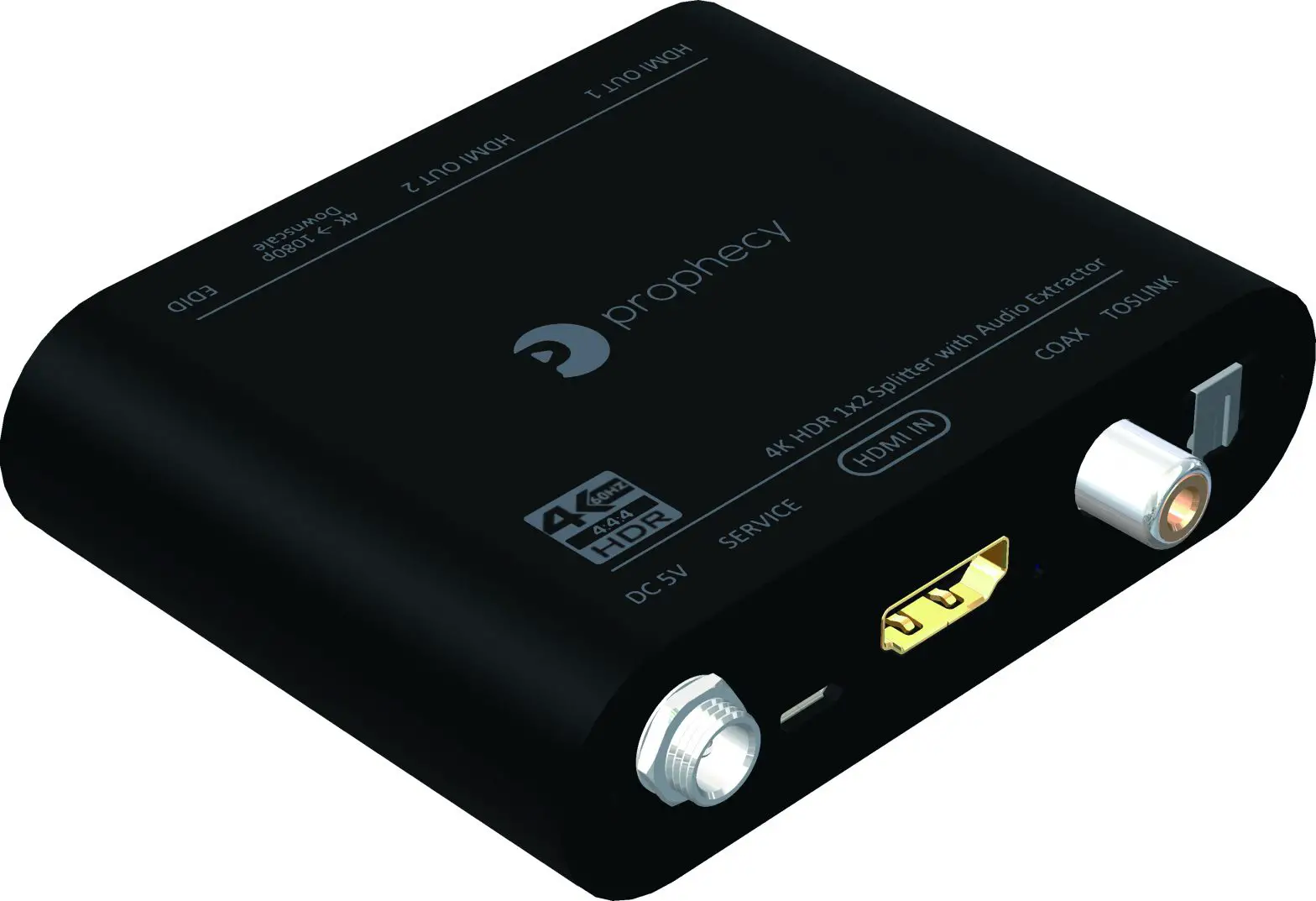

The PRO-HDRsplit2P-Aud is a compact and portable 1×2 4K HDR Splier with built-in & user adjustable EDID management and Audio Extractor.
Note: Audio from HDMI, RCA and Toslink will output simultaneously
Specifications
| Item | Description |
| Role of usage | 1×2 Distribution Amplifier |
| HDMI compliance | HDMI 2.0a |
| HDCP compliance | HDCP 2.2 / 1.4 |
| Video bandwidth | Single-link 600MHz [18Gbps] |
| Video support | HDR 4K2K@60(4:2:0 10bits) /4K2K@60 (4:4:4 8bits) |
| Audio support | DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, LPCM |
| Input | 1x HDMI |
| Output | 2x HDMI + 1x TOSLINK + 1x RCA |
| Powersupply | 5V 2A DC |
Package Contents
- 1x PRO-HDRsplit2P-Aud
- 1x DC 5V wall wart
- 1x User Manual

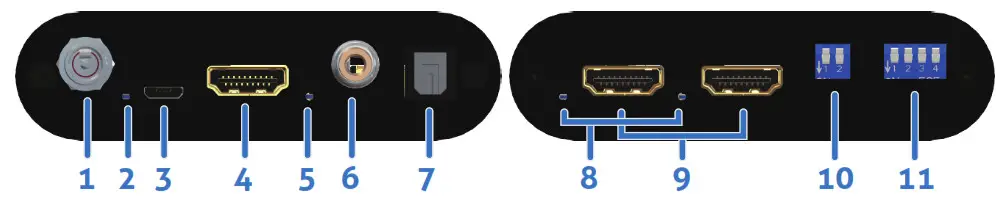

Panel Description
- +5V DC: Connect to the +5V DC power supply unit
- Power LED
- For F/W update via micro USB
- HDMI IN: Connect to a HDMI input source
- Input Signal LED
- S/PDIF (RCA) output (up to 5.1ch)
- S/PDIF (Toslink) output (up to 5.1ch)
- Output 1-2 Signal LED
- HDMI OUT 1-2: HDMI outputs to HDMI displays
- 2 PIN DIP Switch Seng:
Position Setting PIN#1
Output 1 Auto downscale from 4K to 1080p
Output 1 Forced downscale from 4K to 1080p* PIN#2 Output 2 Auto downscale from 4K to 1080p Output 2 Forced downscale from 4K to 1080p* *Note: Forced downscale is optional and is only needed when Auto downscale doesn’t work
- 4 PIN DIP Switch Seng:
Position
Setting
PIN#1 PIN#2 PIN#3 PIN#4 F/W update (for system) F/W update (for audio) Ultra HD(4K2K@60) – 8/10/12bit 3D HDR video & 7.1ch audio Ultra HD(4K2K@60) – 8/10/12bit 3D HDR video & 2ch audio Full HD(1080p@60) – 12bit 3D video & 7.1ch audio Learning EDID from output 1
Thank you for choosing gofanco
www.gofanco.com
Jun, 2019 Ver. B
