Vevor Peaked Roof Large Metal Chicken Coop With Run User Manual

VEVOR Peaked Roof Large Metal Chicken Coop with Run

Product Information

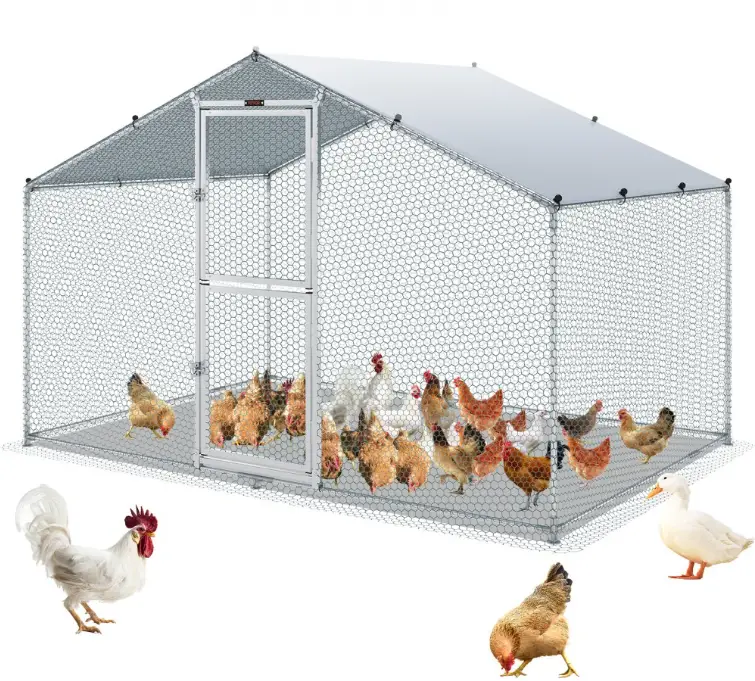

This is a user manual for the Peaked Roof (6m) Chicken Coop. The product is made of galvanized steel pipes and steel mesh with plastic impregnation. It comes with a protective net and tarpaulin cover. The product size is L600*W300*H200cm with a door frame size of 67.5*170cm. The product is manufactured by Hebei Habit Metal Products Co., Ltd in China.

Product Usage Instructions

1. Before installation, wear gloves to protect against burrs on the product.
2. Check all parts to ensure everything is complete before installation.
3. Read the user manual carefully before assembly.
4. The product requires two people for assembly and takes approximately 1-2 hours to complete.
5. Follow the assembly steps in the user manual and assemble the parts as shown in the pictures.
6. Secure the chicken coop to the floor with tent pegs after laying the tarpaulin cover over the top and securing it with rubber cords.

MODEL: Peaked Roof(6m)

NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us: [email protected]

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won’t inform you again if there are any technology or software updates on our product.

NOTES

1. The work may have burrs that injure the hands. Please wear gloves before installation.
2. Check whether the parts are complete before installation.
3. Please read this manual carefully before assembly.

• Tools supplied:
• Tools required:
• Assembly time: About 1-2 hours (with 2 people)

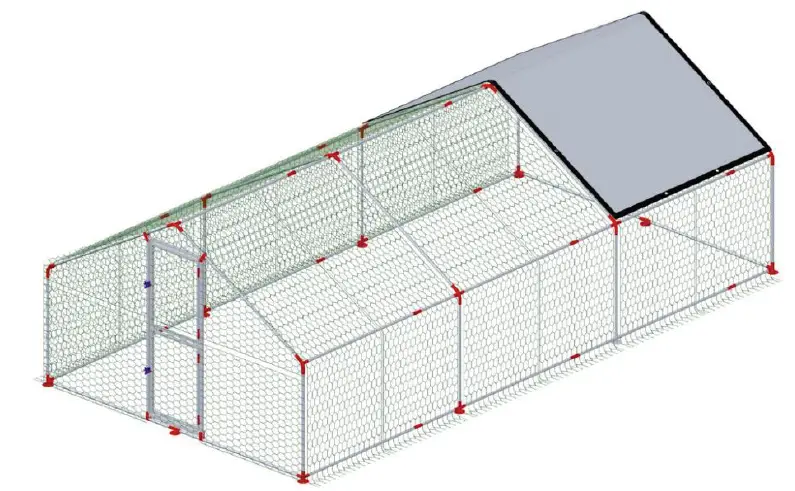

MODEL AND PARAMETERS

ASSEMBLY

Mark	Picture	QTY
1	1450mm	4
2A	1500mm	15
2B	450mm	15
3	1050mm	8
4	1590mm	8

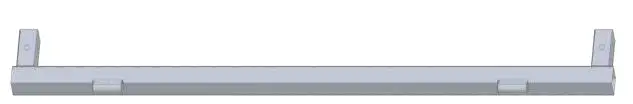

D1		1
D2		1
D3		1
D4		1
D5		2
D6		2
D7		2
D8		4
DP1	Lock	2
DP2	M8	2
DP3	Ø10×80	4
DP4	M6	4
DP5	M8x40	4
DP6	U clips	4
C		15

D		6
E		4
F		4
G		2
H		6
J	Mesh(wide 1m)	2
K	PVC lashing rope	1
L	Plastic cable tie	1bag
M	Tarpaulin	1
N	Rubber cord	14
O	Tent pegs	10

Assemble the parts as shown below:

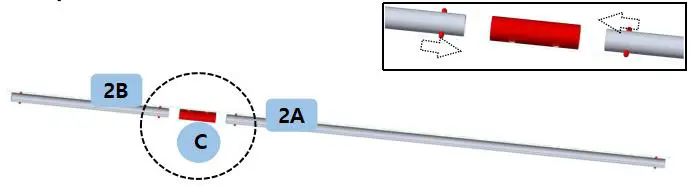

Step1: Assemble 2A+C+2B into one piece (15 pieces in total)

Step2: Install the bottom frame according to the part number in the picture below.

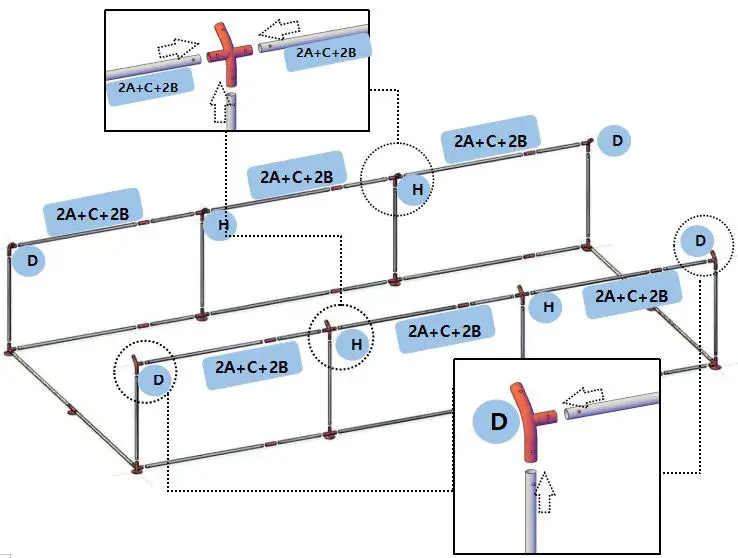

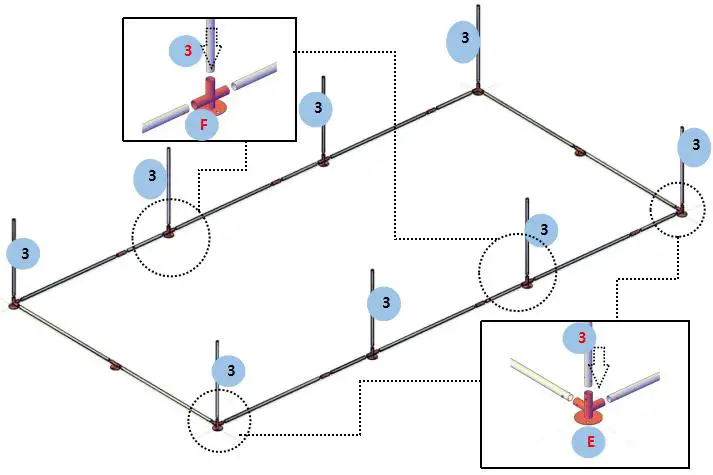

Step3: Install the column according to the part number below.

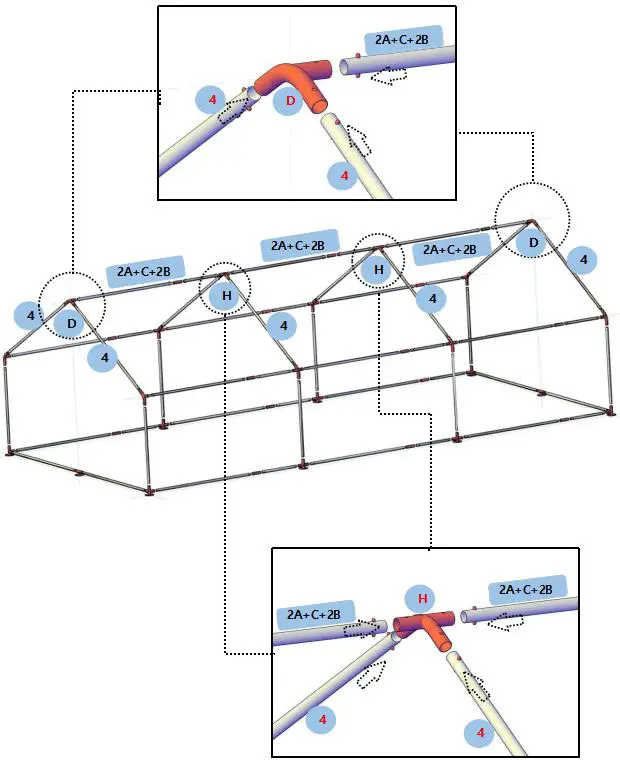

Step4: Install the beam according to the part number in the picture below.

Step5: Install the top surface according to the part number in the figure below.

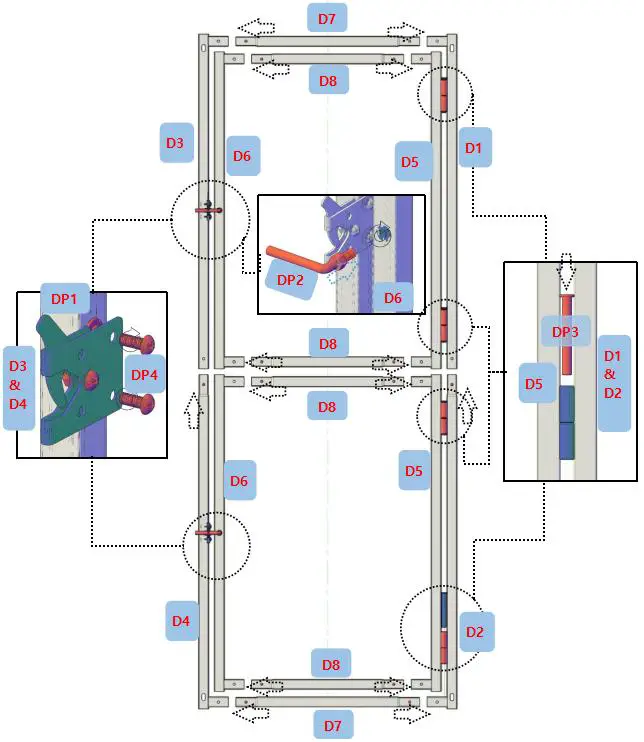

Step6: Install the door according to the part number below.

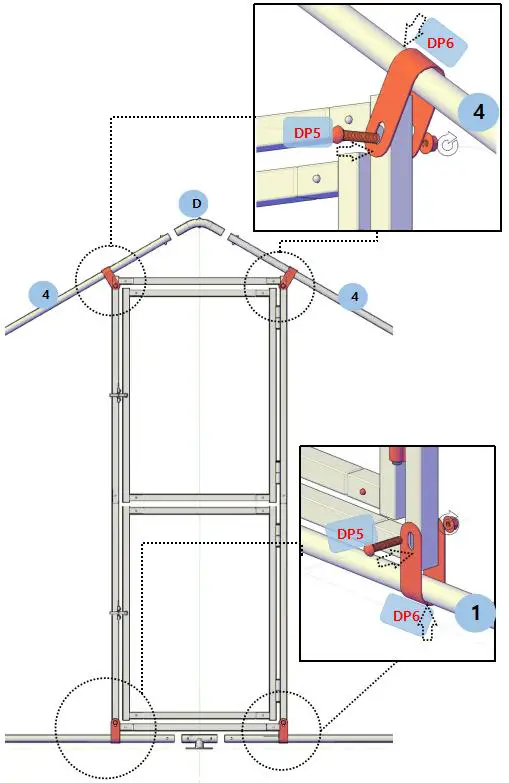

Step7: Attach the door to the frame.

Step8: Installation of top mesh. The laying mesh can be pre-cut to 6x1m.

• The two pieces of mesh are joined using PVC lashing rope piercings.
• Cut off the excess length of mesh if necessary. Extra mesh can be buried in the soil.(c)Secure the mesh to the frame with cable ties.
• Cut off the excess length of cable ties.

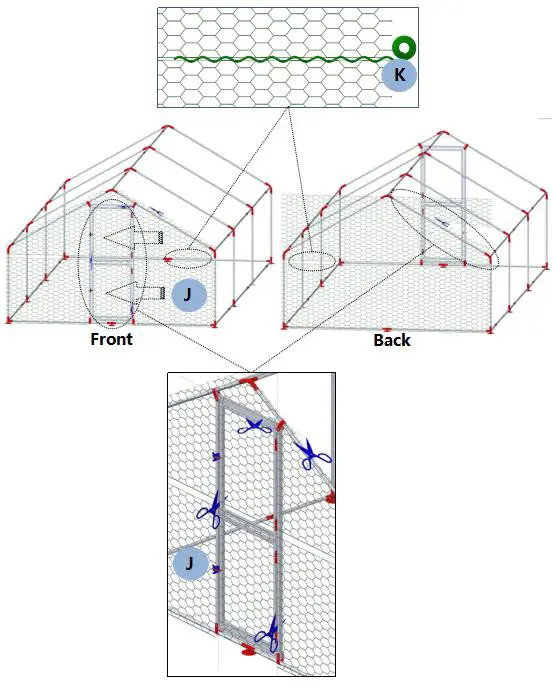

Step9: Install front and rear mesh (The two mesh are interlaced with PVC lashing rope) and secure to the frame with excess length cut.

Note: Cut out the mesh at the door frame and secure it to the door frame.

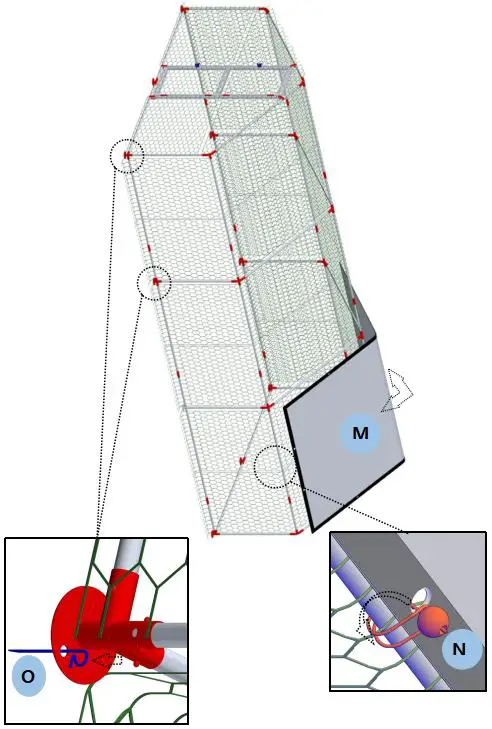

Step10: Lay the tarp over the top and secure it with rubber cords.
Secure the chicken coop to the floor with tent pegs.

Manufacturer: HEBEI HABIT METAL PRODUCTS CO.,LTD ADD: 9# Daocheng Logistics Park, Hengshui High-tech Zone, Hebei Made in China
Importer: WAITCHX
Address: 250 bis boulevard Saint-Germain 75007 Paris Importer: FREE MOOD LTD
Address: 2 Holywell Lane, London, England, EC2A 3ET

EUREP UK LTD
UNIT 2264, 100 OCK STREET, ABINGDON
OXFORDSHIRE ENGLAND OX14 5DH

EUREP GmbH
Unterlettenweg 1a, 85051
Ingolstadt, Germany

Support and E-Warranty Certificate:  https://www.vevor.com/support
