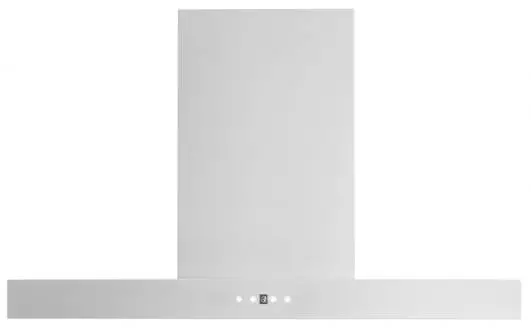

AVW-368CS 36 Inch Wall Mounted Hood
Instruction Manual
AVW-368CS 36 Inch Wall Mounted Hood
| Model | W-368CS |
| Dimensions | |
| Dimensions | 35 1/2”(W) x 19 3/4”(D) x 2 3/4”(H) |
| Exterior Appearance | |
| Stainless steel grade | 201 |
| Features | |
| Control Lighting Blower type Blower performance Filter type Duct transition Ducting Chimney (ducted out) | Soft touch with LED display 2 bulbs, 3W LED (bulbs included) 860 CFM, 6-Speed Speed 1, 2.4 sones Speed 6, 6.2 sones 3 aluminum micro hole filters (included) 3 filtres chicane (inox) 6” Round (Top) Ducted For ceiling heights up to 9’0” |
| Electrical Requirements | |
| Electrical requirements | 120V / 60Hz / 2.7 Amps |
| Warranty | |
| 1-year Warranty | Parts and labour, in-home service |
The information contained herein is based on sources that we believe to be reliable, but are not guaranteed by us, may be incomplete or may change without notice

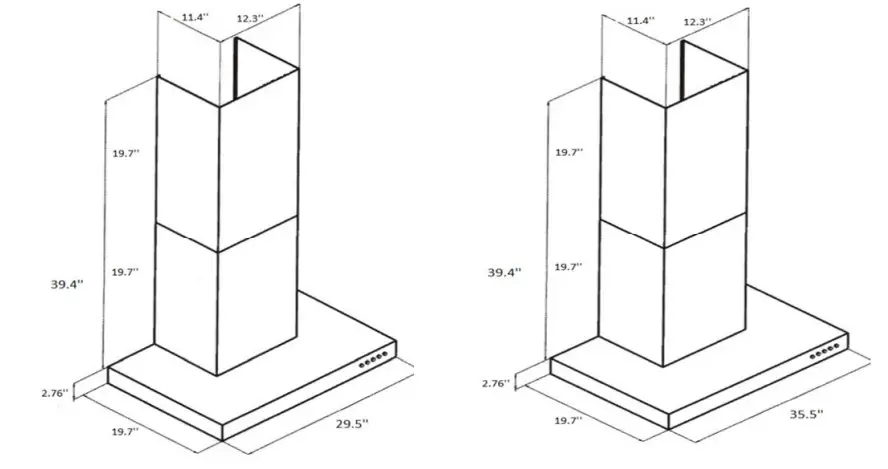

Dimensions

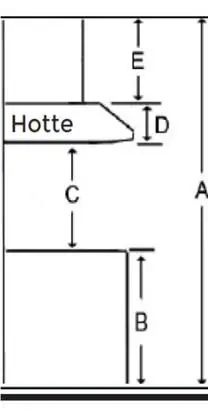

Installation
| A | Floor-to-ceiling height | Variable |
| B | Floor to counter top height (standard) | 36″ |
| C | Recommended height between cooking surface and bottom of the hood | 28″ to 30″ |
| D | Hood height | 2.76″ |
| E | Chimney height | 19.7″ to 39.4″ |
Duct transition
The information contained herein is based on sources that we believe to be reliable, but is not guaranteed by us, may be incomplete, and/or may change without notice.
