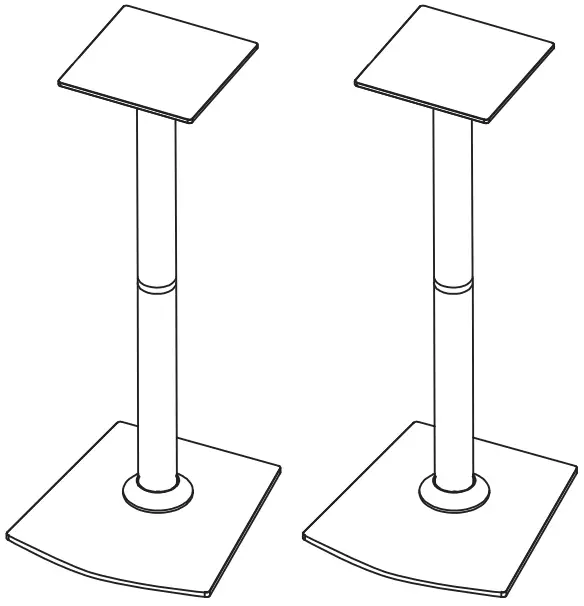

ERGOAV ERSSL1-01B Bookshelf Speaker Stand
Thank You for Choosing this ErgoAV Product!
At ErgoAV, we want to add value to your AV experience by providing the highest quality products and services in the industry. If you have any concerns or comments, please contact us.
Important Safety Instructions
- Check package contents against Supplied Parts and Hardware List to assure that all components were received undamaged. Do not use damaged or defective parts. If you require replacement parts, contact customer service at [email protected].
- Not all parts and hardware included will be used.
- Carefully read all instructions before attempting installation. If you do not understand the instructions or have any concerns or questions, please contact customer service at [email protected].
- This product may contain moving parts. Use with caution.
- Do not use this product for any purpose that is not explicitly specified in this manual.
Do not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or inappropriate use.
Weight Restrictions
If your speaker weighs more, this stand is NOT compatible
WARNING
DO NOT exceed the maximum weight indicated. This speaker stand is intended for use only within the maximum weights indicated. Use with products heavier than the maximum weights indicated may result in failure of the stand and its accessories, causing possible damage and or injury.
Supplied Parts and Hardware
WARNING:
This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. Do not use damaged or defective parts. If you need replacement parts, please contact Technical Support at (877) 419-7832 or Customer Service at [email protected].
- NOTE: Not all hardware included in this package will be used.
Supplied Parts and Hardware
 |  |  |

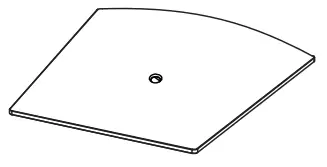

Base | Top Plate [02] X 2 | Pillar [03] X 4 |
 |  | |
Thread Rod [04] X 2 | Thread Rod [05] X 2 | |
 |  | |
Plastic Cover [06] X | Connector [07] X 2 | |
 |  |  |
Spikes [A] X 8 | Cover [B] X 8 | Steel Washer [C] X 2 |
 |  |  |
Nut MB [D] X 2 | Rubber Pad [E] X 8 | Wrench [F] X 1 |

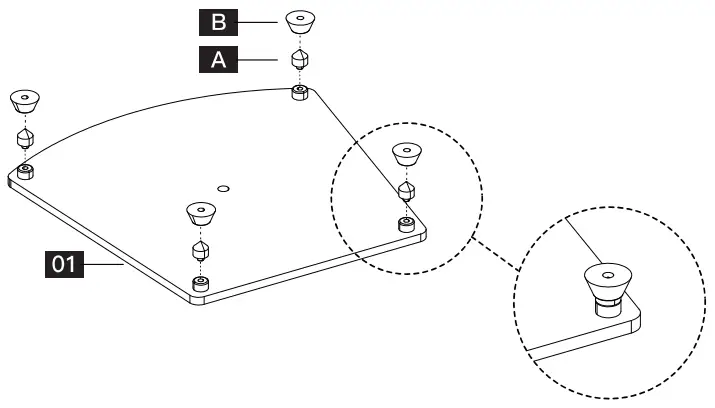

Assemble Spikes to Base
Mounting the Spikes [A] and Covers [B] on the Base [01 ].
NOTE: Covers [B] can be used as an alternative if Spikes [A] will damage floors.
[01 ]*1
[A]*4 [8]*4

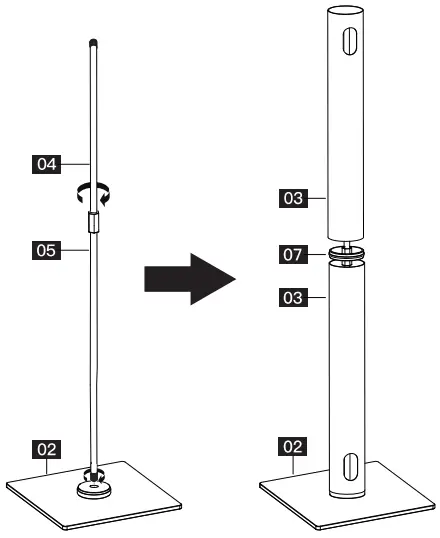

Assemble Pillar to Top Plate
Thread part [05] and [04] together. Thread the assembled Rod into the Top Plate [02]. Then put Pillar [03] and Connector [07] on the Thread Rod as shown.
[02]*1 [04]*1 I
! [05]*1 [07]*1 [03]*2

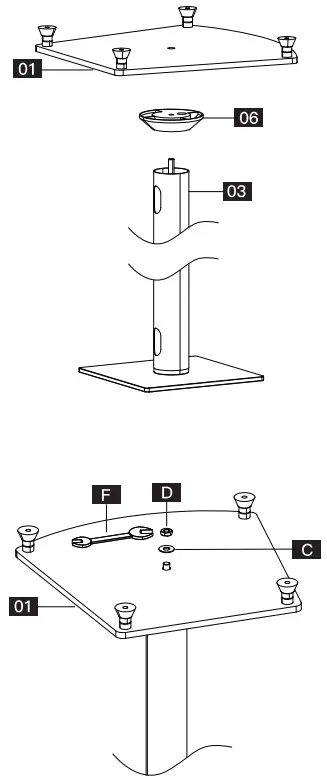

Assemble Base to Pillar
Install Cover [06] and Base [01] on Pillar [03] as shown in the figure. Put on the Steel Washer [C] and Nut [D], then use the Wrench [F] to tighten the Nut [D]
[01 ]*1 [06]*1
[C]*1 [0]*1 [F]*1

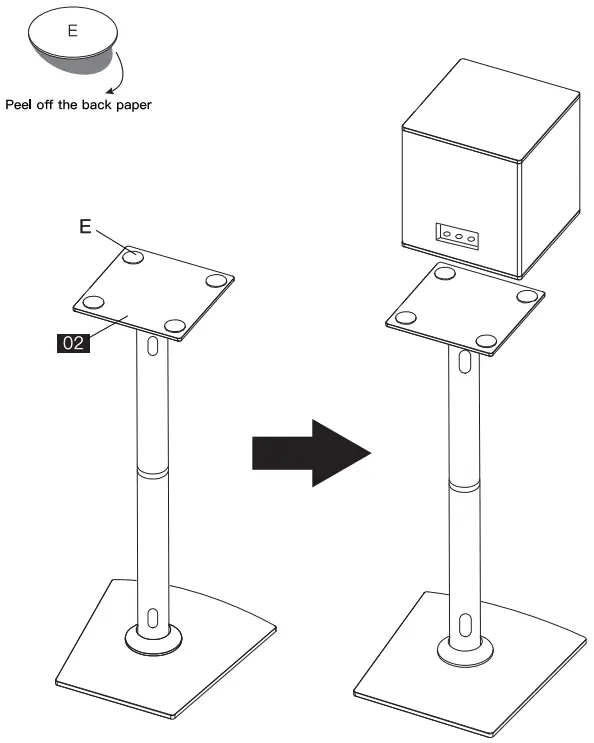

Attach Rubber Pads to Top Plate
Remove the backing paper from the Rubber Pad [E] and attach the Rubber Pad [E] to the Top Plate [02]. Secure the speaker to the Top Plate [02].
[E]*4

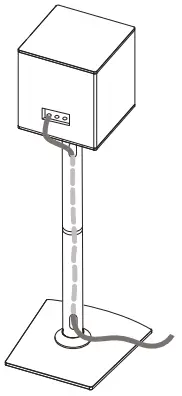

Wire Management
Set the speakers on the Top Plate [02] and route the wires through the pillar as shown.

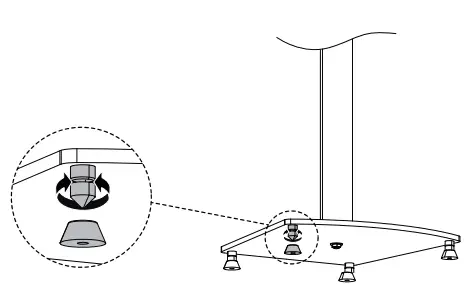

( Optional) Adjust Level of Base
To level and stabilize the base, you can remove the Cover [B] (if needed) and rotate the Spike [A]. Repeat on each corner as necessary.
At ErgoAV, we strive to provide the highest value products.
We want to support your purchase. If you have questions, concerns, or feedback please let us know!
ErgoAV Customer Care
Phone(877)419-7832
[email protected]
 |  |  |
A/V Furniture | TV mounts | Tabletop TV Stands |
Speaker Accessories
The ERSSL1-01B is designed to hold medium to large bookshelf speakers weighing up to 22 lbs. The adjustable feet or spikes level stand on uneven floors and improve acoustics. Built in cable management allows cables to run through the pillar to create a clean and finished look. Steel pillar and glass base provide a strong and stylish foundation for your speaker. 28″ height places the speaker at optimum listening level.

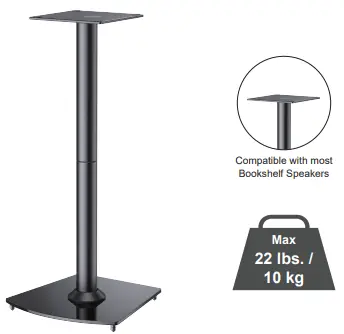

Features
- Heavy duty design holds medium to large bookshelf speakers weighing up to 22 lbs.
- Adjustable feet or spikes level stand on uneven floors and improve acoustics.
- Cable management – cables run through pillar to create a clean look.
- Solid Foundation – steel pillar and glass base provide a strong and stylish foundation for your speaker.
- 28″ Tall to place the speaker at optimum listening level.
WARRANTY 5-Year
| Product Specifications | DIMENSIONS (W x H x D) | PRODUCT WEIGHT | LOAD CAPACITY | FINISH | AVAILABLE COLORS |
| 12.5″ × 28.4″ × 12.6″ | 15.3 lbs | 22 lbs | Powder Coating | Black | |
| 318.3mm × 722mm × 320mm | 6.96 KG | 10 KG |
| Package Specifications | PACKAGE SIZE (W x H x D) | PACKAGE WEIGHT | PACKAGE UPC CODE | PACKAGE CONTENTS | UNITS IN PACKAG |
| 20.4″ × 6.4″ × 14.6 | 18.3 lbs | 810082200287 | Product, Manual, Parts | 1 Unit | |
| 517mm × 163mm × 372mm | 8.29 KG |
| Master Carton Specifications | PACKAGE SIZE (W x H x D) | PACKAGE WEIGHT | UNITS IN CARTON | ||
| 20.9″ × 13.4″ × 15.4″ | 38 lbs | 2 Unit | |||
| 530mm × 340mm × 390mm | 17.24 KG | ||||

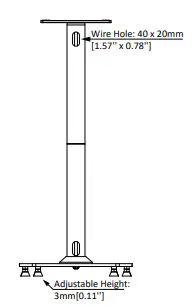

Product Dimensions
FRONT VIEW
TOP VIEW
BACK VIEW
SIDE VIEW
ERSSL1-01B
Speaker Stand
The information and designs contained in this document are confidential and the proprietary property of BESTERGO, Inc neither the design nor any information contained in this drawing may be reproduced, used, or disclosed to others without the express written permission of BESTERGO, Inc.

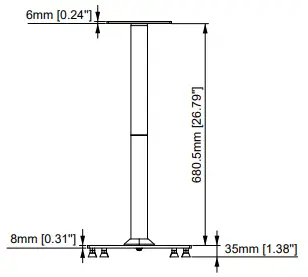

FRONT VIEW

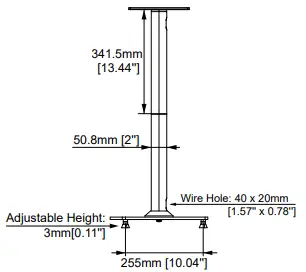

SIDE VIEW
Top View

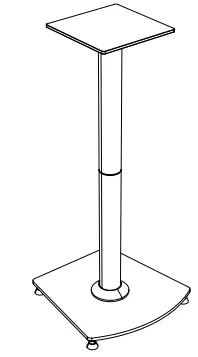

3-D View
