E-S MOTOR 12V Motor with 64 CPR Encoder
Product Information
The product is a 37SG-520-EN gear motor with an encoder and cables. It comes with an 80D rubber wheel, a shaft coupling made of brass, a mounting bracket made of aluminum alloy, and 6 screws. The gear motor has a voltage rating of 12V and is designed with a dimension drawing for easy installation. The motor has a no-load speed of 1530 rpm and a rated speed of 6.3 rpm. The torque produced by the motor is 0.19 Kg.cm at no-load and 1.27 Kg.cm at stall.
Product Usage
To use the gear motor, follow these steps:
- Attach the mounting bracket to the surface where you want to install the gear motor using the provided screws.
- Attach the shaft coupling to the gear motor’s output shaft.
- Attach the rubber wheel to the shaft coupling.

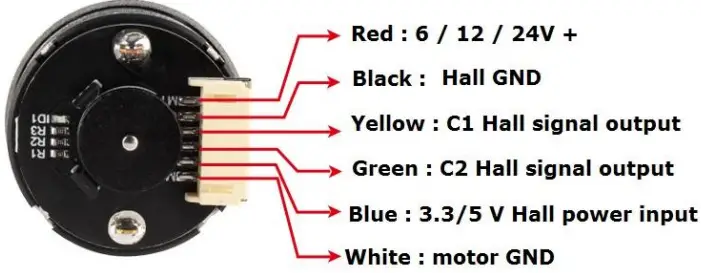

- Connect the cables from the gear motor’s encoder to your control system.
- Apply a 12V power supply to the gear motor.
- Control the gear motor’s speed and direction using your control system.
Note: Before using the gear motor, make sure to familiarize yourself with the safety instructions provided in the user manual.
What’s included

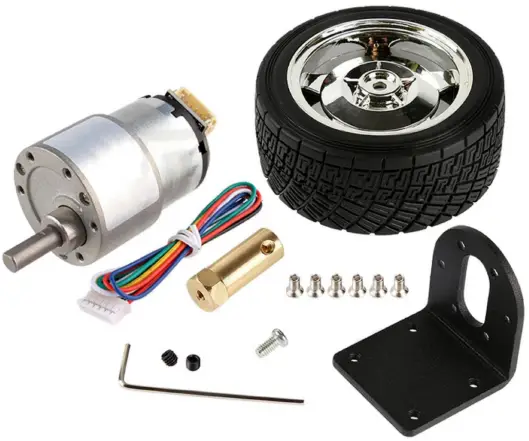

- 37SG-520-EN gear motor with encoder and cables, X 1
- 80D Rubber wheel, X 1
- Shaft coupling ( material : brass ), X 1
- Mounting bracket ( material : aluminium alloy), X 1
- screw , X 6
Gear motor with encoder dimension drawing
Mounting bracket dimension drawing
37SG-520-EN gear motor specification, 12V
|
Model | L | No-load | Rated | At Stall | ||||
| mm | Speed rpm | Current mA | Speed rpm | Current A | Torque Kg.cm | Torque Kg.cm | Current A | |
| 37SG-520-6.3-EN | 19 | 1530 | <160 | 850 | < 1.2 | 0.6 | 1.2 | < 3.5 |
| 37SG-520-10-EN | 19 | 960 | <160 | 540 | < 1.2 | 1 | 2 | < 3.5 |
| 37SG-520-18.8-EN | 21 | 510 | <160 | 285 | < 1.2 | 1.8 | 4 | < 3.5 |
| 37SG-520-30-EN | 21 | 320 | <160 | 180 | < 1.2 | 3 | 6 | < 3.5 |
| 37SG-520-50-EN | 24 | 192 | <160 | 105 | < 1.2 | 4.8 | 10 | < 3.5 |
| 37SG-520-90-EN | 24 | 107 | <160 | 60 | < 1.2 | 8.5 | 17 | < 3.5 |
| 37SG-520-150-EN | 26.5 | 64 | <160 | 36 | < 1.2 | 14.5 | 25 | < 3.5 |
| 37SG-520-270-EN | 29 | 35 | <160 | 20 | < 1.2 | 20 | 35 | < 3.5 |
| 37SG-520-450-EN | 29 | 21 | <160 | 14 | < 1.2 | 25 | 35 | < 3.5 |
