Ansten 2023 Wireless Headphones For Tv Watching Instruction Manual

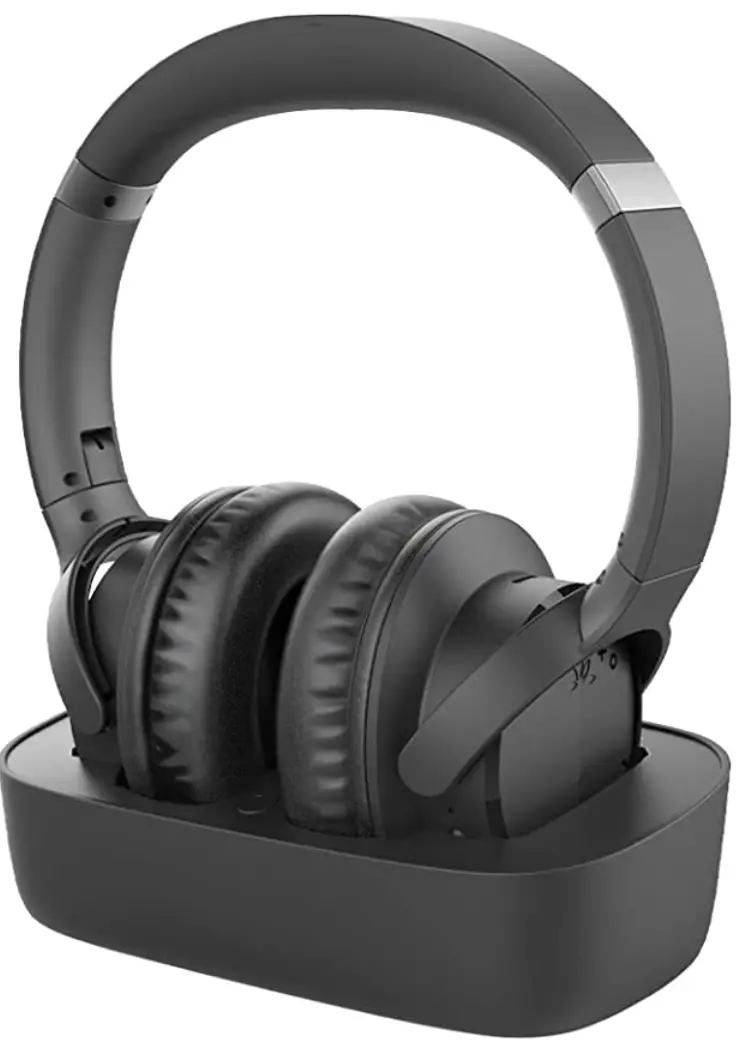

ANSTEN 2023 Wireless Headphones for TV Watching

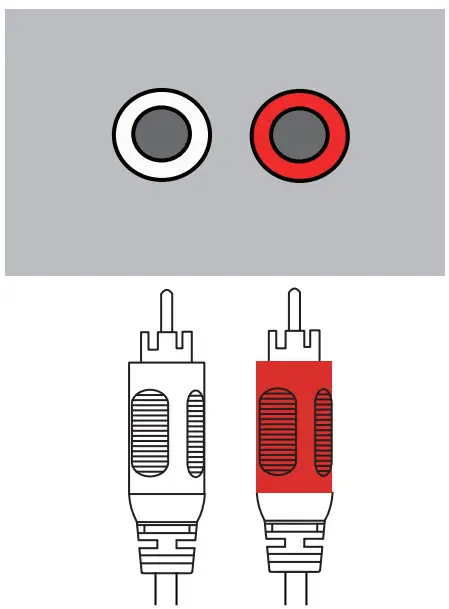

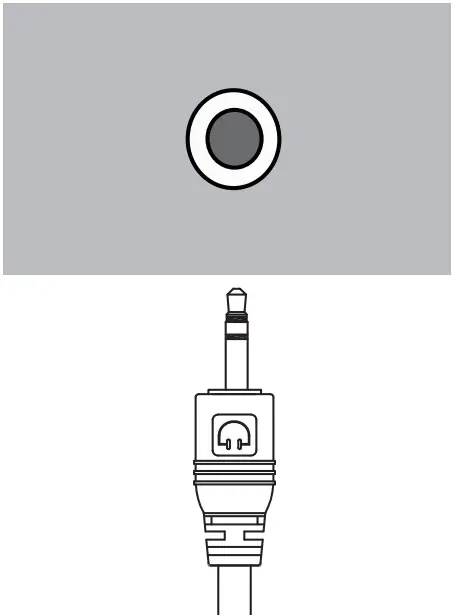

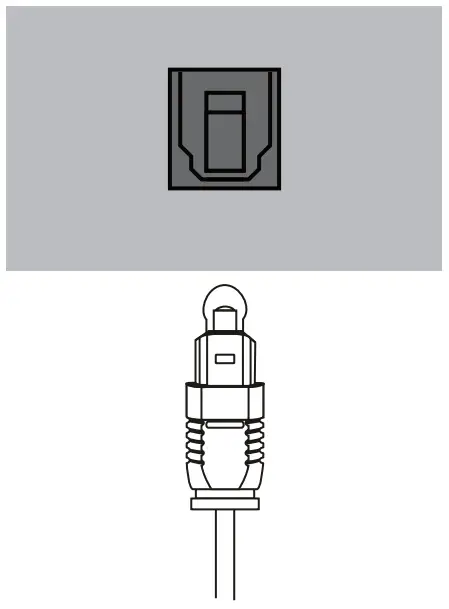

Check Your Device’s Output Ports

	Optical AUDIO OUT	RCA(Red/White) AUDIO OUT	AUX/3.5mm AUDIO OUT	RCA AUDIO IN
Jack Options
Compatible with K1?
Please refer to Point:	2.1	2.1	2.3	2.3

Connect To TV And Use

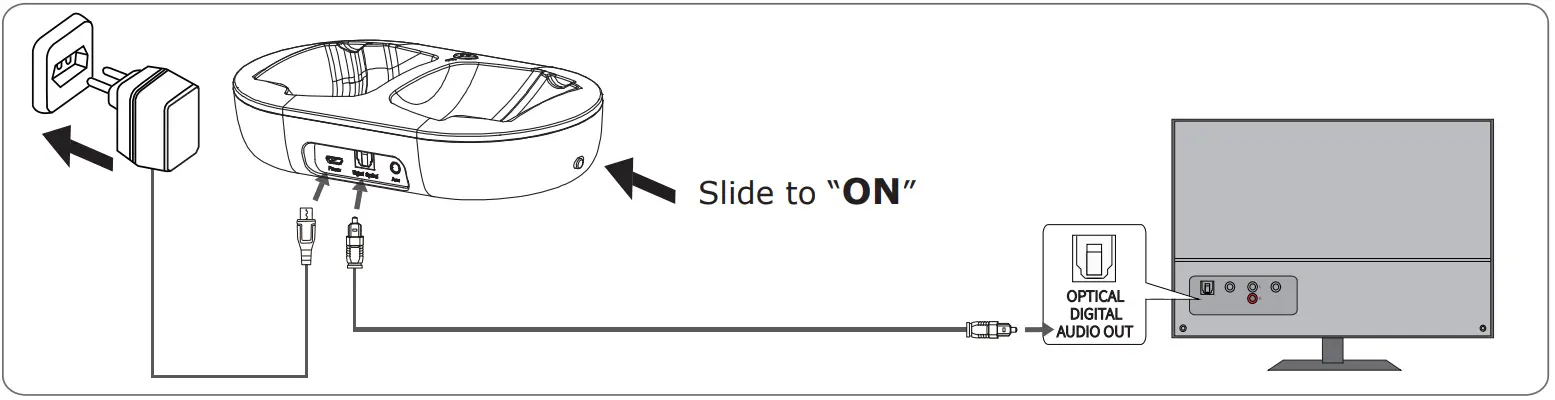

Using Optical audio output

You need:

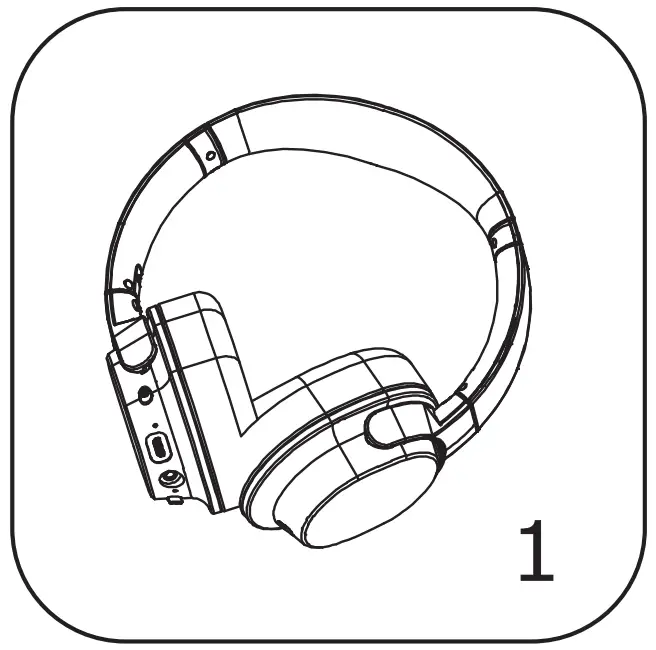

1. Headphone

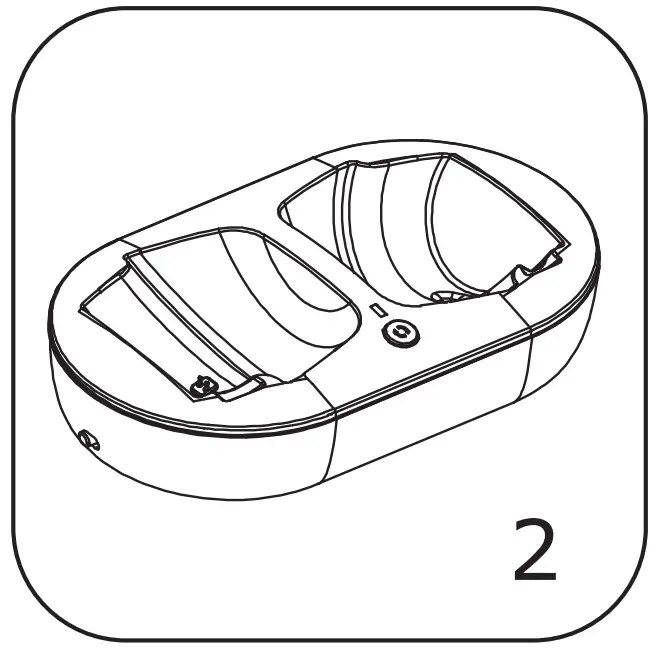

2. Transmitter

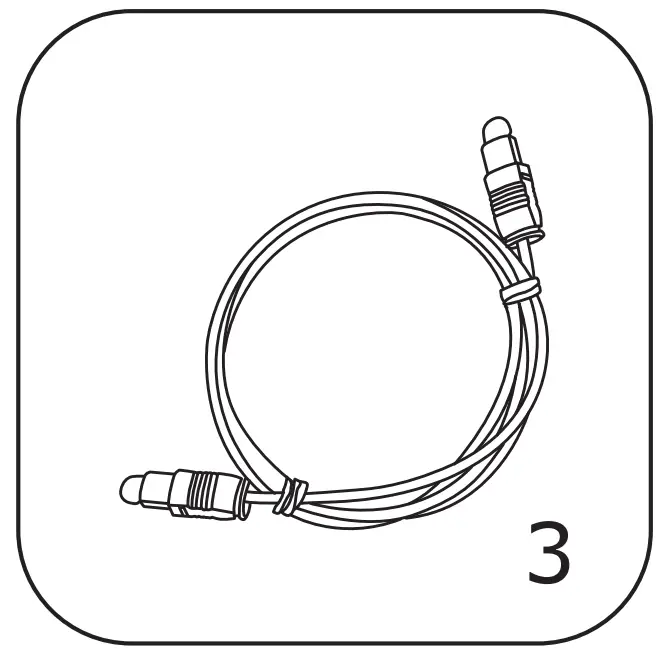

3. Optical cable

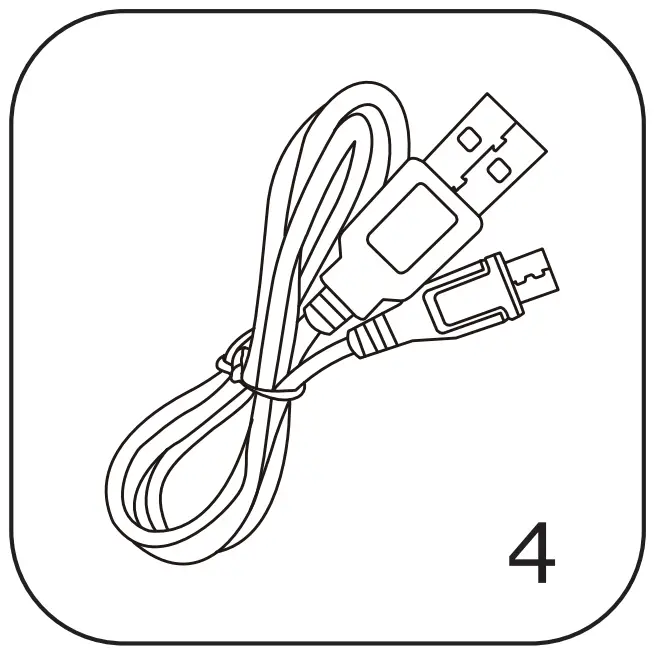

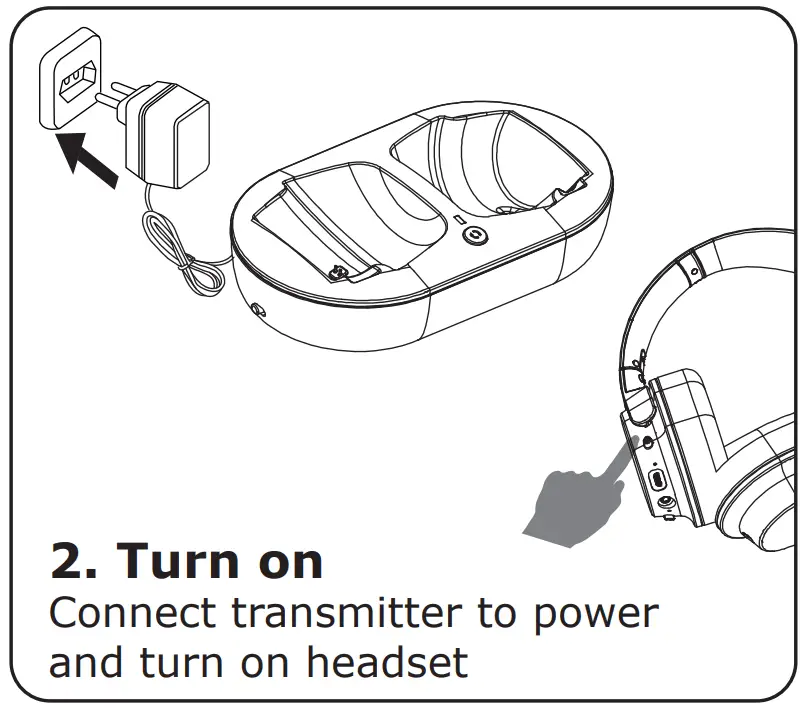

4. Charging adapter

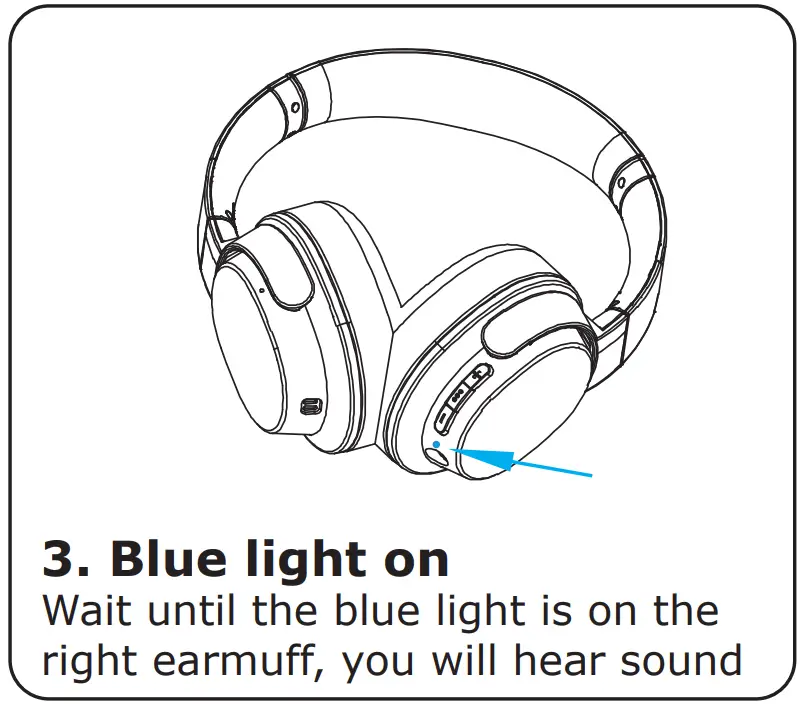

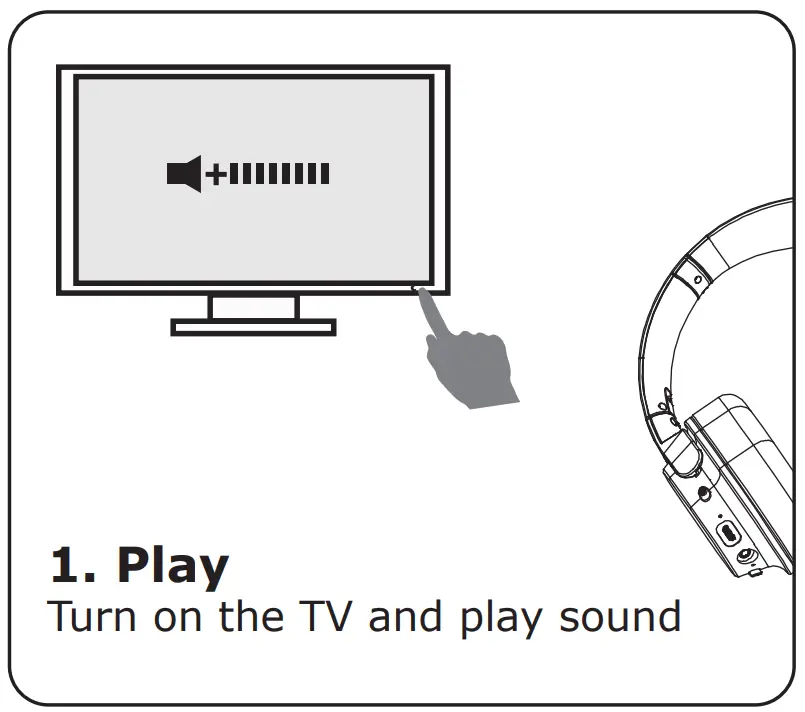

You need to use after hookup:

If no sound, please check the TV setting, refer to “3.TV SETTING”

NOTES

1. Please remember to remove the plastic caps on the optical cable.
2. Please make sure the optical cable connects correctly with your TV, otherwise may get static or no sound. (Don’t tie it up and fold it at90 degrees, since Optical cable is made of glass and plastic.)
3. MUST set TV audio to “PCM” with optical audio out. (IMPORTANT!)

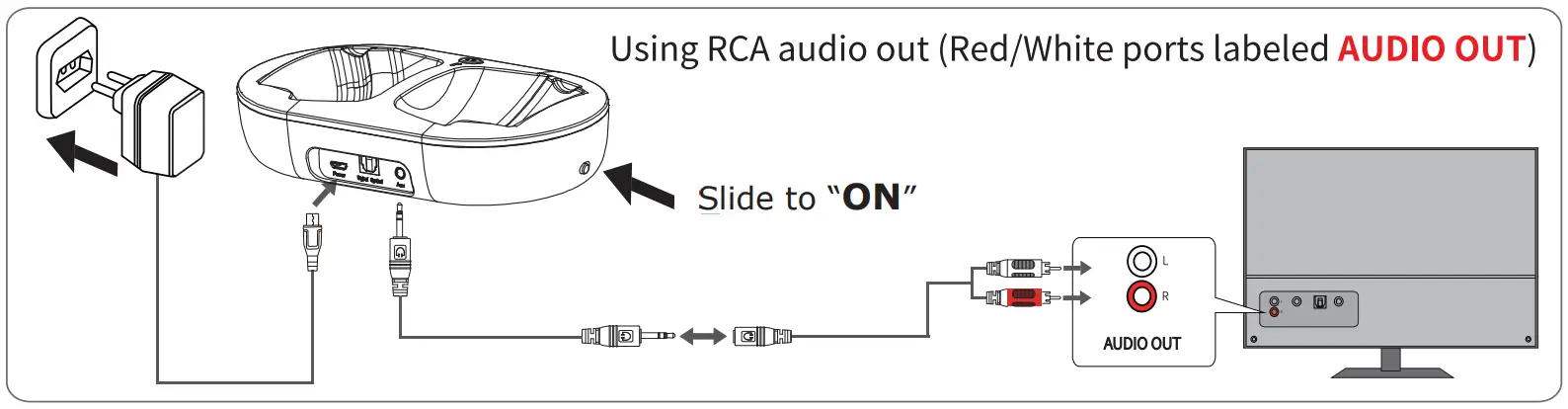

Using RCA audio out (Red/White ports labeled “AUDIO OUT”)

You need:

1. Headphone

2. Transmitter

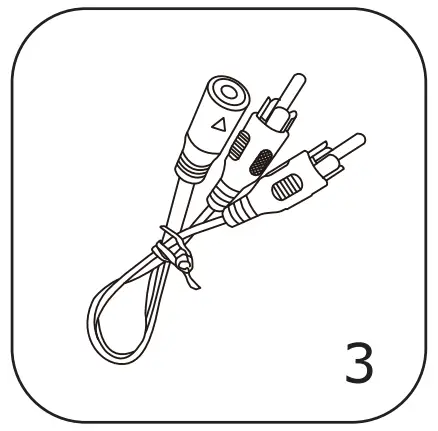

3. RCA cable

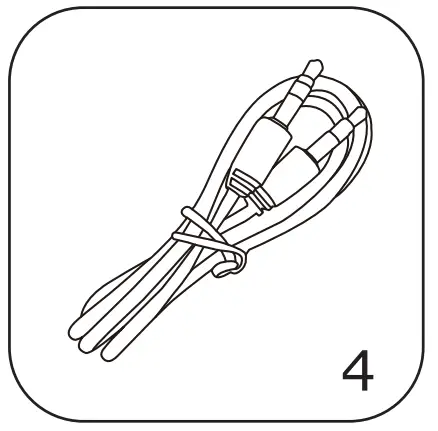

4. 3.5mm/AUX cable

5. Charging adapter

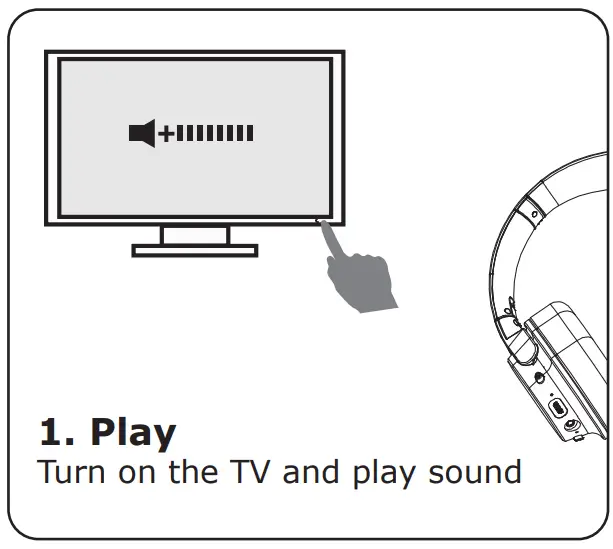

You need to use after hookup:

If no sound, please check the TV setting, refer to “3.TV SETTING”

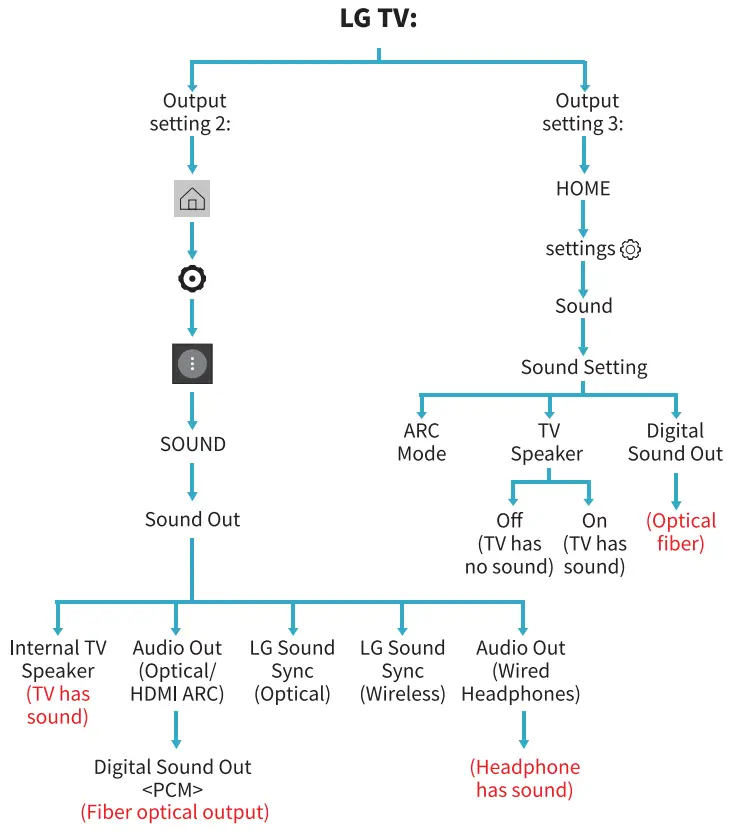

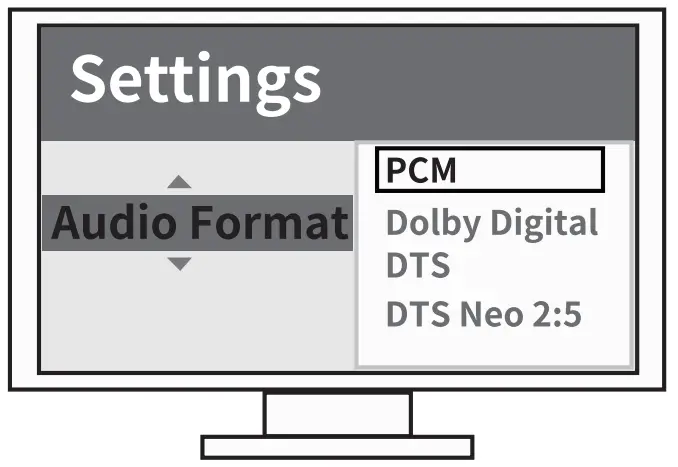

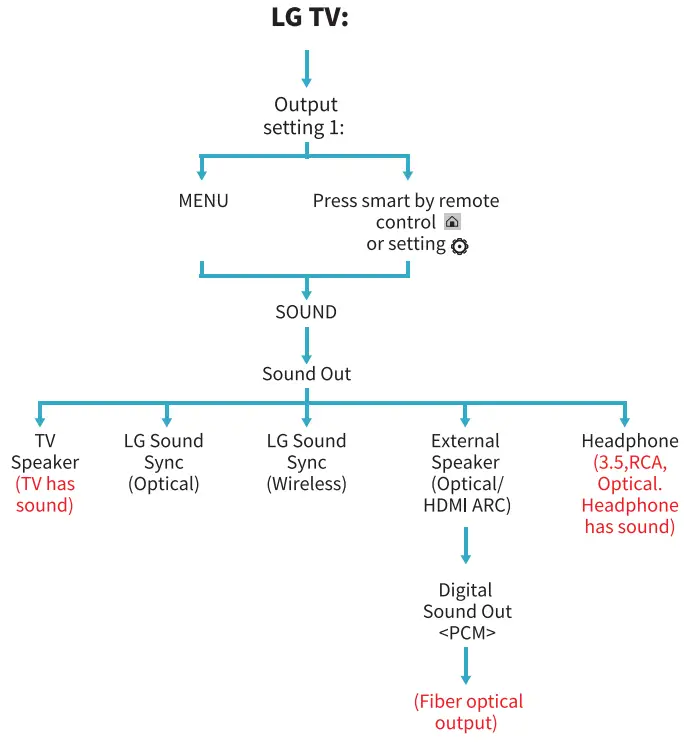

TV SETTING

You can also google “ansten k1 to tv” in top 3th page to see video installation
