FULHAM VKMUNV008RD Universal Voltage (120-277V) DC Engine Retrofit Kit Instruction Manual
FULHAM VKMUNV008RD Universal Voltage (120-277V) DC Engine Retrofit Kit

INSTALLATION WARNINGS

  1. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND HAZARDS INVOLVED.”
  2. WARNING: Risk of fire or electric shock. LED Retrofit kit installation requires knowledge of luminaires electrical systems. If not qualified, do not attempt installation. Contact a qualified electrician.”
  3. WARNING: Risk of fire or electric shock. Install this kit only in the luminaires that has the construction features and dimensions shown in the photographs and/or drawings.”
  4. WARNING: To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or other sharp objects.”
  5. WARNING: Risk of fire or electric shock. Luminaire wiring and electrical parts may be damaged when drilling for installation of LED retrofit kit. Check for enclosed wiring and components.”
  6. CAUTION: RISK OF FIRE. CONSULT A QUALIFIED ELECTRICIAN TO ENSURE CORRECT BRANCH CIRCUIT CONDUCTOR.”
  7. THE RETROFIT KIT IS ACCEPTED AS A COMPONENT OF A LUMINAIRE WHERE THE SUITABILITY OF THE COMBINATION SHALL BE DETERMINED BY THE AUTHORITIES HAVING JURISDICTION.”
  8. Do not make or alter any open holes in an enclosure of wiring or electrical components during kit installation.

ORIGINAL LUMINAIRE DIMENSIONS

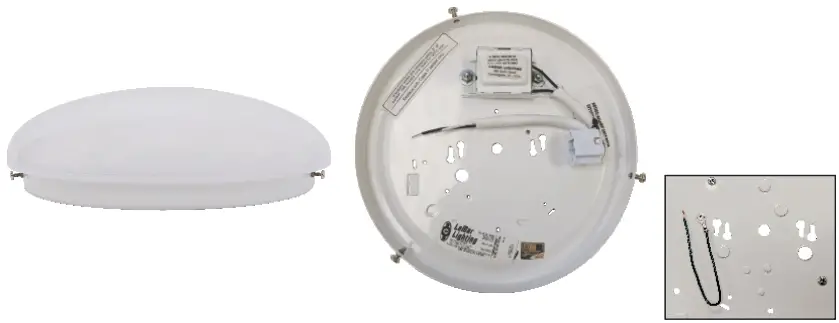

Original Luminaire
(Mfr:
Lamar Lighting – Model: CDW11311PN1SW
Dimensions

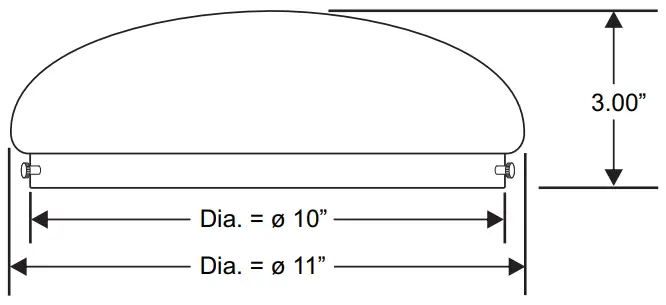

Minimum Luminaire Dimensions
Dimensions

  • Remove all the original luminaire parts, hardware, lamp, and ballast in order to begin the retrofit.
  • Original luminaire diffuser and original ground wire will need to be kept for this retrofit.
  • This DC Engine Kit can be retrofitted into any surface wall or ceiling luminaire with a similar shape and diameter/height greater or equal to the minimum dimensions described above, or volume greater or equal to 195.28 cubic inches.

RETROFIT KIT COMPONENTS

Retrofit kit components will be provided as listed below:

UNV DC EngineMounting Hardware Input Power ConnectorRetrofit Labels
ComponentsComponentsComponentsComponents

RECOMMENDED TOOLS (Not Included)

  • Power Drill W/ Philips Bit
    Tools Recommended
RETROFIT KIT DESCRIPTION

Description
Description
Description

ITEMDESCRIPTIONQTY

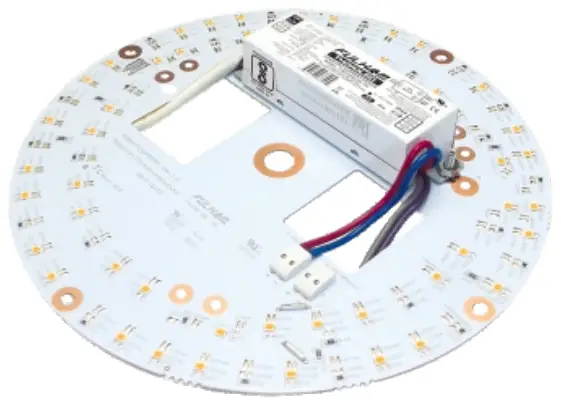

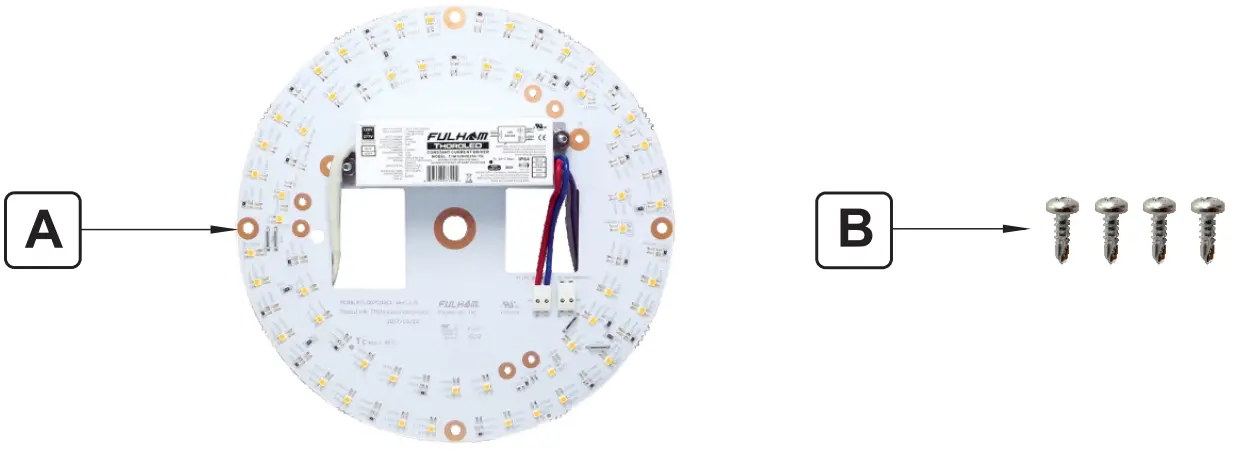

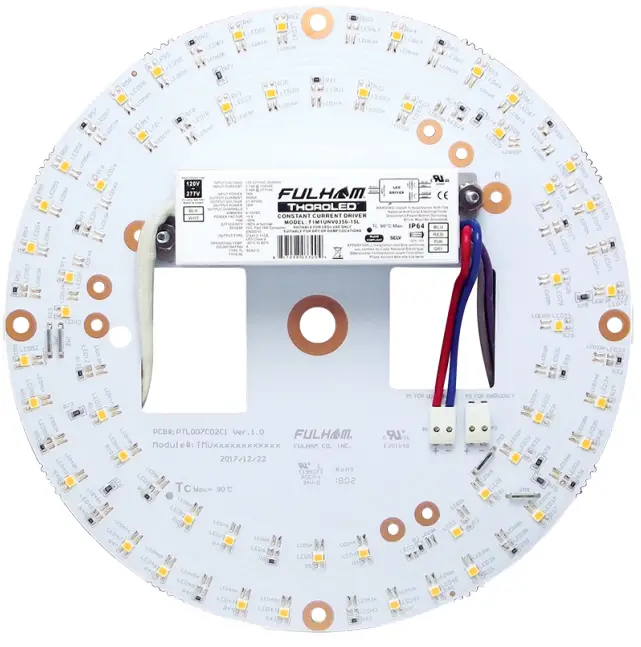

A.DC Engine1
B.6-20 X 3/8” Pan Head Self Drilling Screws4

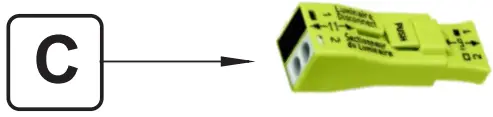

C.Input Connector1
D.Retrofit Labels3

RETROFIT KIT ASSEMBLY

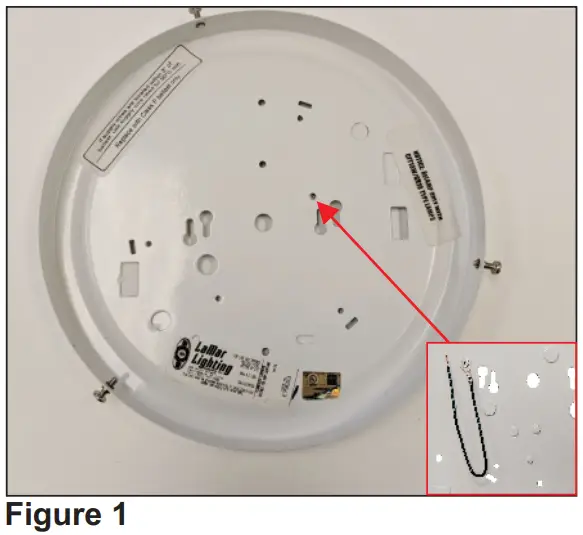

  1. Start by removing the original lamp, ballast and socket from the luminaire see Figure 1.
    Kit Assembly

    NOTE: The original luminaire ground wire will need to be kept for this retrofit.

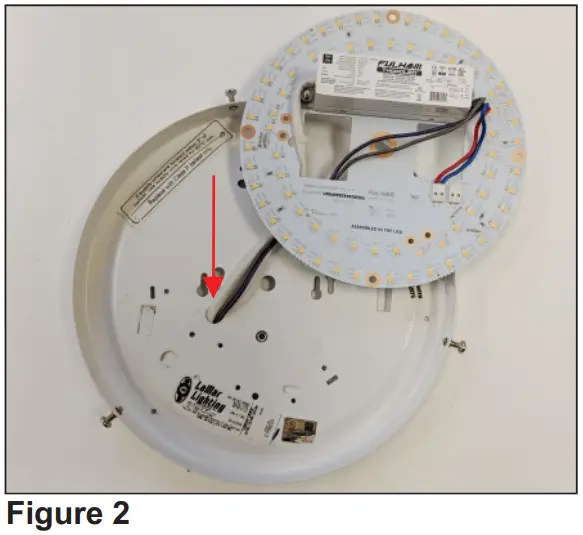

  2. Pass the DC Engine (A) input power wires and dimming wires (if available) through the luminaire wire hole. See Figure 2.
    Kit Assembly

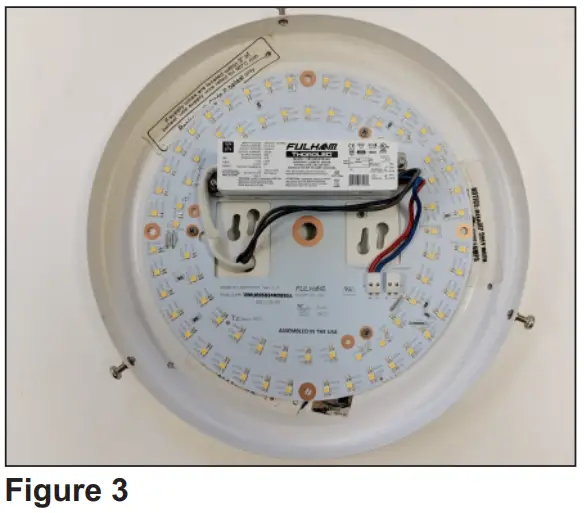

  3. Place the DC Engine into the luminaire housing as shown in Figure 3.
    Kit Assembly

    NOTE: LED Engine must make direct contact with the back plate when installed in order to provide sufficient heat sinking
    to properly manage thermals for safety and warranty purposes.

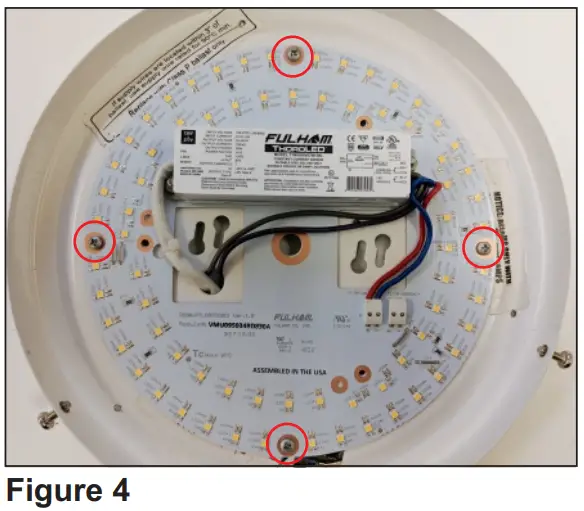

  4. Use the supplied self-drilling screws (B) to attach the DC Engine (A) to the luminaires housing. See Figure 4.
    Kit Assembly
  5. Place the provided labels in the outer space of the luminaire after the DC Engine installation has been completed.
    Labels must be clearly visible and should not be obscured by line voltage cables. See Figure 5.

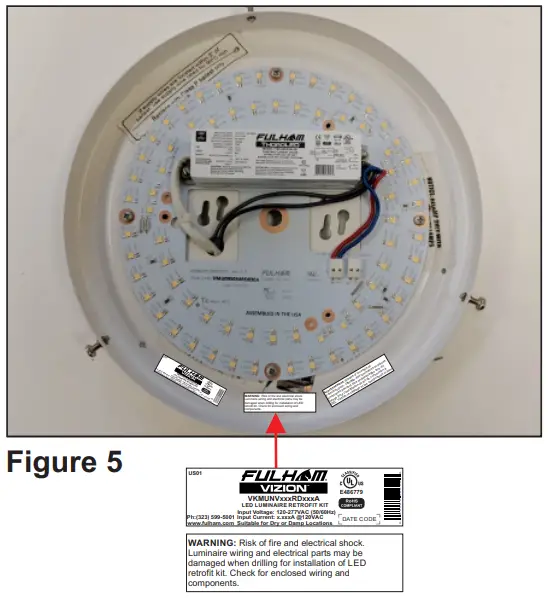

  6. Completed assembly should look like Figure 5
    Kit Assembly
  7. Luminaire is now ready to be installed.
    Please see below for instructions on connecting line voltage to the luminaire.
    Re-attach and secure the lens once installation is completed, retrofit should look like Figure 6.
    Kit Assembly

Connecting Power to the DC Engine:

  1. Connect the green wire (Ground) from the luminaire to the Ground that is being fed by the power source.
    Connect these two wires by using a wire connector with a minimum 18AWG rating.
  2. Connect the white wire (Neutral) from the LED Engine to the Neutral being fed by the power source.
    Connect these two wires by using a wire connector with a minimum 18AWG rating.
  3. Connect the Black wire (Line) from LED Engine to the Line being fed by the power source.
    Connect these two wires by using a wire connector with a minimum 18AWG rating.

WARRANTY

  • Please refer to LED Engine kit spec sheet for warranty information

CUSTOMER SUPPORT

Fulham Co. Inc.: 12705 South Van Ness Ave., Hawthorne, CA 90250
Telephone: 1-323-779-2980
Fax: 1-323-754-9060
Email: [email protected]
Website: www.fulham.com
Installation Instructions subject to change without notice.
